Feature Codes Module Documentation

Module Overview (Technical)
Module Overview (Commercial/Business)
Module Overview (End User/Administrator)
Configuration Fields Reference
Feature Categories Reference
Common Scenarios & Examples
Limitations & Important Notes
Troubleshooting Tips
Glossary
Suggested UI Improvements

---

1. Module Overview (Technical)

What Are Feature Codes?

Feature Codes are dial-activated shortcuts that trigger specific telephony features. When a user dials a code like 67 (anonymous calling) or 72 (call forward), the PBX executes the corresponding feature logic.

Architecture

Plaintext

┌─────────────────────────────────────────────────────────────────┐
│                    Feature Codes System                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  User dials: *72 (Call Forward All)                             │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Dialplan Feature Code Lookup                │   │
│  │  SELECT * FROM feature_codes                             │   │
│  │  WHERE (custom_number = '*72' OR default_number = '*72') │   │
│  │    AND enabled = true                                    │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Execute Feature Handler                     │   │
│  │                                                          │   │
│  │  ├─ call_forward_all → prompt for destination           │   │
│  │  ├─ dnd_toggle → toggle DND status in database          │   │
│  │  ├─ agent_login → log agent into queue                  │   │
│  │  ├─ voicemail_access → transfer to voicemail            │   │
│  │  └─ etc.                                                │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  Play confirmation tone or prompt → Hangup                      │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Key Tables

Table	Purpose
`public.feature_codes`	Code definitions (default_number, custom_number, enabled)
`public.feature_categories`	Category groupings

Key Files

File	Description
`admin/apps/web/src/modules/featureCodes/`	Frontend module
`admin/apps/web/src/i18n/en/featureCodes.json`	English translations
`telephony/freeswitch/conf/dialplan/default/`	Feature code dialplan entries

---

2. Module Overview (Commercial/Business)

Business Value

Feature Codes provide standardized telephony shortcuts:

Benefit	Description
Industry Standard	Uses familiar codes (67, 72, etc.)
User Empowerment	Users control their own settings
No Training Needed	Many codes are universal
Customizable	Override default codes per organization

Key Categories

Category	Example Features
Call Forwarding	Forward all, forward busy, DND
Call Center	Agent login/logout, queue toggle
Spy Modes	Listen, whisper, barge
Business Services	Wakeup call, hotdesking, paging
Recordings	Voicemail access, custom recording
Test Services	Echo test, time announcement

---

3. Module Overview (End User/Administrator)

What Can You Do?

Enable/disable feature codes globally
Customize dial codes (change 67 to 777 if needed)

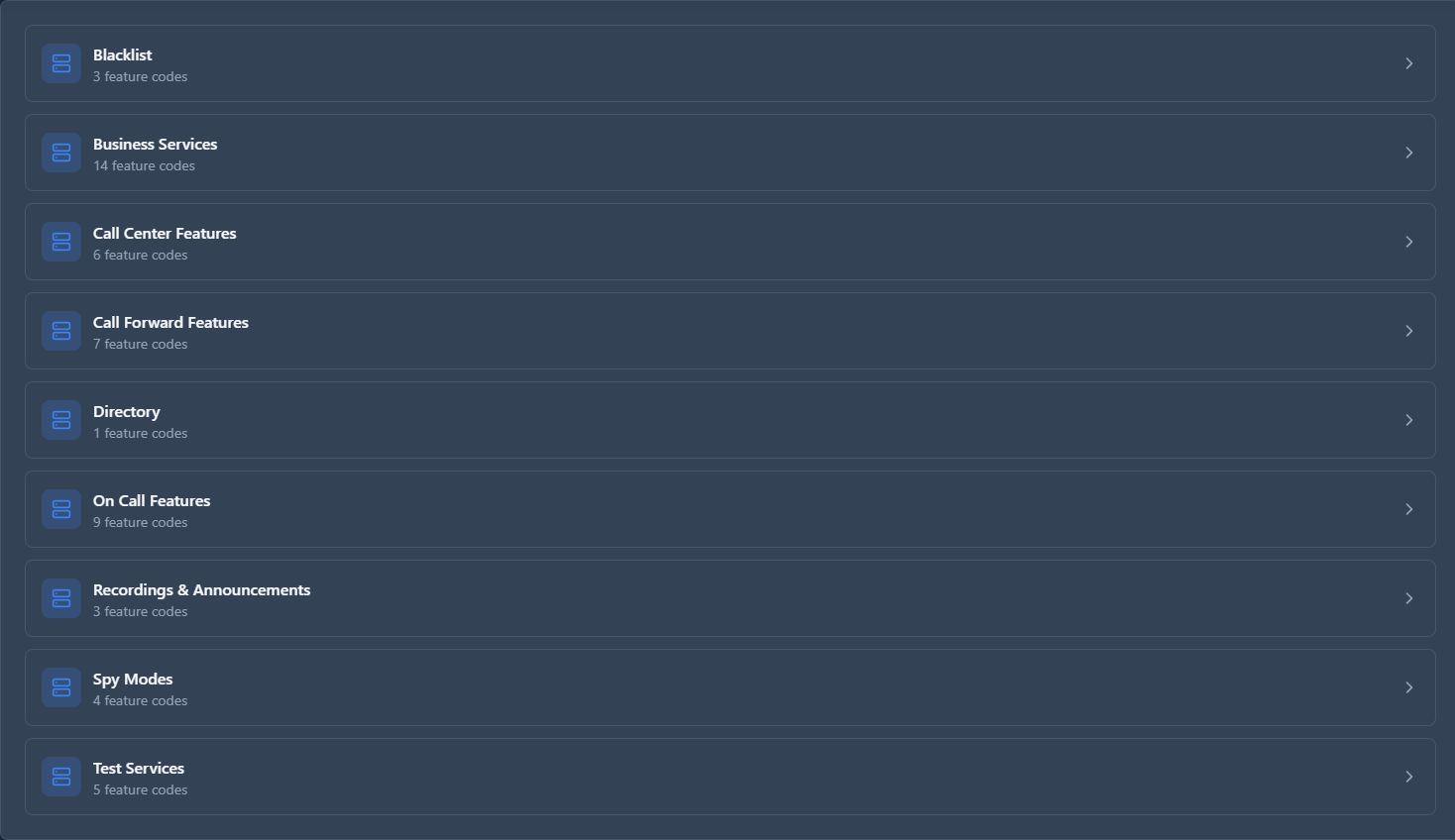

View all available features by category
Search for specific features

Administrator Workflow

Plaintext

┌─────────────────────────────────────────────────────────────────┐
│                 Managing Feature Codes                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  1. Select Category                                             │
│     └─ Call Forwarding                                         │
│                                                                 │
│  2. View Feature Codes in Category                              │
│     ├─ Toggle No Answer Forwarding (*92) [✓ Enabled]           │
│     ├─ Toggle DND (*76) [✓ Enabled]                            │
│     ├─ Toggle Follow Me (*21) [✗ Disabled]                     │
│     └─ Clear All Settings (*73) [✓ Enabled]                    │
│                                                                 │
│  3. Customize a Code                                            │
│     ├─ Feature: Toggle DND                                     │
│     ├─ Default: *76                                            │
│     └─ Custom: *77 (override to use *77 instead)               │
│                                                                 │
│  4. Save Changes                                                │
│     └─ Users can now dial *77 to toggle DND                    │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

TIP

Leave Custom Blank: If you want the default code, leave the custom number field empty.

TIP

Disable Unused Features: Disable codes you don't want users to access.

CAUTION

Code Conflicts: Custom codes must not conflict with extensions or other feature codes.

---

4. Configuration Fields Reference

Feature Code Fields

Field	Description	Example
Feature Code	Name of the feature	Toggle DND
Default Number	Standard dial code	76
Custom Number	Override code	77 (leave blank for default)
Description	What the feature does	Toggle Do Not Disturb on/off
Enabled	Whether users can use it	On/Off

Category	Description
Blacklist	Block/unblock callers
Business Services	Wakeup, reminders, hotdesking
Call Center Features	Agent login, queue management
Call Forwarding	Forward calls, DND
Call Forward Features	Set/cancel forwarding destinations
On Call Features	Transfer, pickup, recording
Call Park Features	Park and retrieve calls
Do Not Disturb	DND toggle and cancel
Directory	Dial-by-name directory
Recordings & Announcements	Voicemail access, custom recordings
Spy Modes	Listen, whisper, barge
Test Services	Echo, time, volume tests

---

5. Feature Categories Reference

Blacklist

Feature	Default Code	Description
Add to Blacklist	30	Add a number to blocked callers list
Remove from Blacklist	31	Remove a number from blocked list
Blacklist Last Caller	32	Block the last person who called you

Business Services

Feature	Default Code	Description
Wakeup Call (Self)	68	Schedule a wakeup call to your extension
Remote Wakeup	69	Schedule wakeup call to another extension
Lock/Unlock Phone	55	Secure your extension with PIN
Hotdesking Login/Logout	80	Login to a shared phone
Anonymous Calling	67	Hide your caller ID
Paging	8	Page a group of extensions

Call Center Features

Feature	Default Code	Description
Queue Toggle	50	Join/leave a specific queue
Queue Pause Toggle	51	Pause/resume in a queue
Global Queue Toggle	52	Join/leave all queues
Global Pause Toggle	53	Pause/resume in all queues
Agent Login	54	Log into the call center
Agent Logout	55	Log out of the call center
Agent Status	59	Hear your current status

Call Forwarding

Feature	Default Code	Description
Toggle No Answer	92	Enable/disable forward on no answer
Set No Answer Dest	93	Set destination for no answer
Toggle DND	76	Enable/disable Do Not Disturb
Toggle Follow Me	21	Enable/disable Follow Me
Clear All Settings	73	Reset all forwarding settings
Time Condition Toggle	99	Override time-based routing

Call Forward Set/Cancel

Feature	Default Code	Description
Call Forward All	72	Forward all calls to a number
Call Forward All Cancel	73	Cancel forward all
Call Forward Busy	90	Forward when busy
Call Forward Busy Cancel	91	Cancel forward busy
Call Forward No Answer	92	Forward on no answer
Call Forward No Answer Cancel	93	Cancel forward no answer

On Call Features

Feature	Default Code	Description
Attended Transfer	2	Transfer with consultation
Blind Transfer	##	Transfer without consultation
Direct Pickup		Answer a specific ringing phone
Group Pickup	8	Answer any ringing phone in your group
One-Touch Recording	1	Start/stop recording current call
Pause Outbound Recording	0	Pause recording on outbound call
Park Call	70	Park the current call

Call Park Features

Feature	Default Code	Description
Call Park	70	Park call in a parking lot
Call Park Retrieve	71	Retrieve a parked call

Do Not Disturb

Feature	Default Code	Description
DND Toggle	78	Enable Do Not Disturb
DND Cancel	79	Disable Do Not Disturb

Feature	Default Code	Description
Dial by Name	411	Search and dial by name
Directory Search	411	Same as dial by name

Recordings & Announcements

Feature	Default Code	Description
Custom Recording	732	Record a custom announcement
Direct Voicemail	97	Access your voicemail
Remote Voicemail	98	Access voicemail from external phone

Spy Modes

Feature	Default Code	Description
Spy (Normal)	33	Listen to a call silently
Spy (Whisper)	34	Listen and speak to one party
Spy (Barge)	35	Join the call as third party
Spy (Random)	36	Listen to a random active call

Test Services

Feature	Default Code	Description
Speak Date/Time	60	Hear current date and time
Speak Extension	65	Hear your extension number
Echo Test	9196	Test audio (echo back your voice)
Simulate Incoming Call	9197	Test your phone ringing
Test Music on Hold	9664	Hear MOH audio
Volume Test	9198	Test speaker volume

---

6. Common Scenarios & Examples

Scenario 1: Disable Spy Features

Problem: Don't want supervisors to spy on calls.

Solution:

Go to Feature Codes → Spy Modes

Disable all spy mode codes

Save

Result: Spy codes no longer work.

Scenario 2: Change DND Code

Problem: Company standard uses 77 for DND, not 76.

Solution:

Go to Feature Codes → Do Not Disturb

Find "DND Toggle"

Enter 77 in Custom Number field

Save

Result: Users dial 77 to toggle DND.

Scenario 3: Restrict Forwarding

Problem: Prevent users from forwarding calls externally.

Solution:

Code Range	Typical Use
67	Anonymous calling (industry standard)
69	Call return
72/73	Call forwarding (industry standard)
78/79	DND (industry standard)
911	Emergency (never override)

Symptom	Possible Cause	Solution
Code not working	Feature disabled	Enable the feature code
Wrong feature triggers	Custom code conflict	Check for duplicate codes
Feature not available	Category disabled	Enable the category
"Number not found"	Code not in dialplan	Check domain selection

Term	Definition
Feature Code	A dial code that activates a specific telephony feature
Default Number	The standard code assigned to a feature
Custom Number	An override code for a specific organization
DND	Do Not Disturb—sends all calls to voicemail
Follow Me	Rings multiple numbers sequentially
Call Forward All	Redirects all calls to another number
Call Park	Places call on hold in a "parking lot" for retrieval
Spy Mode	Supervisor feature to listen to active calls
Whisper	Spy mode where supervisor can speak to agent only
Barge	Spy mode where supervisor joins as third party
Agent Login	Call center agent becomes available for calls
Queue Toggle	Join or leave a specific call queue

Field	Suggested Addition
customNumber	Add real-time conflict detection
category	Show feature count badge

Go to Feature Codes → Call Forwarding

Disable "Call Forward All" (72)

Keep "Toggle No Answer" enabled (internal only)

Save

Result: Users can't forward all calls but can set no-answer forwarding.

---

7. Limitations & Important Notes

Technical Limitations

WARNING
Custom Number Conflicts: Custom codes must not conflict with extensions, other feature codes, or emergency numbers.

WARNING
Domain Specific: Feature codes can be configured per domain—changes only affect selected domain.

Best Practices

Document Changes: Note why you changed default codes

Train Users: Inform users of any custom codes

Disable Unused: Reduce confusion by disabling features not in use

Test After Changes: Verify codes work as expected

Reserved Code Ranges

Some codes are standard across telephony systems:

Code Range Typical Use
67 Anonymous calling (industry standard)
69 Call return
72/73 Call forwarding (industry standard)
78/79 DND (industry standard)
911 Emergency (never override)
---
8. Troubleshooting Tips

Common Issues

Symptom Possible Cause Solution
Code not working Feature disabled Enable the feature code
Wrong feature triggers Custom code conflict Check for duplicate codes
Feature not available Category disabled Enable the category
"Number not found" Code not in dialplan Check domain selection
Diagnostic SQL

List all feature codes:

Sql
SELECT fc.name, fc.default_number, fc.custom_number, fc.enabled, cat.name as category FROM public.feature_codes fc JOIN public.feature_categories cat ON fc.category_id = cat.id WHERE fc.domain_id = [domain_id] ORDER BY cat.name, fc.name;

Find code conflicts:

Sql
SELECT COALESCE(fc.custom_number, fc.default_number) as active_code, fc.name, COUNT(*) as count FROM public.feature_codes fc WHERE fc.domain_id = [domain_id] AND fc.enabled = true GROUP BY active_code, fc.name HAVING COUNT(*) > 1;

---

9. Glossary

Term Definition
Feature Code A dial code that activates a specific telephony feature
Default Number The standard code assigned to a feature
Custom Number An override code for a specific organization
DND Do Not Disturb—sends all calls to voicemail
Follow Me Rings multiple numbers sequentially
Call Forward All Redirects all calls to another number
Call Park Places call on hold in a "parking lot" for retrieval
Spy Mode Supervisor feature to listen to active calls
Whisper Spy mode where supervisor can speak to agent only
Barge Spy mode where supervisor joins as third party
Agent Login Call center agent becomes available for calls
Queue Toggle Join or leave a specific call queue
---
10. Suggested UI Improvements

The existing i18n is comprehensive. Minor enhancements:

Field Suggested Addition
customNumber Add real-time conflict detection
category Show feature count badge
UX Enhancements

Conflict Detection: Real-time warning when custom code conflicts with existing codes

Quick Enable/Disable by Category: Toggle button to enable/disable all codes in a category

Export/Import: Export feature code configuration for backup or migration

User Documentation: Generate a PDF of active feature codes for user distribution

Usage Stats: Show how often each feature code is dialed

Current	Suggested
Plain list	Category tabs with icons
Simple toggle	Color-coded status badges
Text search	Filter by category + search

Component	Status	Notes
Feature Codes	ℹ️ Configuration module	Codes parsed by core dialplan router

Visual Improvements

Current Suggested
Plain list Category tabs with icons
Simple toggle Color-coded status badges
Text search Filter by category + search
---

Lua Script Status ℹ️

Integration Module

Component Status Notes
Feature Codes ℹ️ Configuration module Codes parsed by core dialplan router
---

Documentation last updated: January 2026*

Feature Codes Module Documentation

Table of Contents

1. Module Overview (Technical)

What Are Feature Codes?

Architecture

Key Tables

Key Files

2. Module Overview (Commercial/Business)

Business Value

Key Categories

3. Module Overview (End User/Administrator)

What Can You Do?

Administrator Workflow

Quick Tips

4. Configuration Fields Reference

Feature Code Fields

Category List

5. Feature Categories Reference

Blacklist

Business Services

Call Center Features

Call Forwarding

Call Forward Set/Cancel

On Call Features

Call Park Features

Do Not Disturb

Directory

Recordings & Announcements

Spy Modes

Test Services

6. Common Scenarios & Examples

Scenario 1: Disable Spy Features

Scenario 2: Change DND Code

Scenario 3: Restrict Forwarding

7. Limitations & Important Notes

Technical Limitations

Best Practices

Reserved Code Ranges

8. Troubleshooting Tips

Common Issues

Diagnostic SQL

9. Glossary

10. Suggested UI Improvements

The existing i18n is comprehensive. Minor enhancements:

UX Enhancements

Visual Improvements

Lua Script Status ℹ️

Integration Module
