🏗️ Distributed Deployment Overview

Enterprise-grade multi-server deployment for maximum scalability and high availability

---

📋 Introduction

For enterprise environments, Ring2All PBX can be deployed across multiple servers to achieve:

Goal	Solution
High Availability	No single point of failure
Horizontal Scaling	Add servers as capacity grows
Performance Isolation	Separate workloads across servers
Disaster Recovery	Data replication across nodes

---

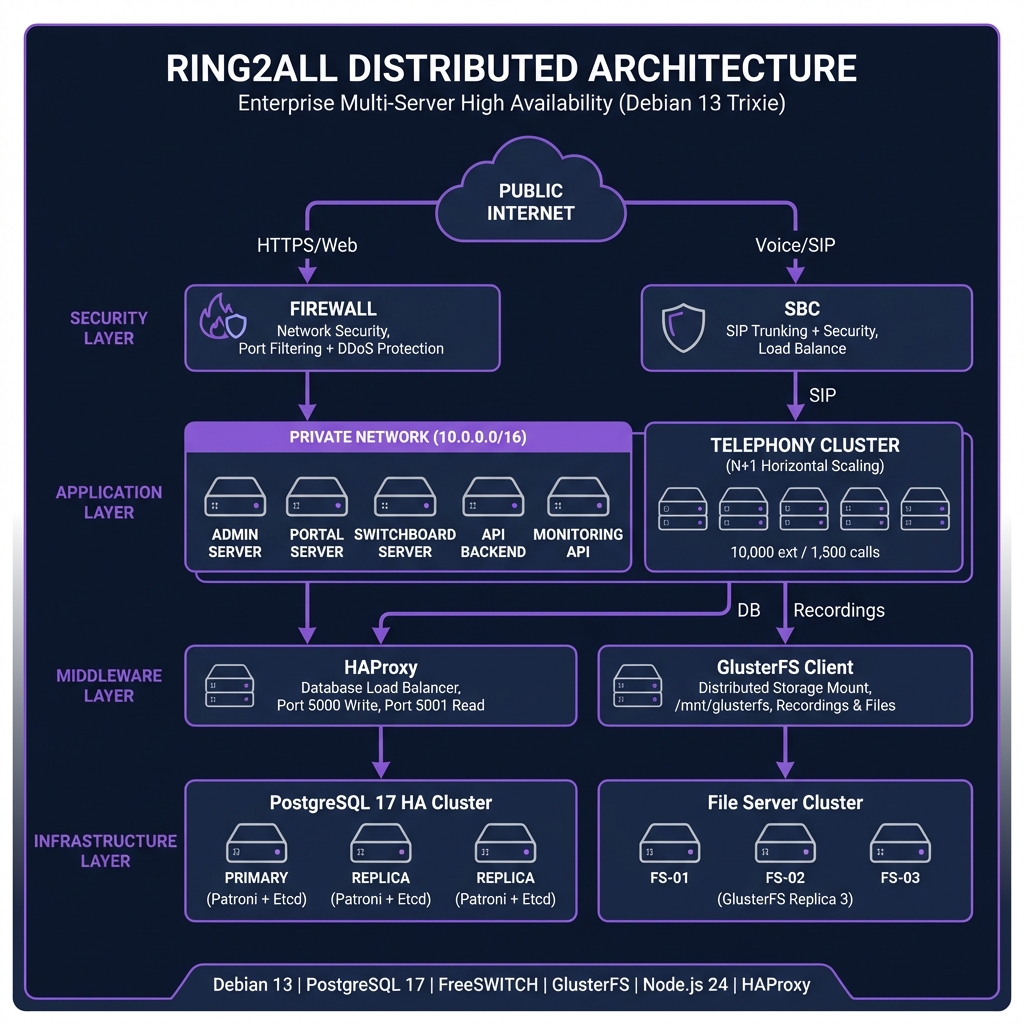

🏛️ Architecture Diagram

---

📊 Server Roles & Requirements

Infrastructure Servers

Role	Hostname	IP (Example)	vCPU	RAM	Storage	Packages
Database Node 1	pg-node-01	192.168.10.31	4	16GB	500GB SSD	PostgreSQL 17 + Patroni + Etcd
Database Node 2	pg-node-02	192.168.10.32	4	16GB	500GB SSD	PostgreSQL 17 + Patroni + Etcd
Database Node 3	pg-node-03	192.168.10.33	4	16GB	500GB SSD	PostgreSQL 17 + Patroni + Etcd
File Server 1	fs-node-01	192.168.10.34	2	4GB	1TB+ HDD/SSD	GlusterFS Server
File Server 2	fs-node-02	192.168.10.35	2	4GB	1TB+ HDD/SSD	GlusterFS Server
File Server 3	fs-node-03	192.168.10.36	2	4GB	1TB+ HDD/SSD	GlusterFS Server

Application Servers

Role	Hostname	IP (Example)	vCPU	RAM	Storage	Packages
Admin	admin-node-01	192.168.10.10	4	8GB	50GB	`softswitch-admin`
Portal	portal-node-01	192.168.10.20	2	2GB	20GB	`softswitch-portal`
Switchboard	switch-node-01	192.168.10.30	2	2GB	20GB	`softswitch-switchboard`
API	api-node-01	192.168.10.40	4	8GB	50GB	`softswitch-api`

Telephony Servers (N+1)

Role	Hostname	IP (Example)	vCPU	RAM	Storage	Capacity
Telephony 1	tele-node-01	192.168.10.51	4-16	8-32GB	100GB	10,000 ext / 1,500 calls
Telephony 2	tele-node-02	192.168.10.52	4-16	8-32GB	100GB	10,000 ext / 1,500 calls
Telephony N	tele-node-N	192.168.10.5N	4-16	8-32GB	100GB	10,000 ext / 1,500 calls

---

📈 Scaling Reference

Telephony Horizontal Scaling

Servers	Total Extensions	Concurrent Calls	Use Case
1	10,000	1,500	Medium Enterprise
2	20,000	3,000	Large Enterprise
3	30,000	4,500	Enterprise+
5	50,000	7,500	Service Provider
10	100,000	15,000	Carrier Grade
20+	200,000+	30,000+	Large Carrier

> 💡 Key Insight: Each telephony server is independent and connects to the shared database cluster. Add servers as capacity grows without reconfiguration.

---

🔄 High Availability Features

Database Cluster (PostgreSQL + Patroni)

Feature	Description
Automatic Failover	If primary fails, replica promotes in <30 seconds
Streaming Replication	Real-time data sync (RPO ≈ 0)
Consensus (Etcd)	Distributed leader election
Self-Healing	Automatic replica recovery

File Server Cluster (GlusterFS)

Feature	Description
Replica 3	Every file stored on 3 nodes
Self-Healing	Automatic sync after node recovery
Active-Active	All nodes serve traffic
Client Failover	Automatic redirection if node fails

Application Layer

Feature	Description
Stateless Design	Any API server can handle any request
Load Balancing	HAProxy distributes traffic
Health Checks	Automatic removal of failed nodes

---

📖 Installation Order

Follow these guides in sequence:

Step	Guide	Description
1	📖 PostgreSQL HA Cluster	Database with automatic failover
2	📖 File Server Cluster	Distributed storage (or NAS setup)
3	📖 Admin Server	Web dashboard and API
4	📖 Portal Server	User self-service portal
5	📖 Switchboard Server	Operator console
6	📖 Telephony Server(s)	FreeSWITCH nodes (N+1)
7	📖 HAProxy Setup	Load balancing configuration

---

🔗 Network Requirements

Internal Network

Port	Protocol	Service	Between
5432	TCP	PostgreSQL	DB ↔ App/Tele servers
8008	TCP	Patroni API	DB nodes ↔ HAProxy
2379/2380	TCP	Etcd	DB nodes
24007-24008	TCP	GlusterFS Daemon	FS nodes
49152-49251	TCP	GlusterFS Bricks	FS nodes ↔ Clients

External Network

Port	Protocol	Service
80/443	TCP	HTTP/HTTPS (Web UI)
5060	UDP/TCP	SIP Signaling
5061	TCP	SIP TLS
16384-32768	UDP	RTP Media

---

🚀 Quick Start Checklist

[ ] Network: Private network configured between all servers
[ ] DNS/Hosts: All servers can resolve each other by hostname
[ ] Firewall: Required ports open between servers
[ ] Storage: Dedicated disks for databases and recordings
[ ] OS: Debian 13 installed on all servers

---

Next: 1. PostgreSQL HA Cluster Setup
