Appearance & Theming Engine

📖 Introduction

Call center operators and dispatchers often spend 8 to 12 hours a day monitoring Switchboard screens. The Appearance module provides an ergonomic, customizable styling engine engineered to reduce eye strain, maximize readability under varying ambient lighting conditions, and deliver a sleek, state-of-the-art aesthetic.

Administrators can configure system-wide visual presets, while individual users can override themes to match their personal lighting preferences.

---

🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
PBX / Switchboard Operator	Active Call Dispatching	Select specialized dark variants (Navy, Mint, Jet Black) and high-contrast color swatches to monitor live extensions without visual fatigue.
Call Center Supervisor	Console Oversight	Standardize console styling or audit operator ergonomic themes across monitoring workstations.
Telephony Administrator	Enterprise Visual Governance	Define corporate branding tokens that serve as the default Corporate Brand preset for all operator cockpits.

---

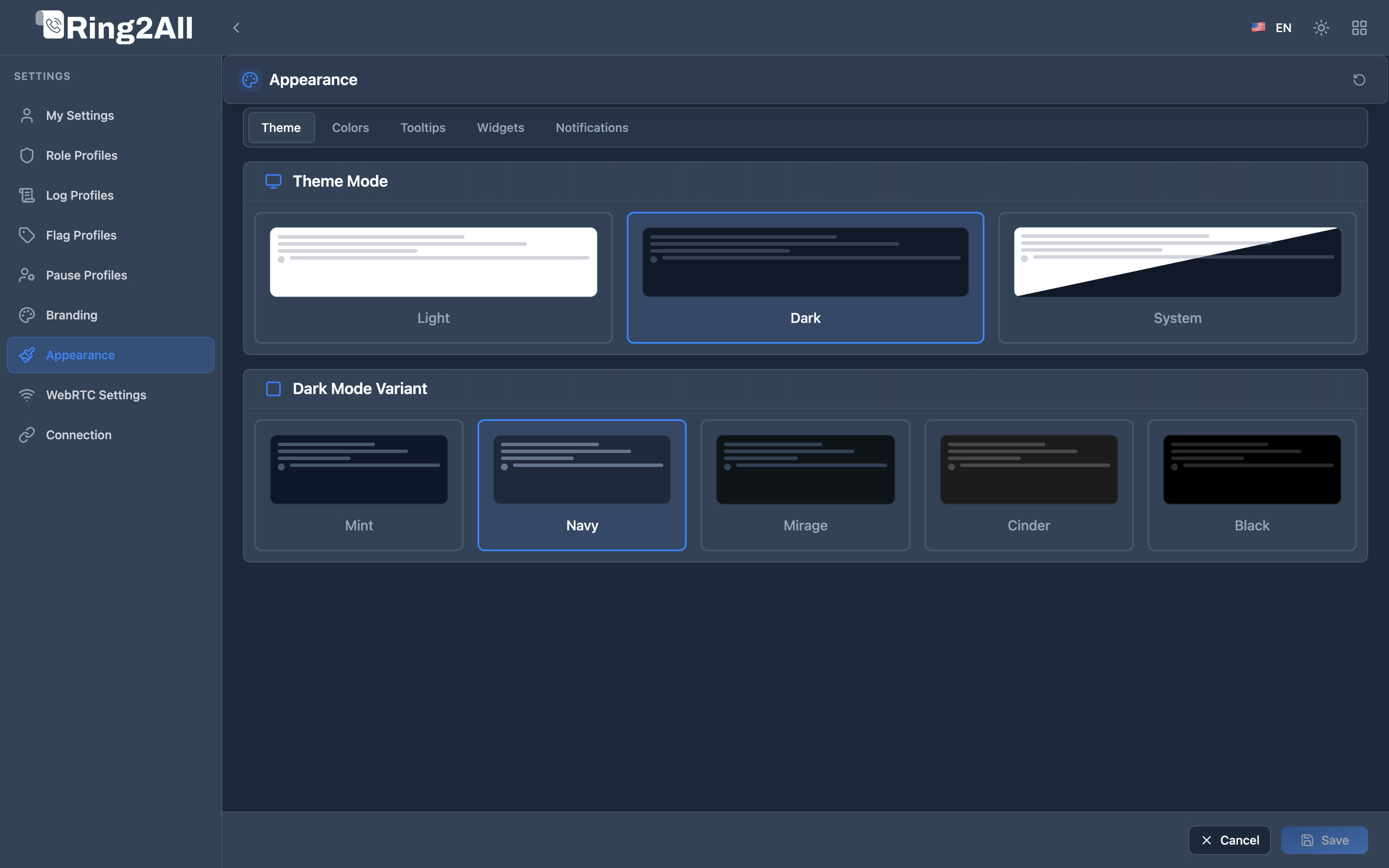

🌓 Theme Modes & Palette Variants

The theming engine supports three top-level display modes: Dark Mode, Light Mode, and System Auto (which follows OS-level dark/light switching).

Dark Mode Variants

Because one dark theme does not fit all display types (OLED vs IPS vs low-glare TN), Switchboard includes tailored dark mode color variants:

Variant	Base Background	Palette Philosophy & Intended Use Case
Navy (Default)	#0f172a (Deep Blue-Gray)	High-contrast balanced palette optimized for indoor office lighting and dual-monitor setups.
Mint	#0b1a1a (Deep Emerald Dark)	Soothing dark teal aesthetic favored for night shifts and low-fatigue operations.
Slate	#1e293b (Neutral Slate)	Standard professional slate background with soft gray borders.
Mirage	#181b2a (Midnight Indigo)	Deep celestial indigo tones for sleek modern workstations.
Cinder	#121216 (Warm Charcoal)	Low-saturation warm gray for minimizing blue light exposure.
Jet Black	#000000 (Pure AMOLED Black)	True black background for maximum contrast and power conservation on OLED displays.

Light Mode Variants

For bright reception lobbies and sunlit reception desks:

• Slate Light: Crisp cool gray cards with slate accents.
• Pure White: High-brightness neutral white with crisp typography.
• Stone: Warm earthy tones for comfortable daytime viewing.

---

🎨 Accent Colors & Smart Palette Hierarchy

Switchboard incorporates Ring2All’s Smart Coexistence & Hierarchy Model, allowing operators to customize interactive call buttons, active BLF extension indicators, and status rings while maintaining corporate alignment:

Unified 7-Slot Preset Grid

Slot	Preset Name	Swatch & Primary / Secondary Hex	Operational Role
1	Corporate Brand (Marca Corporativa)	Dynamically bound to the corporate primaryColor and secondaryColor configured in Branding. Shows dynamic badge: Default (Por defecto) or Active.	Authoritative Default: Inherited automatically via useCorporateColors: true.
2	Carrier Blue	#3B82F6 Primary / #60A5FA Secondary	Classic high-contrast blue for reception desks and daytime dispatching.
3	Emerald Green	#10B981 Primary / #34D399 Secondary	Natural soothing tone for long call handling sessions.
4	Electric Purple	#8B5CF6 Primary / #A78BFA Secondary	High-vibrancy accent for quick extension identification.
5	Crimson Red	#EF4444 Primary / #F87171 Secondary	High-contrast urgency palette for emergency dispatch consoles.
6	Amber Orange	#F59E0B Primary / #FBBF24 Secondary	Warm amber glow reducing optic strain during evening shifts.
7	Custom (Personalizado)	Interactive card featuring inline color picker swatches for custom primary and secondary hex values.	Exact color tuning for specialized console monitors.

Smart Hierarchy & Synchronization Engine (useCorporateColors)

1. Automatic Corporate Inheritance (Default): All operator accounts default to useCorporateColors = true. When the administrator updates corporate branding, the Switchboard console immediately applies the updated colors.
2. Operator Ergonomic Override: When an operator selects an alternative preset (Slots 2–6) or sets custom hues (Slot 7), useCorporateColors switches to false. The personal selection is preserved and will not be overwritten by administrative brand updates.
3. One-Click Brand Realignment: Operators can realign with corporate branding at any time with a single click on the Corporate Brand card.
4. Brand Asset Integrity: Corporate logos, favicons, and application names remain strictly managed in Branding and cannot be altered by operators.

Interactive Live Theme Preview Strip

Directly beneath the swatches, an interactive preview strip validates the selected palette in real time across primary call buttons, ghost buttons, BLF extension ring indicators, and focus outlines.

---

🪟 Widget Styling & Glassmorphism

Operators can customize how information cards and widgets render across the console grid:

Parameter	Options / Range	Operational Effect
Border Radius	0px (Square) to 24px (Rounded)	Sets the global corner rounding for all widget containers.
Opacity	70% to 100%	Controls container translucency, enabling modern semi-transparent frosted glassmorphism over desktop wallpapers.
Shadow Intensity	None, Light, Medium, Heavy	Adjusts depth elevation to separate telemetry cards from the background canvas.
Header Visibility	Always Visible / Minimalist	Allows hiding widget headers on compact screens to gain vertical workspace.

---

⏱️ Tooltips & Micro-Interactions

Fine-tune hover tooltips and dynamic feedback:

• Tooltips Enabled: Toggles hover explanations across buttons and telemetry indicators.
• Hover Delay: Adjustable from 100ms (instantaneous) to 1000ms (deliberate), preventing unwanted hover popups while moving the mouse rapidly.
• Micro-Animations: Smooth CSS transitions for card state changes and real-time BLF status pulses. Can be disabled for low-power thin clients.
