1. Overview & Architecture

In Ring2All SBC, the Microsoft Teams Direct Routing module (public.msteams_tenants) bridges Microsoft 365 Teams Phone System users directly with enterprise telephony infrastructure, internal Ring2All PBX extensions, and external PSTN wholesale carriers.

Operating as a Microsoft-certified Session Border Controller architecture, Ring2All SBC terminates high-security SIP-TLS signaling on port 5061 and anchors secure SRTP media, translating between Microsoft’s cloud voice infrastructure and standard SIP trunking environments.

┌──────────────────────────────────────┐             ┌──────────────────────────────────────┐
│       Microsoft 365 Cloud            │             │           Ring2All SBC Core          │
│   • Microsoft Teams Phone Clients    │             │  • Kamailio SIP-TLS Engine (5061)    │
│   • Microsoft SIP Proxy Clusters     │             │  • RTPEngine Media Relay (SRTP/RTP)  │
│     (52.112.0.0/14, 52.120.0.0/14)   │             │  • Auto-Synced IP Address Group (20) │
└──────────────────┬───────────────────┘             └──────────────────┬───────────────────┘
                   │                                                    │
                   │ SIP-TLS (Port 5061) + SRTP                         │
                   └───────────────────────────┬────────────────────────┘
                                               │
                                               ▼
                             ┌───────────────────────────────────┐
                             │       Ring2All SBC Perimeter      │
                             └─────────────────┬─────────────────┘
                                               │
                      ┌────────────────────────┴────────────────────────┐
                      ▼                                                 ▼
        ┌───────────────────────────┐                     ┌───────────────────────────┐
        │   Ring2All PBX Cluster    │                     │   Wholesale PSTN Carriers │
        │ • Internal Extensions     │                     │ • Outbound LCR Routes     │
        │ • Call Queues & IVRs      │                     │ • DID Inbound Ingress     │
        │ • AI Voice Agents & RAG   │                     │ • STIR/SHAKEN Attestation │
        └───────────────────────────┘                     └───────────────────────────┘

2. Business & Operational Significance

Eliminate Costly Microsoft Calling Plans: Enables organizations to utilize their existing wholesale SIP trunks, local DIDs, and negotiated carrier rates instead of purchasing expensive per-user Microsoft Calling Plans.
Unified PBX and Teams Interoperability: Seamlessly joins Teams softphones with Ring2All PBX hardware deskphones, overhead paging systems, call center queues, and AI conversational agents.
Multi-Tenant Direct Routing: Service providers and ITSPs can host hundreds of independent Microsoft 365 customer tenants on a single shared Ring2All SBC cluster with isolated billing, routing tables, and security boundaries.
Automatic Survivability & Failover: If Microsoft’s cloud infrastructure experiences degradation, inbound customer calls can automatically failover to mobile phones, secondary data centers, or local analog/SIP gateways.

3. 🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
SBC Administrator	Enterprise Tenant Setup	Provision Microsoft 365 Direct Routing tenants; assign commercial CA TLS certificates; manage trusted Microsoft IP address groups; configure dispatch routing sets.
Microsoft 365 Voice Engineer	Voice Gateway Integration	Verify SIP OPTIONS ping handshakes; validate Teams FQDN domain ownership; monitor SRTP media translation and MOS quality scores.
Carrier Operations (NOC)	Peering & Quality Monitoring	Monitor real-time Teams SIP ladders; diagnose TLS certificate chain issues; inspect codec negotiation (SILK, Opus, G.711u/a).

4. Visual Interface & Form Layout

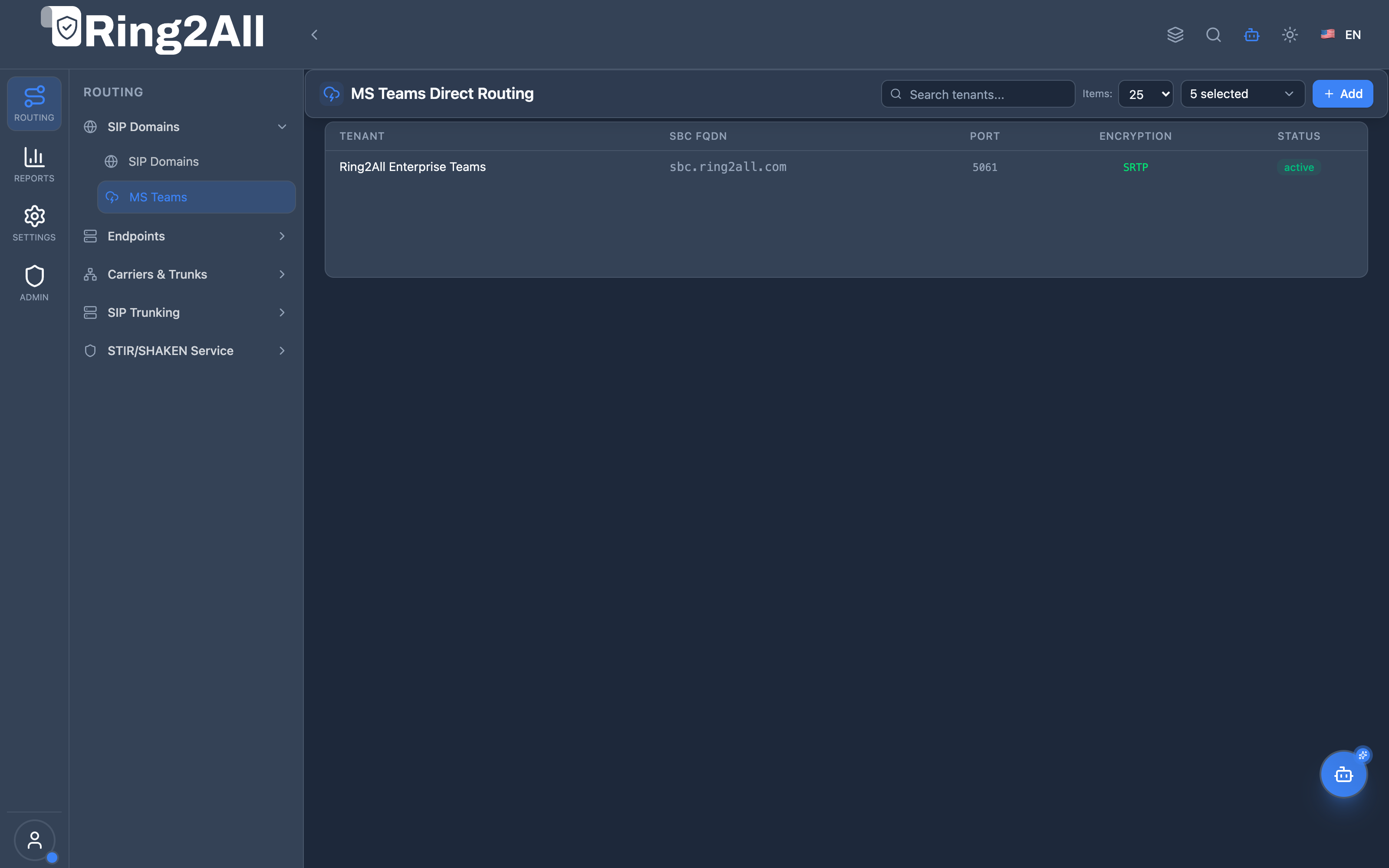

MS Teams Tenants List View

The list view provides an operational overview of all active Microsoft Teams tenants, showing assigned SBC FQDNs, signaling ports, media encryption modes, and operational status.

MS Teams Direct Routing List

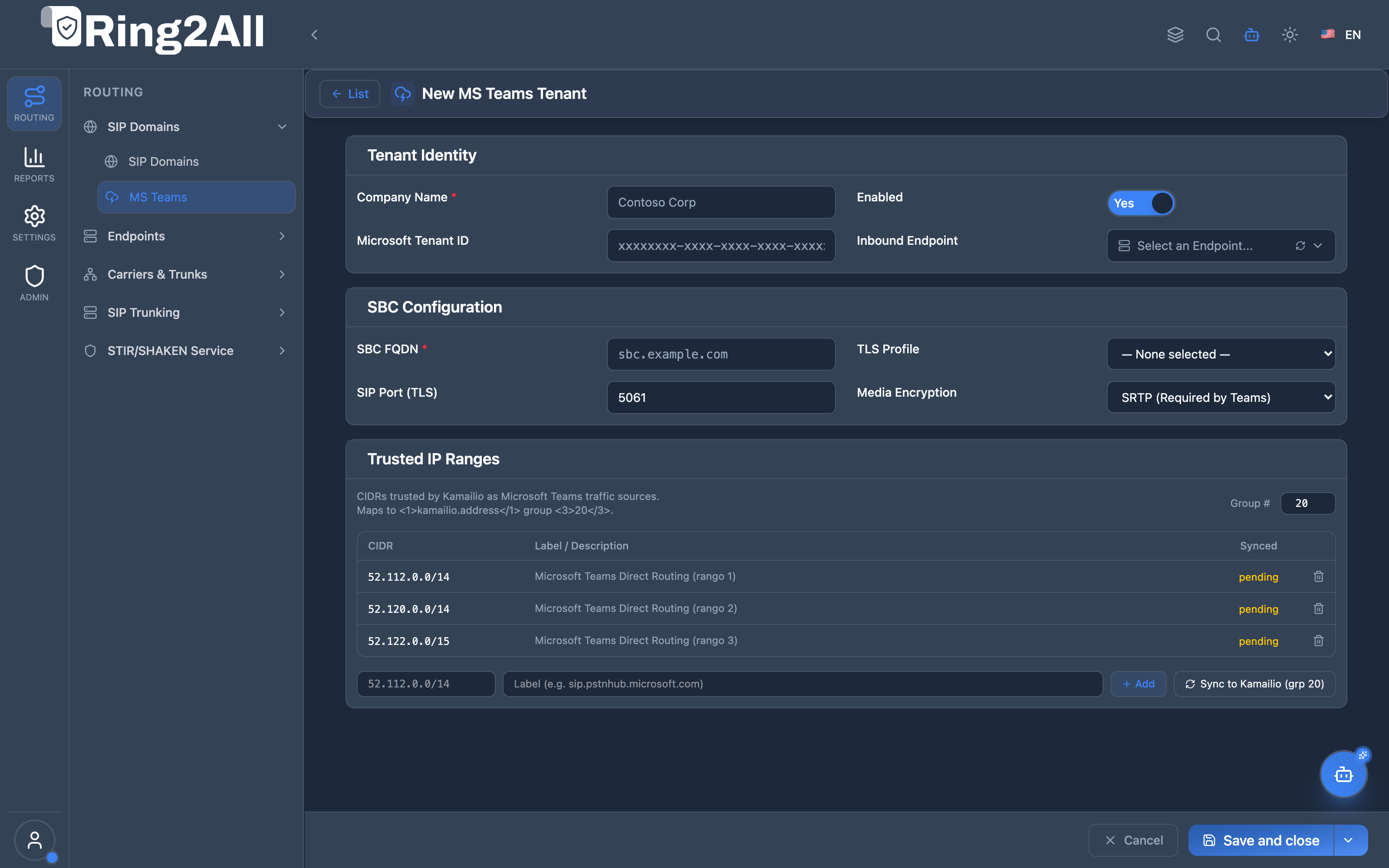

MS Teams Tenant Configuration Form

The configuration form features structured sections for Tenant Identity, SBC Direct Routing Parameters, Trusted Microsoft IP Ranges, and Direct Routing Compliance Verification.

MS Teams Direct Routing Form

5. Field & Configuration Reference

Section 1: Tenant Identity & Microsoft 365 Association

Field	Type	Constraints / Format	Description
Tenant Name *	Text	Max 100 characters	Human-readable corporate identifier for the organization (e.g., `Ring2All Enterprise Teams`).
Microsoft Tenant ID	UUID	Valid Microsoft 365 GUID	The Azure Active Directory Directory ID (`TenantId`) associated with the client’s Microsoft 365 subscription.
Status *	Dropdown	`active`, `suspended`, `maintenance`	Operational status of the Direct Routing tenant. Suspended tenants drop incoming SIP packets immediately.

Section 2: SBC Configuration & Signaling Parameters

Field	Type	Constraints / Format	Description
SBC FQDN *	Text	Valid Public FQDN	The public DNS hostname registered and validated in the Microsoft 365 Teams Admin Center (e.g., `sbc.ring2all.com`).
SIP Port *	Number	Default `5061`	Ingress and egress signaling port. Microsoft Direct Routing strictly mandates port `5061` with TLS encryption.
Media Encryption *	Dropdown	`SRTP` (Mandatory)	Cryptographic media security mode. Microsoft Direct Routing strictly enforces Secure Real-Time Transport Protocol (`SRTP`).
TLS Profile *	Dropdown	Valid Commercial TLS Profile	The TLS profile referencing an authentic commercial certificate issued by a Microsoft-approved CA (DigiCert, Sectigo, etc.).
PBX Dispatch Set	Dropdown	Dispatcher Cluster ID	Backend Telephony Server/PBX endpoint group designated to receive calls originating from this Teams tenant.
Failover Routing	Toggle	Boolean (`Yes` / `No`)	Automatically reroutes inbound calls to designated secondary PSTN numbers if the Microsoft Teams SIP endpoint is unreachable.

Section 3: Trusted Microsoft IP Ranges (In-Line Sync)

Subnet CIDR	Region / Role	Auto-Sync Status	Description
`52.112.0.0/14`	Global Primary	Synchronized (Group 20)	Worldwide Microsoft Teams SIP signaling proxies and media processors.
`52.120.0.0/14`	Global Secondary	Synchronized (Group 20)	Worldwide Microsoft Teams secondary voice routing clusters.
`52.122.0.0/15`	Expansion Voice Cloud	Synchronized (Group 20)	North American and European Teams Direct Routing points of presence.

6. Kamailio & RTPEngine Direct Routing Mechanics

When bridging sessions between Microsoft Teams and Ring2All PBX or PSTN carriers, the SBC performs automated protocol transformation:

Bidirectional SIP OPTIONS Keep-Alive:
- Kamailio periodically sends OPTIONS sip:sip.pstnhub.microsoft.com:5061 containing the custom user agent and supported codecs.
- Microsoft answers with SIP 200 OK. If three consecutive heartbeats fail, the SBC marks the route degraded and activates failover.
Contact Header Rewriting & Record-Route:
- Microsoft Teams strictly checks that the domain in the Contact: header matches the validated SBC FQDN.
- Kamailio rewrites the contact header:
```
$ct = "<sip:" + $fU + "@" + $sel(cfg_get.msteams.sbc_fqdn) + ":5061;transport=tls>";
```
Media Bridging with RTPEngine:
- Microsoft Teams mandates SRTP with AES_CM_128_HMAC_SHA1_80 or AES_256_CM_HMAC_SHA1_80.
- Backend PBX nodes and PSTN trunks frequently operate on standard unencrypted RTP.
- RTPEngine performs zero-latency media transcoding and cryptographic unmasking:
```
# Teams -> SBC -> PBX
rtpengine_offer("RTP/AVP replace-origin replace-session-connection ICE=remove");
# PBX -> SBC -> Teams
rtpengine_answer("RTP/SAVP replace-origin replace-session-connection");
```

7. Microsoft Teams Phone System Compliance & Certificates

To maintain seamless certification and connectivity with Microsoft Direct Routing:

Commercial CA Certificate Required: Microsoft PSTN Hubs will immediately terminate the TLS handshake if the SBC uses self-signed certificates or Let’s Encrypt certificates. You must deploy certificates from authorized roots:
- DigiCert Global Root CA
- Sectigo (Comodo)
- GlobalSign
- Entrust Datacard
Subject Alternative Names (SAN): The certificate’s Common Name (CN) or SAN must match the SBC FQDN configured in the Teams Admin Center exactly.
Firewall Ports Openings:
- Inbound & Outbound TCP: 5061 (SIP-TLS) to Microsoft subnets.
- Outbound UDP: 10000-20000 to 3478-3481, 49152-65535 for SRTP media.

8. Security Best Practices & Operational Hardening

Enforce Strict IP Whitelisting: Lock SIP port 5061 to exclusively accept connections from Kamailio Address Group 20 (Microsoft’s official IP ranges) using the Kamailio permissions module.
Prevent Toll Fraud on Failover: When failover routing is enabled, restrict failover destination numbers using Class of Service (CoS) dial rules to prevent unauthorized international forwarding.
Monitor SIP User-Agent Signatures: Validate that incoming INVITEs contain Microsoft’s signature headers (MS-CV - Correlation Vector).

9. Troubleshooting & Verification

Symptom / Issue	Potential Root Cause	Recommended Verification & Resolution
Teams Admin Center reports “SBC Inactive”	TLS handshake failure or missing OPTIONS responses.	Check TLS certificate expiration and verify that Kamailio is sending OPTIONS with commercial CA binding via `kamcmd tls.list`.
Calls dropped after 10 seconds (One-Way Audio)	Firewall blocking UDP SRTP media or RTPEngine ICE mismatch.	Ensure UDP ports `10000-20000` are forwarded to RTPEngine and review SDP media flags in Reports > SIP Traces.
Inbound calls from Teams fail with `403 Forbidden`	FQDN mismatch between Teams Admin Center and SBC domain record.	Verify that the domain configured in SBC FQDN matches the tenant’s Microsoft voice gateway entry character-for-character.

10. Glossary

Direct Routing: Microsoft Teams feature allowing enterprise customers to connect their own SBC and carrier voice trunks to Microsoft Teams Phone.
SRTP (Secure Real-time Transport Protocol): Encrypted profile of RTP providing confidentiality, message authentication, and replay protection for audio streams.
PSTN Hub: Microsoft cloud telephony proxy architecture (sip.pstnhub.microsoft.com) responsible for terminating Direct Routing carrier trunks.
OPTIONS Ping: Periodic SIP keep-alive message exchanged between SBC and Microsoft PSTN proxies to verify network latency and gateway health.
