Digital Wallet & Financial Ledger Module Documentation

Module Code: billing/client/wallet-ledger
Route: /portal/wallet
Backend Service: clientService.ts (ring2all-billing-api)
Database Tables: wallets, transactions, customers
Brand Purity: 100% White-Label Compliant (Ring2All Billing)

Executive Summary & Financial Control
Technical Architecture & Dual-Entry Ledger Pipeline
🎯 User Roles & Key Capabilities
Visual Interface & Screen Breakdown
Prepaid Balance, Credit Line & Emergency Floor
Double-Entry Transaction Record Specification
Database Schema & Data Dictionary
Diagnostic CLI & Operational Playbooks
Domain Glossary

1. Executive Summary & Financial Control

The Digital Wallet & Financial Ledger module provides corporate clients with a centralized financial control center for prepaid telephony funds, postpaid credit limit extensions, and an immutable, double-entry audit trail of every financial transaction.

+-------------------------------------------------------------------------------+
|                       COMMERCIAL & OPERATIONAL IMPACT                         |
+-------------------------------------------------------------------------------+
| • Zero Dropped Calls: Combines live prepaid balance with an emergency credit   |
|   limit to prevent sudden call termination during high-volume periods.        |
| • Instant Auditability: Every top-up, subscription charge, and outbound usage  |
|   debit is permanently recorded with before-and-after balance snapshots.      |
| • Autonomous Refills: Integrated quick top-up buttons allow immediate funding |
|   via vaulted Stripe payment methods.                                         |
| • Multi-Currency Support: Real-time ISO currency precision down to 4 decimals.|
+-------------------------------------------------------------------------------+

2. Technical Architecture & Dual-Entry Ledger Pipeline

When telephony calls or monthly recurring charges occur, the billing engine performs atomic balance adjustments and commits immutable transaction rows:

 ┌────────────────────────────────────────────────────────────────────────┐
 │                      Financial Event Dispatcher                        │
 │        • Customer Fund Top-Up (Stripe PaymentIntent Webhook)           │
 │        • Monthly Subscription Sweep (Cron Engine)                      │
 │        • CDR Toll Rating Debit (Online Charging System)                │
 └───────────────────────────────────┬────────────────────────────────────┘
                                     │
                                     ▼ BEGIN TRANSACTION (Serializable)
 ┌────────────────────────────────────────────────────────────────────────┐
 │                   Atomic Ledger Transaction Processor                  │
 │                                                                        │
 │   1. SELECT balance, credit_limit FROM wallets WHERE customer_id = $id │
 │   2. Verify: (CurrentBalance + CreditLimit - DebitAmount) >= 0.00      │
 │   3. UPDATE wallets SET balance = balance + Delta, updated_at = NOW()  │
 │   4. INSERT INTO transactions (wallet_id, type, amount, balance_after) │
 └───────────────────────────────────┬────────────────────────────────────┘
                                     │ COMMIT
                                     ▼
 ┌────────────────────────────────────────────────────────────────────────┐
 │                     Real-Time Balance Cache Sync                       │
 │             Kamailio SBC In-Memory Cache (htable: cust_balance)        │
 │             Portal UI WebSocket / Polling Refresh (WalletPage.tsx)     │
 └────────────────────────────────────────────────────────────────────────┘

3. 🎯 User Roles & Key Capabilities

Access to ledger records and fund operations is governed by enterprise authorization roles:

User Role	Access Level	Primary Operational Capabilities
Corporate Treasurer / Financial Officer	Full Financial	Monitors corporate balance, executes one-click top-ups, audits transaction statements.
Enterprise Telecom Manager	Operational Monitoring	Verifies available calling credit to ensure trunk availability; configures low-balance email alerts.
Staff Accountant / Bookkeeper	Reconciliation	Downloads ledger CSVs to reconcile recurring subscription charges against bank merchant statements.
Customer Service Representative	View Only	Reviews past customer deposits and refunds to answer billing inquiries.

4. Visual Interface & Screen Breakdown

4.1 Digital Wallet & Transaction Ledger Overview

The wallet view presents real-time fund metrics alongside an itemized ledger table:

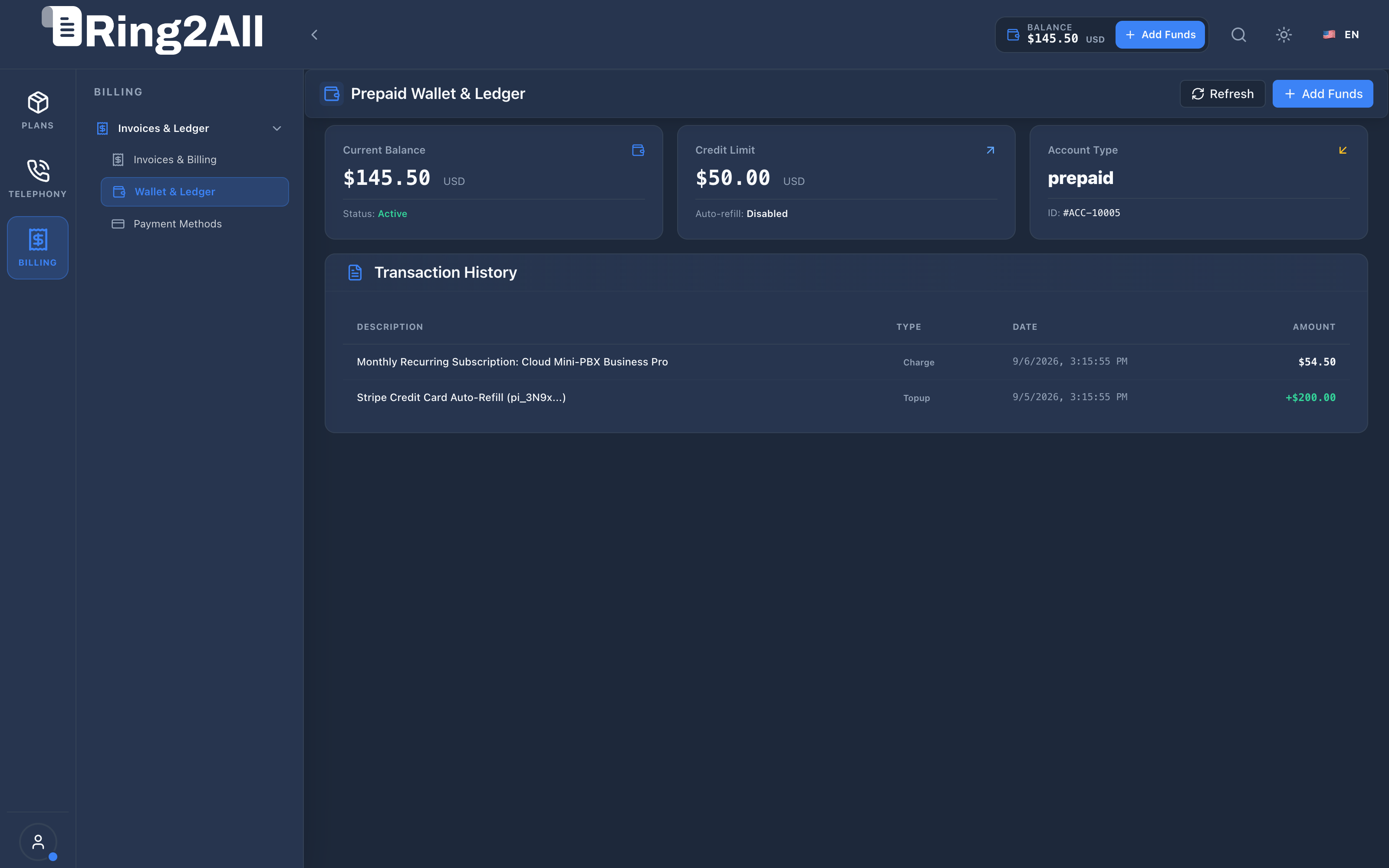

Digital Wallet & Transaction Ledger Overview

Current Balance Card: Prominently displays the total available prepaid funds ($145.50) in USD.
Credit Limit Card: Reflects approved overdraft headroom ($50.00) available before outbound trunk shutdown.
Effective Spending Power: Combined liquidity available for active concurrent calls.
Quick Top-Up Actions: One-click deposit triggers ($25, $50, $100, $250, or custom amount).
Transaction Ledger Table: Detailed itemization displaying date, reference ID, transaction type (topup, recurring_charge, usage_debit), gross amount, and resulting balance.

5. Prepaid Balance, Credit Line & Emergency Floor

The Ring2All Billing core enforces a multi-tier balance protection protocol:

Prepaid Tier: Active calls first consume the customer’s prepaid balance (wallets.balance).
Credit Line Tier: If the balance reaches $0.00, calls continue uninterrupted against the authorized credit_limit.
Emergency Floor (Hard Cutoff): When total debt exceeds credit_limit, the SBC rejects new outbound call attempts with SIP/2.0 402 Payment Required.

6. Double-Entry Transaction Record Specification

Every row in the transactions ledger contains deterministic accounting data:

Transaction Field	Example Value	Description
Reference ID	`TX-891024`	Unique alphanumeric tracking identifier.
Type	`topup`	Transaction category (`topup`, `subscription`, `usage`, `refund`).
Amount	`+$100.00`	Net credit (green) or debit (red) applied to wallet.
Balance After	`$145.50`	Exact wallet balance snapshot immediately following the transaction.
Status	`completed`	Processing state (`pending`, `completed`, `failed`, `reversed`).

7. Database Schema & Data Dictionary

Table: `public.wallets`

CREATE TABLE public.wallets (
    id            BIGSERIAL PRIMARY KEY,
    uuid          UUID NOT NULL DEFAULT gen_random_uuid(),
    customer_id   BIGINT NOT NULL UNIQUE REFERENCES customers(id) ON DELETE CASCADE,
    currency      VARCHAR(3) NOT NULL DEFAULT 'USD',
    balance       NUMERIC(12,4) NOT NULL DEFAULT 0.0000,
    credit_limit  NUMERIC(12,4) NOT NULL DEFAULT 0.0000,
    created_at    TIMESTAMPTZ NOT NULL DEFAULT NOW(),
    updated_at    TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

Table: `public.transactions`

CREATE TABLE public.transactions (
    id             BIGSERIAL PRIMARY KEY,
    uuid           UUID NOT NULL DEFAULT gen_random_uuid(),
    customer_id    BIGINT NOT NULL REFERENCES customers(id) ON DELETE CASCADE,
    wallet_id      BIGINT NOT NULL REFERENCES wallets(id) ON DELETE CASCADE,
    type           VARCHAR(30) NOT NULL,
    amount         NUMERIC(12,4) NOT NULL,
    balance_after  NUMERIC(12,4) NOT NULL,
    currency       VARCHAR(3) NOT NULL DEFAULT 'USD',
    description    TEXT,
    reference_id   VARCHAR(100),
    status         VARCHAR(20) NOT NULL DEFAULT 'completed',
    created_at     TIMESTAMPTZ NOT NULL DEFAULT NOW()
);

-- Audit query index
CREATE INDEX idx_transactions_customer_time ON transactions (customer_id, created_at DESC);

8. Diagnostic CLI & Operational Playbooks

Verify Customer Wallet & Ledger via CLI

su - postgres -c "psql -d ss_billing -c \"
SELECT w.balance, w.credit_limit, t.type, t.amount, t.balance_after, t.created_at
FROM wallets w
JOIN transactions t ON t.wallet_id = w.id
WHERE w.customer_id = 5
ORDER BY t.created_at DESC;
\""

9. Domain Glossary

Double-Entry Ledger: Bookkeeping architecture where every balance mutation records both credit/debit amount and resultant state.
Effective Spending Power: Sum of available positive balance plus approved credit limit.
Credit Limit: Maximum allowed negative balance before telecom services are suspended.
