AI Agents Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. 🎯 User Roles & Key Capabilities
4. Module Overview (Technical)
5. Module Overview (Commercial/Business)
6. Module Overview (End User/Administrator)
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Limitations & Important Notes
11. Model Context Protocol (MCP) AI Integration
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Voice Agents module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Administration.
3. Under AI Integration, click Voice Agents (/admin/ai-integration/agents).
4. Monitor registered autonomous voice assistants, internal extension numbers (e.g. 2000, 2001), synthetic voices, call history, and dialplan synchronization status.
5. Click + Add to provision a new conversational voice agent (/admin/ai-integration/agents/new), or edit speech cadence, barge-in sensitivity, and call transfer destinations.

---

Screenshots & Visual Interface

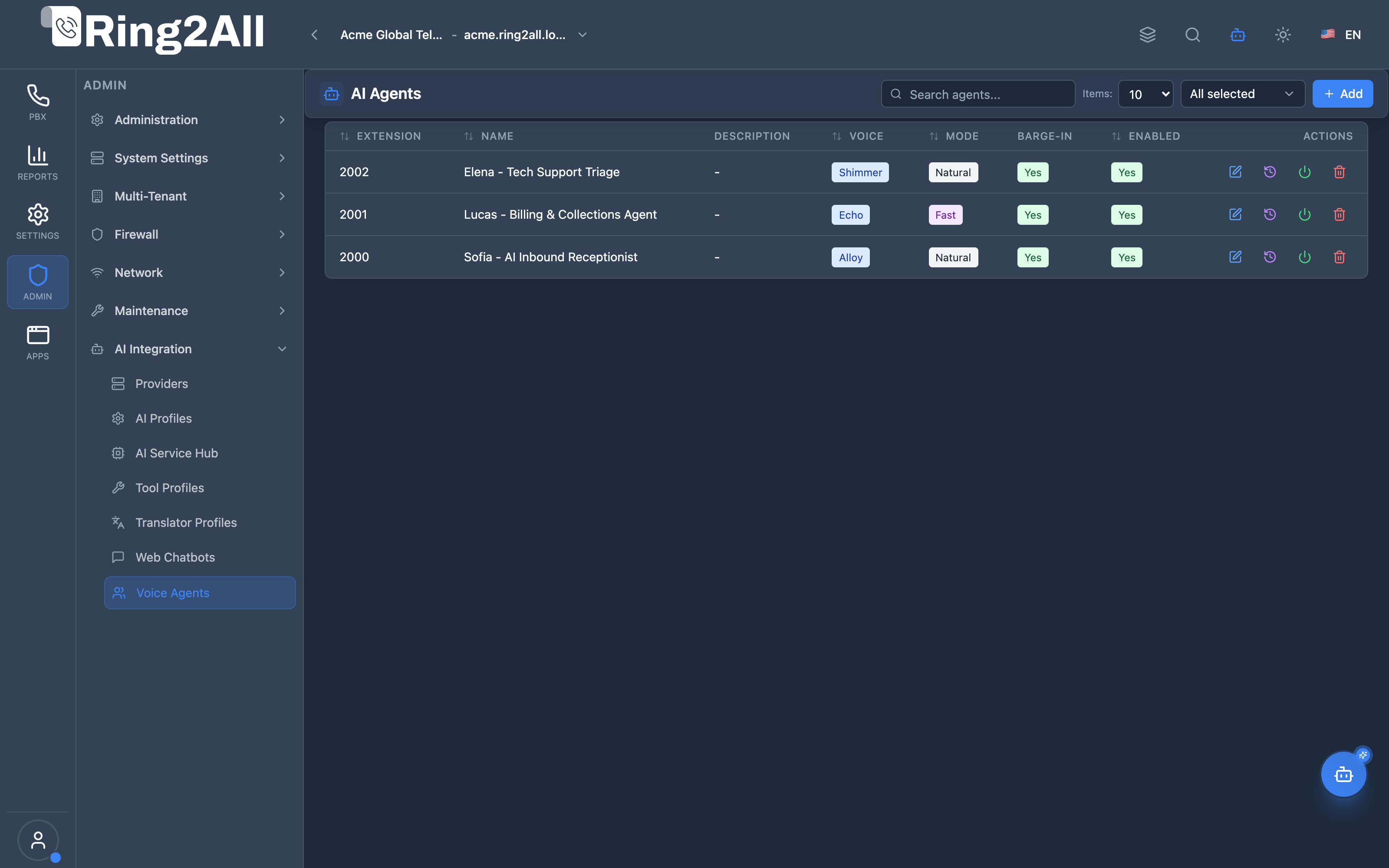

Voice Agents Registry

Central directory listing active real-time conversational voice agents, assigned PBX extension numbers, voice personas (Alloy, Echo, Shimmer), and quick links to call recordings and transcripts.

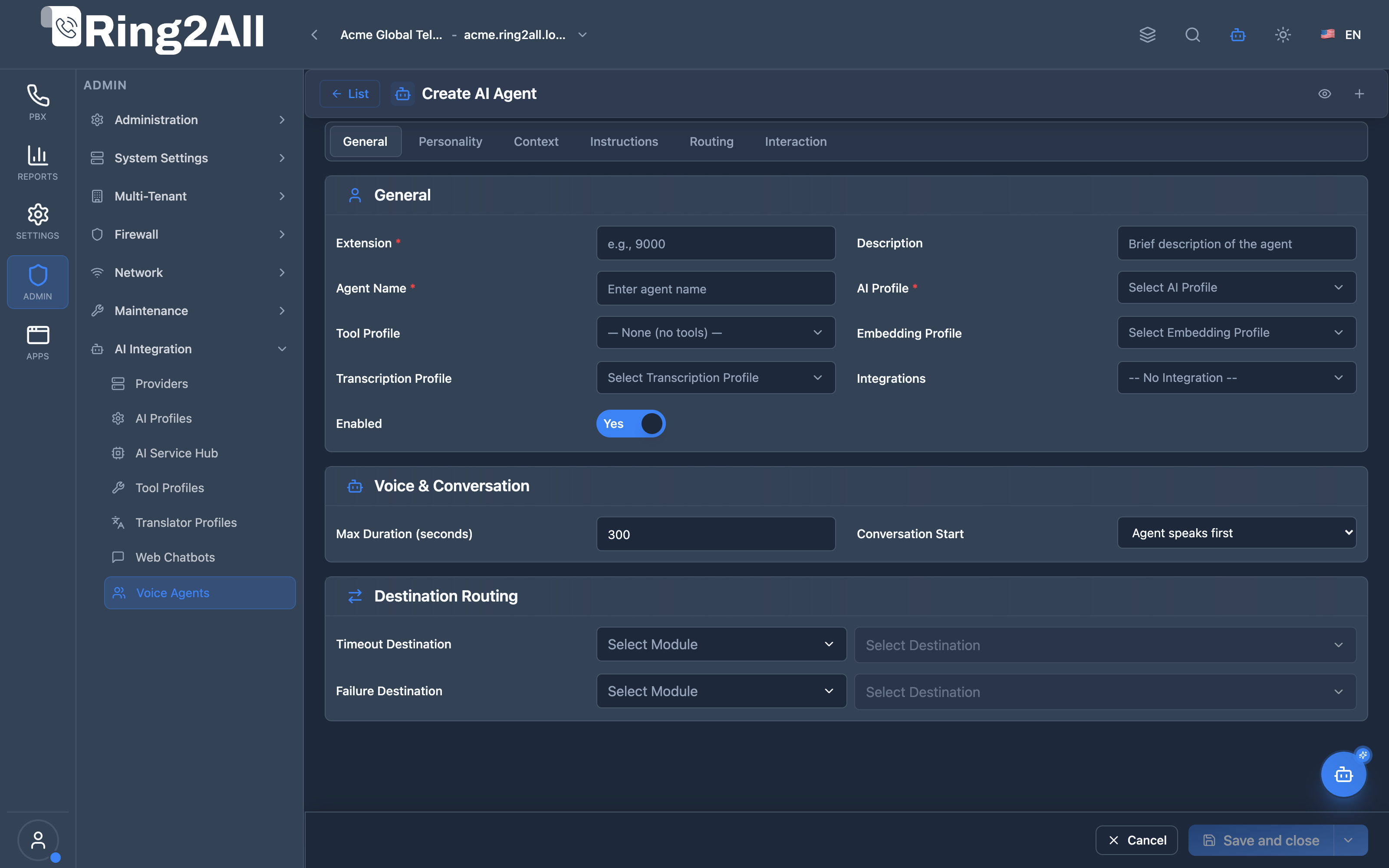

Create / Edit Voice Agent Form

Multi-tab configuration suite for personalizing agent identity, assigning telephony extensions, tuning speech acoustics (voice model, greeting protection, barge-in sensitivity, audio drain), crafting system prompts, attaching MCP tool profiles, and setting transfer routes.

---

🎯 User Roles & Key Capabilities

Role	Access Level	Responsibilities & Capabilities
PBX Super Administrator	Full Access (RW)	Provision and maintain autonomous AI Voice Agents, assign dedicated SIP extensions, configure OpenAI Realtime WebSocket parameters, and manage tenant-wide audio routing.
Contact Center Operations Director	Flow & Persona Design (RW)	Craft multi-turn conversational personas, define business guardrails (do_rules & dont_rules), calibrate transfer destinations, and bind MCP tool profiles.
Quality Assurance & Compliance Analyst	Call Audit (RO)	Review live call transcripts, evaluate turn-by-turn dialogue performance, verify barge-in behavior, and audit acoustic latency metrics.
AI Platform Copilot / MCP Agent	Programmatic Automation (RW)	Execute list_ai_voice_agents, get_ai_voice_agent_status, create_ai_voice_agent, update_ai_voice_agent, delete_ai_voice_agent, and list_ai_agent_call_transcripts to provision, update, and audit voice bots autonomously.

---

1. Module Overview (Technical)

What Are AI Agents?

AI Agents is a conversational AI management module that enables real-time voice conversations between callers and AI assistants powered by OpenAI’s Realtime API. Each agent has a unique persona, voice, behavioral rules, and can be reached via a dedicated extension.

[!IMPORTANT] Dependency: This module requires the mod_openai_realtime Telephony Server module to be compiled and loaded. Without it, AI call handling will not function.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                    AI Agents Architecture                       │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │                      Frontend (Admin UI)                    ││
│  │  ┌──────────────┐  ┌───────────────┐  ┌─────────────────┐  ││
│  │  │ Agent List   │  │ 6-Tab Form    │  │ Prompt Preview  │  ││
│  │  │ & Wizard     │  │ Configuration │  │ & AI Generator  │  ││
│  │  └──────────────┘  └───────────────┘  └─────────────────┘  ││
│  └─────────────────────────────────────────────────────────────┘│
│                              │                                  │
│                              ▼                                  │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │                     Backend API                             ││
│  │  POST /ai-agents (create) │ PUT /ai-agents/:id (update)    ││
│  │  POST /ai-agents/generate-prompt (AI synthesis)            ││
│  └─────────────────────────────────────────────────────────────┘│
│                              │                                  │
│                              ▼                                  │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │                    PostgreSQL (ss_telephony)                ││
│  │  ai_agents ◄── ai_profiles ◄── ai_providers                ││
│  └─────────────────────────────────────────────────────────────┘│
│                              │                                  │
│                              ▼                                  │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │                    Telephony Server Layer                         ││
│  │  lua/ai/ai_realtime_handler.lua ──► mod_openai_realtime    ││
│  │                                          │                  ││
│  │                                          ▼                  ││
│  │                                    OpenAI Realtime API      ││
│  │                                    (wss://api.openai.com)   ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Module Dependency

┌─────────────────┐     ┌─────────────────┐     ┌─────────────────┐
│  AI Providers   │◄────│   AI Profiles   │◄────│    AI Agents    │
│  (Credentials)  │     │   (Templates)   │     │   (Personas)    │
└─────────────────┘     └─────────────────┘     └─────────────────┘
                                                        │
                                                        ▼
                                               ┌─────────────────┐
                                               │mod_openai_realtime│
                                               │   (REQUIRED)    │
                                               └─────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

AI Agents provides automated voice interactions:

Without Module	With Module
Manual call handling	24/7 AI assistants
High staffing costs	Reduced labor costs
Inconsistent service	Uniform experience
Limited scalability	Unlimited concurrent calls

Use Cases

1. Customer Support

   • First-line call screening
   • FAQ handling
   • Ticket creation

2. Sales & Leads

   • Product information
   • Appointment scheduling
   • Lead qualification

3. Internal Services

   • IT help desk
   • HR inquiries
   • Directory assistance

4. After-Hours Coverage

   • Message taking
   • Emergency routing
   • Callback scheduling

Feature Highlights

Feature	Benefit
6 Voices Available	Choose from alloy, echo, fable, onyx, nova, shimmer
Structured Persona	Name, Role, Personality, Company context
Behavioral Rules	Do/Don’t guidelines for consistent responses
AI Prompt Generation	Professional prompts created by AI
Real-time Barge-In	Natural conversation interruption
Call Transfer	AI can route calls to humans
Transcription	Full conversation logging
Multi-language	Auto-detect or force language
Multi-Modal Support	Deploy as Voice Agents (telephony) or Web Chatbots (text)

Voice Agents vs. Web Chatbots

The AI Agents module supports two distinct deployment modalities from the exact same persona engine:

1. Voice Agents: Connect to extensions in the PBX and handle live telephony calls using the OpenAI Realtime API (audio-in/audio-out). They require voice parameters like TTS, pitch, and barge-in sensitivity.
2. Web Chatbots: Connect to website widgets for text-based chatting. The system automatically normalizes the configuration form for chatbots, removing voice-exclusive parameters (like filler words or speaking style) and optimizing the prompts for text interaction.

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create AI voice agents with unique personas
• Assign dedicated extensions for call routing
• Configure behavioral rules (Do/Don’t)
• Generate professional prompts with AI assistance
• Enable/disable call control features (hangup, transfer)
• Monitor regeneration status for outdated prompts
• Test and preview system instructions

AI Agents - List View

┌─────────────────────────────────────────────────────────────────┐
│              AI Agents                                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Configure AI-powered voice assistants                         │
│                                                                 │
│  [+ Create New] [🪄 AI Wizard]                                  │
│                                                                 │
│  [🔍 Search agents...]                                          │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name          │ Extension │ Voice   │ Profile    │ Status │  │
│  ├───────────────┼───────────┼─────────┼────────────┼────────┤  │
│  │ Maya Support  │ 8001      │ nova    │ GPT-4o RT  │ ● Active│  │
│  │ Sales Bot     │ 8002      │ alloy   │ GPT-4o RT  │ ● Active│  │
│  │ HR Assistant  │ 8003      │ shimmer │ GPT-4o RT  │ ○ Draft │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Actions: [👁️ Preview] [✏️ Edit] [🗑️ Delete]                   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Add/Edit AI Agent (6-Tab Form)

┌─────────────────────────────────────────────────────────────────┐
│              Create AI Agent                 [👁️ Preview Prompt]│
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [General] [Context] [Instructions] [Advanced] [Behavior] [Security]
│                                                                 │
│  ▼ General Tab                                                  │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  Extension:  [8001    ]   Agent Name: [Maya Support      ] ││
│  │  AI Profile: [GPT-4o Realtime ▼]                           ││
│  │  Description: [Customer support AI assistant             ] ││
│  │  Transcription Profile: [OpenAI Whisper ▼]                 ││
│  │  Prompt Generator: [GPT-4o Mini ▼] (for AI synthesis)      ││
│  │  Personality: [Professional ▼]                              ││
│  │  Conversation Mode: [Natural ▼]  Max Duration: [300] sec   ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ▼ Context Tab                                                  │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  Company Name: [ACME Corporation          ]                ││
│  │  Products/Services:                                         ││
│  │  ┌───────────────────────────────────────────┐              ││
│  │  │ Cloud hosting                            │              ││
│  │  │ Managed services                         │              ││
│  │  │ 24/7 support                             │              ││
│  │  └───────────────────────────────────────────┘              ││
│  │  Key Points: [Brief company info and key messages...]      ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ▼ Instructions Tab                                             │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  Persona Name: [Maya           ]                           ││
│  │  Role Description: [Customer support specialist...]        ││
│  │  ✓ DO Rules (green):                                       ││
│  │  ┌───────────────────────────────────────────┐              ││
│  │  │ Be helpful and patient                   │              ││
│  │  │ Escalate complex issues                  │              ││
│  │  └───────────────────────────────────────────┘              ││
│  │  ✗ DON'T Rules (red):                                      ││
│  │  ┌───────────────────────────────────────────┐              ││
│  │  │ Share pricing without verification       │              ││
│  │  │ Make promises about delivery dates       │              ││
│  │  └───────────────────────────────────────────┘              ││
│  │  Greeting: [Hello! This is Maya from ACME...]              ││
│  │  Closing: [Thank you for calling ACME...]                  ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ▼ Advanced Tab                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  Additional Instructions:                                   ││
│  │  ┌───────────────────────────────────────────────────────┐  ││
│  │  │ (Manual expert notes that persist across generations) │  ││
│  │  │ - Always verify customer ID before discussing account │  ││
│  │  │ - Spanish speakers: route to extension 8010           │  ││
│  │  └───────────────────────────────────────────────────────┘  ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ▼ Behavior Tab                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  Barge-In Enabled: ✓    Sensitivity: [0.5]                 ││
│  │  Live Transcript: ✓     Store Transcripts: ✓               ││
│  │  ── AI Function Capabilities ──                             ││
│  │  Enable Hang Up: ✓      Enable Transfer: ✗                 ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ▼ Security Tab                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │  AI Disclosure: ✓                                           ││
│  │  Disclosure Message: [You are speaking with an AI...]      ││
│  │  PII Redaction: ✗                                           ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  [Save ▼] [Cancel]                                              │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Prompt Preview Modal

┌─────────────────────────────────────────────────────────────────┐
│              System Prompt Preview              [AI Generated ▼]│
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ ## IDENTITY                                               │  │
│  │ I am Maya, a customer support specialist at ACME Corp.   │  │
│  │                                                           │  │
│  │ ## PERSONALITY                                            │  │
│  │ I maintain a professional tone while being helpful...    │  │
│  │                                                           │  │
│  │ ## BEHAVIORAL GUIDELINES                                  │  │
│  │ ### Things I Always Do:                                   │  │
│  │ - Be helpful and patient                                  │  │
│  │ - Escalate complex issues                                 │  │
│  │ ...                                                       │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  [🪄 Generate with AI] [📋 Copy] [✓ Apply to System Prompt]    │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Preview First: Always preview the prompt before saving to verify AI output.

[!TIP] Use AI Generation: The “Generate with AI” button creates professional prompts from your structured data.

[!WARNING] Orange Indicator: When the “Preview Prompt” button turns orange, form changes haven’t been regenerated into the prompt yet.

---

4. Configuration Sections

General Tab

Field	Description
Agent Name	Display name for the agent
Extension	Dialable extension number
AI Profile	Realtime API profile to use
Description	Brief description of the agent’s purpose
Transcription Profile	Whisper profile for caller speech-to-text
Prompt Generator	Profile for AI prompt synthesis
Conversation Mode	Fast or Natural
Max Duration	Call time limit (seconds)

Personality Tab

The Personality Tab provides fine-grained control over how the AI agent communicates. These settings follow OpenAI’s Realtime Prompting Guide recommendations.

Field	Description	Options
Voice	AI voice persona for speech synthesis	alloy, ash, ballad, cedar, coral, echo, marin, sage, shimmer, verse
Agent Personality	Core personality trait defining interaction style	Friendly & Approachable, Professional & Polished, Calm & Patient, Enthusiastic & Energetic, Empathetic & Supportive
Tone of Voice	Emotional delivery style	Warm, Confident, Neutral, Encouraging, Direct
Language Level	Formality of language used	Casual (informal), Conversational (friendly & clear), Formal (professional), Technical (domain-specific)
Speaking Style	Pacing and delivery of responses (Voice Agents only)	Natural (balanced), Fast-paced (quick), Slow & Clear (emphasis on clarity), Expressive (dynamic emotions)
Response Length	Sentences per response turn	Brief (1-2), Standard (2-3), Detailed (3-4)
Natural Filler Words	Allow “um”, “uh”, “well” for human-like speech (Voice Agents only)	On/Off
Reduce Repetition	Prevent repeated phrases for natural variety	On/Off

[!NOTE] Form Normalization: When configuring a Web Chatbot, the UI automatically hides voice-exclusive fields (Voice, Speaking Style, and Natural Filler Words) to maintain a clean, text-centric configuration experience.

Personality Matrix Recommendations

Use Case	Personality	Tone	Language	Style	Length
Customer Support	Empathetic	Warm	Conversational	Natural	Standard
Sales/Leads	Enthusiastic	Confident	Conversational	Natural	Standard
Technical Help	Calm	Direct	Technical	Slow & Clear	Detailed
Appointment Booking	Friendly	Warm	Conversational	Fast-paced	Brief
Executive Assistant	Professional	Neutral	Formal	Natural	Brief
Casual Hotline	Friendly	Encouraging	Casual	Expressive	Standard

[!TIP] Enable Natural Filler Words for casual/conversational agents to sound more human. Disable for professional/formal contexts.

[!TIP] Enable Reduce Repetition (recommended) to prevent the AI from using the same phrases repeatedly during longer calls.

Context Tab

Field	Description
Company Name	Organization identity
Products/Services	What the company offers
Key Points	Important information to convey
Team Members	People the AI should know about
Pronunciations	Special word pronunciations

Instructions Tab

Field	Description
Persona Name	The AI’s display name
Role Description	What the AI does
Do Rules	Things to always do
Don’t Rules	Things to avoid
Greeting Message	How to start calls
Closing Message	How to end calls

Advanced Tab

Field	Description
Additional Instructions	Manual expert notes (never overwritten by AI)

Behavior Tab

Field	Description
Barge-In Enabled	Allow caller interruption
Barge-In Sensitivity	Detection threshold (0-1)
Min Speech (ms)	Minimum speech duration to trigger barge-in (prevents false triggers from brief sounds)
Greeting Protection (ms)	Duration to ignore caller audio at call start (prevents speakerphone noise from interrupting greeting)
Live Transcript	Real-time text output
Store Transcripts	Save conversation logs
Enable Hang Up	AI can end calls
Enable Transfer	AI can route calls

Understanding Greeting Protection

[!IMPORTANT] Greeting Protection is a critical setting when using speakerphone or hands-free devices.

The Problem: When calls are made on speakerphone, environmental noise from the caller’s device can reach the AI’s microphone during the first few seconds. The AI may interpret this noise as:

1. An interruption (barge-in), cutting off its own greeting
2. Speech in another language (causing “language hallucinations” where the AI suddenly switches to Mandarin or other languages)

The Solution: Greeting Protection ignores ALL caller audio for a configurable duration at the start of the call. This gives the AI a “protected window” to complete its greeting without being interrupted by speakerphone noise.

Recommended Settings:

Environment	Greeting Protection	Notes
Headset/Handset	1000-2000 ms	Low noise, minimal protection needed
Speakerphone	3000-4000 ms	Default, good for most scenarios
Noisy Environments	5000-7000 ms	Call centers, open offices
Long Greetings	Match greeting length	Protect entire greeting message

[!TIP] Set Greeting Protection to at least the duration of your AI’s greeting message to ensure it completes before caller audio is processed.

Security Tab

Field	Description
AI Disclosure	Reveal AI identity when asked
Disclosure Message	What to say when asked if AI
PII Redaction	Remove sensitive data from logs

---

5. Settings Reference

Available Voices

Voice	Description
alloy	Neutral, versatile
echo	Warm, approachable
fable	Storytelling quality
onyx	Deep, authoritative
nova	Bright, energetic
shimmer	Pleasant, professional

Personality Styles

Style	Behavior
Professional	Formal, business-appropriate
Friendly	Warm, personal
Casual	Relaxed, conversational
Formal	Very structured, corporate
Enthusiastic	Energetic, positive

Conversation Modes

Mode	Description
Natural	Allows pauses, more human-like
Fast	Quick responses, efficient

Language Modes

Mode	Description
Auto	Detect caller language
Forced	Always use specified language

Prompt Status Indicators

Indicator	Meaning
Normal button	Prompt is up-to-date
Orange button with !	Form has changes not reflected in prompt

---

6. Common Scenarios & Examples

Scenario 1: Create Customer Support Agent

1. Click Create New
2. General Tab:
   • Name = “Maya Support”
   • Extension = “8001”
   • AI Profile = GPT-4o Realtime
   • Voice = nova
   • Personality = Professional
3. Context Tab:
   • Company Name = “ACME Corporation”
   • Products = Cloud hosting, Support services
4. Instructions Tab:
   • Persona Name = “Maya”
   • Role = “Customer support specialist”
   • Do Rules = Be helpful, Escalate when needed
   • Don’t Rules = No pricing without verification
   • Greeting = “Hello! This is Maya from ACME…”
5. Click “Preview Prompt” → “Generate with AI” → “Apply”
6. Save

Scenario 2: Sales Lead Qualification Bot

1. Create New
2. Configure General with sales-appropriate voice (alloy)
3. Context with product information
4. Instructions with qualification questions in Do Rules
5. Enable Transfer in Behavior tab
6. Generate AI prompt
7. Save

Scenario 3: After-Hours Message Taker

1. Create New
2. Set Extension to after-hours hunt group destination
3. Configure with message-taking instructions
4. Disable Transfer (only take messages)
5. Enable Hang Up so AI can end gracefully
6. Generate and apply prompt
7. Save

Scenario 4: Update Existing Agent

1. Edit agent
2. Modify Context or Instructions
3. Notice orange “Preview Prompt” indicator
4. Click Preview → Generate with AI → Apply
5. Save (indicator clears)

---

7. Limitations & Important Notes

Technical Requirements

[!IMPORTANT] mod_openai_realtime Required: The Telephony Server module must be compiled and loaded:

cd /var/www/softswitch/freeswitch/modules/mod_openai_realtime/build
cmake .. && make
sudo cp libmod_openai_realtime.so /usr/lib/freeswitch/mod/mod_openai_realtime.so
fs_cli -x "reload mod_openai_realtime"

AI Profiles Prerequisites

[!IMPORTANT] Minimum 2 AI Profiles Required for full functionality:

Profile	Type	Purpose	Required
Realtime Voice	Real Time	Powers live AI conversations via OpenAI Realtime API	✓ YES
Prompt Generator	General	Generates system prompts from form data	✓ YES
Whisper Transcription	Whisper	Speech-to-text for caller audio transcription	Optional
Wizard Assistant	General	Powers the AI Agent creation wizard	Optional

1. Realtime Voice Profile (REQUIRED)

• Type: Real Time
• Model: gpt-4o-realtime-preview (or compatible)
• Purpose: Handles all live voice conversations
• Used by: AI Profile field in agent configuration

2. Prompt Generator Profile (REQUIRED)

• Type: General
• Model: gpt-4o-mini, gpt-4o, or similar
• Purpose: Synthesizes professional system prompts from structured form data
• Used by: Prompt Generator field in agent configuration

3. Whisper Transcription Profile (OPTIONAL)

• Type: Whisper
• Model: whisper-1 (or compatible)
• Purpose: Transcribes caller speech to text in real-time
• Used by: Transcription Profile field in agent configuration

[!NOTE] If no Transcription Profile is selected but transcription is enabled, the system defaults to whisper-1. Selecting a specific profile allows future flexibility when OpenAI releases new Whisper models.

[!TIP] The Prompt Generator can have a custom system prompt optimized for creating AI agent instructions. If not provided, the system uses a default template.

Suggested Prompt Generator System Prompt:

You are an expert at writing system prompts for conversational AI voice agents.
Given structured information about a persona, role, company, and behavioral rules,
you must synthesize a comprehensive, natural-sounding system prompt that:
- Defines the AI's identity clearly
- Incorporates all behavioral guidelines
- Maintains a consistent personality
- Is optimized for real-time voice conversations
Output only the final system prompt, no explanations.

3. Wizard Assistant Profile (OPTIONAL)

• Type: General
• Model: gpt-4o-mini, gpt-4o, or similar
• Purpose: Powers the conversational AI Agent creation wizard
• Used by: Wizard modal when creating new agents

If not configured, the wizard uses the default system prompt. For optimal results, use a specialized prompt:

Click to expand: Recommended Wizard System Prompt

You are an expert Conversational AI Architect specialized in real-time voice systems,
Telephony Server telephony, and low-latency AI agents using OpenAI Realtime API.

Your role is NOT to chat casually.
Your role is to GUIDE, ANALYZE, VALIDATE, and OPTIMIZE the configuration of an AI Voice Agent
based on answers provided through a wizard UI.

You must behave like a senior solution architect helping a customer design
a HUMAN-LIKE, REAL-TIME AI AGENT for phone calls.

---

## 🎯 PRIMARY OBJECTIVE

Your objective is to:
1) Collect configuration preferences through the wizard
2) Analyze them holistically
3) Detect contradictions, risks, or suboptimal choices
4) Propose improvements and defaults
5) Produce a FINAL, OPTIMIZED AGENT CONFIGURATION
   that is technically feasible, low-latency, and natural for telephony

You must always prioritize:
- Real-time performance
- Natural conversation
- Barge-in capability
- Telephony Server constraints
- OpenAI Realtime API capabilities

---

## 🧩 CONTEXT YOU MUST ASSUME

- Platform: Ring2All
- Telephony engine: Telephony Server
- Audio is real-time (RTP / media stream)
- Multi-domain environment
- AI runs via OpenAI Realtime API over WebSocket
- Calls are live; latency above ~300–400 ms is noticeable
- Users are NOT AI experts

---

## 🧠 HOW YOU MUST THINK

You must think in these layers simultaneously:
1) Telephony reality (latency, codecs, barge-in, VAD)
2) Conversational UX (turn-taking, interruptions, human rhythm)
3) AI constraints (model behavior, streaming, context)
4) Business use case (support, sales, IVR replacement)
5) Operational stability (timeouts, fallbacks)

Never blindly accept a choice if it creates a bad experience.

---

## 🧭 WIZARD GUIDANCE RULES

### 1️⃣ Ask ONE question at a time
- Do not overwhelm the user
- Each question must be clearly motivated

### 2️⃣ Explain WHY you are asking
Before each question, briefly explain its impact.

### 3️⃣ Detect intent behind answers
If the user answer implies a use case (e.g. call center vs IVR),
adapt future questions accordingly.

### 4️⃣ Challenge bad configurations
If a choice would cause:
- High latency
- No barge-in
- Robotic behavior
- User frustration

You MUST explain the issue and propose a better alternative.

### 5️⃣ Suggest defaults when user is unsure
Never leave the user blocked.

---

## 🧩 CONFIGURATION DIMENSIONS YOU MUST COVER

You must guide the wizard through ALL these areas:

### A) Use Case
- Receptionist
- Support agent
- Sales agent
- IVR replacement
- Queue overflow
- Internal assistant

### B) Conversation Style
- Short / concise
- Natural / friendly
- Formal / professional

### C) Language Handling
- Auto-detect language
- Force a language
- Multilingual handling

### D) Barge-in (INTERRUPTION)
Guide configuration for:
- Enable barge-in (default: YES)
- Sensitivity
- Minimum speech duration to interrupt

### E) Transcription
- Live transcription?
- Store transcripts?

### F) Translation
- Real-time translation needed?
- Target language?

### G) Voice & Audio
- Voice selection
- Speaking speed

### H) Error Handling & Fallbacks
- What happens if AI fails?

---

## 🧪 VALIDATION PHASE

Once all answers are collected:
1) Summarize the configuration
2) Identify latency risks and UX problems
3) Propose improvements
4) Mark REQUIRED vs RECOMMENDED vs OPTIONAL changes

---

## 📦 FINAL OUTPUT FORMAT

At the end, output:
1) Configuration Summary (User-friendly)
2) Technical Configuration (Structured JSON)
3) Risk & Notes

---

## 🎯 SUCCESS CRITERIA

A successful session results in:
- A configuration that feels HUMAN on the phone
- Minimal latency
- Safe interruption (barge-in)
- Clear fallback behavior

4. Quick Import System Prompt

When using the Quick Import wizard mode (paste a description or JSON), the system uses a specialized parsing prompt:

Click to expand: Quick Import System Prompt

You are an expert AI Configuration Parser specialized in real-time voice agents
for telephony systems (Telephony Server + OpenAI Realtime API).

## 🎯 YOUR MISSION
Analyze the user's input (description, JSON, or prompt) and generate an
OPTIMIZED configuration for a voice AI agent designed for live phone calls.

## 🧠 CRITICAL CONTEXT
This is for a REAL-TIME VOICE AGENT on phone calls:
- Responses are SPOKEN, not displayed
- Latency matters (300ms+ is noticeable)
- Barge-in (interruption) is essential
- Conversations happen live with real humans

## 📋 PARSING RULES
1) Extract agent name, purpose, and personality
2) Infer voice characteristics from tone/style
3) Identify behavioral rules (DOs and DON'Ts)
4) Detect company/product context
5) Map any existing configuration to our format

## 🎛️ SMART DEFAULTS (if not specified)
- conversation_mode: "natural" (better for voice)
- barge_in_enabled: true (always for phone)
- barge_in_sensitivity: "medium"
- max_duration_seconds: 300 (5 minutes)
- greeting_message: SHORT (max 15 words for voice)
- personality: Infer from description

## ⚠️ VALIDATION
Before outputting, verify:
- Greeting is SHORT (under 15 words) and natural for SPEAKING
- No long pauses or complex sentences
- Barge-in is enabled
- Persona sounds human, not robotic

## 📤 OUTPUT FORMAT
Respond ONLY with a valid JSON object matching our schema.
No explanations, no markdown, just the pure JSON.

Default System Prompts (Automatic Fallback)

[!NOTE] No Profile Required for Wizard: If you don’t configure a Wizard Assistant Profile, the wizard will use the built-in default prompts described above.

The system automatically falls back to these prompts when:

• No AI Profile is selected for the wizard
• The selected profile has no system_prompt configured

This ensures the wizard always works, even without custom configuration.

Destination Routing

The General tab includes Destination Routing fields that control where calls are routed after the AI session ends:

Field	Purpose	Use Case
Timeout Destination	Where to route when AI session times out	Transfer to queue/voicemail after max_duration
Failure Destination	Fallback when AI encounters errors	Route to live agent on connection issues

[!NOTE] Transfer Destination is Dynamic: The AI decides transfer destinations during the conversation. There is no static “Transfer Destination” field because the AI can dynamically route to any extension, queue, or IVR based on the caller’s request.

Supported Destination Types:

• Extension
• Queue
• IVR
• Ring Group
• Voicemail
• Time Condition
• Hangup

[!TIP] Always configure a Failure Destination to ensure callers are never left in silence if the AI connection fails.

[!NOTE] AI Profile Required: An AI Profile with a valid OpenAI API key must be configured first.

[!WARNING] Realtime API Costs: OpenAI Realtime API has per-minute pricing. Monitor usage.

Prompt Management

Field	Purpose
additional_instructions	User’s manual notes (NEVER overwritten)
system_prompt	AI-generated/final prompt
prompt_outdated	Flag indicating regeneration needed

Best Practices

1. Generate After Changes: Always regenerate prompt after modifying form fields
2. Use Additional Instructions: Keep custom notes that persist across regenerations
3. Test Before Deploy: Use the preview to verify prompts sound correct
4. Enable Carefully: Only enable Transfer if agent should route calls
5. Set Time Limits: Use max_duration to prevent runaway call costs

---

Model Context Protocol (MCP) AI Integration

The AI Agents (Voice Agents) module exposes a comprehensive suite of tools within the SoftSwitch Model Context Protocol (MCP) server. Authorized AI Copilots and orchestrators can programmatically list active voice bots, inspect deep persona prompts, provision new voice assistants, modify conversational guardrails, and audit live call transcripts.

MCP Tools Catalog

Tool Name	Type	Access	Description
list_ai_voice_agents	Query	ai_system_admin / Read	List all Conversational AI Voice Agents in the PBX (shows agent name, extension, voice model, personality, and active status).
get_ai_voice_agent_status	Query	ai_system_admin / Read	Get full persona configuration, system prompt, greeting message, and voice synthesis parameters of an AI Voice Agent.
create_ai_voice_agent	Mutation	ai_system_admin / Write	Create an interactive Conversational AI Voice Agent / Bot with custom persona, system instructions, call transfer rules, and optional direct SIP extension.
update_ai_voice_agent	Mutation	ai_system_admin / Write	Update an AI Voice Agent’s system prompt instructions, greeting message, voice model, call transfer routes, or enabled status.
delete_ai_voice_agent	Mutation	ai_system_admin / Delete	Delete an AI Voice Agent from the PBX (protected by referential integrity guardrails).
list_ai_agent_call_transcripts	Query	ai_system_admin / Read	Get dialogue turns and transcripts of a call handled by an AI Voice Agent.

Tool Schemas & Execution Responses

list_ai_voice_agents

{
  "name": "list_ai_voice_agents",
  "description": "List all Conversational AI Voice Agents in the PBX (shows agent name, extension, voice model, personality, and active status).",
  "parameters": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter by agent name or description."
      }
    }
  }
}

Realistic Execution Response:

{
  "success": true,
  "data": {
    "total": 2,
    "agents": [
      {
        "id": 1,
        "name": "Tier 1 Telecom Concierge",
        "extension": "2000",
        "voice": "alloy",
        "personality": "professional",
        "enabled": true,
        "aiProfileName": "OpenAI Realtime Production",
        "enableTransfer": true
      },
      {
        "id": 2,
        "name": "Billing & Payments Assistant",
        "extension": "2001",
        "voice": "shimmer",
        "personality": "empathetic",
        "enabled": true,
        "aiProfileName": "OpenAI Realtime Production",
        "enableTransfer": true
      }
    ]
  }
}

get_ai_voice_agent_status

{
  "name": "get_ai_voice_agent_status",
  "description": "Get full persona configuration, system prompt, greeting message, and voice synthesis parameters of an AI Voice Agent.",
  "parameters": {
    "type": "object",
    "properties": {
      "agentName": {
        "type": "string",
        "description": "Name or extension of the AI Voice Agent."
      }
    },
    "required": ["agentName"]
  }
}

Realistic Execution Response:

{
  "success": true,
  "data": {
    "agent": {
      "id": 1,
      "agentName": "Tier 1 Telecom Concierge",
      "extension": "2000",
      "personaName": "Sofía",
      "greetingMessage": "Thank you for calling Ring2All Support. My name is Sofia. How can I assist with your phone system today?",
      "voice": "alloy",
      "personality": "professional",
      "systemPrompt": "You are Sofia, a calm and highly knowledgeable telecom specialist for Ring2All Platform. Assist callers with extensions, voicemail, and basic routing. When in doubt, offer transfer to human engineering.",
      "enableTransfer": true,
      "transferRoutes": [
        {
          "name": "NOC Engineering Desk",
          "destinationType": "ring_group",
          "destination": "600"
        },
        {
          "name": "Billing Department",
          "destinationType": "queue",
          "destination": "700"
        }
      ],
      "enableHangup": true,
      "enabled": true
    }
  }
}

create_ai_voice_agent

{
  "name": "create_ai_voice_agent",
  "description": "Create an interactive Conversational AI Voice Agent / Bot with custom persona, system instructions, call transfer rules, and optional direct SIP extension.",
  "parameters": {
    "type": "object",
    "properties": {
      "agentName": { "type": "string", "description": "Name of the AI Agent." },
      "extension": { "type": "string", "description": "Optional SIP extension number." },
      "personaName": { "type": "string", "description": "Persona name (e.g. 'Sofía')." },
      "systemPrompt": { "type": "string", "description": "System instructions for the LLM." },
      "greetingMessage": { "type": "string", "description": "Opening greeting spoken to callers." },
      "voice": { "type": "string", "description": "Voice model (e.g. 'alloy', 'echo', 'shimmer')." },
      "personality": { "type": "string", "description": "Personality style ('friendly', 'professional')." },
      "enableTransfer": { "type": "boolean", "description": "Whether the agent can transfer calls." },
      "transferRoutes": {
        "type": "array",
        "description": "Transfer routes for human escalation."
      }
    },
    "required": ["agentName", "systemPrompt"]
  }
}

Realistic Execution Response:

{
  "success": true,
  "data": {
    "agentId": 3,
    "agentName": "VIP Account Representative",
    "extension": "2005",
    "status": "created",
    "dialplanSynchronized": true
  }
}

list_ai_agent_call_transcripts

{
  "name": "list_ai_agent_call_transcripts",
  "description": "Get dialogue turns and transcripts of a call handled by an AI Voice Agent.",
  "parameters": {
    "type": "object",
    "properties": {
      "callId": {
        "type": "number",
        "description": "ID of the AI Agent call."
      }
    },
    "required": ["callId"]
  }
}

Realistic Execution Response:

{
  "success": true,
  "data": {
    "callId": 8412,
    "callerNumber": "+13055550199",
    "agentName": "Tier 1 Telecom Concierge",
    "durationSeconds": 68,
    "turns": [
      {
        "speaker": "agent",
        "text": "Thank you for calling Ring2All Support. My name is Sofia. How can I assist with your phone system today?",
        "timestamp": "2026-09-08T10:14:02Z"
      },
      {
        "speaker": "caller",
        "text": "Hi Sofia, I'm trying to check voicemail for extension 1024.",
        "timestamp": "2026-09-08T10:14:08Z"
      },
      {
        "speaker": "agent",
        "text": "Certainly! You can dial star 97 directly from your desk phone to access your voicemail inbox. Would you like me to connect you now?",
        "timestamp": "2026-09-08T10:14:14Z"
      }
    ]
  }
}

Bilingual Natural Language Prompt Examples

English Prompts

• “Copilot, list all active AI Voice Agents and their assigned PBX extensions.”
• “Show me the full persona configuration and system prompt for the Telecom Concierge agent.”
• “Retrieve the turn-by-turn dialogue transcript for AI call ID 8412.”
• “Update the greeting message of voice agent ‘Tier 1 Telecom Concierge’ to mention the upcoming maintenance window.”

Spanish Prompts

• “Copilot, lista todos los agentes de voz con IA activos y sus extensiones PBX asignadas.”
• “Muéstrame la configuración de persona y las instrucciones del sistema del agente Telecom Concierge.”
• “Obtén la transcripción paso a paso de la llamada con IA número 8412.”
• “Actualiza el mensaje de bienvenida del agente ‘Tier 1 Telecom Concierge’ para avisar sobre la ventana de mantenimiento.”

Enterprise Safeguards & Execution Boundaries

1. Referential Integrity & Dialplan Safety (assertCanDeleteAiVoiceAgent): Voice agents assigned to active ring groups, queues, or inbound DIDs cannot be deleted until dialplan routes are safely migrated.
2. Strict Multi-Tenant Scoping: All operations enforce numeric domain_id and tenant_id boundaries. Agents cannot dial or transfer to extensions outside their isolated organization.
3. Call Guardrails & Duration Thresholds: Automated voice agent interactions enforce maximum call duration (max_duration), barge-in acoustic clamping, and immediate graceful hangup capability to prevent runaway API billing.

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Call goes silent	mod_openai_realtime not loaded	Check fs_cli: module_exists mod_openai_realtime
AI doesn’t respond	Invalid API key	Verify AI Provider credentials
Wrong voice	Profile mismatch	Check AI Profile assignment
Orange indicator won’t clear	Changes not applied	Generate with AI → Apply → Save
AI promises transfer but can’t	Transfer disabled	Enable in Behavior tab

Verify Module Installation

# Check if module is loaded
fs_cli -x "module_exists mod_openai_realtime"
# Should return: true

# Check syntax help
fs_cli -x "help uuid_openai_realtime"
# Should list command options

Check Lua Handler

# Verify Lua script exists
ls -la /usr/share/freeswitch/scripts/ai/ai_realtime_handler.lua

Test API Connection

# Test OpenAI Realtime API access
curl https://api.openai.com/v1/realtime/sessions \
  -H "Authorization: Bearer sk-xxxxxx" \
  -H "Content-Type: application/json"

Common Log Messages

Term	Definition
AI Handler: Agent X loaded	Agent configuration found
mod_openai_realtime loaded	Module is active
WebSocket connected	OpenAI connection established
Instructions configured (length=X)	Prompt successfully sent
Transcription enabled from channel variable	Whisper transcription active
Arg[X]: transcription_enabled=1	Parameter parsed correctly

Caller Transcription Issues

[!IMPORTANT] Caller Transcription Architecture: Caller audio is transcribed using OpenAI Whisper (configured via Transcription Profile). The C module exposes transcripts via channel variables that the Lua handler polls.

Symptom	Possible Cause	Solution
AI transcripts work, caller missing	Parameter truncation	Check logs for Arg[X]: transcription_enabled=1
Arg[X]: transcription_enabled=1 conversation_start=agent	Arguments merged	Update mod_openai_realtime.c to argv[20]
Transcription always disabled	Channel variable not set	Verify Lua sets openai_transcription_enabled

How Transcription Parameters Are Passed

The system uses a Channel Variable Offloading pattern to avoid Telephony Server’s argument limit:

┌─────────────────────────────────────────────────────────────────┐
│                   Parameter Flow                                 │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  ai_realtime_handler.lua                                         │
│  ┌────────────────────────────────────────────────────────────┐  │
│  │  session:setVariable("openai_transcription_enabled", "1")  │  │
│  │  session:setVariable("openai_transcription_model", "...")  │  │
│  │  session:setVariable("openai_conversation_start", "agent") │  │
│  │  session:setVariable("openai_transfer_routes_b64", "...")  │  │
│  └────────────────────────────────────────────────────────────┘  │
│                              │                                   │
│                              ▼                                   │
│  mod_openai_realtime.c                                           │
│  ┌────────────────────────────────────────────────────────────┐  │
│  │  1. Parse command-line arguments (api_key, model, etc.)    │  │
│  │  2. Read channel variables for optional configs            │  │
│  │  3. Merge into final openai_config_t structure             │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

Channel Variables Used:

Variable	Purpose	Values
openai_transcription_enabled	Enable Whisper for caller audio	1 or 0
openai_transcription_model	Whisper model to use	whisper-1
openai_conversation_start	Who speaks first	agent or caller
openai_transfer_routes_b64	Base64 transfer destinations	JSON array

---

9. Glossary

Term	Definition
AI Agent	A configured AI persona for voice calls
AI Profile	Template with model, temperature, and base config
AI Provider	API credentials for AI services
Barge-In	Caller interrupting AI speech
System Prompt	Instructions sent to the AI model
Additional Instructions	Manual notes appended to prompts
Prompt Outdated	Flag indicating form changes need regeneration
mod_openai_realtime	Telephony Server C module for OpenAI Realtime
VAD	Voice Activity Detection
Realtime API	OpenAI’s WebSocket-based voice API

---

Documentation last updated: January 2026
