1. Overview & Service Architecture

In Ring2All SBC, the Firewall Services module provides an object-oriented network service abstraction layer. Rather than requiring network engineers to memorize and enter raw port numbers and protocol numbers when writing firewall rules, services define standardized, named entities (e.g., SIP External (UDP), RTP Media, WireGuard VPN, SSH) that encapsulate transport protocols, port assignments, and port ranges.

       ┌─────────────────────────────────────────────────────────────┐
       │               FIREWALL SERVICES CATALOG                     │
       │              (Stored in sbc_admin.firewall_services)        │
       └──────────────────────────────┬──────────────────────────────┘
                                      │
           ┌──────────────────────────┼──────────────────────────┐
           ▼                          ▼                          ▼
   ┌────────────────┐        ┌────────────────┐         ┌────────────────┐
   │ SIP SIGNALING  │        │ MEDIA & VPN    │         │ ADMINISTRATIVE │
   ├────────────────┤        ├────────────────┤         ├────────────────┤
   │ • SIP UDP 5060 │        │ • RTP Media    │         │ • SSH (22)     │
   │ • SIP TCP 5060 │        │   (10000-20000)│         │ • HTTPS (443)  │
   │ • SIP TLS 5061 │        │ • WireGuard    │         │ • SBC Admin API│
   │ • Public 5080  │        │   (UDP 51820)  │         │ • Postgres 5432│
   │ • Public TLS   │        │ • ICMP Echo    │         │ • Prometheus   │
   └────────────────┘        └────────────────┘         └────────────────┘
           │                          │                          │
           └──────────────────────────┼──────────────────────────┘
                                      │
                                      ▼
       ┌─────────────────────────────────────────────────────────────┐
       │               FIREWALL RULES ABSTRACTION LAYER              │
       │  (Rules reference named services rather than literal ports)  │
       └─────────────────────────────────────────────────────────────┘

These service definitions are referenced directly by the Firewall Rules engine, ensuring configuration consistency, simplifying security audits, and preventing port collision mistakes across cluster instances.

2. Business & Operational Significance

Error-Proof Rule Authoring: Eliminates costly typos in critical telecom ports (e.g., entering 5006 instead of 5060) that can silently disrupt voice traffic or leave management ports exposed.
Standardized Telecom Profile: Pre-configures carrier-grade port standards out of the box, including Kamailio default signaling ports, RTPEngine RTP proxy ranges, and Prometheus telemetry ports.
Rapid Port Range Updates: Changing a service definition (e.g., expanding the RTP media range from 10000–20000 to 10000–30000) automatically updates all associated firewall rules upon rule re-application.
Audit & Compliance Readability: Security auditors can immediately inspect named service definitions rather than deciphering raw iptables port syntax in obscure script files.

3. 🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
Network Infrastructure Engineer	Service Definition & Port Allocation	Define custom telephony services, allocate non-standard SIP/TLS listening ports, and configure RTP media boundaries.
SBC Administrator	Service Catalog Maintenance	Enable or disable specific service definitions, update service descriptions, and verify active port bindings.
SecOps Auditor	Attack Surface Review	Review all defined listening ports, ensure non-essential ports are disabled, and verify internal-only restrictions.
DevOps Automation Lead	Infrastructure As Code Integration	Export service definitions to declarative deployment manifests and verify cluster uniformity.
AI Network Systems Agent / NOC Copilot	Automated Service Catalog Inspection	Query defined firewall services, inspect port assignments and protocols, and verify telemetry or media port alignment via MCP tools.

4. Visual Interface & Layout

The Firewall Services interface provides a comprehensive DataGrid view displaying all defined services, transport protocols, port assignments, descriptive roles, and operational statuses.

4.1 Firewall Services List View

Displays pre-configured and custom system services, port ranges, and status toggles.

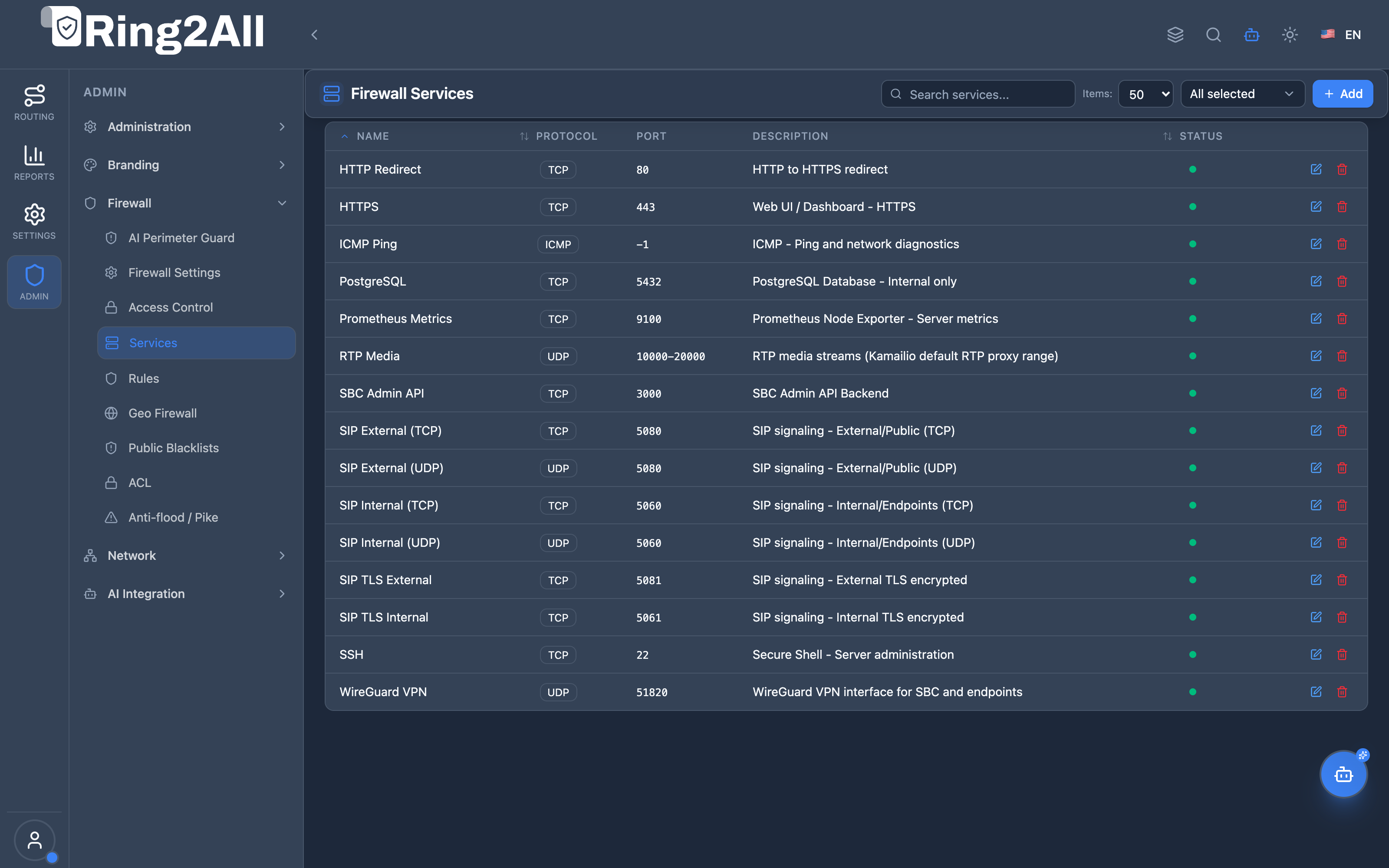

Firewall Services List View

5. Field Reference & Pre-Configured Services Catalog

5.1 Service Data Fields

Field	Type	Description
Name	String	Human-readable service identifier (e.g., `SIP Internal (UDP)`, `RTP Media`).
Protocol	Badge	Transport layer protocol: `TCP`, `UDP`, or `ICMP`.
Port	String / Range	Specific port number (e.g., `5060`, `443`), port range (`10000–20000`), or `-1` for protocol-wide filtering (ICMP).
Description	String	Detailed explanation of the service’s role within the SBC architecture.
Status	Status Dot	Active (Green) or Disabled (Grey) status indicator.
Actions	Action Icons	Edit service parameters or delete custom service objects.

5.2 Pre-Configured Services Catalog

Service Name	Protocol	Port / Range	Primary Telecom Function
HTTP Redirect	`TCP`	`80`	Automatic redirect of plain HTTP requests to HTTPS.
HTTPS	`TCP`	`443`	Secure Web UI and REST API administrative interface.
ICMP Ping	`ICMP`	`-1`	Network diagnostics and latency monitoring via ICMP Echo Request.
PostgreSQL	`TCP`	`5432`	Relational database access (restricted strictly to internal cluster networks).
Prometheus Metrics	`TCP`	`9100`	Node Exporter and system performance metric scraping.
RTP Media	`UDP`	`10000–20000`	Real-time audio and video streams relayed by RTPEngine.
SBC Admin API	`TCP`	`3000`	Node.js Fastify backend API daemon.
SIP External (TCP)	`TCP`	`5080`	Public-facing SIP carrier signaling over TCP.
SIP External (UDP)	`UDP`	`5080`	Public-facing SIP carrier signaling over UDP.
SIP Internal (TCP)	`TCP`	`5060`	Core PBX and internal extension signaling over TCP.
SIP Internal (UDP)	`UDP`	`5060`	Core PBX and internal extension signaling over UDP.
SIP TLS External	`TCP`	`5081`	Encrypted public-facing SIP signaling via TLS.
SIP TLS Internal	`TCP`	`5061`	Encrypted core PBX and private trunk signaling via TLS.
SSH	`TCP`	`22`	Secure Shell for host-level remote system administration.
WireGuard VPN	`UDP`	`51820`	Secure encrypted tunnel interface for inter-node communication.

6. Service Abstraction & nftables Mapping

Services defined in sbc_admin.firewall_services translate dynamically into Linux nftables syntax when firewall rules are applied:

# Single port translation
service: "SIP Internal (UDP)" (UDP, 5060)
nftables: udp dport 5060 accept

# Port range translation
service: "RTP Media" (UDP, 10000-20000)
nftables: udp dport 10000-20000 accept

# Protocol without port (ICMP)
service: "ICMP Ping" (ICMP, -1)
nftables: ip protocol icmp accept

7. Operational Best Practices & Security Hardening

Isolate Database & Metrics: Ensure services such as PostgreSQL (5432) and SBC Admin API (3000) are never exposed to public source addresses. Always bind rules referencing these services to private management subnets (e.g., 10.0.0.0/8 or 192.168.10.0/24).
Match RTP Ranges with RTPEngine: Always verify that the port range specified in the RTP Media service (10000-20000) exactly matches the port-min and port-max parameters configured in /etc/rtpengine/rtpengine.conf.
Separate External from Internal SIP: Keep internal PBX signaling (5060/5061) separated from public carrier signaling (5080/5081) to maintain clean architectural boundary isolation.
Minimize Open Administrative Services: Disable services like Prometheus Metrics or HTTP Redirect if external scraping or plaintext redirects are not required by your infrastructure policy.

8. Verification & Diagnostics

8.1 Inspect Services in Database

Query all active services and their allocated ports:

sudo -u postgres psql -d sbc_admin -c "
SELECT name, protocol, port, description, is_active
FROM firewall_services
ORDER BY id;
"

8.2 Verify Listening Sockets on Host

Verify that the host kernel is actively listening on the defined service ports:

ss -tulwn | grep -E ':22|:80|:443|:3000|:5060|:5080|:5061|:5081|:51820'

9. Model Context Protocol (MCP) AI Integration

The Ring2All SBC MCP Server exposes dedicated service catalog introspection tools under the firewall_services tool category. Autonomous infrastructure agents and the Ring2All SBC NOC Copilot can query available service templates, inspect allocated port boundaries, and ensure compliance before writing or adjusting packet filtering policies.

9.1 Available MCP Tools

Tool Name	Operation Type	Risk Level	Description
`list_sbc_firewall_services`	Read-only	`read_only`	Lists all defined network service objects in the SBC catalog, including protocols, port numbers/ranges, and system flags.
`get_sbc_firewall_service`	Read-only	`read_only`	Retrieves full technical details for a specific firewall service by numerical ID or canonical name.

9.2 Tool Schemas & Parameter Definitions

`list_sbc_firewall_services`

Description: List all defined firewall services (ports and protocols) in Ring2All SBC.
Input Schema:

{
  "type": "object",
  "properties": {}
}

`get_sbc_firewall_service`

Description: Retrieve detailed port and protocol specifications for a specific firewall service.
Input Schema:

{
  "type": "object",
  "properties": {
    "id": {
      "type": "number",
      "description": "Numerical primary key ID of the firewall service"
    },
    "name": {
      "type": "string",
      "description": "Canonical name of the service (e.g., 'RTP Media', 'SIP Internal (UDP)')"
    }
  }
}

9.3 Sample Tool Execution Payloads

Example 1: Listing All Pre-Configured Telephony Services

Request Payload:

{
  "tool": "list_sbc_firewall_services",
  "parameters": {}
}

Response Payload:

{
  "success": true,
  "data": {
    "total": 15,
    "services": [
      {
        "id": 1,
        "name": "SIP Internal (UDP)",
        "protocol": "UDP",
        "port": "5060",
        "description": "Core PBX and internal extension signaling over UDP",
        "enabled": true,
        "isSystem": true
      },
      {
        "id": 6,
        "name": "RTP Media",
        "protocol": "UDP",
        "port": "10000-20000",
        "description": "Real-time audio and video streams relayed by RTPEngine",
        "enabled": true,
        "isSystem": true
      },
      {
        "id": 14,
        "name": "WireGuard VPN",
        "protocol": "UDP",
        "port": "51820",
        "description": "Secure encrypted tunnel interface for inter-node communication",
        "enabled": true,
        "isSystem": true
      }
    ]
  }
}

Example 2: Inspecting Specific RTP Media Service
