Device SIP Profiles Module Documentation

Navigation & Access
Screenshots & Visual Interface
Module Overview (Technical)
Module Overview (Commercial/Business)
Module Overview (End User/Administrator)
User Roles & Key Capabilities
Configuration Categories
Settings Reference
Common Scenarios & Examples
Limitations & Important Notes
Troubleshooting Tips
Glossary
Model Context Protocol (MCP) AI Integration

To access the Device Profiles configuration module:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
In the left navigation sidebar, expand Settings.
Under Technology, click Device profiles (/settings/technology/device-profile).
To add a new device profile template, click + Add Profile (/settings/technology/device-profile/new). To edit an existing profile, click on the profile row or the Edit action button (/settings/technology/device-profile/:id).

Screenshots & Visual Interface

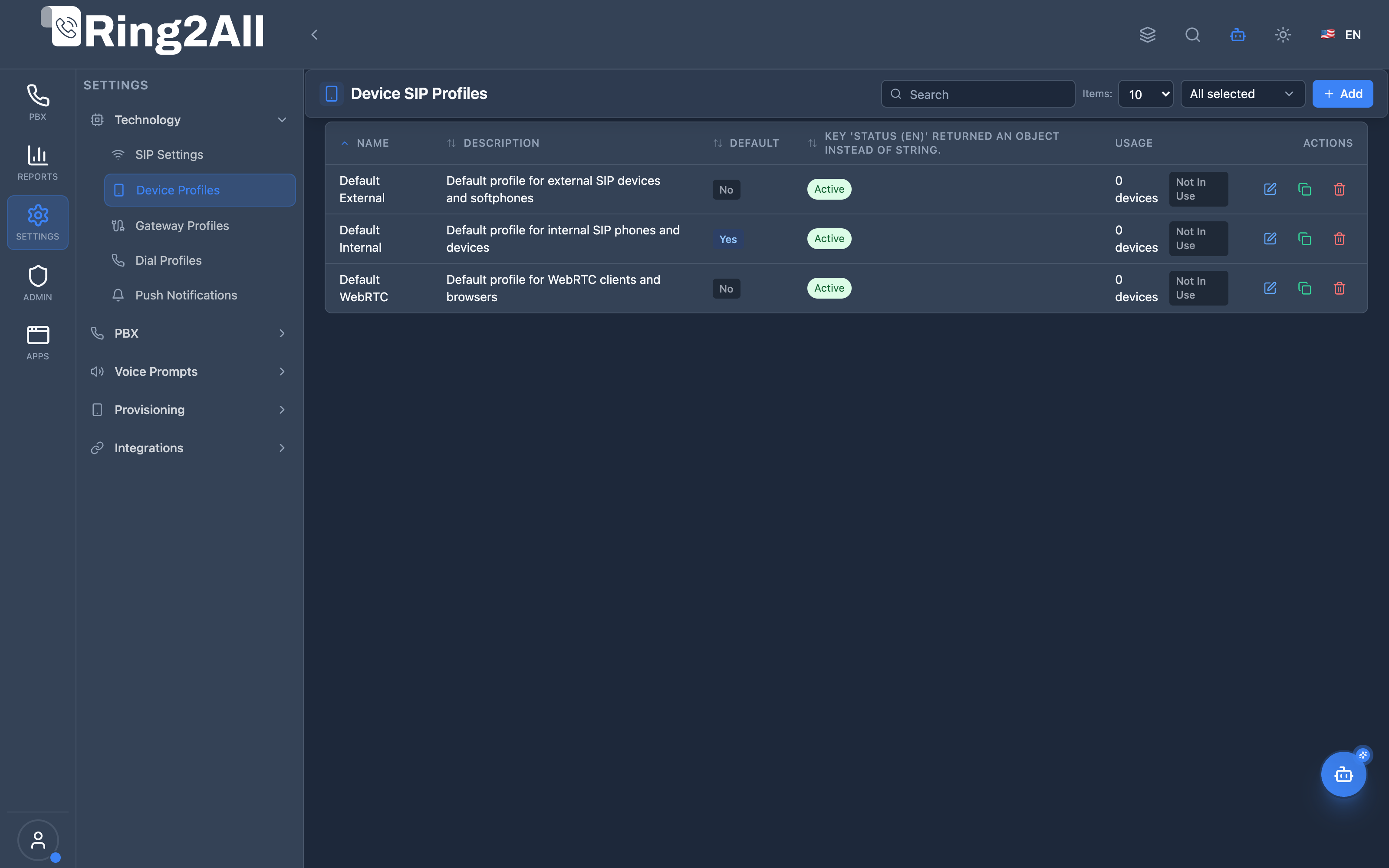

Device Profiles Directory

Directory of registered device profile templates applied to extensions and IP endpoints, detailing profile names, descriptions, associated Telephony Server profile bindings, and modification history. Device Profiles List

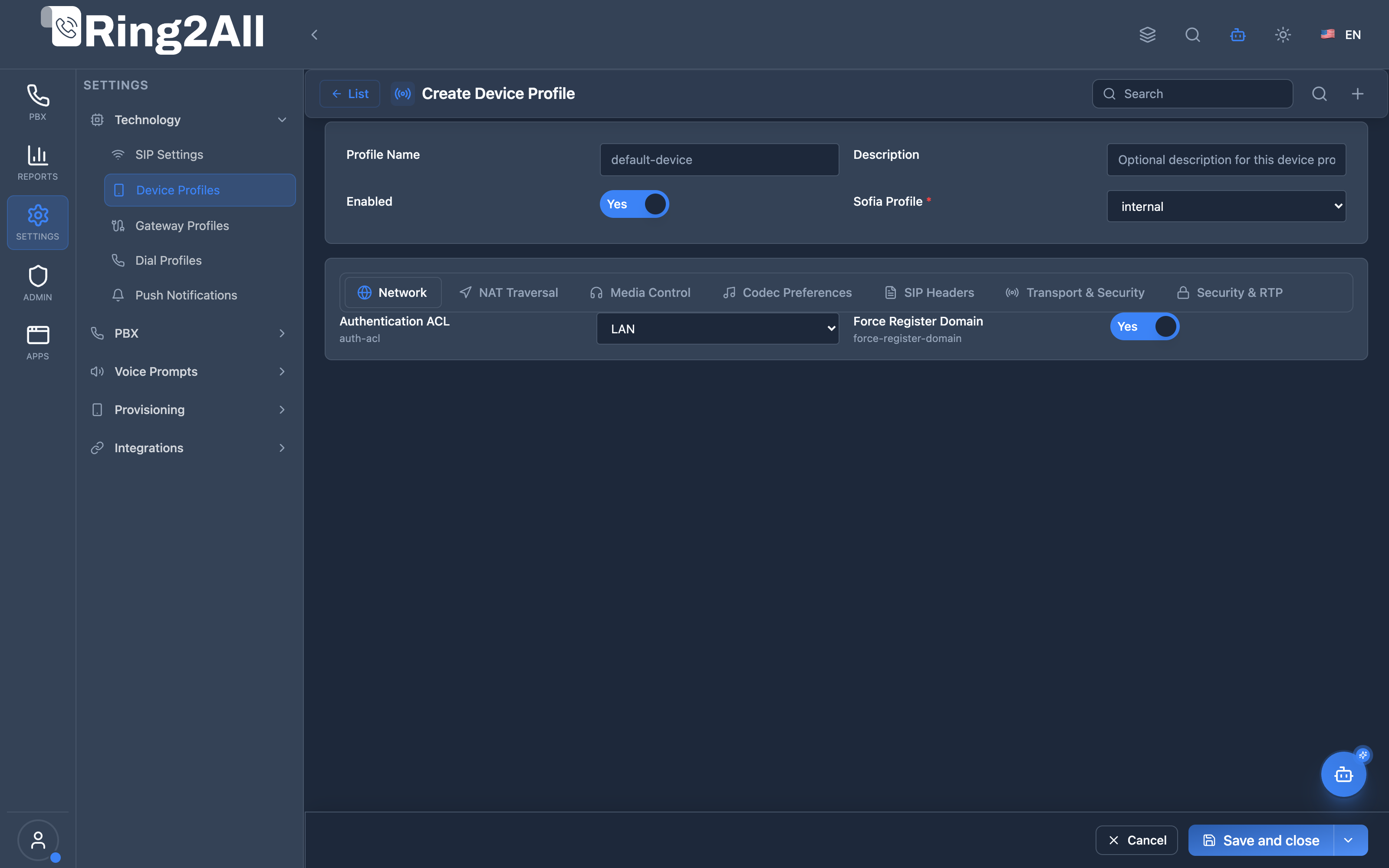

Device Profile Configuration Form

Granular configuration form for provisioning and extension registration templates, enabling administrators to define NAT traversal parameters, codec negotiation hierarchies, TLS encryption, and custom Sofia directory variables. Device Profile Form

1. Module Overview (Technical)

What Are Device SIP Profiles?

Device SIP Profiles are provisioning templates that define SIP parameters for devices (IP phones, softphones, WebRTC clients). Unlike SIP Profiles (which configure Telephony Server), Device SIP Profiles configure how individual device registrations are handled with specific NAT, codec, and security settings.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│               Device SIP Profiles Architecture                 │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Admin Panel                                                    │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Device SIP Profiles                               │   │
│  │                                                          │   │
│  │  Templates:                                              │   │
│  │  ├─ LAN Phones (NAT disabled, UDP)                      │   │
│  │  ├─ Remote Phones (NAT enabled, TLS)                    │   │
│  │  └─ WebRTC Clients (WSS, DTLS, ICE)                     │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Assigned to devices                                    │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Extensions / Devices                              │   │
│  │                                                          │   │
│  │  Extension 1001 → LAN Phones profile                    │   │
│  │  Extension 1002 → Remote Phones profile                 │   │
│  │  Extension 1003 → WebRTC Clients profile                │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied during registration                            │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Telephony Server                                        │   │
│  │                                                          │   │
│  │  Device registers → Profile settings applied:           │   │
│  │  ├─ NAT handling                                        │   │
│  │  ├─ Codec preferences                                   │   │
│  │  ├─ Security (TLS, SRTP)                                │   │
│  │  └─ SIP headers                                         │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

1.1 Dynamic Profile Inheritance vs Explicit Override (`None` / Inherit from Profile)

How `None (inherit from profile)` Works

When creating or editing an extension, the SIP Profile field defaults to None (inherit from profile) (sip_profile_id = null).

Dynamic Transport Auto-Detection: Without static device profile overrides in the user’s directory XML, Telephony Server’s Sofia internal profile auto-detects the connecting transport:
- UDP (Port 5060): Automatically negotiates standard RTP for physical desk phones (Yealink, Grandstream, Cisco).
- WebSocket / WSS (Port 7443): Automatically enables DTLS-SRTP, ICE candidates, and RTCP-mux for browser-based WebRTC clients.
Hybrid Simultaneous Registration: Leaving the profile as None allows the same extension to be registered simultaneously on a physical desk phone and a web browser app without configuration conflicts.

When to Assign an Explicit Device Profile

Assign an explicit profile (e.g., Default Internal or Default WebRTC) only when you need to enforce static overrides for specific endpoints, such as:

Forcing a specific re-registration interval (e.g. 120 seconds).
Forcing strict codec constraints or disabling media transcoding.
Enforcing custom network ACLs (authAcl) or bypass media policies.

2. Module Overview (Commercial/Business)

Business Value

Device SIP Profiles provides device-specific configuration:

Without Device Profiles	With Device Profiles
One-size-fits-all	Tailored per device type
NAT issues	Proper NAT handling
Security gaps	TLS/SRTP per profile
Codec problems	Optimized codecs

Use Cases

LAN Phone Deployment
- Disable NAT traversal
- Use all codecs
Remote Workers
- Enable aggressive NAT
- Require TLS/SRTP
WebRTC Clients
- Enable WSS, ICE, DTLS
- Configure RTCP-mux
Legacy Devices
- Adjust for compatibility
- Specific codec order

Feature Highlights

Feature	Benefit
Templates	Reusable configurations
NAT Settings	Handle any network
Codec Control	Optimize quality
Security Options	TLS, SRTP, DTLS
WebRTC Support	Browser clients
Per-Device	Granular control

3. Module Overview (End User/Administrator)

What Can You Do?

Create device SIP profile templates
Configure NAT traversal settings
Set codec preferences
Enable security (TLS, SRTP)
Configure WebRTC support
Assign profiles to devices/extensions

Device SIP Profiles Interface

┌─────────────────────────────────────────────────────────────────┐
│              Device SIP Profiles                                │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [+ Create Device Profile]                                      │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Profile Name     │ Description          │ Usage │ Status │  │
│  ├──────────────────┼──────────────────────┼───────┼────────┤  │
│  │ LAN Phones       │ Local office phones  │ 45    │ ✓ On   │  │
│  │ Remote Phones    │ Work from home       │ 20    │ ✓ On   │  │
│  │ WebRTC Clients   │ Browser softphone    │ 15    │ ✓ On   │  │
│  │ Legacy ATA       │ Older analog adapters│ 5     │ ✓ On   │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Profile Edit View

┌─────────────────────────────────────────────────────────────────┐
│              Edit Device Profile: WebRTC Clients                │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Profile Name: [WebRTC Clients                  ]               │
│  Description: [Browser-based softphones         ]               │
│  Sofia Profile: [internal-tls ▼]                                │
│  Enabled: ✓                                                     │
│                                                                 │
│  ▼ Network                                                      │
│  ├─ Authentication ACL: [ANY ▼]                                │
│  └─ Force Register Domain: ✓                                   │
│                                                                 │
│  ▼ NAT Traversal                                                │
│  ├─ Aggressive NAT Detection: ✓                                │
│  ├─ Rewrite Contact Header: ✓                                  │
│  └─ Force rport: ✓                                             │
│                                                                 │
│  ▼ Media Control                                                │
│  ├─ RTP Timeout (Seconds): [300               ]                │
│  ├─ Bypass Media: ☐                                            │
│  └─ Disable Transcoding: ☐                                     │
│                                                                 │
│  ▼ Codec Preferences                                            │
│  ├─ Inbound Codecs: [OPUS, PCMU, PCMA ▼]                       │
│  ├─ Outbound Codecs: [OPUS, PCMU, PCMA ▼]                      │
│  └─ DTMF Method: [RFC 2833 ▼]                                  │
│                                                                 │
│  ▼ Transport & Security                                         │
│  ├─ Enable WebSocket (WS): ☐                                   │
│  ├─ Enable Secure WebSocket (WSS): ✓                           │
│  ├─ Enable TLS: ✓                                              │
│  └─ TLS Only Mode: ✓                                           │
│                                                                 │
│  ▼ Security & RTP                                               │
│  ├─ Enable DTLS-SRTP: ✓                                        │
│  ├─ Enable ICE NAT Traversal: ✓                                │
│  ├─ Enable RTCP Multiplexing: ✓                                │
│  └─ Secure RTP (SRTP) Mode: [Always Use SRTP ▼]                │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] WebRTC: Enable WSS, DTLS, ICE, and RTCP-mux for browser clients.

[!TIP] Remote Workers: Enable aggressive NAT detection and TLS.

[!NOTE] Usage Count: Shows how many devices use this profile.

🎯 User Roles & Key Capabilities

Role	Permissions	Key Capabilities
Super Administrator	Full Access (`read`, `write`, `delete`, `clone`)	Create global and domain-specific device templates, configure default WebRTC/TLS media profiles, and manage encryption rules.
PBX Administrator	Domain Management (`read`, `write`)	Assign device profiles to extensions, customize codec ordering (e.g. OPUS first), and enforce aggressive NAT detection for remote softphones.
Provisioning Specialist	Operational (`read`, `write`)	Create vendor-tailored device profiles for Yealink, Grandstream, Polycom, and Cisco physical IP phones.
Support Specialist	Read & Diagnostic (`read`)	Inspect extension device profile assignments, verify DTLS/SRTP settings, and diagnose media negotiation failures.

4. Configuration Categories

Network

Setting	Description
Authentication ACL	LAN, WAN, or ANY
Force Register Domain	Lock registration domain

NAT Traversal

Setting	Description
Aggressive NAT Detection	Deep NAT inspection
Rewrite Contact Header	Fix Contact for NAT
Force rport	Use source port

Media Control

Setting	Description
RTP Timeout	Inactivity timeout
RTP Hold Timeout	Hold inactivity timeout
Bypass Media	Direct RTP between devices
Disable Transcoding	Allow asymmetric codecs
Session Timeout	Maximum call duration

Codec Preferences

Setting	Description
Inbound Codec Prefs	Incoming codec priority
Outbound Codec Prefs	Outgoing codec priority
DTMF Method	RFC2833, SIP INFO, In-band
RFC2833 Payload Type	DTMF RTP payload

SIP Headers

Setting	Description
Send Remote-Party-ID	Include RPID header
Send P-Asserted-Identity	Include PAI header
Send SIP Diversion	Include Diversion header
SIP Caller ID Type	None, PAI, or RPID

Transport & Security

Setting	Description
Enable WebSocket	WS for debugging
Enable Secure WebSocket	WSS for browsers
Enable TLS	Encrypted signaling
TLS Only Mode	Require TLS
Registration Expires	Re-registration interval
TLS Verify Policy	Certificate validation

Security & RTP

Setting	Description
Enable DTLS-SRTP	Encrypted media (WebRTC)
Enable ICE	NAT traversal for WebRTC
Enable RTCP-mux	Share RTP/RTCP port
Secure RTP Mode	Always, Optional, Never
Require Secure Media	Enforce SRTP

5. Settings Reference

Profile Types

Profile Type	Key Settings
LAN Phones	NAT off, UDP, all codecs
Remote Phones	NAT on, TLS, SRTP
WebRTC Clients	WSS, ICE, DTLS, RTCP-mux
Legacy ATA	Basic codecs, relaxed NAT

WebRTC Requirements

Setting	Value
WSS	✓ Required (via Nginx proxy on port 443)
DTLS-SRTP	✓ Required
ICE	✓ Required
RTCP-mux	✓ Required
Codecs	OPUS preferred

[!NOTE] WebRTC clients connect via wss://domain/ws on port 443. Nginx terminates TLS and forwards plain WebSocket to Telephony Server on 127.0.0.1:5066. No separate WSS port is needed on Telephony Server.

Security Levels

Level	TLS	SRTP	Use Case
None	☐	☐	LAN only
Signaling	✓	☐	Basic security
Full	✓	✓	Remote/WFH
Maximum	✓	Required	High security

6. Common Scenarios & Examples

Scenario 1: LAN Office Phones

Create new profile
Set Authentication ACL = LAN
Disable NAT settings
Set codecPrefs = PCMU,PCMA,G722
Save and assign to extensions

Scenario 2: Remote Worker

Create new profile
Enable Aggressive NAT Detection
Enable Rewrite Contact, Force rport
Enable TLS and SRTP
Save and assign

Scenario 3: WebRTC Softphone

Create new profile
Set Authentication ACL = ANY
Enable all NAT options
Enable WSS, DTLS, ICE, RTCP-mux
Set codecs to OPUS
DTMF = RFC2833

[!NOTE] WebRTC connection flow: Browser → wss://domain/ws (Nginx, port 443) → ws://127.0.0.1:5066 (Telephony Server). TLS is handled by Nginx.

Scenario 4: Legacy ATA

Create new profile
Basic NAT settings
Set codecs = PCMU,PCMA only
Set DTMF = Inband or INFO
Longer timeouts

7. Limitations & Important Notes

Technical Notes

[!NOTE] Profile Assignment: Profiles are assigned to extensions/devices.

[!NOTE] Sofia Profile: Must select base SIP profile (internal/external).

[!WARNING] Cannot Delete In-Use: Profiles with assigned devices cannot be deleted.

Best Practices

Create Per Type: Different profiles for different device types
Test Thoroughly: Test NAT settings before deployment
Security First: Use TLS/SRTP for remote devices
Codec Matching: Match codecs to device capabilities
Document Profiles: Note what each profile is for

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Registration fails	Wrong ACL	Check Authentication ACL
One-way audio	NAT issues	Enable NAT options
No audio	Codec mismatch	Check codec preferences
WebRTC not working	Missing WSS/ICE	Enable WebRTC settings
DTMF not working	Wrong DTMF type	Change DTMF method

WebRTC Checklist

Setting	Required
Enable WSS	✓
Enable DTLS-SRTP	✓
Enable ICE	✓
Enable RTCP-mux	✓
Secure RTP	Optional or Always
Codecs	Include OPUS

NAT Checklist

Setting	Remote Devices
Aggressive NAT Detection	✓
Rewrite Contact	✓
Force rport	✓

9. Glossary

Term	Definition
Device Profile	SIP settings template for devices
NAT	Network Address Translation
SRTP	Secure Real-time Transport Protocol
DTLS	Datagram TLS for media
ICE	Interactive Connectivity Establishment
WSS	WebSocket Secure
RTCP-mux	RTP/RTCP on same port
OPUS	High-quality audio codec

Model Context Protocol (MCP) AI Integration

The Ring2All PBX platform integrates deep AI assistance via the Model Context Protocol (MCP). The Device SIP Profiles module exposes intelligent tools allowing the PBX AI Copilot to query available device templates, analyze codec and NAT profiles, and recommend optimal settings for IP phones, softphones, and browser-based WebRTC endpoints.

Available MCP Tools

Tool Name	Operation Type	RBAC Risk Level	Description
`list_device_sip_profiles`	Read / Query	`low`	Lists Directory / Device SIP Profiles (configuration templates for physical IP phones, softphones, and WebRTC clients) with domain isolation.
`diagnose_media_nat`	Diagnostic / Query	`low`	Performs deep operational diagnostic on VoIP media, RTP audio flow, and NAT traversal: checks Sofia profile IP parameters (`ext-rtp-ip`), detects RFC1918 private IP leaks in SDP, verifies UDP 16384-32768 port availability, and detects one-way audio/silence on live channels.

Tool Input Schemas & Parameters

1. `list_device_sip_profiles`

{
  "name": "list_device_sip_profiles",
  "description": "List Directory / Device SIP Profiles (configuration templates for physical IP phones, softphones, and WebRTC clients).",
  "inputSchema": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter by device profile name or description (e.g. 'WebRTC', 'Internal Phones')."
      }
    }
  }
}

2. `diagnose_media_nat`

{
  "name": "diagnose_media_nat",
  "description": "Perform deep diagnostic on VoIP media, RTP audio flow, and NAT traversal (Sofia ext-rtp-ip, RFC1918 SDP leaks, one-way audio detection).",
  "inputSchema": {
    "type": "object",
    "properties": {
      "callUuid": {
        "type": "string",
        "description": "Optional active or recent call UUID to inspect live RTP packet counters."
      },
      "extension": {
        "type": "string",
        "description": "Optional extension number to inspect SIP registration NAT contact."
      }
    }
  }
}

Natural Language Prompts

User Request	Invoked MCP Tool	Expected AI Response
“List all device SIP profiles available for our extensions.”	`list_device_sip_profiles`	Returns profile list (`Default Internal`, `Default WebRTC`, `Default External`) with base profile mappings.
“Do we have a device profile configured for WebRTC softphones?”	`list_device_sip_profiles({ search: "WebRTC" })`	Locates and displays WebRTC profile details, verifying WSS, DTLS, and ICE status.
“Which device profile should be assigned to remote teleworkers behind NAT?”	`list_device_sip_profiles`	Recommends `Default External` with aggressive NAT detection and rewrite contact enabled.

Multi-Tenant & Security Safeguards

Strict Domain Isolation: Device profiles are queried within the caller’s active domain (domain_id) or global system defaults (domain_id IS NULL), ensuring complete tenant boundary separation.
Anti-Collision Protection: Device profile names are uniquely enforced within their domain to avoid collision across extension assignments.
Secure Media Verification: WebRTC profiles are validated for mandatory DTLS-SRTP and encryption compliance before activation.
Audit Logging: All administrative profile views and updates are recorded in the central audit ledger.

Documentation last updated: January 2026
