SMS Messages Module Documentation

Navigation & Access
Screenshots & Visual Interface
Module Overview (Technical)
Module Overview (Commercial / Business)
Module Overview (End User / Administrator)
Message Log Columns Reference
Message Status Lifecycle
Character Encodings (GSM-7 vs UCS-2) & Segments
Quick Send SMS Modal
Model Context Protocol (MCP) AI Integration
Troubleshooting Tips
Database Schema
Glossary

To access the SMS Messages log and sending tool:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
In the left navigation sidebar, expand PBX Engine.
Under SMS Messaging, click Messages (/pbx/sms/messages).
To compose and send an instant outbound text message, click the Send SMS button at the top of the view.

Screenshots & Visual Interface

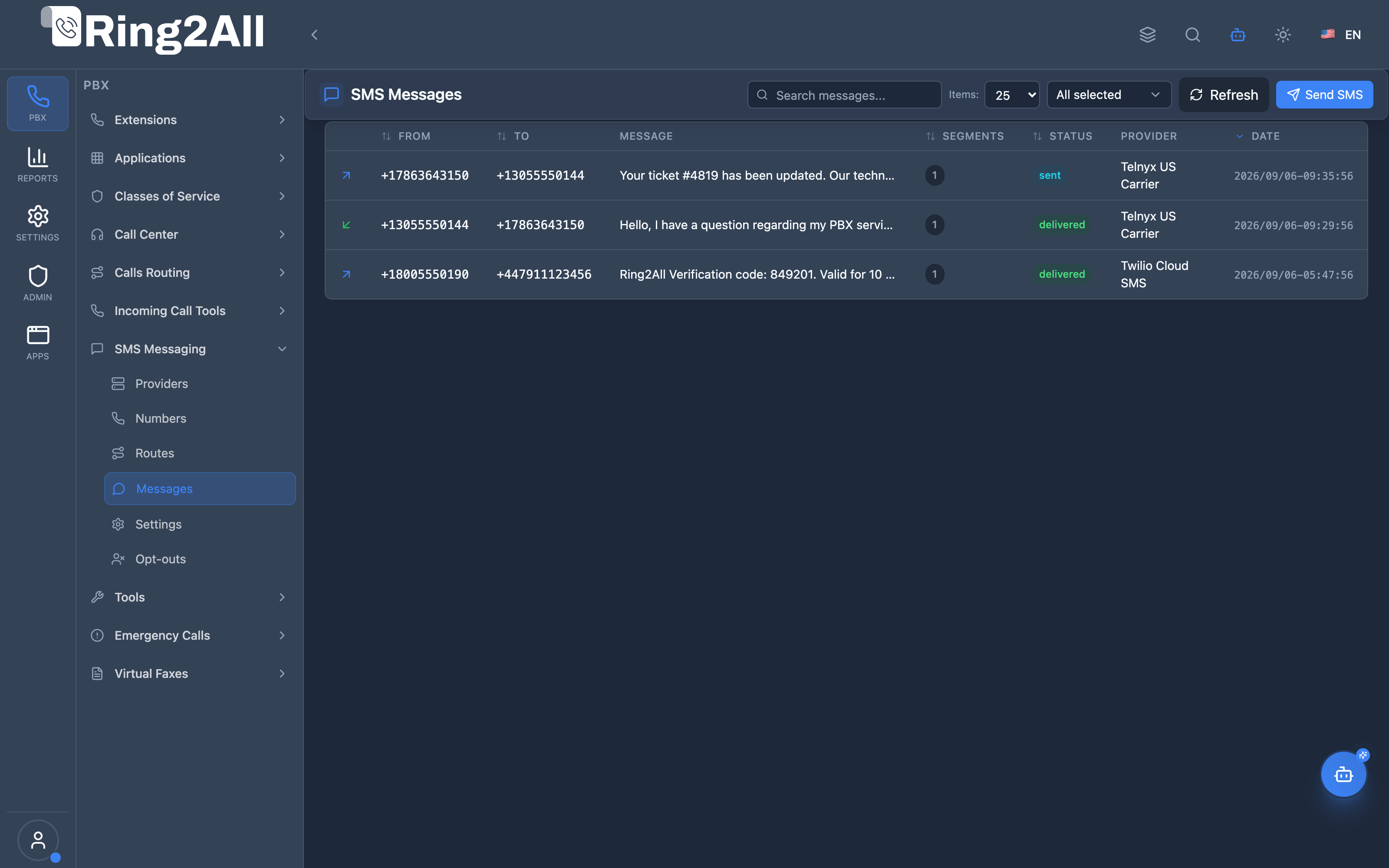

SMS Messages Overview

Comprehensive log view displaying inbound and outbound message records, source/destination numbers, associated extension, carrier delivery status, timestamp, and message body snippet. SMS Messages Log View

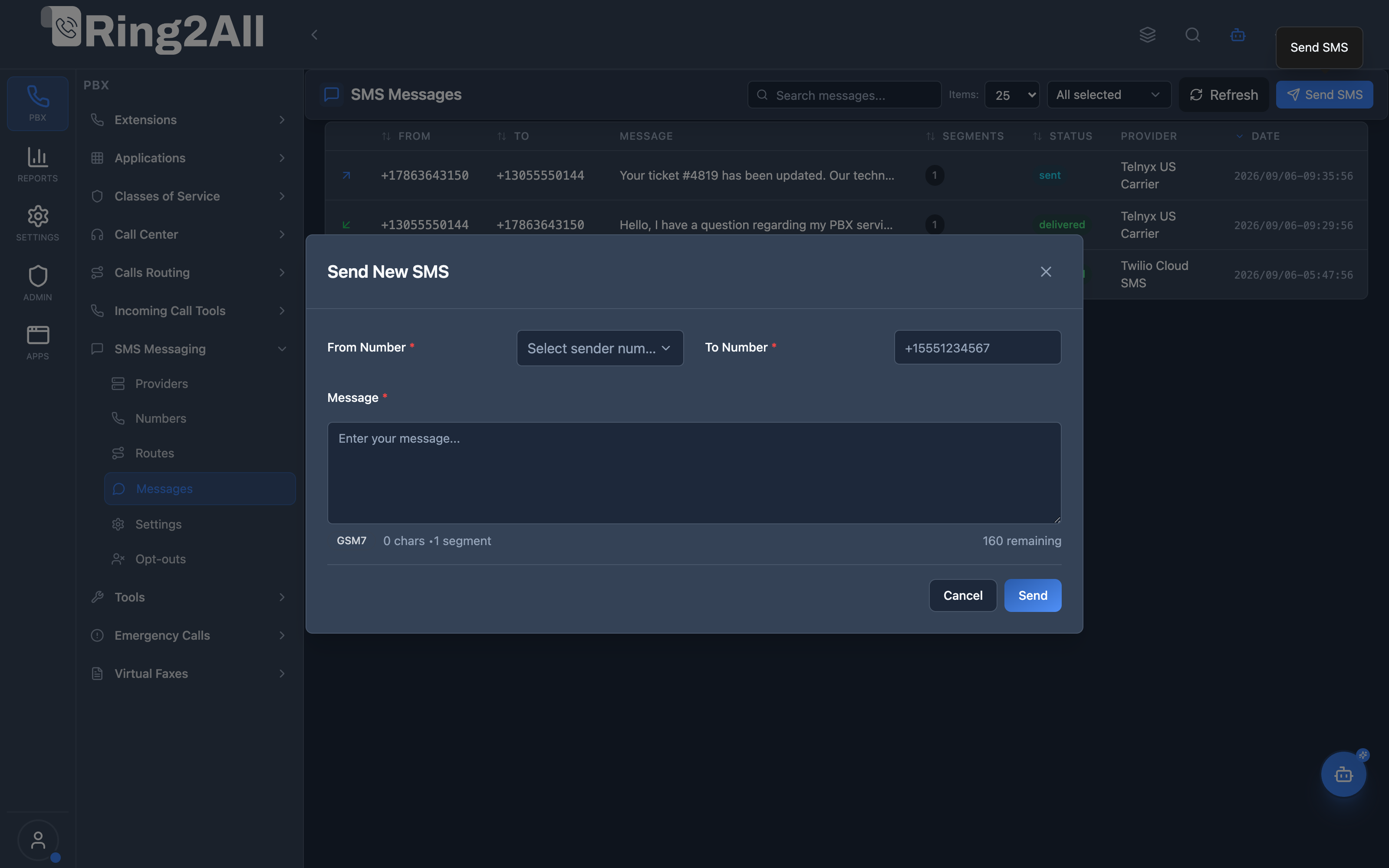

Interactive modal allowing administrators and authorized users to send outbound text messages, selecting source DID, recipient number, and composing the message body. Send SMS Modal

1. Module Overview (Technical)

What is the SMS Messages Module?

The SMS Messages module is the central messaging Call Detail Record (CDR) and auditing system for the Ring2All platform. It captures, stores, and monitors all inbound and outbound SMS transactions across all tenant domains, providing real-time visibility into message lifecycle, carrier handoffs, encoding segments, and delivery receipts (DLR).

Technical Architecture

Message records reside in the dedicated CDR database (ss_cdr.sms_messages), completely segregated from telephony configuration tables in ss_telephony.
Outbound messages are queued using an asynchronous BullMQ/Redis pipeline to regulate carrier rate limits.
Delivery confirmation webhooks from telecom providers correlate with the internal message_uuid or provider_message_id to update status from sent to delivered or failed.
Detailed cost tracking records estimates (cost_estimate) and final carrier billing charges (cost_final).

2. Module Overview (Commercial / Business)

Business Value & Compliance

Audit Trail & Legal Compliance: Maintain tamper-proof historical records of all text interactions for TCPA, healthcare (HIPAA), and financial regulations.
Delivery Visibility: Monitor carrier deliverability rates in real time to immediately detect carrier spam filtering or campaign blocks.
Billing Transparency: Track exact wholesale cost per message and per segment for customer rebilling or internal cost center accounting.
Operational Efficiency: Resolve customer disputes quickly with definitive timestamps for delivery receipts.

3. Module Overview (End User / Administrator)

Administrator Experience

Administrators use the message log to:

Filter messages by direction (inbound vs. outbound), status, date range, or specific phone number.
Investigate delivery failures with exact error codes returned by the carrier.
Send administrative testing messages using the built-in Send SMS modal.

End User Experience

In the User Portal, agents view their personal conversational history filtered automatically to their assigned DID and extension, allowing two-way communication with customers.

4. Message Log Columns Reference

Column Name	Technical Description	User-Friendly Tooltip	Example	Notes
Direction	Inbound / Outbound indicator in `direction`.	Visual arrow showing message traffic direction.	`Inbound (↙)` / `Outbound (↗)`	Distinguishes customer inquiries from agent replies.
From Number	Sender in `from_number`.	E.164 phone number that dispatched the message.	`+13055550144`	External client for inbound; company DID for outbound.
To Number	Recipient in `to_number`.	E.164 destination telephone number.	`+17863643150`	Company DID for inbound; external client for outbound.
Extension	Extension number in `extension`.	Internal PBX extension tied to the message.	`2000`	Populated when linked to a user extension.
Message Body	Text string in `body`.	Content of the text message.	`Hello, I have a question regarding ticket #4819.`	Truncated in grid; expandable on hover.
Status	Delivery state in `status`.	Current status of the message in the carrier network.	`delivered`	Color-coded badge (e.g., green for delivered).
Provider	Carrier gateway in `provider_name`.	Name of the carrier that processed the message.	`Telnyx US Carrier`	Useful for auditing carrier performance.
Segments	Segment count in `segments`.	Number of billable SMS parts (chunks).	`1`	Based on character count and encoding.
Cost	Numeric currency in `cost_final`.	Billed wholesale cost for the message.	`$0.0040`	Sum of all segments billed by carrier.
Date & Time	Timestamp in `created_at`.	Date and time the message was recorded.	`Sep 6, 2026, 09:30 AM`	Formatted per user’s local timezone.

5. Message Status Lifecycle

┌─────────────────────────────────────────────────────────────┐
│                    SMS Status Lifecycle                     │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│   [queued]  ──► Waiting in local BullMQ dispatch queue      │
│      │                                                      │
│      ▼                                                      │
│   [pending] ──► Dispatched to carrier HTTP REST API         │
│      │                                                      │
│      ▼                                                      │
│   [sent]    ──► Acknowledged by carrier, traversing MNO     │
│      │                                                      │
│      ├──────────────────────────┐                           │
│      ▼                          ▼                           │
│  [delivered]                [failed]                        │
│  Handset confirmed DLR      Carrier rejected (e.g. invalid) │
│                                                             │
│   [rejected] ──► Blocked locally by Opt-out list or filters │
└─────────────────────────────────────────────────────────────┘

Status	Badge Color	Description	Final State?
`queued`	🟡 Yellow	Enqueued locally, awaiting transmission queue worker.	No
`pending`	🔵 Blue	Transmitting to carrier API gateway.	No
`sent`	🔷 Cyan	Accepted by carrier; awaiting handset delivery confirmation.	No
`delivered`	🟢 Green	Handset received message; DLR receipt validated.	Yes
`failed`	🔴 Red	Carrier error, unreachable handset, or invalid number.	Yes
`rejected`	⚫ Gray	Blocked by opt-out keyword (STOP) or domain country blacklist.	Yes

6. Character Encodings (GSM-7 vs UCS-2) & Segments

Carrier networks divide long text messages into standard segments (concatenated SMS / UDH):

GSM-7 Encoding

Standard Latin alphabet, numbers, and basic punctuation.
Single message limit: Up to 160 characters.
Multipart message limit: 153 characters per segment (7 characters reserved for concatenation headers).

UCS-2 (Unicode) Encoding

Activated automatically if the message contains emojis (😀), accents (á, ñ), Arabic, Cyrillic, or Asian characters.
Single message limit: Up to 70 characters.
Multipart message limit: 67 characters per segment.

💡 Cost Optimization Tip: A message with 161 GSM-7 characters is billed as 2 segments. A message containing a single emoji becomes UCS-2, meaning 71 characters is billed as 2 segments.

The Send SMS button opens a quick-composition modal:

From Number: Dropdown containing active SMS numbers provisioned on the tenant domain.
To Number: Recipient telephone number in international E.164 format.
Message Body: Text area with a live segment and character counter calculating GSM-7 vs. UCS-2 encoding dynamically.
Send Action: Dispatches immediately via the optimal route, adding the record to the table upon submission.

8. Model Context Protocol (MCP) AI Integration

The Ring2All Model Context Protocol (MCP) server provides tools for inspecting SMS CDR message logs, querying conversation threads, analyzing character encodings, and dispatching regulatory-compliant outbound text messages via AI Copilots.

Available MCP Tools

Tool Name	Operation	Description	Target Entity
`send_sms_message`	Execute	Dispatches an outbound SMS text message with encoding analysis, opt-out suppression check, and queue enqueue	Outbound Text
`query_sms_history`	Read	Searches historical SMS CDR records with phone number, direction, and status filters	Message Logs
`get_sms_message_details`	Read	Retrieves complete CDR metadata, segment counts, encoding, carrier reference ID, and DLR timestamp	Single Message

Protection & Validation Guards

Automatic Opt-out Suppression: Prior to enqueueing any outbound message, send_sms_message queries public.sms_optouts. If the destination number has opted out, the request is immediately aborted with a protective error, preventing statutory fines under TCPA.
Automated Sender DID Fallback: If a sender number (from) is omitted, the tool automatically queries active numbers in public.sms_numbers and selects the domain’s primary default DID.
Dynamic Character Analysis: Messages are analyzed using GSM-7 vs. UCS-2 encoding algorithms, automatically determining segment boundaries and warning if emojis or special characters will cause multi-segment billing.
Asynchronous Queue Dispatch: Outbound messages are stored with queued status and submitted to BullMQ workers for paced delivery adhering to carrier MPS throttles.

Example MCP Payloads

1. Dispatching an Outbound SMS Text (`send_sms_message`)

{
  "to": "+13055550199",
  "message": "Your Ring2All support ticket #8492 is now resolved. Reply HELP for assistance or STOP to cancel.",
  "from": "+17863643150"
}

Response:

{
  "success": true,
  "data": {
    "message": "SMS message queued for transmission to +13055550199!",
    "messageId": 1289,
    "from": "+17863643150",
    "to": "+13055550199",
    "segments": 1,
    "encoding": "GSM-7",
    "status": "queued"
  }
}

2. Querying Historical SMS Logs (`query_sms_history`)

{
  "phoneNumber": "+13055550199",
  "direction": "outbound",
  "limit": 5
}

Copilot Natural Language Prompts

“Send an SMS to customer +13055550199 notifying them that their order has shipped.”
“Check the last 10 SMS messages sent or received by +13055550199 and show delivery statuses.”
“Retrieve full CDR delivery details for message ID 1289.”
“Verify if recipient +13055550199 is blocked by the opt-out list before attempting to send a reminder.”

9. Troubleshooting Tips

Symptom	Probable Cause	Corrective Action
Status remains “sent”	Handset powered off or carrier DLR delayed	Normal for some international destinations where MNOs do not return DLRs.
Status is “rejected”	Recipient is in the SMS Opt-out list	Check the Opt-outs module (`/pbx/sms/optouts`) and verify STOP history.
Message failed with code 30008	Unknown destination error / invalid number	Verify recipient phone number format and active mobile subscription.
High billing cost per message	Accidental Unicode characters	Check for invisible non-GSM characters or emojis that split the SMS into UCS-2 segments.

10. Database Schema

SMS message records are stored in table sms_messages within ss_cdr:

CREATE TABLE public.sms_messages (
    id                  BIGSERIAL PRIMARY KEY,
    message_uuid        UUID DEFAULT gen_random_uuid(),
    domain_id           INTEGER NOT NULL,
    domain_name         VARCHAR(100),
    provider_name       VARCHAR(100),
    route_name          VARCHAR(100),
    direction           VARCHAR(10) NOT NULL,
    from_number         VARCHAR(20) NOT NULL,
    to_number           VARCHAR(20) NOT NULL,
    extension           VARCHAR(20),
    user_id             INTEGER,
    body                TEXT NOT NULL,
    encoding            VARCHAR(10) DEFAULT 'GSM7',
    segments            INTEGER DEFAULT 1,
    status              VARCHAR(20) DEFAULT 'queued',
    provider_message_id VARCHAR(100),
    error_code          VARCHAR(20),
    error_message       TEXT,
    cost_estimate       NUMERIC(10,4),
    cost_final          NUMERIC(10,4),
    queued_at           TIMESTAMPTZ DEFAULT now(),
    sent_at             TIMESTAMPTZ,
    delivered_at        TIMESTAMPTZ,
    failed_at           TIMESTAMPTZ,
    created_at          TIMESTAMPTZ NOT NULL DEFAULT now(),
    CONSTRAINT chk_sms_messages_direction CHECK (direction IN ('inbound', 'outbound')),
    CONSTRAINT chk_sms_messages_encoding CHECK (encoding IN ('GSM7', 'UCS2')),
    CONSTRAINT chk_sms_messages_status CHECK (status IN ('queued', 'pending', 'sent', 'delivered', 'failed', 'rejected'))
);

11. Glossary

CDR (Call/Communication Detail Record): Data record containing operational and billing details of a communication event.
DLR (Delivery Receipt): Carrier confirmation packet verifying that a handset received the text.
GSM-7: 7-bit character encoding optimized for standard text messaging.
UCS-2: 16-bit Unicode encoding used when messages contain non-Latin characters or emojis.
Concatenation (UDH): User Data Header technology allowing phones to reassemble multiple SMS segments into a single message.
