1. Overview & Security Architecture

In Ring2All SBC, the Firewall Settings module serves as the primary control center for host-level packet filtering and automated host intrusion prevention. It bridges high-level web administration with Linux kernel networking technologies—specifically modern nftables packet filtering chains and the Fail2Ban intrusion defense framework.

       ┌─────────────────────────────────────────────────────────────┐
       │             RING2ALL SBC FIREWALL SETTINGS ENGINE           │
       │           (Stored in sbc_admin.firewall_settings)           │
       └──────────────────────────────┬──────────────────────────────┘
                                      │
              ┌───────────────────────┴───────────────────────┐
              ▼                                               ▼
       ┌──────────────────────────────┐                ┌──────────────────────────────┐
       │     GLOBAL PACKET FILTER     │                │   INTRUSION DETECTION (F2B)  │
       │       (Linux nftables)       │                │      (System Fail2Ban)       │
       ├──────────────────────────────┤                ├──────────────────────────────┤
       │ • Master Firewall Toggle     │                │ • Master Intrusion Toggle    │
       │ • Default Chain Policy (DROP)│                │ • Max Failed Attempts        │
       │ • Established State Tracking │                │ • Findtime Monitoring Window │
       │ • Loopback & ICMP Filtering  │                │ • Bantime Duration           │
       │ • WireGuard / SIP Tunneling  │                │ • Alert Dispatch Email       │
       └──────────────────────────────┘                └──────────────────────────────┘
                                      │
                                      ▼
       ┌─────────────────────────────────────────────────────────────┐
       │                  LINUX HOST KERNEL RUNTIME                  │
       │      (/etc/nftables.conf  &  /etc/fail2ban/jail.local)      │
       └─────────────────────────────────────────────────────────────┘

The system ensures that even if application-layer services experience unforeseen edge conditions, the underlying operating system kernel remains fortified against unauthorized network access, brute force attacks against administrative interfaces, and port scanning.

2. Business & Operational Significance

Host-Level Zero Trust: Guarantees that only explicitly permitted administrative and telecom ports (HTTPS, SSH, SIP, RTP, WireGuard) are accessible from untrusted networks.
Automated Brute-Force Neutralization: Protects SSH and Web API administrative access points by dynamically calculating authentication failure rates and banning hostile IPs at the socket level.
Carrier Resilience & Compliance: Satisfies telecommunications security audits (SOC 2, ISO 27001) by providing auditable host-level firewall governance with strict logging and notification capabilities.
Single-Pane-of-Glass Governance: Eliminates the need for manual, error-prone editing of /etc/nftables.conf or /etc/fail2ban/jail.local files across SBC cluster instances.

3. 🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
SBC Security Administrator	Perimeter & Host Defense Policy	Toggle master firewall filtering, adjust Fail2Ban brute-force thresholds, and configure incident notification recipients.
DevOps & Infrastructure Lead	Kernel Network Synchronization	Verify nftables rule persistence, coordinate cluster firewall baseline deployments, and monitor connection tracking table states.
NOC Systems Operator	Service Availability Auditing	Inspect firewall operational statuses, monitor intrusion detection alerts, and verify system responsiveness.
Compliance Auditor	Regulatory Verification	Audit failure windows, ban durations, and alert delivery destinations against corporate security baselines.
AI Host Security Analyst / Automation Copilot	Policy Audit & Hardening Compliance	Inspect global firewall switches, audit intrusion detection metrics (failed attempts, findtime, bantime), and apply security baseline updates programmatically via MCP.

4. Visual Interface & Layout

The Firewall Settings view provides clean card-based controls for both the global packet filter status and the Fail2Ban intrusion detection subsystem.

4.1 Global Firewall & Intrusion Settings

Configures master operational switches, authentication thresholds, monitoring windows, ban duration, and notification routing.

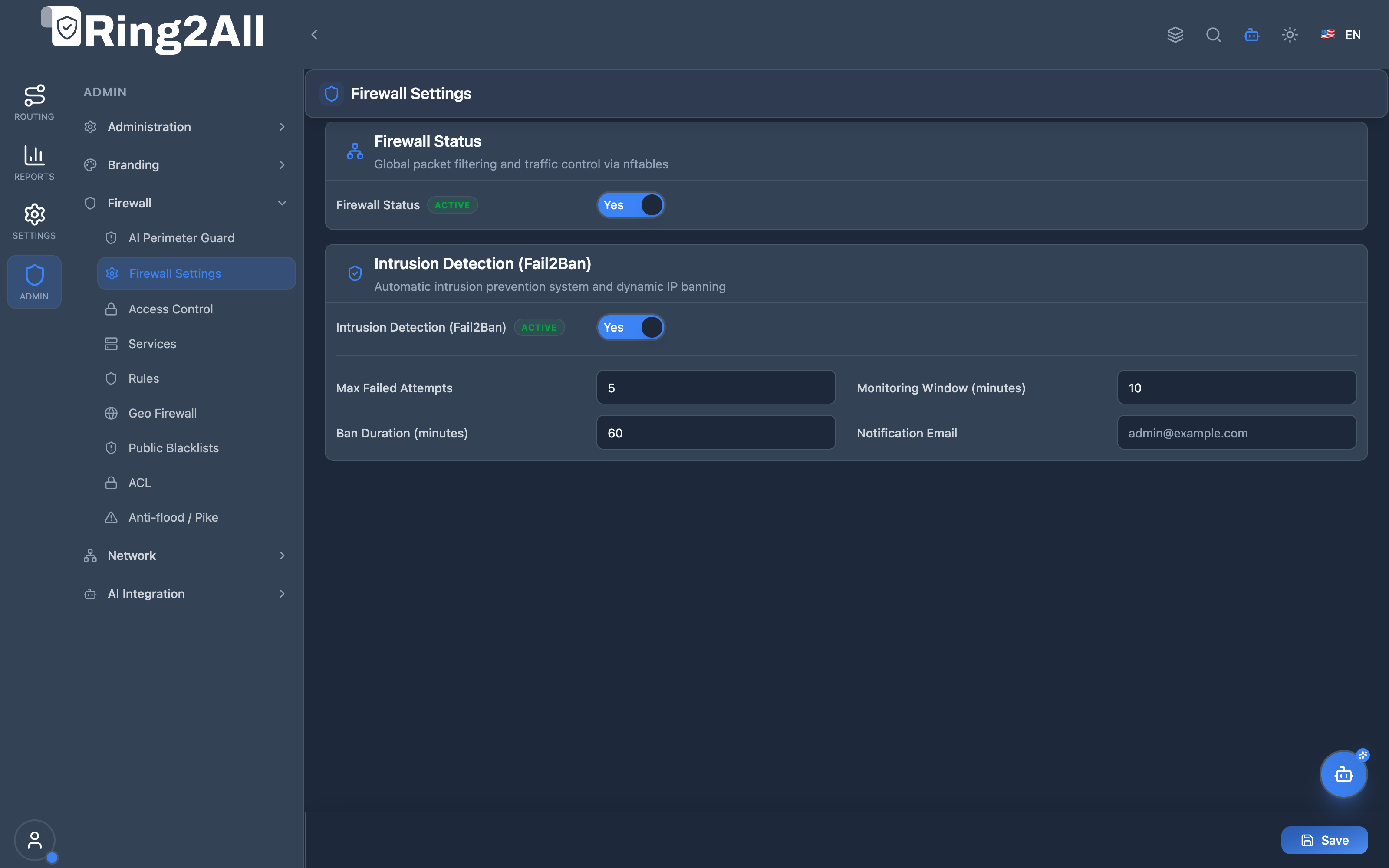

Firewall Settings View

5. Field Reference & Firewall Parameters

5.1 Firewall Status Parameters

Field	Type	Default	Description
Firewall Status	Switch Toggle	`Yes` (Active)	Master toggle controlling Linux `nftables` packet filtering. When disabled, standard ACCEPT policies are applied across all input chains.

5.2 Intrusion Detection (Fail2Ban) Parameters

Field	Type	Default	Description
Intrusion Detection	Switch Toggle	`Yes` (Active)	Master toggle enabling the `fail2ban-server` monitoring daemon across SSH, API, and Web login journals.
Max Failed Attempts	Number	`5`	Maximum number of failed authentication attempts permitted from a single IP before an automatic ban is triggered.
Monitoring Window	Number (Minutes)	`10`	The evaluation window (`findtime`) during which failed authentication attempts are accumulated.
Ban Duration	Number (Minutes)	`60`	The duration (`bantime`) during which an offending IP remains blocked in the firewall ban set before automatic unbanning.
Notification Email	Email String	`admin@example.com`	Destination email address to receive immediate automated alert dispatches whenever an intrusion ban is executed.

6. Kernel Filtering & Fail2Ban Daemon Integration

When changes are committed in the Firewall Settings module, the backend orchestrator updates the database and applies configuration to the host environment:

6.1 Database Transaction

Parameters are saved to sbc_admin.firewall_settings:

UPDATE firewall_settings
SET firewall_enabled = TRUE,
    fail2ban_enabled = TRUE,
    max_failed_attempts = 5,
    find_time = 600,
    ban_time = 3600,
    notification_email = 'admin@example.com',
    updated_at = NOW()
WHERE id = 1;

6.2 Service Synchronization

The backend executes non-blocking system calls to reconfigure the daemons:

# Update Fail2Ban jail parameters
fail2ban-client set sshd maxretry 5
fail2ban-client set sshd findtime 600
fail2ban-client set sshd bantime 3600

# Ensure nftables service is active
systemctl is-active nftables || systemctl start nftables

7. Operational Security Hardening & Best Practices

Retain Conservative Thresholds: A Max Failed Attempts of 5 and Monitoring Window of 10 minutes balances legitimate operator typos with rapid defense against automated credential stuffing.
Notification Email Verification: Ensure the Notification Email points to a monitored distribution list or SecOps ticket system rather than an individual engineer’s personal inbox.
Avoid Disabling Master Firewall: The master Firewall Status should only be disabled in emergency maintenance scenarios or isolated lab environments; never disable it on public carrier-facing SBCs.
Monitor Conntrack Tables: On high-capacity SBCs handling tens of thousands of simultaneous RTP streams, ensure the Linux kernel net.netfilter.nf_conntrack_max is tuned appropriately.

8. Verification & Diagnostics

8.1 Inspect Firewall Daemon Status

Verify that nftables and fail2ban are operational on the host:

systemctl status nftables fail2ban --no-pager

8.2 Verify Active Fail2Ban Jails

Inspect active jails and current ban counts:

fail2ban-client status
fail2ban-client status sshd

8.3 Query Database Settings

Verify parameters stored in the database:

sudo -u postgres psql -d sbc_admin -c "SELECT * FROM firewall_settings;"

9. Model Context Protocol (MCP) AI Integration

The Ring2All SBC MCP Server exposes dedicated host defense tools under the firewall_settings category. Autonomous SecOps agents and the Ring2All SBC NOC Copilot can audit the current host firewall state, verify Fail2Ban operational parameters, and execute controlled policy adjustments.

9.1 Available MCP Tools

Tool Name	Operation Type	Risk Level	Description
`get_sbc_firewall_settings`	Read-only	`read_only`	Retrieves global packet filter and intrusion detection parameters, including fail threshold, findtime, bantime, and notification routing.
`update_sbc_firewall_settings`	Mutating / Operational	`critical`	Adjusts master firewall enablement, intrusion prevention status, brute force thresholds, ban durations, or alert recipient email.

9.2 Tool Schemas & Parameter Definitions

`get_sbc_firewall_settings`

Description: Retrieve current global firewall and host intrusion detection settings.
Input Schema:

{
  "type": "object",
  "properties": {}
}

`update_sbc_firewall_settings`

Description: Update host firewall master switch, intrusion detection (Fail2Ban), threshold counters, ban timers, or notification email.
Input Schema:

{
  "type": "object",
  "properties": {
    "firewallEnabled": {
      "type": "boolean",
      "description": "Master switch to enable or disable Linux nftables packet filtering"
    },
    "intrusionDetectionEnabled": {
      "type": "boolean",
      "description": "Master switch to enable or disable Fail2Ban intrusion detection"
    },
    "failedAttemptsAllowed": {
      "type": "number",
      "description": "Max failed authentication attempts permitted before an automated host ban"
    },
    "findTime": {
      "type": "number",
      "description": "Monitoring evaluation window in minutes"
    },
    "banTime": {
      "type": "number",
      "description": "Ban duration in minutes"
    },
    "notificationEmail": {
      "type": "string",
      "description": "Target email address to receive immediate security breach notifications"
    }
  }
}

9.3 Sample Tool Execution Payloads

Example 1: Retrieving Firewall Settings

Request Payload:

{
  "tool": "get_sbc_firewall_settings",
  "parameters": {}
}

Response Payload:

{
  "success": true,
  "data": {
    "firewallEnabled": true,
    "intrusionDetectionEnabled": true,
    "failedAttemptsAllowed": 5,
    "findTime": 10,
    "banTime": 60,
    "notificationEmail": "secops@ring2all.com"
  }
}

Example 2: Updating Ban Duration and Notification Email
