Caller ID Lookup Sources Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. User Roles & Key Capabilities
7. Configuration Fields Reference
8. Source Types
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Caller ID Lookup Sources module:

1. Log in to the Ring2All Web Portal.
2. In the left navigation sidebar, expand PBX Engine.
3. Under Incoming Call Tools, click Caller ID Lookup Sources (/pbx/incoming-tools/callerid-lookup-sources).

---

Screenshots & Visual Interface

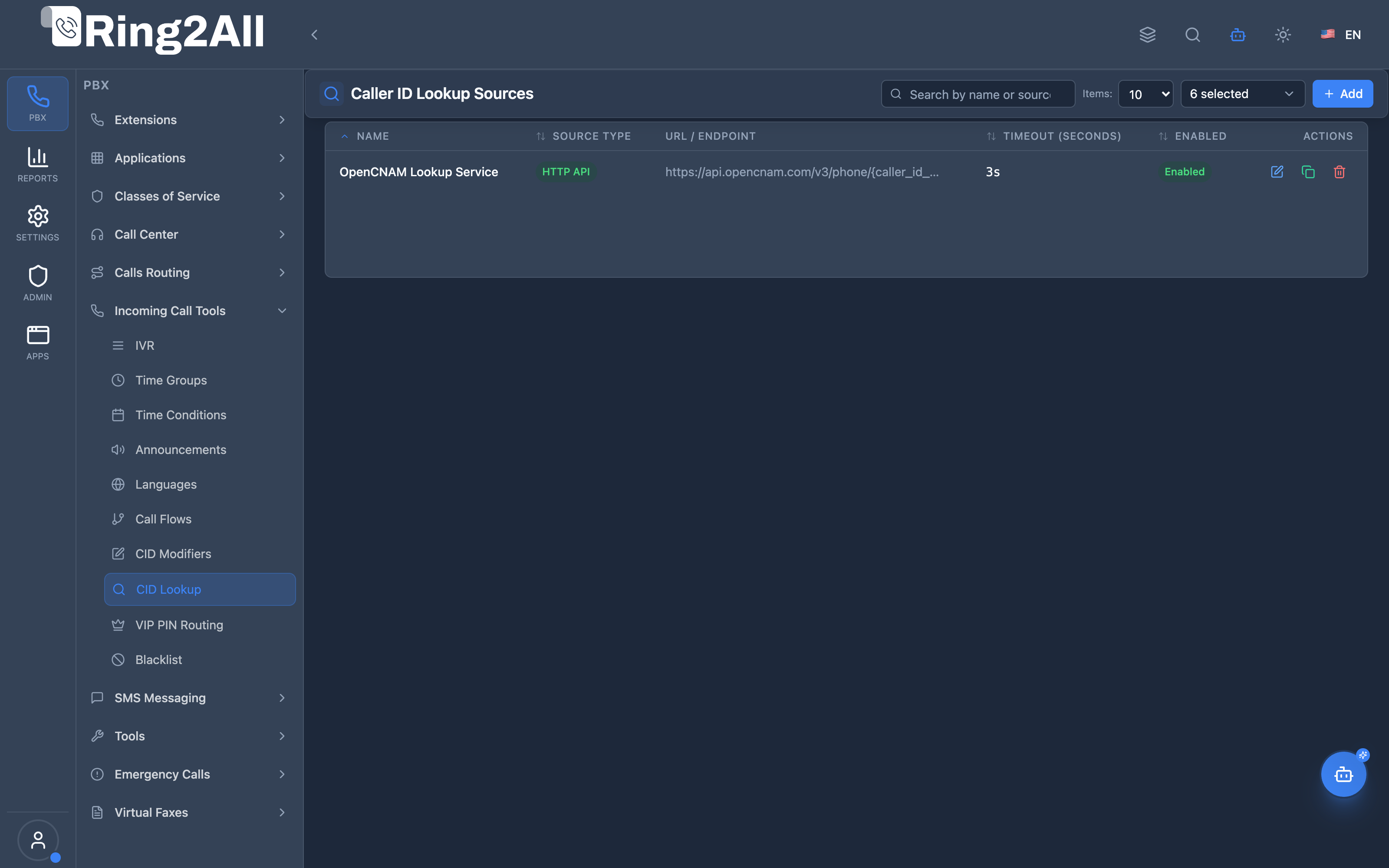

Caller ID Lookup Sources Overview

Displays all configured external and internal lookup connectors, source types (HTTP, OpenCNAM, Database), cache TTL, and status.

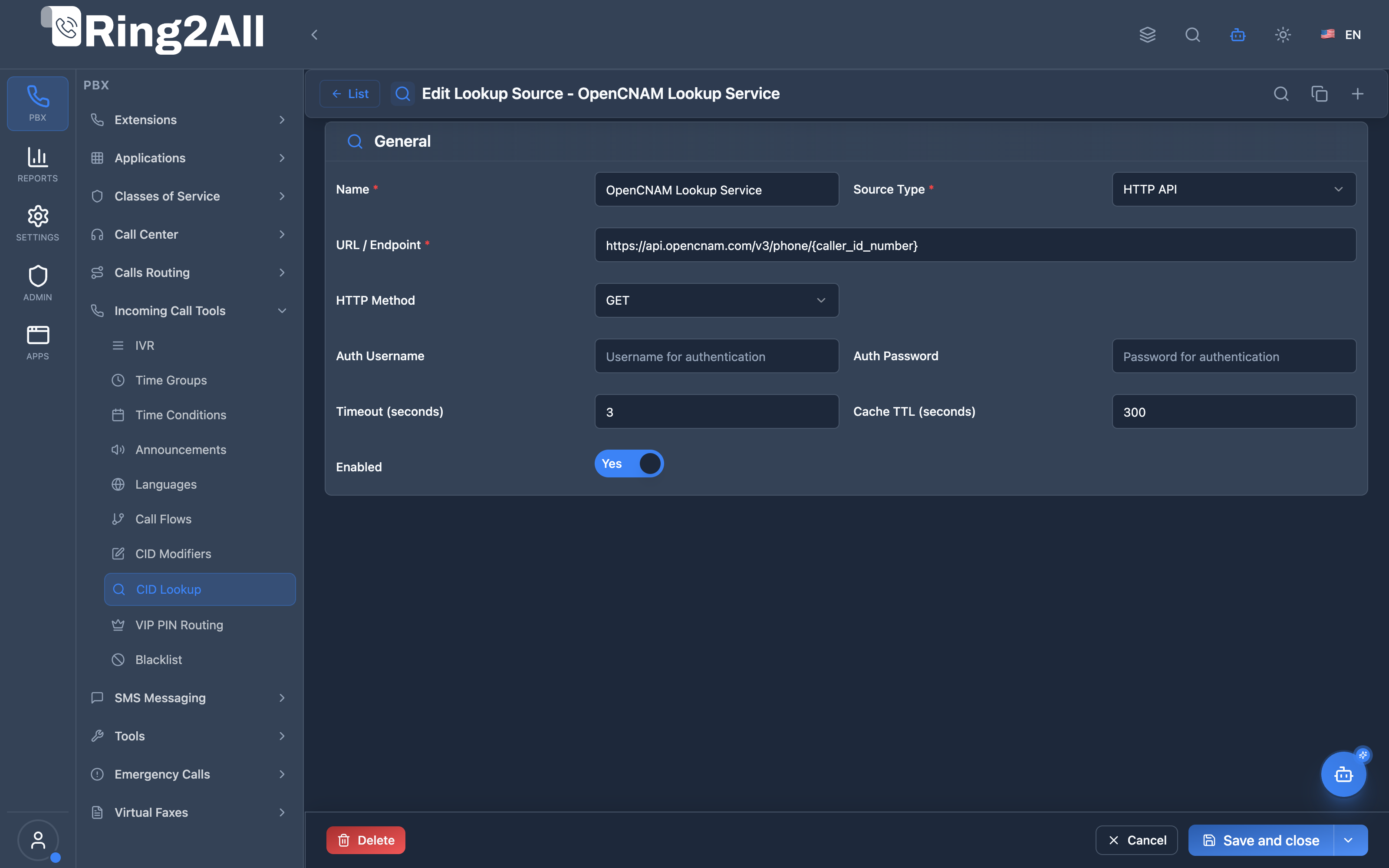

Caller ID Lookup Source Configuration Form

Configures API endpoints, authentication credentials, request method, timeout thresholds, and response JSON path mapping.

---

1. Module Overview (Technical)

What Are Caller ID Lookup Sources?

Caller ID Lookup Sources define external data sources used to enrich incoming caller information. When a call arrives, the system queries these sources to look up the caller’s name, company, or other details based on their phone number.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Caller ID Lookup Flow                              │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Incoming Call: +15058881234, WIRELESS CALLER                   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Lookup Sources (by priority)                      │   │
│  │                                                          │   │
│  │  Source 1: Internal Directory                            │   │
│  │    Type: internal                                        │   │
│  │    → Query public.contacts                               │   │
│  │    → Match: John Smith, ABC Company                      │   │
│  │                                                          │   │
│  │  Source 2: CRM API (fallback)                           │   │
│  │    Type: http                                            │   │
│  │    → GET https://crm.example.com/api/lookup?phone=...    │   │
│  │    → (skipped - Source 1 matched)                        │   │
│  │                                                          │   │
│  │  Source 3: OpenCNAM (last resort)                        │   │
│  │    Type: opencnam                                        │   │
│  │    → (skipped - Source 1 matched)                        │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  Enriched Call:                                                 │
│  ├─ Caller ID Number: +15058881234                             │
│  └─ Caller ID Name: John Smith - ABC Company                   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Caller ID Lookup Sources enable caller identification:

Without Lookup Sources	With Lookup Sources
“WIRELESS CALLER”	Customer name from CRM
No context	Company information
Manual lookup	Automatic enrichment
Generic display	Personalized greeting

Use Cases

1. CRM Integration

   • Look up customer name
   • Display account status

2. Internal Directory

   • Match against employee list
   • Show department info

3. OpenCNAM/CNAM

   • Public CNAM database
   • Unknown caller identification

4. LDAP Directory

   • Enterprise directory lookup
   • Active Directory integration

Feature Highlights

Feature	Benefit
Multiple Sources	Fallback cascade
Source Types	HTTP, LDAP, Database, OpenCNAM
Caching	Reduce lookup time
Timeout Control	Prevent call delays
Priority Order	Control lookup sequence

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Configure lookup sources
• Choose source types (HTTP, LDAP, Database, etc.)
• Set authentication credentials
• Configure timeouts
• Enable caching
• Prioritize sources

Administrator Workflow

┌─────────────────────────────────────────────────────────────────┐
│              Creating a Lookup Source                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Tab: General                                                   │
│  ├─ Name: "CRM Customer Lookup"                                │
│  ├─ Source Type: HTTP API                                      │
│  ├─ URL: https://crm.example.com/api/caller?phone=${caller_id} │
│  ├─ HTTP Method: GET                                           │
│  └─ Enabled: ✓                                                 │
│                                                                 │
│  Tab: Advanced Settings                                         │
│  ├─ Auth Username: api_user                                    │
│  ├─ Auth Password: ********                                    │
│  ├─ API Token: (optional)                                      │
│  ├─ Timeout: 3 seconds                                         │
│  └─ Cache TTL: 3600 seconds                                    │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Cache Results: Enable caching to reduce repeated lookups and speed up call setup.

[!TIP] Low Timeouts: Keep timeouts under 3 seconds to avoid call delays.

[!CAUTION] Authentication: Secure your API credentials properly.

---

🎯 User Roles & Key Capabilities

Role	Permissions & Responsibilities	Key Capabilities
Tenant Administrator	Full write access to Caller ID lookup sources	Create, edit, and configure HTTP/OpenCNAM/LDAP/Database CID lookup connectors, adjust timeouts, caching, and token credentials
Call Center Supervisor / Operator	Read-only access	View configured lookup sources, inspect resolution sources for incoming CRM caller ID enrichment
Platform / System Engineer	Telephony and FreeSWITCH engine access	Monitor FreeSWITCH Lua CID lookup performance, inspect cache hits/misses, troubleshoot API latencies

---

4. Configuration Fields Reference

General Fields

Field	Description	Example
Name	Source identifier	CRM Lookup
Source Type	Type of source	HTTP API
URL / Endpoint	Connection string	https://api.example.com/lookup
HTTP Method	GET or POST	GET
Enabled	Source active	On/Off

Authentication Fields

Field	Description
Auth Username	Username for auth
Auth Password	Password for auth
API Token	Token for OpenCNAM or token-based APIs

Performance Fields

Field	Description	Range
Timeout	Max wait time	1-30 seconds
Cache TTL	Cache duration	0-3600 seconds

---

5. Source Types

Internal

Look up in local database:

Setting	Description
Endpoint	Not required
Auth	Not required
Usage	Query internal contacts/directory

HTTP API

Call external REST API:

Setting	Description
URL	API endpoint with phone placeholder
Method	GET or POST
Auth	Basic auth or token
Response	JSON with caller name/info

Expected Response Format:

{
  "cidname": "John Smith",
  "cidnumber": "+15058881234",
  "company": "ABC Company"
}

LDAP

Query LDAP/Active Directory:

Setting	Description
URL	ldap://ldap.example.com:389
Username	Bind DN
Password	Bind password
Usage	Search user by phone attribute

Database

Query external database:

Setting	Description
URL	Connection string (PostgreSQL, MySQL)
Username	Database user
Password	Database password
Usage	Execute SQL query

OpenCNAM

Public CNAM lookup service:

Setting	Description
Token	OpenCNAM API key
Timeout	Request timeout
Usage	CNAM database lookup

Custom

Lua script for custom logic:

Setting	Description
Script	Path to Lua script
Usage	Custom lookup logic

---

6. Common Scenarios & Examples

Scenario 1: CRM API Lookup

Source: “CRM Lookup”

Setting	Value
Type	HTTP API
URL	https://crm.example.com/api/caller?phone=[CIDNUM]
Method	GET
Timeout	3
Cache TTL	3600

Scenario 2: Internal Directory

Source: “Employee Directory”

Setting	Value
Type	Internal
Enabled	✓

Queries public.contacts for matching phone numbers.

Scenario 3: OpenCNAM Fallback

Source: “OpenCNAM”

Setting	Value
Type	OpenCNAM
Token	your-opencnam-api-key
Timeout	3
Cache TTL	86400

Scenario 4: LDAP/Active Directory

Source: “Corporate Directory”

Setting	Value
Type	LDAP
URL	ldap://ad.company.com:389
Username	CN=lookup,DC=company,DC=com
Password	********
Timeout	2

---

7. Model Context Protocol (MCP) AI Integration

Ring2All exposes native Model Context Protocol (MCP) tools for Caller ID Lookup Sources (CNAM & CRM Lookup), allowing AI Copilots, CRM automation engines, and telephony administrators to inspect external data connector endpoints, configure HTTP/OpenCNAM lookups, tune cache TTL thresholds, and provision or adjust caller enrichment connectors programmatically with domain-level isolation.

Available MCP Tools

Tool Name	Description	Key Parameters
list_cid_lookup_sources	Lists all Caller ID Lookup Sources defined in the domain, displaying connector type, target URL, timeout, and enabled state.	search (optional string)
get_cid_lookup_source_status	Retrieves full configuration, HTTP headers, authentication tokens, timeout thresholds, and response JSON mapping of a specific lookup source.	name (required string)
create_cid_lookup_source	Provisions a new external caller enrichment connector querying HTTP REST APIs, OpenCNAM, or internal databases. Enforces source name uniqueness per domain.	name, sourceType (http, opencnam, internal, database, ldap, custom), url, httpMethod (GET, POST), token, timeout, cacheTtl
update_cid_lookup_source	Updates query endpoint URLs, API tokens, lookup timeouts, or enabled status.	name, newName, url, timeout, enabled
delete_cid_lookup_source	Removes a Caller ID Lookup Source connector from the PBX domain.	name (required string)

Protection Guards & Integrity

• Name Uniqueness: Every lookup source name must be unique within its tenant domain.
• Latency Protection: MCP tools enforce timeout thresholds (typically 2-3 seconds) to ensure that slow third-party CRM APIs do not degrade inbound call setup times.
• Dynamic In-Memory Caching: Resolved caller names are automatically persisted in public.caller_id_lookup_cache, eliminating redundant external API queries for recurrent callers.

AI Agent Operational Examples

Querying Active Lookup Source Configuration

{
  "tool": "get_cid_lookup_source_status",
  "arguments": {
    "name": "HubSpot CRM Caller Lookup"
  }
}

Provisioning an OpenCNAM Enrichment Connector

{
  "tool": "create_cid_lookup_source",
  "arguments": {
    "name": "OpenCNAM Production",
    "sourceType": "opencnam",
    "url": "https://api.opencnam.com/v3/phone/{number}?format=text",
    "timeout": 2,
    "cacheTtl": 86400
  }
}

Recommended Natural Language Prompts

• “List all Caller ID lookup connectors configured in this domain.”
• “Create an HTTP Caller ID lookup source named ‘Salesforce CRM’ pointing to our webhook endpoint.”
• “Reduce the timeout on ‘OpenCNAM’ to 2 seconds to speed up call connection times.”
• “Check if the OpenCNAM lookup source is currently enabled.”

---

8. Limitations & Important Notes

Technical Notes

[!NOTE] Cache Saves Time: Caching reduces lookup latency on repeated calls.

[!WARNING] Timeout Impact: Long timeouts delay call setup. Keep under 3 seconds.

[!WARNING] External Dependencies: API outages can affect lookup availability.

Best Practices

1. Low Timeouts: 2-3 seconds maximum
2. Enable Caching: Reduce repeated lookups
3. Priority Order: Put fastest sources first
4. Fallback Sources: Configure backup sources
5. Monitor Failures: Track lookup success rates

---

9. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
No lookup results	Source disabled	Enable source
Timeout errors	Slow API	Reduce timeout, check API
Auth failures	Wrong credentials	Verify username/password
Empty name	No match found	Add fallback source
Slow calls	Long timeout	Reduce timeout value

Diagnostic SQL

List lookup sources:

SELECT id, name, source_type, url, timeout, cache_ttl, enabled
FROM public.caller_id_lookup_sources
WHERE domain_id = [domain_id];

Check cache:

SELECT phone_number, caller_name, cached_at
FROM public.caller_id_lookup_cache
WHERE domain_id = [domain_id]
ORDER BY cached_at DESC
LIMIT 20;

Telephony Server Logs

# Check CID lookup operations
grep "caller_id" /var/log/freeswitch/freeswitch.log
grep "lookup" /var/log/freeswitch/freeswitch.log

---

10. Glossary

Term	Definition
CNAM	Caller Name - name associated with phone number
OpenCNAM	Public CNAM lookup service
LDAP	Lightweight Directory Access Protocol
Cache TTL	Time-to-live for cached results
Lookup Source	External system for caller info
Fallback	Backup source if primary fails

---

Documentation last updated: January 2026
