Firewall Services Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. User Roles & Key Capabilities
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Firewall Services module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login) with administrative credentials.
2. In the left navigation sidebar, locate and expand Admin.
3. Under the Firewall section, click Services (/admin/firewall/services).
4. To define a new network service definition, click the + Add button at the top right of the toolbar.
5. To edit an existing service port or protocol, click the edit icon in the table row.
6. To delete a custom service, click the trash icon and confirm.

---

Screenshots & Visual Interface

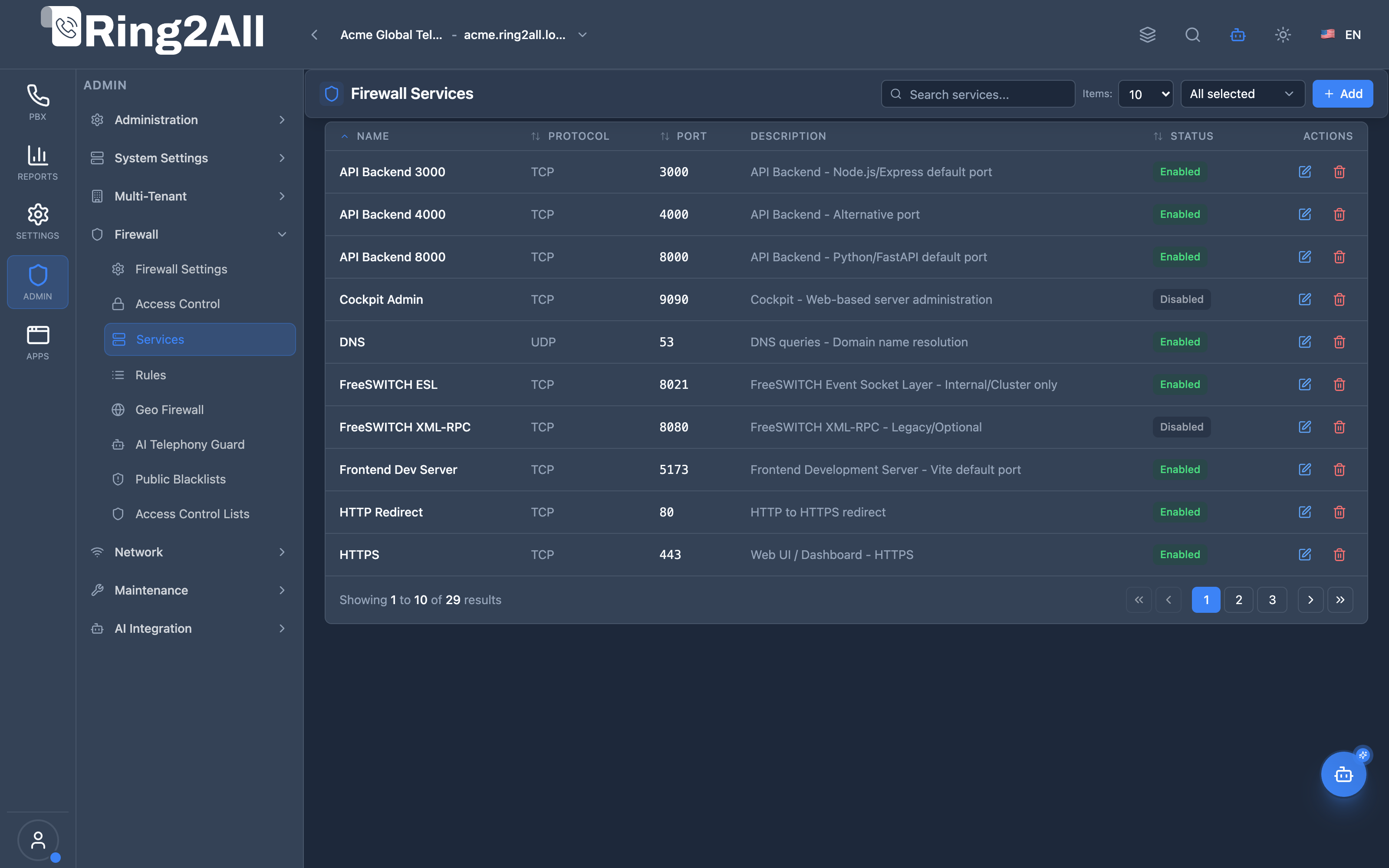

Firewall Services List View

The Firewall Services list defines standard and customized networking ports, transport protocols (TCP, UDP, ICMP), and port ranges (e.g., SIP 5060, HTTP 80, HTTPS 443, ESL 8021, RTP ranges) utilized as reusable targets by the Firewall Rules engine.

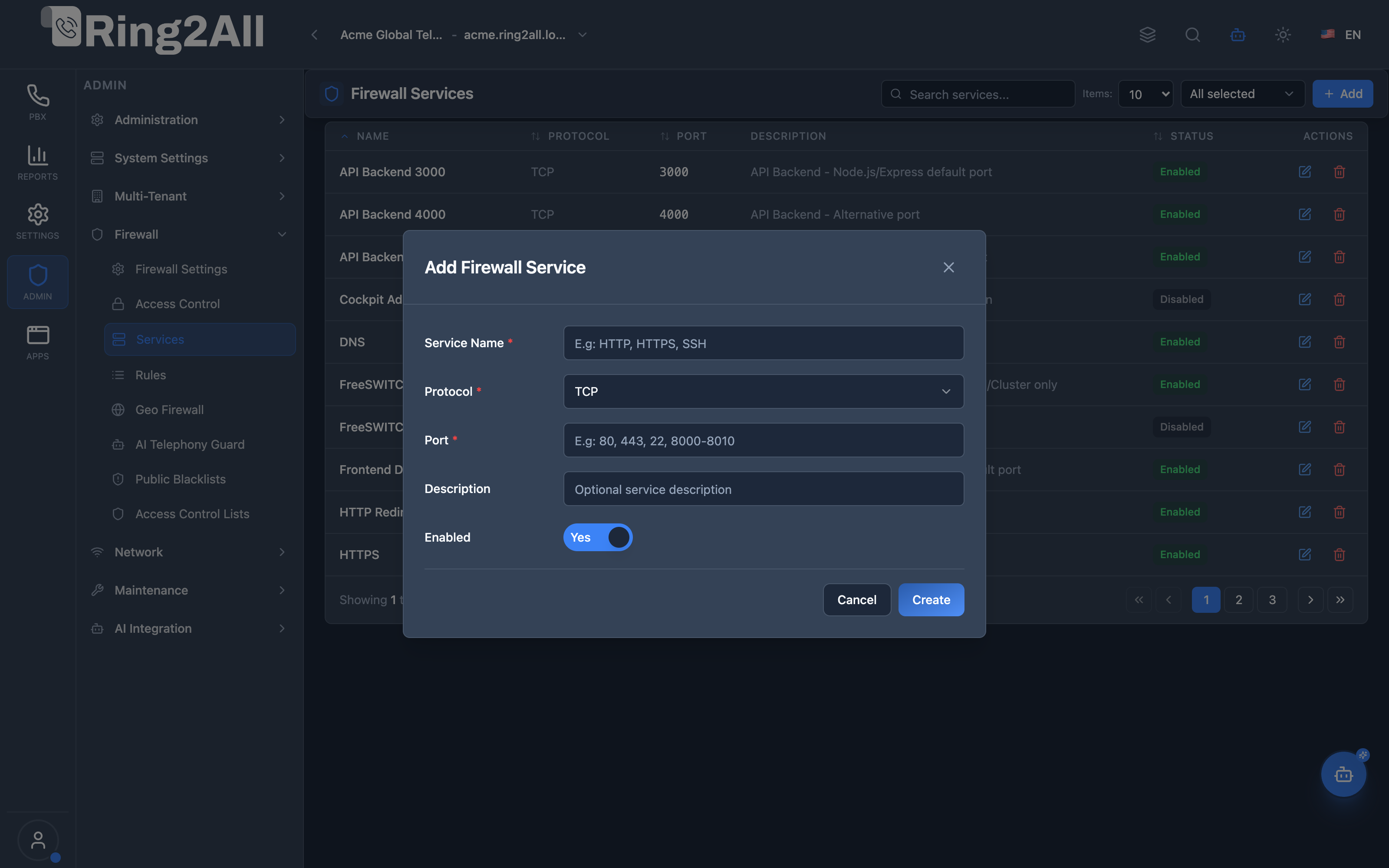

Add / Edit Firewall Service Modal

The service editor modal allows administrators to name the service, select the network transport protocol, specify port numbers or ranges (e.g., 80, 443, 8000-8010), provide a description, and toggle its operational status.

---

1. Module Overview (Technical)

What Are Firewall Services?

Firewall Services is a service definition module that creates reusable protocol/port templates for use in Firewall Rules. Services define the network protocol and port(s) that rules will match against.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Firewall Services Architecture                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Service Definitions                                            │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │                                                          │   │
│  │  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐       │   │
│  │  │ HTTP        │  │ HTTPS       │  │ SSH         │       │   │
│  │  │ TCP/80      │  │ TCP/443     │  │ TCP/22      │       │   │
│  │  └─────────────┘  └─────────────┘  └─────────────┘       │   │
│  │                                                          │   │
│  │  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐       │   │
│  │  │ SIP         │  │ SIP-TLS     │  │ RTP         │       │   │
│  │  │ UDP/5060    │  │ TCP/5061    │  │ UDP/16384-  │       │   │
│  │  │             │  │             │  │    32768    │       │   │
│  │  └─────────────┘  └─────────────┘  └─────────────┘       │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Used by Firewall Rules                                 │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Firewall Rules                                    │   │
│  │                                                          │   │
│  │  Rule: "Allow HTTP"                                      │   │
│  │  ├─ Service: HTTP ← (TCP/80)                            │   │
│  │  ├─ Action: Accept                                      │   │
│  │  └─ Direction: Input                                    │   │
│  │                                                          │   │
│  │  Rule: "Allow SIP from LAN"                             │   │
│  │  ├─ Service: SIP ← (UDP/5060)                           │   │
│  │  ├─ Action: Accept                                      │   │
│  │  └─ Source: 192.168.1.0/24                              │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied to nftables                                    │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Linux Firewall (nftables)                         │   │
│  │                                                          │   │
│  │  chain input {                                          │   │
│  │    tcp dport 80 accept    # HTTP                        │   │
│  │    tcp dport 443 accept   # HTTPS                       │   │
│  │    udp dport 5060 accept  # SIP                         │   │
│  │  }                                                       │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Firewall Services provides reusable port definitions:

Without Services	With Services
Repeat port numbers	Define once, use many
Prone to errors	Consistent definitions
Hard to maintain	Easy updates
No documentation	Named services

Use Cases

1. Standard Services

   • HTTP, HTTPS, SSH
   • Named port definitions

2. Telephony Services

   • SIP, SIP-TLS, RTP
   • Voice-specific ports

3. Custom Applications

   • Custom port ranges
   • Non-standard services

4. Maintenance

   • Change port once
   • Update all rules

Feature Highlights

Feature	Benefit
Named Services	Human-readable
Port Ranges	Range support (8000-8010)
Multi-Protocol	TCP, UDP, ICMP, All
Reusable	Use in multiple rules
Enable/Disable	Toggle without delete
Description	Documentation

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create service definitions
• Define protocol (TCP, UDP, ICMP, All)
• Set port or port range
• Add descriptions
• Enable/disable services
• Use in Firewall Rules

Firewall Services Interface

┌─────────────────────────────────────────────────────────────────┐
│              Firewall Services                                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Manage firewall services for nftables (Debian 13)            │
│                                                                 │
│  [+ Add Service]                                                │
│                                                                 │
│  [🔍 Search services...]                                        │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name       │ Protocol │ Port        │ Description │ Status│  │
│  ├────────────┼──────────┼─────────────┼─────────────┼───────┤  │
│  │ HTTP       │ TCP      │ 80          │ Web traffic │ ●     │  │
│  │ HTTPS      │ TCP      │ 443         │ Secure web  │ ●     │  │
│  │ SSH        │ TCP      │ 22          │ Remote admin│ ●     │  │
│  │ SIP        │ UDP      │ 5060        │ SIP signal  │ ●     │  │
│  │ SIP-TLS    │ TCP      │ 5061        │ Secure SIP  │ ●     │  │
│  │ RTP        │ UDP      │ 16384-32768 │ Voice media │ ●     │  │
│  │ STUN       │ UDP      │ 3478        │ NAT travers │ ●     │  │
│  │ TURN TLS   │ TCP      │ 5349        │ NAT travers │ ●     │  │
│  │ Custom API │ TCP      │ 8000-8010   │ API ports   │ ○     │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Add/Edit Service

┌─────────────────────────────────────────────────────────────────┐
│              Add Firewall Service                               │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Service Name: [SIP-UDP                      ]                 │
│    Descriptive name for the service (e.g., HTTP, HTTPS, SSH)  │
│    Must be unique                                               │
│                                                                 │
│  Protocol: [UDP ▼]                                             │
│    Network protocol used by the service                         │
│    TCP | UDP | TCP/UDP | ICMP | ICMPv6 | All                   │
│                                                                 │
│  Port: [5060                                 ]                 │
│    Port or port range for the service                           │
│    Single port (e.g., 80) or range (e.g., 8000-8010)           │
│                                                                 │
│  Description: [SIP signaling over UDP        ]                 │
│    Optional description for documentation                       │
│                                                                 │
│  Enabled: ✓                                                    │
│    Disabled services cannot be used in rules                    │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Port Ranges: Use hyphen for ranges (16384-32768).

[!TIP] Descriptive Names: Use clear names like “SIP-UDP”, “RTP-Media”.

[!NOTE] Used in Rules: Services are referenced by Firewall Rules.

---

🎯 User Roles & Key Capabilities

The Firewall Services module defines reusable transport and port objects, delegating capabilities across technical and operational roles:

User Role	Key Permissions & Responsibilities	Common Tasks & Workflows
System Super Administrator	Authority to create, update, or remove standard and custom service templates across the platform.	Define core SIP (5060/UDP), TLS (5061/TCP), HTTPS (443), and RTP media range (16384-32768) services for reference by firewall rules.
VoIP / Infrastructure Engineer	Tailoring non-standard service port definitions to accommodate carrier requirements or SBC topologies.	Create alternative SIP transport ports (e.g. 5080, 5090), register WebRTC signaling ports (7443, 8089), and specify custom Telephony Event Socket (ESL) ports.
Tenant Administrator	Read-only inspection of configured firewall services and associated port mappings.	Review standard service ports to properly configure on-premise IP phones, remote softphones, and edge routers.
Security & Compliance Auditor	Service inventory auditing to ensure no insecure or unmapped listening ports exist.	Verify that cleartext services (e.g. unencrypted HTTP 80 or Telnet 23) are disabled or restricted exclusively to local management subnets.

---

4. Configuration Sections

Service Fields

Field	Description
Service Name	Unique identifier
Protocol	Network protocol
Port	Port or range
Description	Optional notes
Enabled	Active/Inactive

---

5. Settings Reference

Protocols

Protocol	Description	Common Use
TCP	Connection-oriented	HTTP, SSH, SIP-TLS
UDP	Connectionless	SIP, RTP, DNS
TCP/UDP	Both protocols	DNS
ICMP	Internet control	Ping
ICMPv6	IPv6 control	IPv6 ping
All	Any protocol	Broad rules

Port Format

Format	Example	Description
Single	80	One port
Range	8000-8010	Port range
Multiple	80,443	List (if supported)

Common PBX Services

Service	Protocol	Port(s)	Description
HTTP	TCP	80	Web (redirect)
HTTPS	TCP	443	Secure web + WebRTC WSS proxy
SSH	TCP	22	Remote admin
SIP	UDP	5060	SIP signaling
SIP-TLS	TCP	5061	Secure SIP
RTP	UDP	16384-32768	Voice media
STUN	UDP	3478	NAT traversal
TURN TLS	TCP	5349	NAT traversal (TLS)
Provisioning	TCP	80, 443	Phone config

[!NOTE] WebRTC Architecture: WebRTC WebSocket (WSS) traffic is proxied through Nginx on port 443 (path /ws). Telephony Server plain WebSocket (port 5066) listens only on localhost and is not exposed to the firewall. Port 7443 (direct WSS) has been deprecated.

---

6. Common Scenarios & Examples

Scenario 1: Create SIP Service

1. Click Add Service
2. Name = “SIP”
3. Protocol = UDP
4. Port = 5060
5. Description = “SIP signaling”
6. Enabled = ✓
7. Save

Scenario 2: Create RTP Range

1. Add Service
2. Name = “RTP-Media”
3. Protocol = UDP
4. Port = 16384-32768
5. Description = “Voice/Video media”
6. Save

Scenario 3: Create Custom API Service

1. Add Service
2. Name = “Custom-API”
3. Protocol = TCP
4. Port = 8000-8010
5. Description = “Internal API ports”
6. Save

Scenario 4: Update Port Range

1. Edit existing service
2. Change port range
3. Save
4. All rules using this service update automatically
5. Apply Rules in Firewall Rules module

---

7. Limitations & Important Notes

Technical Notes

[!NOTE] Unique Names: Service names must be unique.

[!NOTE] Used in Rules: Services are referenced by Firewall Rules.

[!WARNING] Disable Carefully: Disabling breaks rules using the service.

Best Practices

1. Standard Names: Use industry-standard names (HTTP, SSH)
2. Clear Descriptions: Document what each service is for
3. Group Related: Create separate services for clarity
4. Port Ranges: Use ranges for RTP, not individual ports
5. Enable Check: Ensure service is enabled before use

Pre-defined vs. Custom

Pre-defined	Custom
HTTP, HTTPS, SSH	Custom-API
SIP, RTP	App-specific
Standard ports	Non-standard

---

Model Context Protocol (MCP) AI Integration

The Firewall Services module interfaces directly with the Ring2All Platform Copilot MCP Server, enabling automated querying of defined network protocols and ports:

🛠️ Available MCP Tools

Tool Name	Operation	Access Level	Description	Key Parameters
list_firewall_services	Read	SuperAdmin / Auditor	Lists predefined and custom PBX network services (SIP, HTTP, HTTPS, WebRTC, RTP, SSH) with port and protocol specifications.	search (string), protocol (tcp, udp, both), enabled (boolean)
list_firewall_rules	Read	SuperAdmin / Auditor	Cross-references which active firewall rules reference specific network service ports.	search (string, optional)
get_firewall_settings	Read	SuperAdmin / Auditor	Inspects the overarching host firewall daemon state and intrusion detection parameters.	None

📋 JSON Tool Schemas & Sample Executions

list_firewall_services

{
  "name": "list_firewall_services",
  "arguments": {
    "protocol": "udp"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "total": 3,
    "services": [
      {
        "id": 1,
        "name": "SIP-UDP",
        "protocol": "udp",
        "port": "5060",
        "description": "Standard SIP signaling",
        "enabled": true
      },
      {
        "id": 2,
        "name": "RTP-Audio",
        "protocol": "udp",
        "port": "16384:32768",
        "description": "Voice media RTP stream range",
        "enabled": true
      },
      {
        "id": 5,
        "name": "SIP-Alternative",
        "protocol": "udp",
        "port": "5080",
        "description": "Inbound external gateway port",
        "enabled": true
      }
    ]
  }
}

💬 Natural Language Prompt Examples

English Prompts

• “List all UDP services defined in the PBX firewall services table.”
• “What port range is configured for RTP voice media streams?”
• “Find all enabled network services matching ‘SIP’ or ‘WebRTC’.”
• “Check if SSH port 22 is defined as an active firewall service.”

Ejemplos en Español (Spanish Prompts)

• “Lista todos los servicios UDP definidos en la tabla de servicios del firewall de la centralita.”
• “¿Cuál es el rango de puertos configurado para el tráfico de voz RTP?”
• “Encuentra todos los servicios de red activos que coincidan con ‘SIP’ o ‘WebRTC’.”
• “Verifica si el puerto SSH 22 está registrado como un servicio de firewall activo.”

🛡️ Enterprise Safeguards & Best Practices

1. Core Service Protection: Predefined system services (SIP 5060, HTTPS 443, RTP 16384:32768) cannot be deleted if active firewall rules depend on them, preventing accidental rule invalidation.
2. Port Syntax Validation: Single ports (5060), lists (80,443), and ranges (16384:32768 or 16384-32768) are parsed and validated against POSIX port bounds (1-65535).
3. Protocol Isolation: Tools enforce strict network protocol checks (tcp, udp, or both) to ensure precise packet matching in nftables.

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Service not in dropdown	Disabled	Enable service
Rule not working	Wrong protocol	Check TCP vs UDP
Port not matching	Wrong range	Verify port format
Can’t delete	Used in rules	Remove from rules first

Check Services

SELECT
  name,
  protocol,
  port,
  description,
  is_enabled
FROM public.firewall_services
ORDER BY name;

Check Service Usage

SELECT
  r.name as rule_name,
  s.name as service_name,
  s.protocol,
  s.port
FROM public.firewall_rules r
JOIN public.firewall_services s ON r.service_id = s.id
ORDER BY r.priority;

---

9. Glossary

Term	Definition
Service	Protocol/port template
Protocol	Network communication type
Port	Network endpoint number
Port Range	Consecutive ports
nftables	Linux firewall

---

Documentation last updated: January 2026
