To access the PBX Voice Guide configuration module:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
In the left navigation sidebar, expand Settings.
Under Voice Prompts, click PBX Voice Guide (/settings/voice-prompts/pbx-guide).
To register or generate a new system voice prompt pack, click + Add Voice Guide. To preview or edit an existing voice guide, click on the row or the Edit action button.

Screenshots & Visual Interface

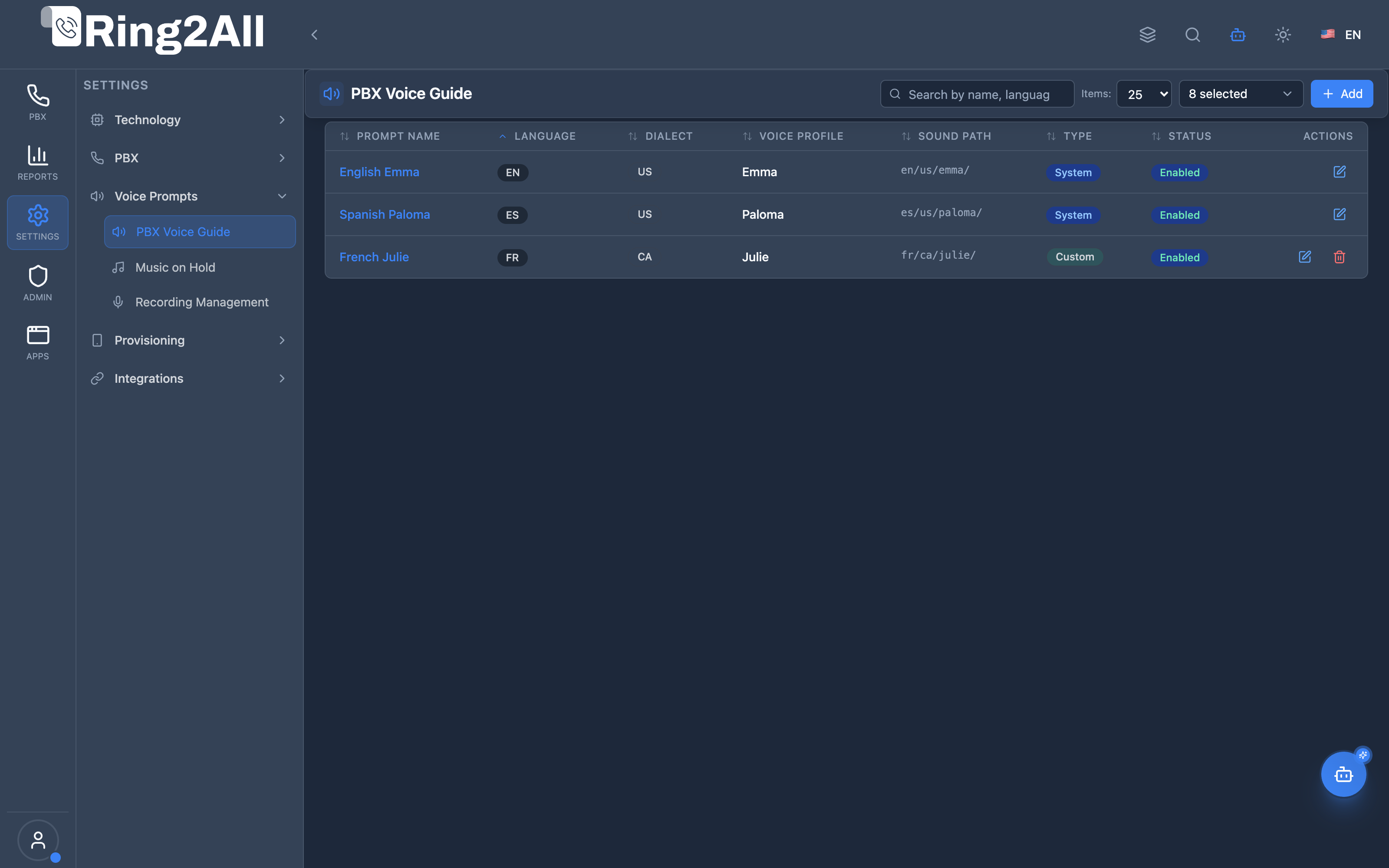

PBX Voice Guide Catalog & Inventory

Interactive directory of Telephony Server telephony prompt packages, showing language code, dialect, voice persona, sound directory paths, AI TTS generator integrations, and system-wide fallback flags. PBX Voice Guide List

1. Module Overview (Technical)

What Is PBX Voice Guide?

PBX Voice Guide is a voice prompts management system that allows administrators to view, create, and manage Telephony Services voice prompts. It supports both viewing existing prompt catalogs and generating new voice guides using AI TTS (Text-to-Speech) with OpenAI, Azure, or Google voices.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                 PBX Voice Guide Architecture                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Admin Panel                                                    │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        PBX Voice Guide                                   │   │
│  │                                                          │   │
│  │  Catalog View:                                           │   │
│  │  ┌───────────────────────────────────────────────────┐   │   │
│  │  │ Prompt Name   │ Lang │ Voice │ Type   │ Actions │   │   │
│  │  ├───────────────┼──────┼───────┼────────┼─────────┤   │   │
│  │  │ English Emma  │ EN   │ emma  │ System │ ✏️      │   │   │
│  │  │ Spanish Paloma│ ES   │ paloma│ System │ ✏️      │   │   │
│  │  │ English Maria│ EN   │ maria │ Custom │ ✏️ 🗑️   │   │   │
│  │  └───────────────────────────────────────────────────┘   │   │
│  │                                                          │   │
│  │  [+ Create Voice Guide]                                  │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Reads/Writes                                           │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Voice Prompts Storage                             │   │
│  │                                                          │   │
│  │  /usr/share/freeswitch/sounds/                          │   │
│  │  ├─ en/us/emma/                                         │   │
│  │  │   ├─ ivr/                                            │   │
│  │  │   ├─ voicemail/                                      │   │
│  │  │   └─ digits/                                         │   │
│  │  ├─ es/us/paloma/                                       │   │
│  │  └─ (custom voices)                                     │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ AI TTS Generation                                      │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        AI Profile Integration                            │   │
│  │  ┌─────────────┬─────────────┬─────────────┐             │   │
│  │  │   OpenAI    │   Azure     │   Google    │             │   │
│  │  │   TTS-1     │   TTS       │   TTS       │             │   │
│  │  └─────────────┴─────────────┴─────────────┘             │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Database Schema

CREATE TABLE public.voice_guides (
    id SERIAL PRIMARY KEY,
    uuid UUID NOT NULL DEFAULT uuid_generate_v4(),
    name TEXT NOT NULL,
    description TEXT,
    language_code VARCHAR(2) NOT NULL,
    dialect_code VARCHAR(2) NOT NULL,
    voice_name VARCHAR(50) NOT NULL,
    sound_path TEXT NOT NULL,
    is_fallback BOOLEAN NOT NULL DEFAULT FALSE,
    is_system BOOLEAN NOT NULL DEFAULT FALSE,
    enabled BOOLEAN NOT NULL DEFAULT TRUE,
    created_at TIMESTAMPTZ NOT NULL DEFAULT NOW(),
    updated_at TIMESTAMPTZ
);

2. Module Overview (Commercial/Business)

Business Value

PBX Voice Guide provides voice prompt management and AI generation:

Without Voice Guide	With Voice Guide
Manual file creation	AI-powered generation
SSH to upload files	Web-based management
No inventory tracking	Complete catalog view
Limited languages	Unlimited AI voices
Manual discovery	Filtered search

Use Cases

Custom Voice Prompts
- Generate AI voice prompts in any language
- Use OpenAI, Azure, or Google TTS
Language Expansion
- Add new language support
- Create regional dialects
Brand Voice
- Create custom voice identities
- Consistent voice across IVR, voicemail, etc.
Rapid Deployment
- Bulk generate prompts from CSV
- Batch processing with progress tracking

Feature Highlights

Feature	Benefit
AI TTS Generation	Create prompts using AI voices
Batch Processing	Generate multiple prompts at once
Progress Tracking	Real-time progress bar with count
CSV Import	Bulk prompt definition
System Protection	System guides cannot be deleted
Edit Mode	Add prompts to existing guides
Fallback Config	Identify fallback voices

3. Module Overview (End User/Administrator)

What Can You Do?

View all available voice guides
Create new voice guides with AI TTS
Edit existing guides (add more prompts)
Delete custom voice guides (system guides protected)
Filter by language, status, type
Search for specific guides
Track generation progress in real-time

Voice Guide List Interface

┌─────────────────────────────────────────────────────────────────┐
│              PBX Voice Guide                                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [🔍 Search by name, language, dialect or voice...]            │
│                                                                 │
│  [+ Create Voice Guide]                          [🔄 Refresh]  │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Prompt Name     │ Lang │ Voice   │ Type   │ Status│Actions│  │
│  ├─────────────────┼──────┼─────────┼────────┼───────┼───────┤  │
│  │ English Emma    │ EN   │ Emma    │ System │Enabled│ ✏️    │  │
│  │ Spanish Paloma  │ ES   │ Paloma  │ System │Enabled│ ✏️    │  │
│  │ English Maria   │ EN   │ Maria   │ Custom │Enabled│ ✏️ 🗑 │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Showing 3 voice guides                                         │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Voice Guide Types

Type	Badge Color	Deletable	Description
System	Blue	❌ No	Pre-installed, protected guides
Custom	Green	✅ Yes	User-created guides

Quick Tips

[!TIP] Edit Mode: Click the edit icon on any guide to add more prompts to it.

[!TIP] CSV Format: Use path,filename,text format for bulk prompt definition.

🎯 User Roles & Key Capabilities

Role	Key Capabilities & Permissions	Operational Scope
PBX Super Administrator	• Global catalog audit across all languages, dialects, and sound paths • System voice guide protection flag (`is_system`) enforcement • Fallback voice guide designation and Telephony Server sound directory root path configuration • AI TTS profile configuration and batch token rate limit orchestration	Full Platform Scope
Tenant Administrator	• Custom domain voice guide creation and prompt review • Multilingual audio prompt batch generation via AI voice models • Custom phrase library management and prompt preview playback • Domain-level prompt selection for IVRs, queues, and announcements	Domain Scope
Call Center Supervisor	• Read-only inspection of active prompt packages • Audio phrase playback verification for customer greeting compliance • Audio guide preview and request submission for queue waiting audio	Supervised Queues
AI Copilot / MCP Agent	• Automated voice guide inventory query (`list_voice_guides`) • Diagnostic inspection of prompt paths and dialects (`get_voice_guide_status`) • Dynamic prompt synthesis for automated IVR expansions	Autonomous Assistant

4. Interface Features

List Columns

Column	Description
Prompt Name	Display name of the voice guide
Language	ISO language code (EN, ES, FR)
Dialect	Regional variant (US, UK, MX)
Voice Profile	Voice name (emma, paloma)
Sound Path	Telephony Server sound path
Type	System (protected) or Custom
Status	Enabled/Disabled
Actions	Edit, Delete (custom only)

Filters

Filter	Options
Language	All, English, Spanish, etc.
Status	All, Enabled, Disabled
Fallback Only	Show only fallback voices

Type Values

Type	Description
System	Pre-installed, cannot be deleted
Custom	User-created, can be deleted

5. Voice Guide Generation

Create Voice Guide Form

┌─────────────────────────────────────────────────────────────────┐
│  🔊 Create Voice Guide                                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌─ Configuration ─────────────────────────────────────────┐    │
│  │  Name: [English Custom Voice           ]                │    │
│  │  Description: [Custom IVR prompts for...    ] (optional)│    │
│  └─────────────────────────────────────────────────────────┘    │
│                                                                 │
│  ┌─ Language & Voice ──────────────────────────────────────┐    │
│  │  Language: [English ▼]  Dialect: [US ▼]                 │    │
│  │  Voice Name: [custom_voice    ]                         │    │
│  │  TTS Profile: [OpenAI TTS-1 HD - alloy ▼]               │    │
│  │                                                         │    │
│  │  📁 Output Path: en/us/custom_voice/                    │    │
│  └─────────────────────────────────────────────────────────┘    │
│                                                                 │
│  ┌─ Prompt Definitions ────────────────────────────────────┐    │
│  │  CSV Content (path,filename,text):                      │    │
│  │  ┌─────────────────────────────────────────────────────┐│    │
│  │  │ ivr,welcome,Welcome to our company                  ││    │
│  │  │ ivr,goodbye,Thank you for calling                   ││    │
│  │  │ voicemail,greeting,Please leave a message           ││    │
│  │  └─────────────────────────────────────────────────────┘│    │
│  │  [📁 Upload CSV File] or paste directly                 │    │
│  └─────────────────────────────────────────────────────────┘    │
│                                                                 │
│  ┌─ Prompts Preview (3 items) ─────────────────────────────┐    │
│  │  Path      │ Filename │ Text                   │ Status │    │
│  │  ivr       │ welcome  │ Welcome to our company │ ⏳     │    │
│  │  ivr       │ goodbye  │ Thank you for calling  │ ⏳     │    │
│  │  voicemail │ greeting │ Please leave a message │ ⏳     │    │
│  └─────────────────────────────────────────────────────────┘    │
│                                                                 │
├─────────────────────────────────────────────────────────────────┤
│  [Stop]       ████████████░░░░ 2/3 (67%)    [🔄 Generating...] │
└─────────────────────────────────────────────────────────────────┘

CSV Format

path,filename,text
ivr,welcome,Welcome to our company. How may I help you today?
ivr,goodbye,Thank you for calling. Goodbye!
ivr,hold,Please hold while we connect you.
voicemail,greeting,You have reached the voicemail of
voicemail,instructions,Please leave a message after the beep
digits,0,zero
digits,1,one
digits,2,two

Generation Features

Feature	Description
Batch Processing	Processes prompts in batches of 10
Progress Bar	Real-time visual progress indicator
Count Display	Shows “X / Y (Z%)” during generation
Auto-scroll	Table scrolls to show current batch
Status Tracking	Each prompt shows ⏳ pending, ✅ completed, ❌ failed
Stop Button	Shows “Stop” during generation to abort batch processing
Cancel Button	Restores original values in edit mode, resets form in create mode
Completion Modal	Summary of generated vs failed prompts

Edit Mode

When editing an existing voice guide:

Language, Dialect, Voice Name are read-only (defines the path)
Can add new prompts to the existing guide
New prompts are appended or overwrite existing files

Model Context Protocol (MCP) AI Integration

The PBX Voice Guide module exposes native Model Context Protocol (MCP) tools allowing AI Copilots, automated speech orchestration agents, and diagnostic assistants to discover, inspect, and verify telephony voice prompt packages and sound directory structures across all configured languages.

Available MCP Telephony Tools

Tool Name	Action Type	Access Level	Description
`list_voice_guides`	`READ`	`Read-Only`	Lists all installed voice guide prompt suites, displaying language code, dialect, voice persona, sound directory path, and default fallback status.
`get_voice_guide_status`	`READ`	`Read-Only`	Retrieves detailed metadata, prompt path, fallback state, and system flags of a specific multilingual voice guide by ID or name.

Tool Schemas & Input Parameters

`list_voice_guides`

{
  "name": "list_voice_guides",
  "description": "List system Voice Guides and multilingual telephony prompt suites installed in the PBX.",
  "inputSchema": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter voice guides by name or language code (e.g. 'Spanish', 'en-US')."
      }
    }
  }
}

`get_voice_guide_status`

{
  "name": "get_voice_guide_status",
  "description": "Get configuration and prompt path details of a specific multilingual voice guide.",
  "inputSchema": {
    "type": "object",
    "properties": {
      "id": {
        "type": "number",
        "description": "Unique numerical ID of the voice guide."
      },
      "name": {
        "type": "string",
        "description": "Name of the voice guide (e.g. 'Spanish Mexican Standard')."
      }
    }
  }
}

Natural Language AI Copilot Prompts

English Prompts

“List all installed voice guides in the PBX and show which one is designated as the system default fallback.”
“Check the prompt directory path and status for voice guide ‘Spanish Mexican Standard’.”
“Are there any English UK voice prompt packs available for our IVR menus?”

Spanish Prompts

“Lista todas las guías de voz configuradas y verifica cuál está marcada como fallback predeterminado.”
“Muestra el estado detallado y la ruta de archivos de sonido de la guía de voz ‘Spanish Paloma’.”
“¿Qué paquetes de audio en inglés y español tenemos disponibles para el conmutador?”

Enterprise Safeguards & Multi-Tenant Isolation

Domain Scoping: Read operations are filtered to the authenticated tenant/domain context, preventing cross-tenant leakage of proprietary custom brand audio files.
System Guide Protection: System voice guides (is_system = true) are protected from automated deletion or accidental overwrite by AI agents.
Audio File Integrity: Paths returned by get_voice_guide_status are sanitized to prevent directory traversal outside /usr/share/freeswitch/sounds/.

6. Common Scenarios & Examples

Scenario 1: Create Custom IVR Prompts

Click “Create Voice Guide”
Enter name: “Custom IVR English”
Select Language: English, Dialect: US
Enter Voice Name: “custom_ivr”
Select TTS Profile (e.g., OpenAI alloy)

Paste or upload CSV with prompts:

ivr,main_menu,Press 1 for sales, 2 for support
ivr,sales_queue,Connecting you to sales
ivr,support_queue,Connecting you to support

Click “Generate Voice Guide”
Watch progress bar fill up
Review completion summary

Scenario 2: Add Prompts to Existing Guide

Find the voice guide in the list
Click the Edit (pencil) icon
Form opens with existing configuration (read-only)
Paste new prompts in CSV format
Click “Generate Voice Guide”
New prompts are added to existing directory

Scenario 3: Identify System vs Custom Guides

View the Type column in the list
Blue “System” badge = Protected, cannot delete
Green “Custom” badge = User-created, can delete
System guides have no delete button in Actions

Scenario 4: Generate Multilingual Prompts

Create separate voice guides for each language:
- “Spanish Mexico Prompts” (es/mx/custom)
- “French Canada Prompts” (fr/ca/custom)
Use appropriate TTS profiles for each language
Use same prompt structure (path/filename) for consistency

7. Limitations & Important Notes

Technical Notes

[!NOTE] Audio Format: Generated files are WAV format, 8kHz mono (telephony optimized).

[!NOTE] File Location: Files are saved to /usr/share/freeswitch/sounds/{language}/{dialect}/{voice_name}/.

[!WARNING] Overwrite Behavior: Generating a prompt with the same path/filename overwrites the existing file.

[!CAUTION] System Guides: Deleting system voice guides (is_system=true) is blocked at both UI and API level.

Best Practices

Use Descriptive Names: Name guides clearly (e.g., “Custom IVR English HD”)
Plan Voice Names: Use lowercase, no spaces (e.g., “custom_ivr” not “Custom IVR”)
Consistent Structure: Use same path/filename patterns across languages
Test Prompts: Generate a few prompts first before bulk generation
Backup Before Overwrite: System won’t backup existing files

Supported TTS Providers

Provider	Voices	Quality
OpenAI	alloy, echo, fable, onyx, nova, shimmer	HD available
Azure	Multiple per language	Neural voices
Google	Multiple per language	Neural voices

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
“Generating…” stuck	TTS API issue	Check AI Profile credentials
Prompts fail	Invalid text or path	Check CSV format, remove special characters
No TTS profiles	Profiles not configured	Create AI Profiles with type=TTS
Cannot delete guide	System guide	System guides are protected
Edit button opens empty	Guide data issue	Refresh the list
Progress bar not moving	Batch failure	Check browser console for errors

Verify Generated Files

# Check generated files
ls -la /usr/share/freeswitch/sounds/en/us/custom_voice/

# Check specific path
ls -la /usr/share/freeswitch/sounds/en/us/custom_voice/ivr/

# Verify file format
file /usr/share/freeswitch/sounds/en/us/custom_voice/ivr/welcome.wav

Check Voice Guide in Database

-- List all voice guides
SELECT name, language_code, dialect_code, voice_name, is_system, is_fallback
FROM public.voice_guides;

-- Check contents of a specific guide
SELECT vg.name, vgc.path, vgc.name as filename, vgc.phrase
FROM public.voice_guides vg
JOIN public.voice_guide_contents vgc ON vgc.voice_guide_id = vg.id
WHERE vg.name = 'English Emma';

9. Glossary

Term	Definition
Voice Guide	Collection of voice prompts with a specific language/dialect/voice
Dialect	Regional language variant (US, UK, MX)
Voice Name	Identifier for the voice directory (e.g., “emma”, “custom_ivr”)
TTS Profile	AI profile configured for text-to-speech generation
is_system	Flag indicating protected system voice guides
is_fallback	Flag indicating the default fallback voice guide
Batch Processing	Generating prompts in groups of 10 for efficiency
Sound Path	Telephony Server directory path for voice files

Documentation last updated: January 2026
