API Keys Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. 🎯 User Roles & Key Capabilities
4. Module Overview (Technical)
5. Module Overview (Commercial/Business)
6. Module Overview (End User/Administrator)
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Application Keys (API Keys) module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Admin.
3. Under Administration, click Application Keys (/admin/admin/app-keys).
4. To generate a new application key, click the + Add Application Key button.
5. To view, edit, regenerate, or revoke an existing key, click on the row or the action controls (/admin/admin/app-keys/:id).

---

Screenshots & Visual Interface

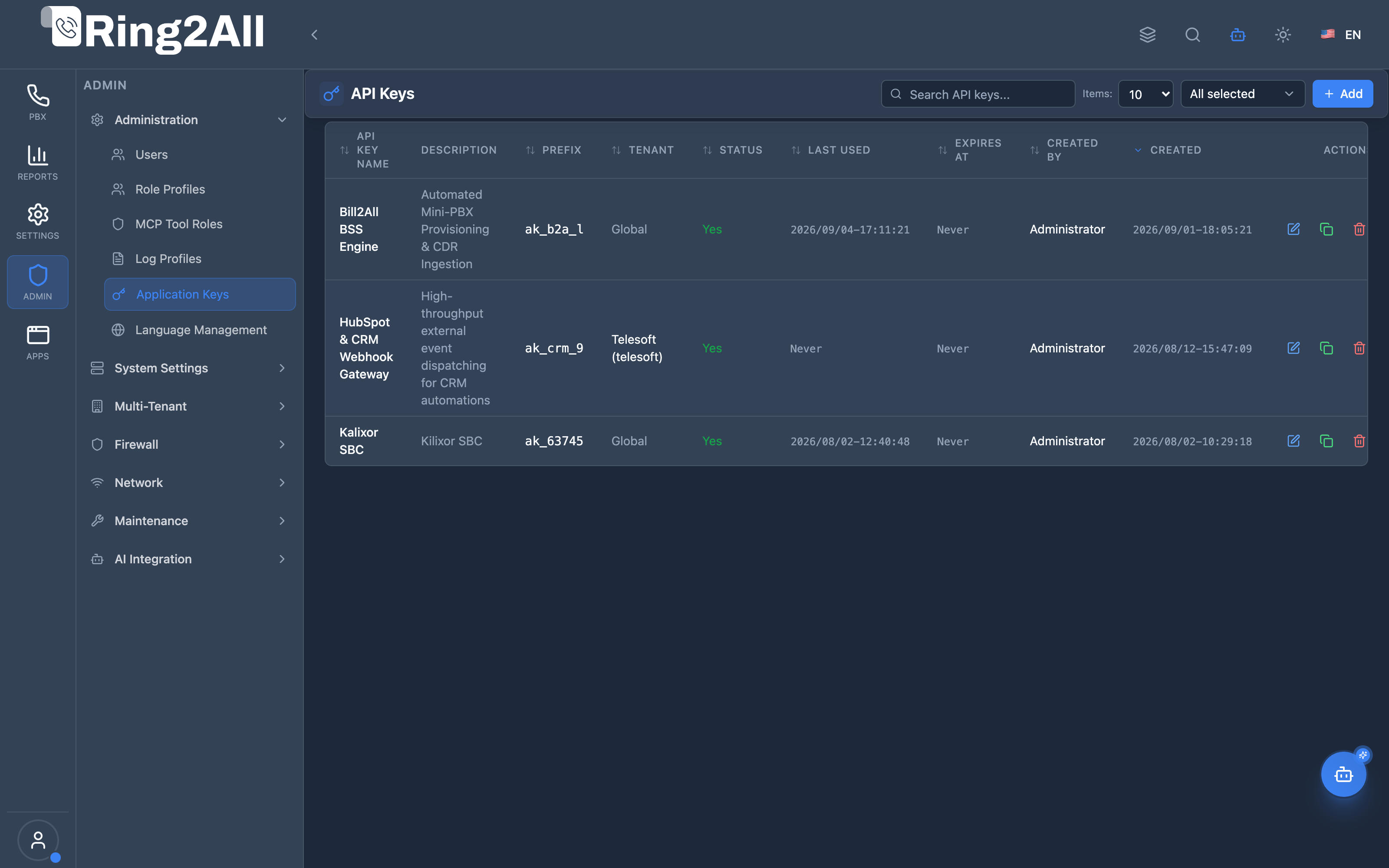

Application Keys List View

The Application Keys overview lists all active and revoked service credentials with their key names, key prefixes, tenant assignments, domain scoping, creation dates, expiration timestamps, and status indicators.

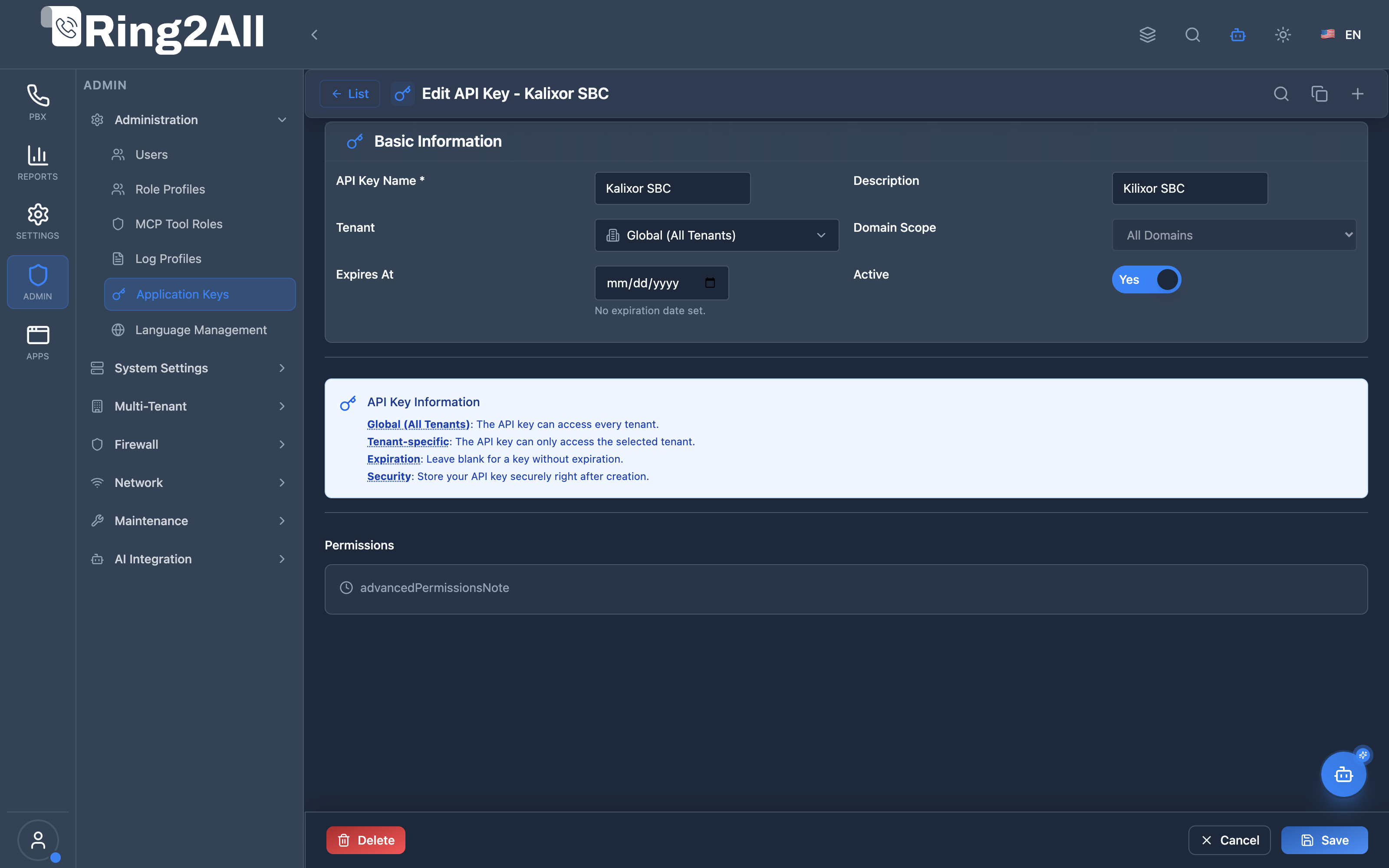

Application Key Generation & Scoping Form

The application key configuration form manages key name metadata, secret token generation, IP address whitelisting, tenant/domain boundaries, and granular API module permissions.

---

🎯 User Roles & Key Capabilities

The Application Keys module provisions and secures machine-to-machine integrations across enterprise systems:

Role	Key Capabilities & Operational Scope
Super Administrator	Generates system-wide application keys, configures cross-tenant API scopes, sets global expiration guidelines, and revokes compromised tokens immediately.
Security & Compliance Officer	Audits active API tokens, inspects last-used timestamps to identify stale credentials, enforces 90-day key rotation, and verifies that key hashes meet modern standards.
Integration Developer / DevOps	Creates tenant-scoped API keys for CRM synchronization (Salesforce, HubSpot), automated billing hooks, webhook receivers, and custom telephony dialer integrations.
Telephony Auditor (Read-Only)	Reviews active API key inventories, key expiration schedules, and associated descriptions without accessing secret token values.

---

1. Module Overview (Technical)

What Are API Keys?

API Keys is a REST API authentication module that manages tokens for programmatic access to the Ring2All API. Each key can be scoped to specific tenants/domains and optionally have an expiration date.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                API Keys Architecture                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  API Key Definition                                             │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        API Key: CRM Integration                          │   │
│  │                                                          │   │
│  │  Key: r2a_xxxx...xxxx (shown once)                      │   │
│  │  Prefix: r2a_                                           │   │
│  │  Scope: Tenant-specific (main)                          │   │
│  │  Domain: All Domains                                     │   │
│  │  Expires: 2025-12-31                                    │   │
│  │  Status: Active                                          │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Used in API requests                                   │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        API Request                                       │   │
│  │                                                          │   │
│  │  GET /api/v1/extensions                                 │   │
│  │  Authorization: Bearer r2a_xxxx...xxxx                  │   │
│  │  X-Tenant-Slug: main                                    │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Validated by                                           │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        API Gateway                                       │   │
│  │                                                          │   │
│  │  Checks:                                                 │   │
│  │  ├─ Key exists and active                               │   │
│  │  ├─ Key not expired                                     │   │
│  │  ├─ Tenant scope matches request                        │   │
│  │  └─ Domain scope matches (if restricted)                │   │
│  │                                                          │   │
│  │  Result: Allow or 401 Unauthorized                      │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

API Keys provides secure programmatic access:

Without API Keys	With API Keys
No automation	Full API access
Manual operations	Scripted workflows
No integrations	CRM/ERP integration
Password sharing	Secure tokens

Use Cases

1. Third-party Integration

   • CRM systems
   • Billing platforms
   • Custom dashboards

2. Automation

   • Provisioning scripts
   • Bulk operations
   • Scheduled tasks

3. Multi-tenant Access

   • Global keys for system integrations
   • Tenant-specific for isolated access

4. Security Compliance

   • Expiration policies
   • Key rotation
   • Audit trail

Feature Highlights

Feature	Benefit
Secure Keys	One-time reveal
Tenant Scope	Global or specific
Domain Scope	Granular access
Expiration	Auto-disable old keys
Status Toggle	Enable/disable
Prefix	Identify key type

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create API keys for integrations
• Set tenant scope (global or specific)
• Restrict to specific domains
• Set expiration dates
• Enable/disable keys
• Copy key on creation (one-time)
• Track last usage

API Keys Interface

┌─────────────────────────────────────────────────────────────────┐
│              API Keys                                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [+ Create API Key]                                             │
│                                                                 │
│  [🔍 Search API keys...]                                        │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name            │ Prefix  │ Scope    │ Expires  │ Status │  │
│  ├─────────────────┼─────────┼──────────┼──────────┼────────┤  │
│  │ CRM Integration │ r2a_abc │ main     │ 2025-12  │ Active │  │
│  │ Billing System  │ r2a_def │ Global   │ Never    │ Active │  │
│  │ Old Script      │ r2a_ghi │ branch   │ 2024-06  │ Expired│  │
│  │ Test Key        │ r2a_jkl │ main     │ Never    │ Inactive│ │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Create API Key

┌─────────────────────────────────────────────────────────────────┐
│              Create API Key                                     │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ▼ Basic Information                                            │
│                                                                 │
│  API Key Name: [CRM Integration              ]                 │
│    Unique name for identifying this API key                     │
│                                                                 │
│  Description: [Integration with Salesforce   ]                 │
│    Optional note describing the purpose                         │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Tenant:                                                        │
│  ○ Global (All Tenants)                                        │
│      The API key can access every tenant.                       │
│  ● Tenant-specific                                             │
│      The API key can only access the selected tenant.          │
│                                                                 │
│  Select Tenant: [main ▼]                                       │
│                                                                 │
│  Domain Scope: [All Domains ▼]                                 │
│    When a tenant is selected, you can further restrict         │
│    access to a specific domain.                                 │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Expiration: [2025-12-31    ]                                  │
│    Leave blank for a key without expiration.                    │
│                                                                 │
│  Active: ✓                                                     │
│    Disabled keys are rejected by the API.                       │
│                                                                 │
│  [Create API Key] [Cancel]                                      │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Generated Key (Shown Once)

┌─────────────────────────────────────────────────────────────────┐
│              🔒 Generated API Key                               │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  🔒 Your API Key (hover to reveal)                              │
│                                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │ r2a_a1b2c3d4e5f6g7h8i9j0k1l2m3n4o5p6q7r8s9t0...         [📋]││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  ⚠️ Important: This is the only time you will see this API key │
│  in full. Store it securely!                                    │
│                                                                 │
│  Usage: Authorization: Bearer r2a_a1b2c3d4e5f6g7h8...          │
│                                                                 │
│  [Close]                                                        │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Copy Immediately: Key is shown only once during creation.

[!TIP] Use Expiration: Enforce key rotation for security.

[!WARNING] Store Securely: Keys cannot be retrieved after creation.

---

4. Configuration Sections

Basic Information

Field	Description
API Key Name	Unique identifier
Description	Purpose notes
Active	Enable/disable key

Scope Settings

Field	Description
Tenant	Global or specific tenant
Domain Scope	All domains or specific

Security Settings

Field	Description
Expiration	Optional expiration date

---

5. Settings Reference

Tenant Scope Options

Option	Description
Global	Access all tenants
Tenant-specific	Access one tenant only

Status Values

Status	Description
Active	Key is valid
Inactive	Manually disabled
Expired	Past expiration date

API Usage

# Request with API key
curl -X GET "https://api.ring2all.com/v1/extensions" \
  -H "Authorization: Bearer r2a_your_api_key_here" \
  -H "X-Tenant-Slug: main"

---

6. Common Scenarios & Examples

Scenario 1: Create Integration Key

1. Click “Create API Key”
2. Name = “CRM Integration”
3. Description = “Salesforce contact sync”
4. Scope = Tenant-specific, select tenant
5. Expiration = 1 year from now
6. Click Create
7. Copy the key immediately
8. Configure in CRM

Scenario 2: Global System Key

1. Click “Create API Key”
2. Name = “System Automation”
3. Scope = Global (All Tenants)
4. Expiration = None
5. Create and copy key

Scenario 3: Disable Old Key

1. Find key in list
2. Click Edit
3. Uncheck “Active”
4. Save

Scenario 4: Key Rotation

1. Create new key (same purpose)
2. Update integration with new key
3. Verify new key works
4. Delete old key

---

Model Context Protocol (MCP) AI Integration

The Ring2All PBX platform provides Model Context Protocol (MCP) tools for programmatic inspection and audit of external Application Keys.

MCP Tools Reference

Tool Name	Operation	Description	Risk Level
list_api_keys	Read	Lists all Application Keys created for external integrations (secret tokens masked for security).	Low
get_api_key_status	Read	Retrieves metadata, key prefix, creation date, expiration, and last used timestamp for an API Key.	Low

JSON Schema Definitions

list_api_keys

{
  "name": "list_api_keys",
  "description": "Lists all Application Keys created for external machine-to-machine integrations.",
  "parameters": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter by API key name or description"
      }
    }
  }
}

get_api_key_status

{
  "name": "get_api_key_status",
  "description": "Retrieves metadata and lifecycle details of a specific Application Key.",
  "parameters": {
    "type": "object",
    "properties": {
      "key_id": {
        "type": "number",
        "description": "Internal numeric API key identifier"
      },
      "name": {
        "type": "string",
        "description": "Application key name or label"
      }
    }
  }
}

Natural Language Prompt Examples

English

• “List all active application keys and their expiration dates.”
• “Check the last time the ‘CRM_Salesforce_Prod’ API key was used.”
• “Are there any API keys that have already expired or are expiring within 7 days?”

Spanish

• “Muestra todas las llaves de aplicación activas y sus fechas de vencimiento.”
• “Verifica cuándo fue el último uso de la llave de API ‘Integracion_Facturacion’.”
• “¿Hay alguna llave de aplicación expirada o inactiva en el sistema?”

Enterprise Safeguards & Guardrails

1. Strict Token Masking: Full API secrets are shown once at creation and never exposed in MCP tool responses.
2. Read-Only Inspection: AI tools allow inspection and auditing of key metadata without exposing capability to regenerate or leak credentials.
3. Tenant Boundary Enforcement: Key listings are strictly partitioned by the requesting tenant ID.

---

7. Limitations & Important Notes

Technical Notes

[!NOTE] One-time Display: Key shown only at creation.

[!NOTE] Cannot Retrieve: Lost keys require new key creation.

[!WARNING] Secure Storage: Store keys in secure credential managers.

Best Practices

1. Unique Keys: One key per integration
2. Descriptive Names: “CRM_Salesforce_Prod”
3. Set Expiration: Enforce rotation
4. Least Privilege: Tenant-specific when possible
5. Rotate Regularly: Replace keys periodically

Security Recommendations

Practice	Description
Key Rotation	Replace keys every 90 days
Environment Vars	Don’t hardcode keys
Audit Usage	Monitor last used dates
Disable Unused	Deactivate unused keys

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
401 Unauthorized	Key inactive	Check status
401 Unauthorized	Key expired	Create new key
403 Forbidden	Wrong tenant	Check scope
Key lost	Not saved	Create new key

Test API Key

# Verify key works
curl -I "https://api.ring2all.com/v1/health" \
  -H "Authorization: Bearer r2a_your_key"

# Expected: HTTP 200 OK

Check Key in Database

SELECT
  name,
  prefix,
  tenant_scope,
  is_active,
  expires_at,
  last_used_at
FROM public.api_keys
WHERE name = 'CRM Integration';

---

9. Glossary

Term	Definition
API Key	Authentication token
Bearer Token	Authorization header format
Tenant Scope	Access restriction
Prefix	Key identifier (r2a_)
Expiration	Auto-disable date
Key Rotation	Regular key replacement

---

Documentation last updated: January 2026
