Audit Logs Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. Log Fields Reference
7. Common Scenarios & Examples
8. Limitations & Important Notes
9. Troubleshooting Tips
10. Glossary
11. Model Context Protocol (MCP) AI Integration

---

Navigation & Access

To access the System Audit Logs module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Reports.
3. Under System Reports, click Audit Logs (/reports/system/audit-logs).
4. Filter historical system activities by user, event type (CREATE, UPDATE, DELETE, AUTH), module category, or date window.

---

Screenshots & Visual Interface

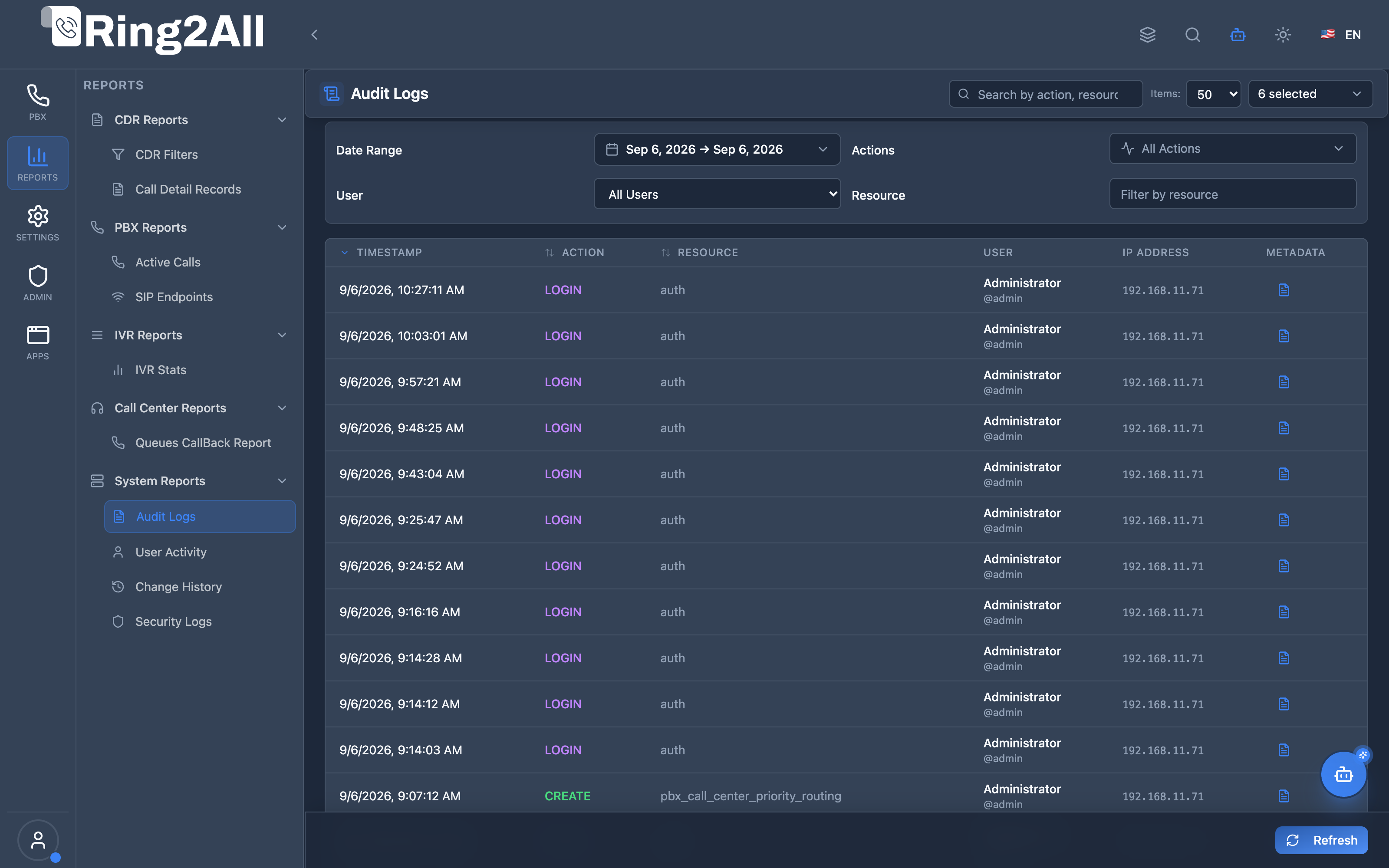

System Audit Logs Repository

Granular platform event trail displaying timestamps, acting usernames, source IP addresses, targeted resource entities, action event types, and execution outcome statuses.

---

1. Module Overview (Technical)

What Are Audit Logs?

Audit Logs is a security and compliance module that records all administrative actions performed in the system. It tracks who did what, when, from where, and provides a complete audit trail for regulatory compliance and security monitoring.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                  Audit Logs Architecture                        │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Admin Performs Action                                          │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Any Module (Extensions, Users, Gateways, etc.)    │   │
│  │                                                          │   │
│  │  User clicks [Save] / [Delete] / [Create]                │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ API Call with User Context                              │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Backend Middleware                                │   │
│  │                                                          │   │
│  │  Log entry created:                                      │   │
│  │  ├─ Action: CREATE / UPDATE / DELETE / LOGIN / etc.      │   │
│  │  ├─ Resource: extension / user / gateway / etc.          │   │
│  │  ├─ Resource ID: 123                                     │   │
│  │  ├─ User: admin@example.com                              │   │
│  │  ├─ IP Address: 192.168.1.100                           │   │
│  │  ├─ User Agent: Chrome/120.0                            │   │
│  │  └─ Metadata: JSON (old/new values)                      │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        public.audit_logs                                 │   │
│  │                                                          │   │
│  │  id | action | resource | user | ip | timestamp | meta   │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Display in Viewer                                       │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Audit Logs Page                                   │   │
│  │                                                          │   │
│  │  [Filters: Date | Action | Resource | User]              │   │
│  │                                                          │   │
│  │  ┌─────────────────────────────────────────────────────┐ │   │
│  │  │Time      │Action │Resource│User    │IP          │...│ │   │
│  │  ├──────────┼───────┼────────┼────────┼────────────┼───┤ │   │
│  │  │10:30:45  │UPDATE │extens  │admin   │192.168.1.10│...│ │   │
│  │  │10:25:12  │CREATE │user    │admin   │192.168.1.10│...│ │   │
│  │  │10:20:00  │DELETE │gateway │admin   │192.168.1.15│...│ │   │
│  │  └─────────────────────────────────────────────────────┘ │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Audit Logs provides complete accountability:

Without Audit Logs	With Audit Logs
Unknown who changed	Full accountability
No change history	Complete trail
Compliance gaps	Regulatory compliance
Security blind spots	Activity visibility

Use Cases

1. Security Monitoring

   • Track administrator activity
   • Identify suspicious actions

2. Compliance

   • SOC 2 requirements
   • HIPAA audit trail
   • PCI DSS logging

3. Troubleshooting

   • “Who changed this?”
   • Configuration change history

4. Investigation

   • Security incident response
   • Forensic analysis

Feature Highlights

Feature	Benefit
Action Tracking	What was done
User Identification	Who did it
IP Logging	Where from
Timestamp	When it happened
Metadata	What changed
Search/Filter	Find specific events

---

3. Module Overview (End User/Administrator)

What Can You Do?

• View all system activity
• Filter by date range
• Filter by action type
• Filter by resource
• Filter by user
• Search across logs
• Export for compliance

Audit Logs Interface

┌─────────────────────────────────────────────────────────────────┐
│              Audit Logs                                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  View and analyze system audit logs and user activity           │
│                                                                 │
│  Filters:                                                       │
│  ├─ Range: [Today ▼] [01/16/2026] to [01/16/2026]              │
│  ├─ Actions: [All Actions ▼] (CREATE, UPDATE, DELETE...)       │
│  ├─ Resource: [                    ]                           │
│  ├─ User: [All Users ▼]                                        │
│  └─ [🔄 Refresh] [Clear Filters]                               │
│                                                                 │
│  🔍 [Search by action, resource, or user...              ]     │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │Timestamp    │Action │Resource  │Res ID│User  │IP Address │  │
│  ├─────────────┼───────┼──────────┼──────┼──────┼───────────┤  │
│  │01/16 10:30  │UPDATE │extension │ 123  │admin │192.168.1.1│  │
│  │01/16 10:28  │CREATE │user      │ 456  │admin │192.168.1.1│  │
│  │01/16 10:25  │DELETE │gateway   │ 789  │super │10.0.0.5   │  │
│  │01/16 10:20  │LOGIN  │session   │  -   │admin │192.168.1.1│  │
│  │01/16 10:15  │UPDATE │queue     │ 101  │admin │192.168.1.1│  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Showing 1-25 of 1,234 records                                  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Quick Ranges: Use Today, 7 Days, 15 Days, 30 Days for fast filtering.

[!TIP] Multi-Action Filter: Select multiple action types to filter.

[!NOTE] Metadata: Click row to view full metadata with old/new values.

---

4. Log Fields Reference

Display Columns

Column	Description
ID	Unique log entry ID
Timestamp	When action occurred
Action	Type of action
Resource	What was affected
Resource ID	Specific item ID
User	Who performed action
IP Address	Source IP
User Agent	Browser/client info
Metadata	Additional details

Common Actions

Action	Description
CREATE	New record created
UPDATE	Record modified
DELETE	Record removed
LOGIN	User logged in
LOGOUT	User logged out
EXPORT	Data exported
IMPORT	Data imported

Common Resources

Resource	Description
extension	SIP extension
user	System user
gateway	SIP gateway
queue	Call queue
ivr	IVR menu
route	Inbound/outbound route
domain	Tenant domain
session	Login session

---

5. Common Scenarios & Examples

Scenario 1: Who Changed Extension 1001?

1. Filter Resource by “extension”
2. Search for resource ID or number
3. View action history
4. Check metadata for changes

Scenario 2: Security Investigation

1. Filter by specific user
2. Set date range for incident window
3. Review all actions
4. Export for report

Scenario 3: Login Audit

1. Filter Action by “LOGIN”
2. Review login times and IPs
3. Identify unusual patterns
4. Check for failed logins

Scenario 4: Compliance Report

1. Set date range for reporting period
2. Apply relevant filters
3. Export full log
4. Submit for audit

---

6. Limitations & Important Notes

Technical Notes

[!NOTE] Automatic Logging: All admin actions are logged automatically.

[!NOTE] Read-Only: Audit logs cannot be modified or deleted.

[!WARNING] Storage: Long retention periods increase storage needs.

Retention

Setting	Description
Default Retention	Configured per system
Compliance Needs	May require 1-7 years

Best Practices

1. Regular Review: Check logs weekly for anomalies
2. Export Archives: Export and archive regularly
3. Monitor Logins: Watch for unusual login patterns
4. Track Deletions: Review all DELETE actions
5. IP Awareness: Know your admin IPs

---

7. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
No logs	Too restrictive filter	Clear filters
Missing action	Not logged	Check if action type is logged
Slow loading	Large date range	Reduce date range
User not found	User deleted	Search by user ID
No metadata	Not captured	Some actions have limited metadata

Diagnostic SQL

Recent audit entries:

SELECT
  timestamp,
  action,
  resource,
  resource_id,
  user_email,
  ip_address
FROM public.audit_logs
ORDER BY timestamp DESC
LIMIT 50;

Actions by user:

SELECT
  action,
  COUNT(*) as count
FROM public.audit_logs
WHERE user_email = 'admin@example.com'
  AND timestamp >= NOW() - INTERVAL '24 hours'
GROUP BY action
ORDER BY count DESC;

---

8. Glossary

Term	Definition
Audit Log	Record of system activity
Action	Type of operation performed
Resource	Type of object affected
Metadata	Additional change details
User Agent	Browser/client identification
Audit Trail	Complete history of actions

---

9. Model Context Protocol (MCP) AI Integration

The Ring2All Platform Copilot connects directly with the dedicated audit database (ss_logs.audit_logs) via the Model Context Protocol (MCP). Security officers, compliance auditors, and system administrators can investigate configuration history, verify administrative actions, and review tenant activities through conversational natural language prompts.

Exposed MCP Tools

Tool Name	Operation	Primary Parameters	Description
query_audit_logs	Audit Event Search	action (string, optional), resource (string, optional), search (string, optional), limit (number, default: 25)	Queries system audit logs, displaying action type, affected resource, acting user or administrator, IP address, and metadata.
get_audit_log_summary	Administrative Audit Overview	None	Computes a 7-day breakdown of recent administrative operations, top modified resources, and most active administrators.

Operational Safeguards & Security Compliance

• Tenant Isolation: Audit queries strictly isolate records by tenant_id (WHERE tenant_id = :tenant_id). Tenant administrators cannot inspect events generated by other tenant organizations.
• Immutable Log Store: The audit trail in ss_logs.audit_logs is strictly append-only. Copilot and external API clients cannot delete, overwrite, or redact recorded audit entries.
• Credential Privacy: Sensitive data (SIP passwords, hashed user credentials, API keys) are masked or stripped from metadata before storage and cannot be viewed via MCP tools.

Example MCP Payloads

1. Checking Recent Audit Events for Extensions (query_audit_logs)

{
  "resource": "sip_extensions",
  "limit": 10
}

Response:

{
  "success": true,
  "data": {
    "total": 2,
    "auditLogs": [
      {
        "id": "c92841ea-8821-4f11-9a20-dcba81710a91",
        "action": "UPDATE",
        "resource": "sip_extensions",
        "resourceId": "1002",
        "user": "Carlos Mendez (admin)",
        "ipAddress": "190.212.45.18",
        "details": { "field": "effective_caller_id_name", "old": "Support", "new": "Tech Support Lead" },
        "timestamp": "2026-09-08T09:15:30.000Z"
      },
      {
        "id": "a11945cb-1192-4f22-881b-ccdf91829f01",
        "action": "CREATE",
        "resource": "sip_extensions",
        "resourceId": "1005",
        "user": "Carlos Mendez (admin)",
        "ipAddress": "190.212.45.18",
        "details": { "extension": "1005", "name": "Maria Lopez" },
        "timestamp": "2026-09-07T16:20:10.000Z"
      }
    ]
  }
}

2. Generating Audit Activity Summary (get_audit_log_summary)

{}

Copilot Natural Language Prompts

• “Who modified extension 1002 this morning?”
• “Show me all configuration changes made in the PBX over the last 24 hours.”
• “What are the top 5 most active administrators this week?”
• “Were any inbound routes deleted or disabled during the weekend?”

---

Documentation last updated: January 2026
