1. Overview & Heuristic Engine Architecture

In Ring2All SBC, the AI Perimeter Guard provides an autonomous, real-time cyber-defense shield engineered specifically for carrier-grade SIP infrastructure. Unlike conventional network firewalls that only inspect layer 3 and 4 packet headers, the AI Perimeter Guard performs continuous deep packet inspection (DPI), heuristic protocol entropy analysis, and machine-learning threat scoring on incoming SIP signaling.

The system detects distributed extension enumeration, credential stuffing, SIP scanner probes (SIPVicious, Friendly-Scanner, SentryPeer), malformed SIP headers, and high-velocity International Revenue Share Fraud (IRSF) attacks.

       ┌─────────────────────────────────────────────────────────────┐
       │                 INCOMING SIP SIGNALING TRAFFIC              │
       │              (UDP/TCP 5060, TLS 5061, IPv4/IPv6)            │
       └──────────────────────────────┬──────────────────────────────┘
                                      │
       ┌──────────────────────────────▼──────────────────────────────┐
       │             KAMAILIO SANITIZATION & EVENT DISPATCH          │
       │     (siptrace, htable velocity counters, regex inspection)  │
       └──────────────────────────────┬──────────────────────────────┘
                                      │
       ┌──────────────────────────────▼──────────────────────────────┐
       │             AI HEURISTIC INFERENCE & THREAT SCORING         │
       │   • Header Entropy     • Scan Clustering    • Toll Shield   │
       │   • User-Agent Hash    • Anomaly Scoring   • Geo Matching   │
       └──────────────────────────────┬──────────────────────────────┘
                                      │
              ┌───────────────────────┴───────────────────────┐
              ▼ (Score >= 80)                                 ▼ (Score 50-79)
       ┌──────────────────────────────┐                ┌──────────────────────────────┐
       │      AUTONOMOUS BANNING      │                │     CHALLENGE & RATE-LIMIT   │
       ├──────────────────────────────┤                ├──────────────────────────────┤
       │ • Kamailio htable auto-block │                │ • SIP 407 Proxy Auth enforce │
       │ • Kernel nftables rule drop  │                │ • Tighten CPS in Pike htable │
       │ • SecOps webhook/email alert │                │ • Forensic trace logging     │
       └──────────────────────────────┘                └──────────────────────────────┘

When threat thresholds are breached, mitigation occurs at wire speed: offending IPs are instantly committed to Kamailio memory hash tables (htable:ipban) and synchronized down to Linux kernel packet filters (nftables / ip_bans).

2. Business & Operational Significance

Autonomous IRSF & Toll Fraud Shield: Proactively detects burst outbound calling sequences toward high-risk international prefixes (PRN), neutralizing account takeovers before carriers incur catastrophic interconnect charges.
Elimination of SIP Scanner Noise: Automatically squelches automated botnets (e.g., sipvicious, sunday, friendly-scanner) before their authentication attempts exhaust Kamailio worker processes or database connection pools.
Microsecond Mitigation Latency: Enforces blocking rules in memory via Kamailio shared hash tables and kernel nftables sets, avoiding CPU-intensive database round trips during active distributed denial of service (DDoS) events.
Self-Healing Adaptive Defense: Maintains dynamic IP forensic timelines with configurable ban durations, automatically expelling transient offenders while maintaining strict audit trails for regulatory reporting.

3. 🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
SecOps & Security Lead	Perimeter Defense & Threat Hunting	Configure autonomous ban thresholds, review threat scoring weights, inspect forensic packet captures, and manage global whitelists.
SBC Administrator	Operational Shield Monitoring	Monitor real-time attack origin maps, observe top threat vectors, trigger manual IP unbans, and adjust notification webhooks.
Carrier Interconnect Engineer	Fraud Mitigation Oversight	Analyze IRSF threat telemetry, verify destination pattern heuristics, and safeguard wholesale trunk capacity.
Compliance & Forensic Auditor	Incident Reconstruction	Export historical security incident logs, review AI analysis rationales, and verify non-repudiation timestamps.
AI Perimeter Analyst & Autonomous Agent	Telemetry Ingestion & Incident Remediation	Query threat intelligence summaries, perform real-time deep IP forensics, track high-risk attack vectors, and execute autonomous mitigation actions via MCP.

4. Visual Interface & Layout

The AI Perimeter Guard console features a dynamic NOC dashboard providing real-time telemetry, threat posture indicators, incident velocity sparklines, and live forensic tables.

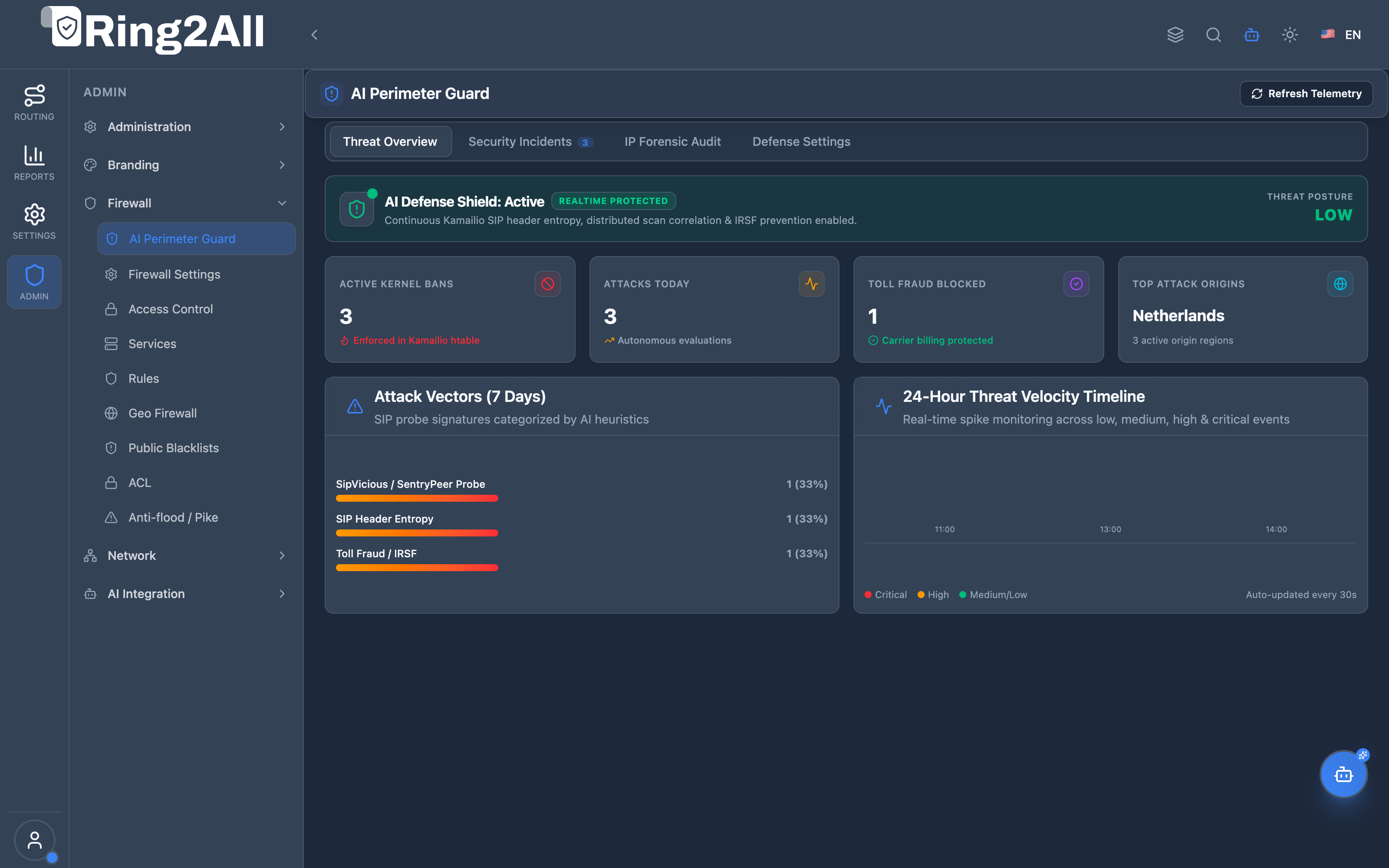

4.1 Threat Overview Dashboard

Displays active kernel bans, 24-hour attack volume, blocked toll fraud incidents, vector breakdown, and threat velocity timelines.

AI Perimeter Guard Dashboard

5. Threat Scoring Matrix & Event Taxonomies

The heuristic engine evaluates incoming SIP packets across multiple weighted attack vectors, assigning a cumulative Threat Score (0 to 100):

Event Type	Severity	Default Weight	Description
`sipvicious_probe`	Critical	90–100	Known scanner signatures matching User-Agents, method sequences, or brute-force user lists.
`toll_fraud_attempt`	Critical	85–100	Rapid sequential calls to premium rate or unallocated international destinations matching IRSF patterns.
`distributed_scan`	High	75–85	Multi-IP coordinated reconnaissance probing sequentially across consecutive SIP extension ranges.
`header_anomaly`	Medium	60–75	Malformed Via branch parameters, missing Call-ID tokens, or conflicting SDP media descriptions.
`credential_stuffing`	High	70–85	Excessive 401/407 authentication failures within short sampling windows (>5 failures/min).
`high_failure_rate`	Medium	50–65	Abnormal ratio of non-200 OK responses to overall call attempts originating from an unpeered source.

6. Field Reference & Defense Settings

The Defense Settings tab allows administrators to calibrate operational thresholds:

Parameter	Type	Default	Description
Enable AI Defense Shield	Toggle	`Enabled`	Master operational switch activating autonomous heuristic analysis and Kamailio integration.
Auto-Ban Threshold	Number (0–100)	`80`	Minimum aggregate threat score required to trigger an immediate autonomous IP ban.
Challenge Threshold	Number (0–100)	`50`	Threat score threshold at which suspicious sources are subjected to cryptographic SIP challenges and rate-limiting.
Ban Duration (Minutes)	Number	`1440` (24h)	Time interval during which banned IPs remain blocked in memory and kernel filters before automatic expiration.
Distributed Scan Detection	Toggle	`Enabled`	Correlates scanning patterns across disparate source IPs sharing similar subnets or user-agent footprints.
SIP Header Entropy Detection	Toggle	`Enabled`	Analyzes structural randomness and protocol deviations in SIP headers to detect customized attack scripts.
Toll Fraud Shield	Toggle	`Enabled`	Detects abnormal outbound call bursts to unassigned or premium-rate country codes.
Rate-Limiting Escalation	Toggle	`Enabled`	Dynamically throttles requests from offending sources prior to full IP ban execution.
Whitelist Subnets	CIDR Array	`127.0.0.1/32, 192.168.10.0/24`	Trusted management and carrier subnets that bypass autonomous banning mechanisms.

7. Kamailio & Kernel Mitigation Pipeline

When an IP crosses the Auto-Ban Threshold, the AI Perimeter Guard initiates a two-tier enforcement workflow:

Kamailio Shared Memory Hash Table (htable):
Terminal window
```
kamcmd htable.sets ipban "185.220.101.5" 1440
```
In kamailio.cfg, packets arriving from addresses present in $sht(ipban=>$si) are immediately dropped with drop; or terminated with sl_send_reply("403", "Forbidden");.
Linux Kernel Packet Filter (nftables / iptables):
Terminal window
```
nft add element inet filter sbc_bans { 185.220.101.5 }
```
Ensures that repeat packets are dropped directly inside the Linux network stack before reaching userspace memory.

8. Forensic Audit & Event Analysis

Each security event captures rich forensic JSON metadata in the ai_security_events table:

{
  "ip_address": "185.220.101.5",
  "event_type": "sipvicious_probe",
  "threat_score": 92,
  "severity": "critical",
  "details": {
    "user_agent": "friendly-scanner",
    "attempts": 45,
    "target_port": 5060
  },
  "ai_analysis": "Heuristic signature match: SIPVicious scanning tool detected attempting extension enumeration across port 5060.",
  "action_taken": "banned",
  "country_code": "DE"
}

9. Operational Hardening & Best Practices

Whitelist Carrier SBCs: Always register wholesale interconnects and upstream PSTN gateways in the Whitelist Subnets array to prevent accidental carrier blacklisting during high-CPS traffic bursts.
Calibrate Toll Fraud Prefixes: Align the Toll Fraud Shield with the platform’s Class 4 routing tables, ensuring valid high-volume international routes are exempted.
Maintain Automated Notifications: Configure webhook endpoints (Slack, PagerDuty, or Microsoft Teams) to receive immediate alerts whenever critical (Score >= 90) bans are enforced.
Periodic Expired Ban Cleanups: Enable the automated cleaner daemon to purge stale forensic records older than 90 days from the database.

10. Verification & Diagnostics

10.1 Live Incident Query

Inspect the latest autonomous bans recorded in the PostgreSQL database:

sudo -u postgres psql -d sbc_admin -c "
SELECT id, ip_address, event_type, threat_score, severity, action_taken, country_code, created_at
FROM ai_security_events
ORDER BY id DESC LIMIT 5;
"

10.2 Kamailio Memory Inspection

Verify that banned IPs are active in Kamailio’s shared memory hash table:

kamcmd htable.dump ipban

10.3 Kernel Filter Verification

Verify that blocked IP addresses are enforced in the kernel set:

nft list set inet filter sbc_bans

11. Model Context Protocol (MCP) AI Integration

The Ring2All SBC MCP Server exposes specialized real-time security tools under the ai_perimeter_guard category. These tools empower autonomous SecOps agents and the Ring2All SBC NOC Copilot to ingest threat telemetry, audit suspect IPs on demand, inspect incident event streams, and take immediate defensive actions directly against Kamailio and operating system packet filters.

11.1 Available MCP Tools

Tool Name	Operation Type	Risk Level	Description
`kalixor_get_threat_intelligence_summary`	Read-only	`read_only`	Retrieves comprehensive real-time posture overview including threat levels, active AI bans, top attack vectors, and 24-hour incident velocity.
`kalixor_analyze_ip_security`	Read-only / Analytical	`read_only`	Performs an on-demand AI deep forensic security audit on a specific IP, returning threat score (0–100), risk factors, and recommendations.
`kalixor_list_security_incidents`	Read-only	`read_only`	Queries recent security events with filtering by severity (`critical`, `high`, `medium`, `low`) and event type.
`kalixor_mitigate_threat_ip`	Mutating / Defensive	`critical`	Executes an immediate mitigation action (`ban` or `unban`) against a specified IP in Kamailio `htable` and OS firewall with audit tracking.

11.2 Tool Schemas & Parameter Definitions

`kalixor_get_threat_intelligence_summary`

Description: Get a comprehensive real-time threat intelligence posture overview for Ring2All SBC.
Input Schema:

{
  "type": "object",
  "properties": {}
}

`kalixor_analyze_ip_security`

Description: Perform an on-demand AI deep forensic security audit on a specific IP address.
Input Schema:

{
  "type": "object",
  "properties": {
    "ipAddress": {
      "type": "string",
      "description": "The IP address to audit (e.g., '185.220.101.5')"
    }
  },
  "required": ["ipAddress"]
}

`kalixor_list_security_incidents`

Description: List recent SIP security events detected by AI Perimeter Guard with filtering.
Input Schema:

{
  "type": "object",
  "properties": {
    "limit": {
      "type": "number",
      "description": "Number of incidents to return (default 10, max 50)"
    },
    "severity": {
      "type": "string",
      "enum": ["critical", "high", "medium", "low"],
      "description": "Filter by severity level"
    },
    "eventType": {
      "type": "string",
      "description": "Filter by specific event type (e.g., distributed_scan, toll_fraud_attempt, sipvicious_probe)"
    }
  }
}

`kalixor_mitigate_threat_ip`

Description: Execute an immediate mitigation action (ban or unban) against a specific IP address.
Input Schema:

{
  "type": "object",
  "properties": {
    "ipAddress": {
      "type": "string",
      "description": "The target IPv4 or IPv6 address to mitigate"
    },
    "action": {
      "type": "string",
      "enum": ["ban", "unban"],
      "description": "Defensive action to perform"
    },
    "reason": {
      "type": "string",
      "description": "Operational rationale or forensic finding justifying the action"
    },
    "durationMinutes": {
      "type": "number",
      "description": "Ban duration in minutes (default 1440 = 24 hours). Ignored for unban operations."
    }
  },
  "required": ["ipAddress", "action"]
}

11.3 Sample Tool Execution Payloads

Example 1: Ingesting Threat Overview

Request Payload:

{
  "tool": "kalixor_get_threat_intelligence_summary",
  "parameters": {}
}

Response Payload:

{
  "success": true,
  "data": {
    "threatLevel": "elevated",
    "activeBans": 27,
    "last24HoursIncidents": 142,
    "topAttackVectors": [
      { "vector": "sipvicious_probe", "count": 89 },
      { "vector": "distributed_scan", "count": 34 },
      { "vector": "toll_fraud_attempt", "count": 19 }
    ],
    "shieldStatus": "operational",
    "lastEvaluatedAt": "2026-09-08T11:45:00Z"
  }
}

Example 2: Auditing Suspicious IP
