Provisioning Security Settings Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. User Roles & Key Capabilities
7. Configuration Fields
8. Common Scenarios & Examples
9. Limitations & Important Notes
10. Model Context Protocol (MCP) AI Integration
11. Troubleshooting Tips
12. Glossary

---

Navigation & Access

To access the Provisioning Security Settings configuration module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Settings.
3. Under Provisioning, click Security Settings (/settings/provisioning/provisioning-security-settings).
4. Configure authentication credentials, toggle HTTP Basic Auth enforcement, and click Save in the bottom action bar.

---

Screenshots & Visual Interface

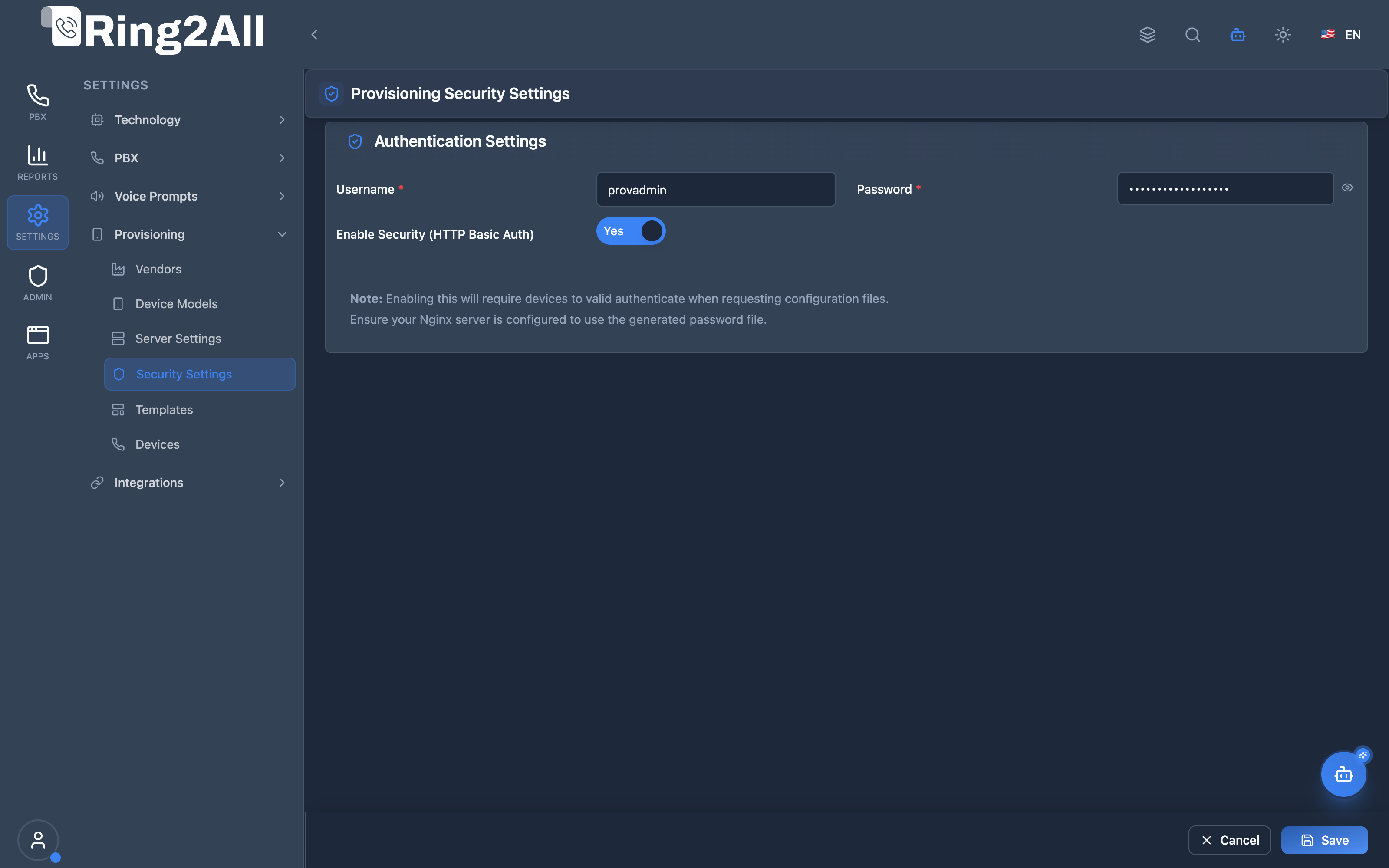

Provisioning Security & HTTP Basic Authentication

Configuration view managing HTTP Basic Authentication credentials (username, password) and enforcement toggles to prevent unauthorized endpoint enumeration and safeguard SIP credentials during auto-provisioning.

---

1. Module Overview (Technical)

What Is Provisioning Security Settings?

Provisioning Security Settings is a provisioning authentication module that configures HTTP Basic Authentication for device configuration requests. It protects provisioning files from unauthorized access.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│          Provisioning Security Architecture                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  IP Phone                                                       │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │  Device Request                                          │   │
│  │                                                          │   │
│  │  GET /provisioning/AA-BB-CC-DD-EE-FF.cfg                │   │
│  │  Authorization: Basic dXNlcjpwYXNz                      │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Nginx Proxy                                       │   │
│  │                                                          │   │
│  │  Security Enabled?                                       │   │
│  │  ├─ Yes → Validate credentials                          │   │
│  │  │        ├─ Valid → Serve config file                  │   │
│  │  │        └─ Invalid → 401 Unauthorized                 │   │
│  │  │                                                       │   │
│  │  └─ No → Serve config file directly                     │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Provisioning Files                                │   │
│  │                                                          │   │
│  │  /var/www/provisioning/                                 │   │
│  │  ├─ AA-BB-CC-DD-EE-FF.cfg                              │   │
│  │  ├─ 11-22-33-44-55-66.cfg                              │   │
│  │  └─ .htpasswd (generated credentials)                  │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Provisioning Security provides configuration protection:

Without Security	With Security
Open access	Auth required
Config exposure	Protected files
No credentials	Username/password
Security risk	Access control

Use Cases

1. Secure Deployments

   • Protect device configs
   • Prevent unauthorized access

2. Credential Protection

   • Hide SIP passwords
   • Secure extension data

3. Compliance

   • Access control audit
   • Security requirements

4. Multi-tenant Security

   • Isolated configurations
   • Per-domain credentials

Feature Highlights

Feature	Benefit
HTTP Basic Auth	Standard authentication
Enable/Disable	Toggle security
Username/Password	Simple credentials
Nginx Integration	Web server auth
Password File	Auto-generated htpasswd

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Enable/disable provisioning security
• Set authentication username
• Set authentication password
• Generate htpasswd file
• Protect device configurations

Provisioning Security Interface

┌─────────────────────────────────────────────────────────────────┐
│              Provisioning Security Settings                     │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Authentication Settings                                        │
│                                                                 │
│  Enable Security (HTTP Basic Auth): ✓                          │
│                                                                 │
│  Username: [provisioning            ]                          │
│    Username for provisioning authentication                     │
│                                                                 │
│  Password: [••••••••••••            ]                          │
│    Password for provisioning authentication                     │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  ⓘ Note:                                                       │
│  • Enabling this will require devices to valid authenticate    │
│    when requesting configuration files.                         │
│  • Ensure your Nginx server is configured to use the           │
│    generated password file.                                     │
│                                                                 │
│  [Save]                                                         │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Device Configuration: Configure matching credentials on phones.

[!TIP] Strong Password: Use complex passwords for security.

[!WARNING] Nginx Required: Ensure Nginx is configured to use the password file.

---

🎯 User Roles & Key Capabilities

Role	Key Capabilities & Permissions	Operational Scope
PBX Super Administrator	• Global HTTP Basic Auth policy governance and enforcement toggles • Master provisioning username and password management • Automated .htpasswd credential generation and Nginx reverse proxy reload orchestration • Plaintext endpoint exposure mitigation and TLS encryption enforcement	Platform-Wide
Tenant Administrator	• Read-only inspection of provisioning security enforcement status • Verification of authentication requirements for company device onboarding • Coordination with IT teams to distribute provisioning credentials to remote handsets	Domain Scope
VoIP Security Officer	• Audit of provisioning credential complexity and rotation schedules • Inspection of reverse proxy HTTP authentication logs and 401 Unauthorized anomaly monitoring • Compliance verification ensuring MAC-based configuration URLs cannot be enumerated	Platform / Security
AI Copilot / MCP Agent	• Diagnostic inspection of provisioning security configuration (get_provisioning_security_settings) • Autonomous verification of authentication requirements prior to generating device configs	Autonomous Assistant

---

4. Configuration Fields

Authentication Settings

Field	Description
Enable Security	Toggle HTTP Basic Auth
Username	Auth username
Password	Auth password

Generated Files

File	Purpose
.htpasswd	Apache/Nginx password file
Nginx config	Auth location directive

---

5. Common Scenarios & Examples

Scenario 1: Enable Security

1. Navigate to Provisioning Security Settings
2. Check “Enable Security (HTTP Basic Auth)”
3. Enter username (e.g., “provisioning”)
4. Enter strong password
5. Click Save
6. Configure Nginx to use password file

Scenario 2: Disable Security

1. Navigate to Provisioning Security Settings
2. Uncheck “Enable Security”
3. Click Save
4. Note: Configs now accessible without auth

Scenario 3: Change Credentials

1. Navigate to Provisioning Security Settings
2. Update username and/or password
3. Click Save
4. Update credentials on all devices

Scenario 4: Configure Phones

1. Enable security in web interface
2. On each phone, set provisioning credentials:
   • Provisioning URL
   • Username
   • Password
3. Reboot phones to apply

---

6. Limitations & Important Notes

Technical Notes

[!NOTE] Nginx Configuration: Manual Nginx setup may be required.

[!NOTE] Device Support: All modern IP phones support HTTP Basic Auth.

[!WARNING] Credential Update: Changing credentials requires updating all devices.

Best Practices

1. Enable in Production: Always enable for production deployments
2. Strong Passwords: Use complex, unique passwords
3. HTTPS Recommended: Use HTTPS to encrypt credentials in transit
4. Document Credentials: Keep secure record of credentials
5. Test After Changes: Verify devices can still provision

Nginx Configuration Example

location /provisioning {
    auth_basic "Provisioning";
    auth_basic_user_file /path/to/.htpasswd;

    root /var/www;
    autoindex off;
}

Phone Configuration

Vendor	Setting
Yealink	Provisioning → Authentication
Grandstream	Maintenance → Upgrade → Auth
Polycom	Config → Provisioning → User/Pass

---

Model Context Protocol (MCP) AI Integration

The Provisioning Security Settings module provides Model Context Protocol (MCP) integration allowing AI Copilots, VoIP onboarding bots, and security compliance tools to audit whether HTTP Basic Authentication is actively enforced on device provisioning URLs.

Available MCP Telephony Tools

Tool Name	Action Type	Access Level	Description
get_provisioning_security_settings	READ	Read-Only	Retrieves the global auto-provisioning security configuration (whether HTTP Basic Auth is enabled and the configured username). Passwords are permanently redacted for enterprise compliance.

Tool Schemas & Input Parameters

get_provisioning_security_settings

Audits the global HTTP Basic Auth enforcement status for IP phone provisioning endpoints.

{
  "name": "get_provisioning_security_settings",
  "description": "Retrieves the global auto-provisioning security configuration (whether HTTP Basic Auth is enabled and the configured username). Passwords are redacted for security.",
  "parameters": {
    "type": "object",
    "properties": {},
    "additionalProperties": false
  }
}

Natural Language Prompt Examples

English Prompts

💬 “Is HTTP Basic Auth enabled for auto-provisioning?” 💬 “Check the provisioning security settings and show me the active authentication username.” 💬 “Audit the provisioning security status to ensure device configuration files are protected.”

Spanish Prompts (Español)

💬 “¿Está activada la autenticación HTTP Basic para el auto-aprovisionamiento?” 💬 “Verifica la configuración de seguridad de aprovisionamiento y muestra el usuario configurado.” 💬 “Audita el estado de seguridad para asegurar que los archivos de configuración estén protegidos.”

Enterprise Safeguards & Compliance

• Credential Redaction: Plaintext passwords and cryptographic hashes are never returned by MCP tools or REST API responses.
• Role-Based Access Control: Executing get_provisioning_security_settings requires administrative privileges under the auxiliary_devices MCP permission scope.
• Audit Logging: Any alteration to HTTP Basic Auth enforcement or credentials is permanently written to the PBX security audit trail with operator identity and source IP.

---

7. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
401 Unauthorized	Wrong credentials	Check username/password
Phones not provisioning	Auth not enabled on phone	Configure phone auth
htpasswd not found	Path incorrect	Check file location
Nginx error	Config not reloaded	Reload Nginx

Test Authentication

# Test provisioning URL with auth
curl -u username:password https://server/provisioning/test.cfg

# Test without auth (should fail if enabled)
curl https://server/provisioning/test.cfg

Check htpasswd File

# View htpasswd file
cat /path/to/.htpasswd

# Verify password (htpasswd tool)
htpasswd -v /path/to/.htpasswd username

Reload Nginx

# Test configuration
nginx -t

# Reload
systemctl reload nginx

---

8. Glossary

Term	Definition
HTTP Basic Auth	Standard web authentication
htpasswd	Apache/Nginx password file
Provisioning	Automatic device configuration
401 Unauthorized	Authentication required/failed
Credentials	Username and password pair

---

Documentation last updated: January 2026
