Custom Applications Module Documentation

Module Overview (Technical)
Module Overview (Commercial/Business)
Module Overview (End User/Administrator)
User Roles & Key Capabilities
Configuration Fields Reference
Call Flow / Logic Explanation
Common Scenarios & Examples
Model Context Protocol (MCP) AI Integration
Limitations & Important Notes
Troubleshooting Tips
Glossary

1. Module Overview (Technical)

What Are Custom Applications?

Custom Applications allow administrators to create programmable call logic using Lua scripts or XML dialplan entries. When routed to via IVR menus, inbound routes, or time conditions, FreeSWITCH executes the custom code before optionally routing to a final destination.

Two Application Types

Type	Description	Use Case
Lua Script	Programmatic logic with Lua code	Complex logic, API calls, database queries
XML Dialplan	Declarative FreeSWITCH XML	Simple routing, variable setting

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                Custom Applications Architecture                 │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  User dials: *99 (trigger number)                               │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Custom Application Lookup                   │   │
│  │  SELECT * FROM custom_applications                       │   │
│  │  WHERE trigger_number = '*99' AND enabled = true         │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Execute Script                              │   │
│  │                                                          │   │
│  │  LUA SCRIPT:                                             │   │
│  │  ├─ Load script from file system                         │   │
│  │  ├─ Execute Lua code (session:answer(), play, etc.)      │   │
│  │  └─ Access variables: caller_id, CUSTOM_APP_UUID, etc.   │   │
│  │                                                          │   │
│  │  XML DIALPLAN:                                           │   │
│  │  ├─ Parse XML content                                    │   │
│  │  └─ Execute as inline dialplan                           │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Final Destination (if not skipped)          │   │
│  │                                                          │   │
│  │  ├─ extension   → Transfer to extension                  │   │
│  │  ├─ queue       → Send to call queue                     │   │
│  │  ├─ ivr         → Send to IVR menu                       │   │
│  │  ├─ conference  → Join conference                        │   │
│  │  ├─ voicemail   → Send to voicemail                      │   │
│  │  ├─ announcement→ Play announcement                      │   │
│  │  ├─ external    → Dial external number                   │   │
│  │  └─ hangup      → End call                               │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Script Storage

Scripts are stored as files in Telephony Server:

/usr/share/freeswitch/scripts/custom_apps/[uuid].lua
/usr/share/freeswitch/scripts/custom_apps/[uuid].xml

Available Variables

Variable	Description
`CUSTOM_APP_DOMAIN`	The domain/tenant the call is in
`CUSTOM_APP_UUID`	Unique ID of this application
`caller_id_number`	Caller’s phone number
`caller_id_name`	Caller’s name
`destination_number`	Number that was dialed

2. Module Overview (Commercial/Business)

Business Value

Custom Applications provide extensibility without core modifications:

Without Custom Apps	With Custom Apps
Hardcoded logic only	Dynamic programmable logic
Developer required	Admin can create via UI
System restart needed	Hot-deployed scripts
No customization	Unlimited flexibility

Use Cases

Custom IVR Logic
- Complex branching based on caller ID
- Database lookups for personalized greetings
- API integrations with external systems
Pre-Call Announcements
- “This call may be recorded”
- Holiday hour announcements
- Emergency notifications
Call Routing Logic
- Time-based routing with custom logic
- VIP caller detection
- Geographic routing
Integration Points
- CRM lookups before connecting
- Ticket creation on call start
- SMS notifications

Feature Highlights

Feature	Benefit
Lua Scripting	Full programming language for complex logic
XML Dialplan	Simple declarative routing
Final Destination	Route anywhere after script completes
Skip Destination	Script handles everything (hangup internally)
Hot Deploy	Changes apply immediately

3. Module Overview (End User/Administrator)

What Can You Do?

Create custom applications with Lua or XML code
Assign trigger numbers (extension or feature code)
Define final destinations for post-script routing
Enable/disable applications without deleting

Navigate to PBX → Applications → Custom Applications in the main sidebar.
The list view displays all configured programmable applications, including Name, Type (LUA / XML), Final Destination, Status (Enabled / Disabled), and quick actions to edit or delete.
Click the + Add button in the top-right toolbar to define a new Custom Application.
Click any existing application row or its edit icon to modify its script logic, destination, or settings.

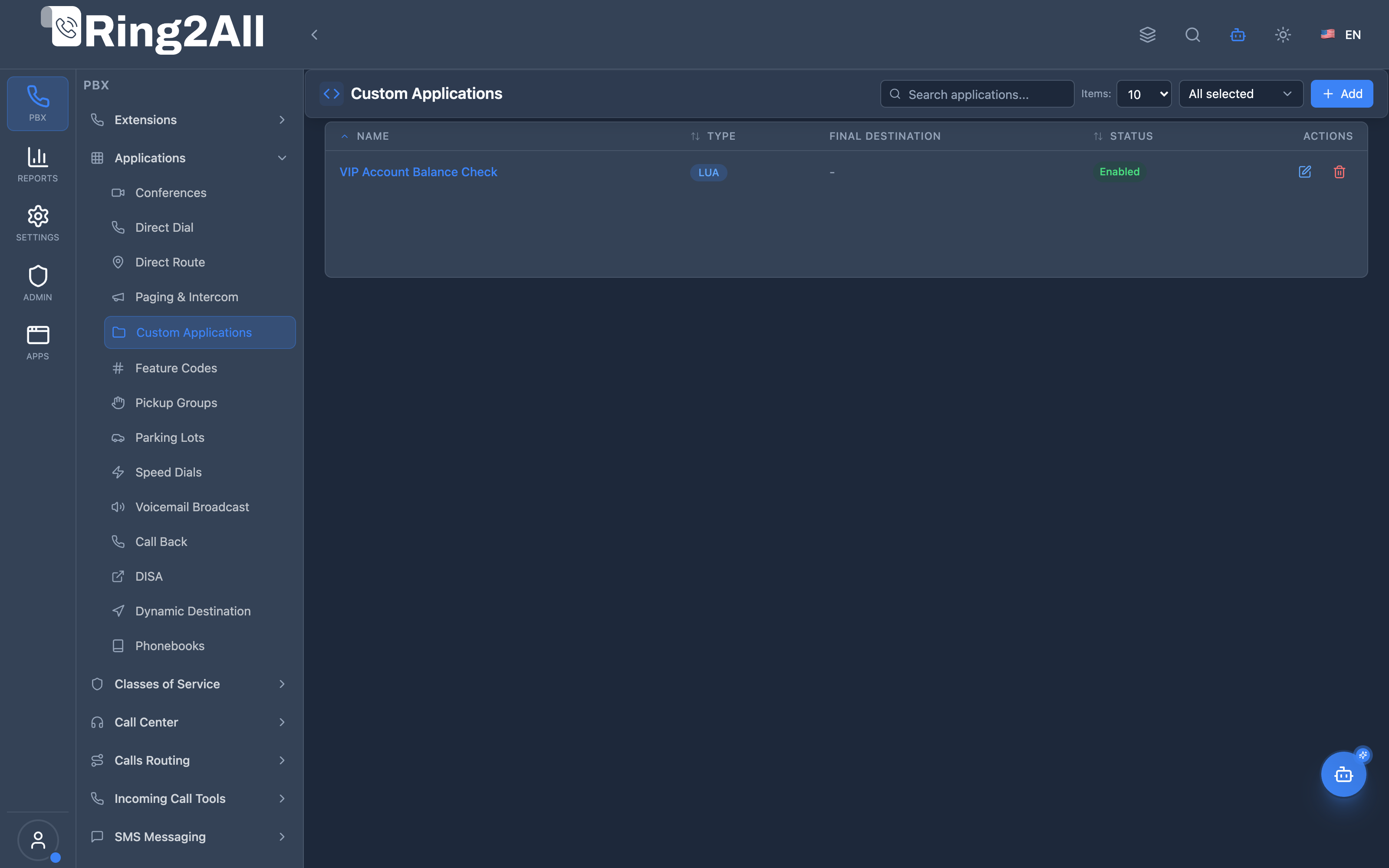

Custom Applications List View

User Workflow

┌─────────────────────────────────────────────────────────────────┐
│                 Creating a Custom Application                   │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Step 1: Basic Information (General Settings Tab)               │
│  ├─ Name: "Recording Disclaimer"                               │
│  ├─ Trigger Number: *99                                        │
│  ├─ Description: "Plays recording notice before transfer"      │
│  └─ Application Type: Lua Script                               │
│                                                                 │
│  Step 2: Script Content (Script Content Tab)                    │
│  ├─ Write Lua code:                                            │
│  │   session:answer()                                          │
│  │   session:sleep(500)                                        │
│  │   session:streamFile("ivr/recording_disclaimer.wav")        │
│  │   -- Final destination handles the rest                     │
│  │                                                              │
│  Step 3: Final Destination                                      │
│  ├─ Skip Final Destination: ✗ (transfer after script)         │
│  ├─ Destination Type: Queue                                    │
│  └─ Destination Value: support_queue                           │
│                                                                 │
│  Step 4: Enable and Save                                        │
│  └─ Enabled: ✓                                                 │
│                                                                 │
│  Result: Dial *99 → Plays disclaimer → Transfers to queue      │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Start Simple: Begin with basic Lua scripts before attempting complex integrations.

[!TIP] Test Thoroughly: Always test custom applications in a development environment first.

[!CAUTION] Syntax Errors: Invalid Lua/XML will cause the application to fail. Check Telephony Server logs for errors.

🎯 User Roles & Key Capabilities

Role	Key Capabilities	Best Practice / Limitations
Super Admin	Deploy, audit, and debug custom Lua and XML applications across tenants; inspect sandboxed execution logs and runtime safety.	Verify script paths and avoid infinite loops; ensure protected `pcall` execution in all custom logic.
PBX Administrator	Create and edit custom applications, select engine type (`lua` or `xml`), author inline code, and configure post-execution destination handoffs.	Always test script syntax using Monaco editor and test with test calls before routing production traffic.
Branch Manager	View existing custom applications and check execution status for branch call flows.	Consult PBX Administrator or Super Admin to request custom logic or API webhook integration changes.
Agent / Extension User	Interact seamlessly with interactive custom applications (e.g. automated surveys, balance checkers, recording disclaimers).	Caller experience is completely transparent; execution occurs natively in FreeSWITCH.

4. Configuration Fields Reference

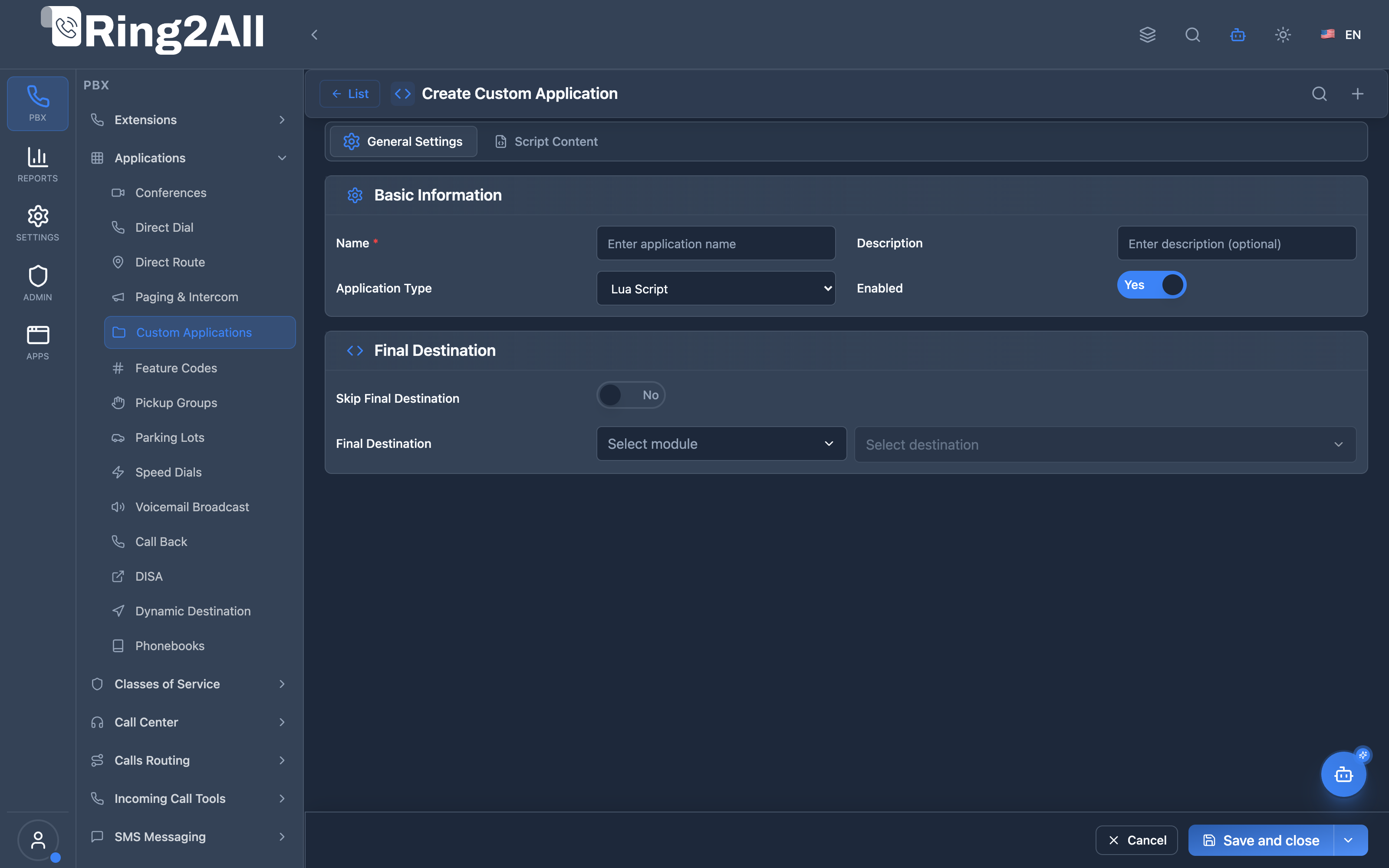

Custom Applications Configuration Form

General Settings Tab

Field	Description	User-Friendly Tooltip	Example	Required
Name *	Unique identifier for the custom application	Enter application name	`VIP Account Balance Check`	Yes
Description	Optional note explaining the script purpose	Enter description (optional)	`Interactive Lua balance verification and CRM sync`	No
Application Type	Engine type executing the code	Select execution environment (`Lua Script` or `XML Dialplan`)	`Lua Script`	Yes
Enabled	Master switch to activate or deactivate the application	Enable or disable this application	`Yes` / `No` (toggle)	Yes

Destination Section

Field	Description	User-Friendly Tooltip	Example	Required
Skip Final Destination	Whether to stop execution after the script completes	If enabled, the application will not route to a final destination	`Yes` / `No` (toggle)	No
Final Destination	Target destination module and specific value	Select where to route callers after the script successfully executes	Module: `Extensions`, Destination: `1001`	Only if Skip Final Destination is No

Script Content Tab

Field	Description	Notes
Script Content	Lua code or XML dialplan	Monaco editor with syntax highlighting

Final Destination Section

Field	Description	Options
Skip Final Destination	Don’t route after script	On = script handles hangup
Destination Type	Where to route	Extension, Queue, IVR, Conference, Voicemail, Announcement, External, Hangup, Time Condition, Call Flow, Ring Group
Destination Value	Target identifier	Depends on type

Destination Types

Type	Value Format	Example
Extension	Extension number	`1001`
Queue	Queue name	`support_queue`
Ring Group	Ring group ID	`sales_group`
IVR	IVR name	`main_menu`
Voicemail	Extension number	`1001`
Announcement	Announcement ID	`holiday_hours`
Conference	Conference extension	`8000`
Hangup	(none)	Ends call
External	Phone number	`+15551234567`
Time Condition	Time condition ID	`business_hours`
Call Flow	Call flow ID	`main_flow`

5. Call Flow / Logic Explanation

Custom Application Execution Flow

┌─────────────────────────────────────────────────────────────────┐
│              Custom Application Execution Flow                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  1. User dials *99 (trigger number)                             │
│     │                                                           │
│     ▼                                                           │
│  2. Dialplan matches custom_application route                   │
│     │                                                           │
│     ▼                                                           │
│  3. Load application from database                              │
│     ├─ Verify enabled = true                                   │
│     ├─ Get app_type (lua/xml)                                  │
│     └─ Get script_filename                                     │
│     │                                                           │
│     ▼                                                           │
│  4. Set channel variables                                       │
│     ├─ CUSTOM_APP_DOMAIN = [domain]                             │
│     ├─ CUSTOM_APP_UUID = [uuid]                                 │
│     └─ (other call variables available)                         │
│     │                                                           │
│     ▼                                                           │
│  5. Execute script                                              │
│     │                                                           │
│     ├─ LUA:                                                     │
│     │   session:execute("lua", "custom_apps/[uuid].lua")       │
│     │                                                           │
│     └─ XML:                                                     │
│         process inline dialplan from file                       │
│     │                                                           │
│     ▼                                                           │
│  6. Script completes                                            │
│     │                                                           │
│     ├─ skip_final_destination = true → DONE (call ends)        │
│     │                                                           │
│     └─ skip_final_destination = false → Step 7                  │
│     │                                                           │
│     ▼                                                           │
│  7. Route to final destination                                  │
│     ├─ extension → transfer("1001 XML default")                │
│     ├─ queue → callcenter("support@...")                       │
│     ├─ ivr → ivr("main_menu")                                  │
│     └─ etc.                                                    │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

6. Common Scenarios & Examples

Scenario 1: Recording Disclaimer

Purpose: Play “This call may be recorded” before connecting to support.

Configuration:

Setting	Value
Name	Recording Disclaimer
Trigger	*99
Type	Lua Script
Skip Destination	No
Final Destination	Queue: support_queue

Script:

-- Recording Disclaimer
session:answer()
session:sleep(500)
session:streamFile("ivr/this_call_may_be_recorded.wav")
-- Final destination handles transfer to queue

Scenario 2: VIP Caller Detection

Purpose: Check if caller is VIP and route accordingly.

Configuration:

Setting	Value
Name	VIP Router
Trigger	*77
Type	Lua Script
Skip Destination	Yes (script handles routing)

Script:

-- VIP Caller Detection
local caller = session:getVariable("caller_id_number")
local vip_numbers = {"5551234567", "5559876543", "5551111111"}

local is_vip = false
for _, num in ipairs(vip_numbers) do
    if caller:find(num) then
        is_vip = true
        break
    end
end

session:answer()
if is_vip then
    session:streamFile("ivr/vip_welcome.wav")
    session:transfer("1001", "XML", "default")  -- VIP extension
else
    session:transfer("5000", "XML", "default")  -- Regular queue
end

Scenario 3: Emergency Announcement

Purpose: Play emergency message and hang up.

Configuration:

Setting	Value
Name	Emergency Notice
Trigger	*911
Type	Lua Script
Skip Destination	Yes

Script:

-- Emergency Announcement
session:answer()
session:streamFile("emergency/building_evacuation.wav")
session:hangup()

Scenario 4: Simple XML Routing

Purpose: Set a variable and transfer.

Configuration:

Setting	Value
Name	Department Router
Trigger	*50
Type	XML Dialplan
Skip Destination	Yes

Script:

<extension name="custom_router">
  <condition field="destination_number" expression=".*">
    <action application="set" data="department=sales"/>
    <action application="transfer" data="1001 XML default"/>
  </condition>
</extension>

7. Model Context Protocol (MCP) AI Integration

Custom Applications can be managed, generated, and diagnosed via the Model Context Protocol (MCP). AI assistants and engineers can review Lua logic, inspect dialplan XML configurations, and deploy programmable telephony workflows while respecting tenant isolation.

Available MCP Tools

Tool Name	Operation	Description	Access Level
`list_custom_applications`	Query	List all custom Lua and XML applications, script types, and destination handoffs.	Read-Only
`get_custom_application_status`	Query	Retrieve full script source code, script filename, and execution settings for a specific application.	Read-Only
`create_custom_application`	Provisioning	Deploy a new programmable Lua script or XML dialplan application with optional post-execution destination.	Admin / Superadmin
`update_custom_application`	Management	Modify script contents, target destination, or active state of a custom application.	Admin / Superadmin
`delete_custom_application`	Deprovisioning	Remove a custom application and its associated script files.	Superadmin

Tool Definitions & Parameter Reference

`create_custom_application`

Deploys a custom Lua or XML application.

{
  "name": "create_custom_application",
  "description": "Create a new custom programmable application executing Lua code or XML dialplan in Telephony Server.",
  "inputSchema": {
    "type": "object",
    "properties": {
      "name": { "type": "string", "description": "Application name (e.g. 'CRM Customer Balance Lookup')." },
      "appType": { "type": "string", "enum": ["lua", "xml"], "description": "Script execution runtime: 'lua' or 'xml'." },
      "scriptContent": { "type": "string", "description": "The raw Lua script code or XML dialplan snippet." },
      "finalDestinationModule": { "type": "string", "description": "Optional destination module after script ends (e.g. 'extension', 'queue', 'ivr')." },
      "finalDestinationValue": { "type": "string", "description": "Destination target ID or extension." },
      "skipFinalDestination": { "type": "boolean", "description": "Whether the script handles call completion without PBX handoff." },
      "description": { "type": "string", "description": "Optional notes or documentation." }
    },
    "required": ["name", "appType", "scriptContent"]
  }
}

Safety Safeguards & Execution Bounds

Domain Scoping: Custom applications execute within the tenant domain context. Global Telephony Server system commands that escape the tenant environment are restricted by the script sandbox.
Auto Dialplan Reload: Once created or updated, changes automatically trigger a background reloadxml in Telephony Server so that modifications become live without restarting telephony services.

Example AI Assistant Prompts & Workflow

Example 1: Creating a Custom Lua API Lookup Application

Admin Prompt:
“Create a Lua custom application named ‘Check Account Status’ that queries the external billing API and transfers to extension 1001 if active.”

AI Tool Execution:

{
  "tool": "create_custom_application",
  "arguments": {
    "name": "Check Account Status",
    "appType": "lua",
    "scriptContent": "local caller_id = session:getVariable('caller_id_number')\nfreeswitch.consoleLog('INFO', 'Verifying caller: ' .. tostring(caller_id))\n-- Custom HTTP lookup logic here\nsession:execute('playback', 'ivr/ivr-please_wait.wav')",
    "finalDestinationModule": "extension",
    "finalDestinationValue": "1001",
    "skipFinalDestination": false
  }
}

MCP Response:

{
  "success": true,
  "data": {
    "id": 5,
    "name": "Check Account Status",
    "appType": "lua",
    "message": "Custom Application created and loaded successfully."
  }
}

8. Limitations & Important Notes

Technical Limitations

[!WARNING] Syntax Errors: Invalid Lua or XML will cause the application to fail silently. Always check logs.

[!WARNING] No Debugging UI: Script debugging must be done via Telephony Server console/logs.

[!IMPORTANT] Script Permissions: Scripts run with Telephony Server privileges. Be careful with file operations.

Best Practices

Keep Scripts Simple: Complex logic is harder to debug
Use Logging: Add freeswitch.consoleLog("INFO", message) for debugging
Handle Errors: Wrap critical code in pcall() for error handling
Test Offline: Test Lua scripts in a Lua interpreter first
Document Code: Add comments explaining what the script does

Security Considerations

[!CAUTION] Code Injection: Custom applications run arbitrary code. Restrict who can create them.

[!CAUTION] External API Calls: Be careful with API calls in scripts—they can slow down call setup.

9. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Application not triggered	Trigger number conflict	Check for duplicate extensions
Script error	Lua syntax error	Check Telephony Server console logs
No audio	session:answer() missing	Ensure call is answered first
Final destination ignored	skip_final_destination = true	Set to false if routing needed
Variables undefined	Wrong variable name	Check available variables

Debugging in Telephony Server

Enable Lua debugging:

fs_cli -x "console loglevel debug"

Watch for custom app execution:

fs_cli -x "log 7" | grep -i custom_app

Diagnostic SQL

List custom applications:

SELECT name, trigger_number, app_type, enabled,
       final_destination_module, final_destination_value
FROM public.custom_applications
WHERE domain_id = [domain_id]
ORDER BY trigger_number;

Check script file:

ls -la /usr/share/freeswitch/scripts/custom_apps/[uuid].lua

10. Glossary

Term	Definition
Custom Application	User-defined script that executes when a trigger number is dialed
Lua	Lightweight programming language used for Telephony Server scripting
XML Dialplan	Telephony Server’s declarative routing configuration format
Trigger Number	The extension or feature code that activates the application
Final Destination	Where the call is routed after the script completes
Skip Destination	Option to not route after script (script handles hangup)
Hot Deploy	Changes take effect immediately without restart
session	Lua object representing the active call/channel
Channel Variable	Named values attached to a call for data passing

Documentation last updated: January 2026

Custom Applications Module Documentation

Table of Contents

1. Module Overview (Technical)

What Are Custom Applications?

Two Application Types

Architecture

Script Storage

Available Variables

2. Module Overview (Commercial/Business)

Business Value

Use Cases

Feature Highlights

3. Module Overview (End User/Administrator)

What Can You Do?

Navigation

User Workflow

Quick Tips

🎯 User Roles & Key Capabilities

4. Configuration Fields Reference

General Settings Tab

Destination Section

Script Content Tab

Final Destination Section

Destination Types

5. Call Flow / Logic Explanation

Custom Application Execution Flow

6. Common Scenarios & Examples

Scenario 1: Recording Disclaimer

Scenario 2: VIP Caller Detection

Scenario 3: Emergency Announcement

Scenario 4: Simple XML Routing

7. Model Context Protocol (MCP) AI Integration

Available MCP Tools

Tool Definitions & Parameter Reference

create_custom_application

Safety Safeguards & Execution Bounds

Example AI Assistant Prompts & Workflow

Example 1: Creating a Custom Lua API Lookup Application

8. Limitations & Important Notes

Technical Limitations

Best Practices

Security Considerations

9. Troubleshooting Tips

Common Issues

Debugging in Telephony Server

Diagnostic SQL

10. Glossary

`create_custom_application`
