Ring Groups Module Documentation

Table of Contents

1. Module Overview (Technical)
2. Module Overview (Commercial/Business)
3. Module Overview (End User/Administrator)
4. Configuration Fields Reference
5. Ring Strategies
6. Member Configuration
7. Common Scenarios & Examples
8. Model Context Protocol (MCP) AI Integration
9. Limitations & Important Notes
10. Troubleshooting Tips
11. Glossary

---

1. Module Overview (Technical)

What Are Ring Groups?

Ring Groups distribute incoming calls to multiple destinations based on configurable strategies. When a call reaches a ring group extension, the system rings members simultaneously, sequentially, or in other patterns until someone answers or timeout occurs.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                   Ring Group System                             │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Caller dials Ring Group extension (e.g., 2000)                 │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Load Ring Group                             │   │
│  │  SELECT * FROM public.ring_groups                        │   │
│  │  WHERE extension = '2000' AND enabled = TRUE             │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Load Members                                │   │
│  │  SELECT extension, delay, timeout                        │   │
│  │  FROM public.ring_group_members                          │   │
│  │  ORDER BY order_index                                    │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Apply Strategy                              │   │
│  │                                                          │   │
│  │  Simultaneous: Ring all at once                          │   │
│  │  Sequence: Ring one by one                               │   │
│  │  Enterprise: Cascade with delays                         │   │
│  │  Random: Random order                                    │   │
│  │  Rollover: First available                               │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  Member answers OR Timeout → Fallback Destination               │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Ring Groups enable team-based call handling:

Without Ring Groups	With Ring Groups
Single-line per person	Team shares one number
Missed calls frequent	Multiple coverage
No routing control	Flexible strategies
Manual call forwarding	Automatic distribution

Use Cases

1. Sales Teams

   • All sales reps ring simultaneously
   • First available takes the call

2. Support Departments

   • Sequential ringing by priority
   • Escalation through tiers

3. After-Hours Coverage

   • Ring primary, then backup
   • Fallback to voicemail

4. Reception Backup

   • Reception rings first
   • After 15 sec, add backup staff

Feature Highlights

Feature	Benefit
5 Strategies	Simultaneous, Sequence, Enterprise, Random, Rollover
Skip Busy	Avoid disrupting calls in progress
Caller ID Prefix	Identify call source
Per-Member Delay/Timeout	Granular timing control
Call Screening	Require confirmation
Recording	Record all group calls
Follow-Me	Respect member forwarding
Fallback Destination	Route unanswered calls

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create ring groups with extensions
• Add members with individual timing
• Configure ring strategies
• Set caller ID prefixes
• Enable call recording
• Configure timeout destinations

Navigation

1. Navigate to PBX Engine → Call Center → Ring Groups in the main navigation menu.

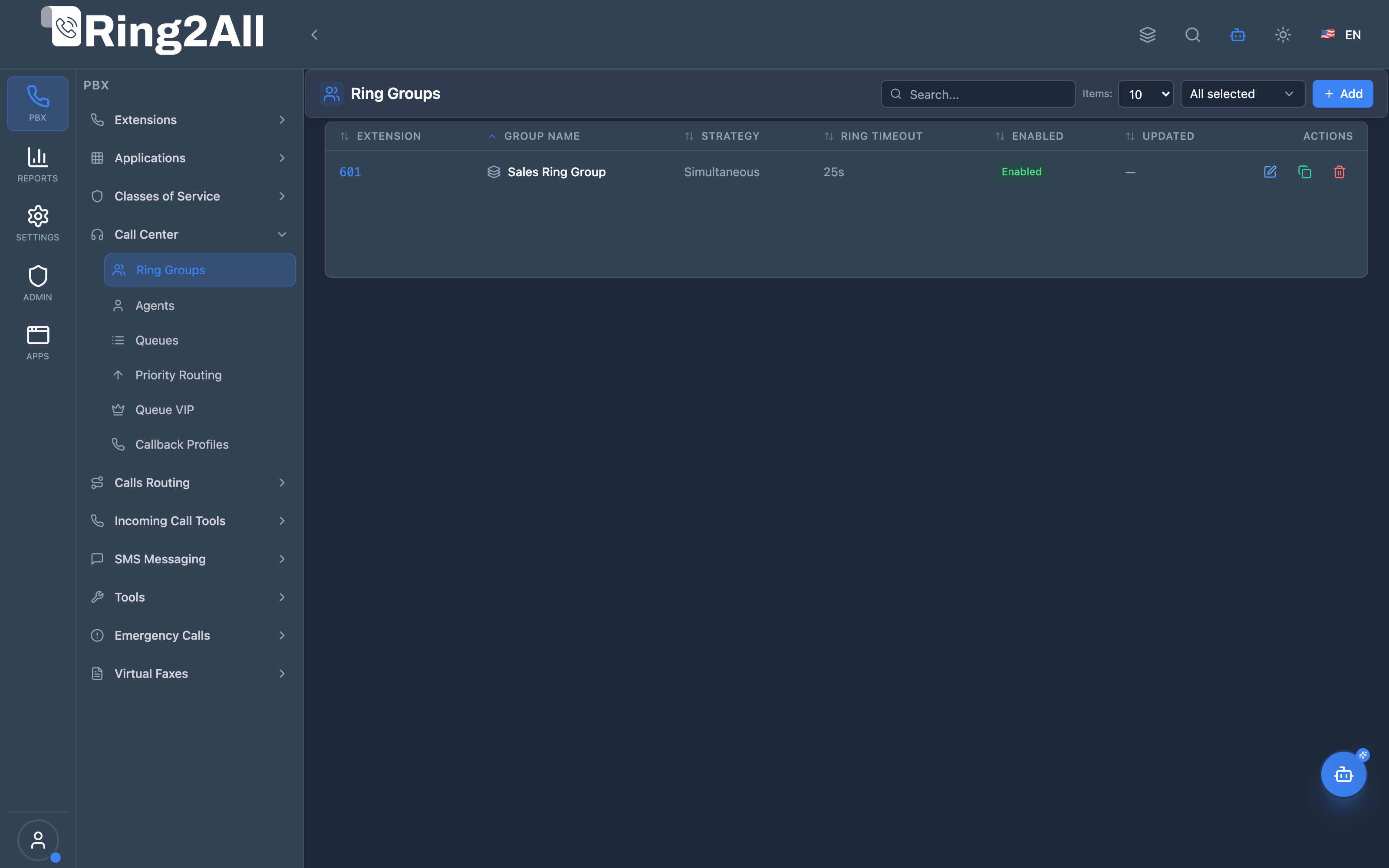

2. The list view displays all configured Ring Groups with Name, Extension, Distribution Strategy, Ring Timeout, Fallback Destination, and Enabled status.
3. Click the + Add button in the top toolbar to configure a new ring group.
4. Click any ring group row or edit action to configure member extensions, ring sequences, and advanced audio behaviors.

Administrator Workflow

┌─────────────────────────────────────────────────────────────────┐
│              Creating a Ring Group                              │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Step 1: Basic Information                                      │
│  ├─ Group Name: "Sales Ring Group"                             │
│  ├─ Extension: 601                                             │
│  └─ Strategy: Simultaneous                                     │
│                                                                 │
│  Step 2: Members Configuration                                  │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Member 1: 2000 (Lead)   | Delay: 0s | Timeout: 25s        │  │
│  │ Member 2: 2001 (Agent)  | Delay: 5s | Timeout: 20s        │  │
│  │ Member 3: 2002 (Agent)  | Delay: 5s | Timeout: 20s        │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Step 3: Fallback Destination                                   │
│  └─ Module: Extensions | Target: 2000 (or Voicemail)            │
│                                                                 │
│  Step 4: Save & Enable                                          │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Strategy Choice: Use Simultaneous for immediate broadcast across team extensions, or Sequence / Enterprise to cascade calls from primary to backup agents.

[!TIP] Member Delays: When using Enterprise strategy, assign incremental delay values (e.g., 0s, 10s, 20s) so additional extensions ring progressively.

[!CAUTION] Empty Groups: A ring group with zero active members will route immediately to the fallback destination or return fast busy.

---

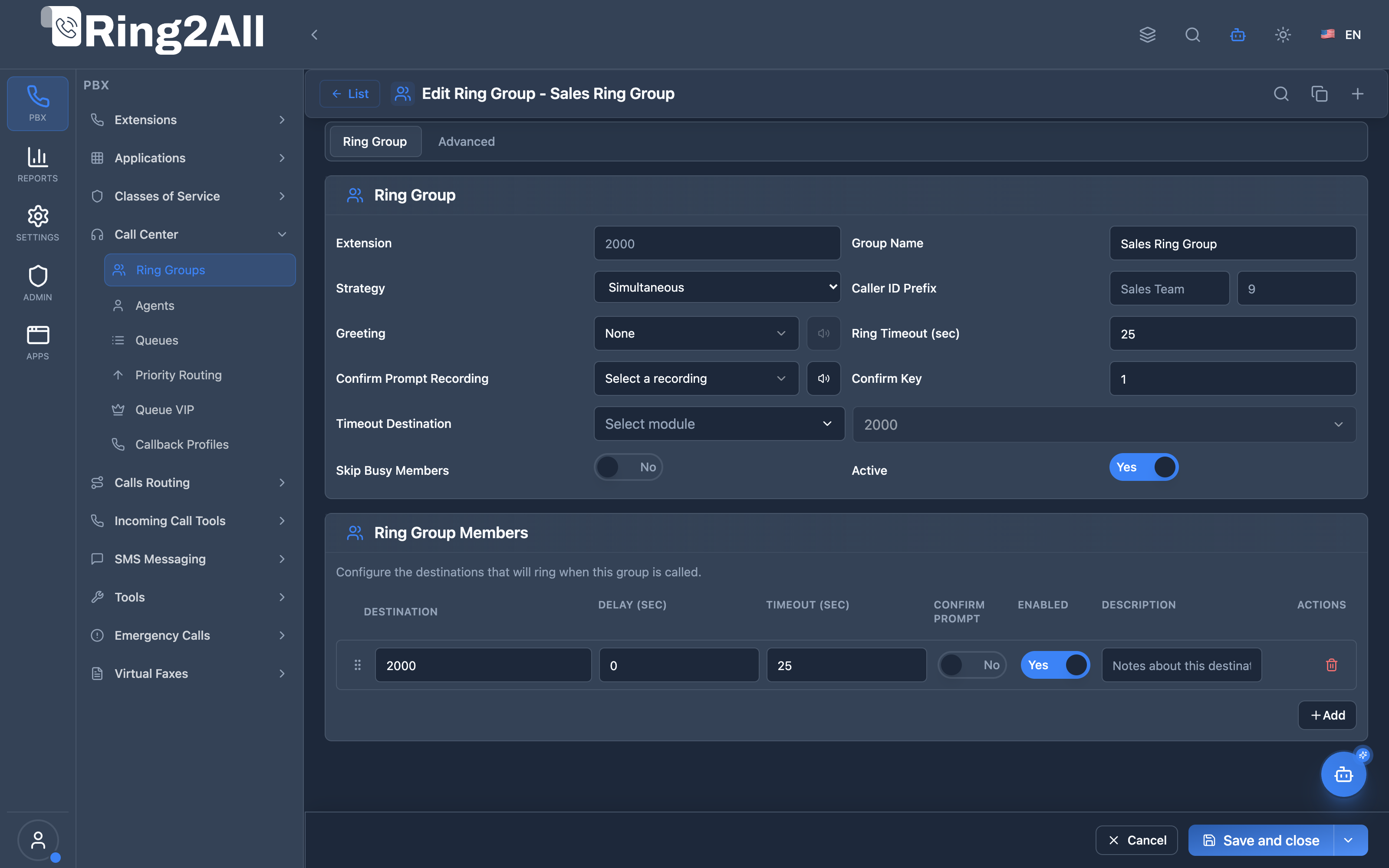

4. Configuration Fields Reference

Main Tab — General Information

Field	Description	User-Friendly Tooltip	Example	Notes
Extension *	Dialable internal extension number	Extension dialed to reach this ring group	601, 2000	Required. Unique dialplan extension.
Name *	Descriptive name for the ring group	Enter a unique name for the ring group	Sales Ring Group	Required. Unique per domain.
Strategy *	Member call dispatch pattern	How calls are distributed among group members	Simultaneous, Sequence, Enterprise	Options: simultaneous, sequence, enterprise, random, rollover.
Caller ID Prefix	Prefix prepended to caller ID name & number	Caller ID name and number prefixes	Sales:, 900	Identifies incoming ring group calls on deskphones.
Greeting *	Audio prompt played to caller before ringing	Audio recording played to caller before group members are dialed	welcome_sales.wav	Select from Voice Recordings.
Ring Timeout (s)	Duration in seconds the group rings before failover	Total seconds to ring before executing fallback destination	25, 30	Default: 30 seconds.
Confirm Prompt Recording	Audio played when member answers (screening)	Recording played to member prompting them to press key to accept	ivr/press_1_to_accept.wav	Uses FreeSWITCH group_confirm_file.
Confirm Key	DTMF key required to accept call	Single DTMF digit to bridge the call	1	Uses FreeSWITCH group_confirm_key.
Timeout Destination *	Telephony module & destination triggered when no member answers	Destination type and target for unanswered calls	Extensions → 2000, Voicemail → 1000	Dropdown module & destination selector.
Skip Busy Members	Skip members currently engaged in other calls	Do not send call to extensions with active channels	Toggle (On/Off)	Sets FreeSWITCH per-leg variable skip_busy=true.
Enabled *	Operational status of the ring group	Toggle whether this ring group is active	Toggle (On/Off)	If disabled, dialed calls route to fallback or fail.

Main Tab — Member Extensions Table

Column	Description	Control	Example	Notes
Extension *	Target phone extension to ring	Select dropdown	2000 - Alice Morgan	Select from domain extensions or external numbers.
Order	Ring sequence index	Drag & drop / number	1, 2	Determines evaluation order in sequence/enterprise strategies.
Delay (s)	Delay before ringing this specific member	Number input	0, 5, 10	Useful in enterprise cascade ringing (leg_delay_start).
Timeout (s)	Maximum ringing duration for this member	Number input	20, 25	Overrides or caps ring duration for this leg (leg_timeout).
Prompt	Call screening audio prompt override	Select dropdown	None	Audio played to member before connecting.
Enabled	Member active state in this group	Toggle (On/Off)	Enabled	Temporarily exclude a member without deleting them.
Actions	Delete member row	Trash button	Remove	Deletes member from the group.

Advanced Tab — Advanced Settings

Field	Description	User-Friendly Tooltip	Example	Notes
Ring Back Tone	Ringing tone or music played to caller while waiting	Select standard ringback tone or custom stream	US Ring, UK Ring, Music Default	Sets FreeSWITCH session variables ringback and transfer_ringback.
Distinctive Ring	Custom SIP ring tone / Alert-Info header	Custom Alert-Info header for unique phone ring melodies	http://.../ring.wav or info=ring2	Injected into SIP Alert-Info header for supported IP deskphones.
Record Calls	Capture full audio recording of bridged group calls	Enable call recording for bridged calls	Toggle (On/Off)	Executes FreeSWITCH record_session.
Presence ID	SIP presence identifier for BLF subscription	Identifier used for Busy Lamp Field (BLF) status monitoring	sales@domain.com	Manages extension BLF key lamps on IP phones.

---

5. Ring Strategies

Strategy Comparison

Strategy	Behavior	Best For
Simultaneous	Ring all members at once	Small teams, fast answer
Sequence	Ring one at a time, in order	Escalation, priority
Enterprise	Cascade with configurable delays	Mixed availability
Random	Random member selection	Load balancing
Rollover	First available member	Simple backup

Visual Comparison

Simultaneous:
─────────────────────────────
  101 ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
  102 ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
  103 ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
       0────────────────────→ time

Sequence:
─────────────────────────────
  101 ▓▓▓▓▓▓▓░░░░░░░░░░░░░░
  102 ░░░░░░░▓▓▓▓▓▓▓░░░░░░░
  103 ░░░░░░░░░░░░░░▓▓▓▓▓▓▓
       0────────────────────→ time

Enterprise (with delays):
─────────────────────────────
  101 ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
  102 ░░░░▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
  103 ░░░░░░░░▓▓▓▓▓▓▓▓▓▓▓▓▓
       0────────────────────→ time

---

6. Member Configuration

Member Fields

Field	Description	Example
Destination	Extension or dial string	101
Order	Sequence priority	1, 2, 3…
Delay (sec)	Wait before ringing	0, 5, 10
Timeout (sec)	Per-member ring time	20
Confirm Prompt	Require key press	None/Confirm
Enabled	Member active status	On/Off

Delay Examples

Immediate Ring All:

Member	Delay	Effect
101	0	Rings immediately
102	0	Rings immediately
103	0	Rings immediately

Cascading Ring:

Member	Delay	Effect
101	0	Rings immediately
102	5	Joins after 5 sec
103	10	Joins after 10 sec

---

7. Common Scenarios & Examples

Scenario 1: Sales Team (Simultaneous)

Configuration:

• Extension: 5000
• Strategy: Simultaneous
• Timeout: 20 sec

Members:

Order	Extension	Delay	Timeout
1	201	0	20
2	202	0	20
3	203	0	20

Result: All 3 ring at once. First answer wins.

Scenario 2: Tiered Support (Sequence)

Configuration:

• Extension: 5001
• Strategy: Sequence
• Timeout: 60 sec

Members:

Order	Extension	Delay	Timeout	Description
1	301	0	15	Tier 1
2	302	0	15	Tier 2
3	303	0	15	Supervisor

Result: Rings 301 for 15s, then 302 for 15s, then 303.

Scenario 3: Cascading Reception (Enterprise)

Configuration:

• Extension: 5002
• Strategy: Enterprise

Members:

Order	Extension	Delay	Timeout	Description
1	100	0	30	Primary Receptionist
2	101	10	20	Backup 1
3	102	15	15	Backup 2

Result: 100 rings immediately. After 10s, 101 joins. After 15s, 102 joins.

---

8. Model Context Protocol (MCP) AI Integration

Ring2All exposes native Model Context Protocol (MCP) tools for Ring Groups, enabling autonomous AI agents, IVR Copilots, and operations bots to inspect group configurations, audit member extensions, adjust ringing strategies dynamically, and provision hunt groups with strict domain numbering isolation and deletion safeguards.

Available MCP Tools

Tool Name	Description	Key Parameters
list_ring_groups	Lists all Ring Groups configured in the domain, including extension number, strategy (simultaneous, sequence, random, enterprise), timeout, and active status.	search (optional string)
get_ring_group_status	Retrieves complete configuration, strategy, member extension lists (with delay and timeout offsets), and fallback routing for a specific group.	identifier (name or extension, required)
create_ring_group	Provisions a new Ring Group with ringing strategy, member extension list, ring timeout, and fallback destination. Validates domain number uniqueness across all telephony entities.	name, extension, members (required); strategy, ringTimeout, fallbackModule, fallbackDestination
update_ring_group	Modifies ringing strategy, member list, timeout, enabled state, or failover destinations of an existing group.	identifier (required); name, extension, strategy, members, ringTimeout, fallbackModule, fallbackDestination, enabled
diagnose_ring_group	Performs deep operational diagnostic on a Ring Group: verifies member extension readiness (live SIP registration state, DND status, call forwarding hijacking conflicts), checks ring timeout vs individual extension voicemail timeouts, validates fallback destination integrity, and inspects recent call bridge logs.	identifier (name or extension, required)
delete_ring_group	Safely removes a Ring Group after verifying it is not referenced in active inbound routes or queue fallbacks via assertCanDeleteRingGroup.	identifier (required)

Anti-Collision & Domain Numbering Integrity

Every virtual extension assigned to a Ring Group undergoes strict atomic validation against dialplan_registry, public.sip_extensions, public.call_center_queues, public.conference_rooms, and all PBX applications. It is strictly impossible to assign a ring group extension that collides with any other dialable number in the same tenant domain.

AI Agent Operational Examples

Querying Ring Group Configuration

{
  "tool": "get_ring_group_status",
  "arguments": {
    "identifier": "Sales Team"
  }
}

Provisioning an Enterprise Cascading Ring Group

{
  "tool": "create_ring_group",
  "arguments": {
    "name": "Tier 1 Support Cascade",
    "extension": "600",
    "strategy": "enterprise",
    "members": ["1001", "1002", "1003"],
    "ringTimeout": 30,
    "fallbackModule": "voicemail",
    "fallbackDestination": "1001"
  }
}

Diagnosing Ring Group Delivery & Member Readiness

{
  "tool": "diagnose_ring_group",
  "arguments": {
    "identifier": "600"
  }
}

Recommended Natural Language Prompts

• “Show me all ring groups configured in this domain and their ringing strategies.”
• “Create a simultaneous ring group named ‘Front Desk’ at extension 500 ringing extensions 101, 102, and 103 with a 25-second timeout to voicemail.”
• “Check if extension 650 is available before creating a new ring group.”

---

9. Limitations & Important Notes

Technical Limitations

[!WARNING] Member Limit: Performance may degrade with 20+ simultaneous members.

[!WARNING] External Destinations: External numbers may have carrier delays.

Best Practices

1. Reasonable Timeouts: 15-30 sec per member
2. Skip Busy: Enable to avoid disruption
3. Fallback Required: Always set timeout destination
4. Test Strategies: Verify behavior before production
5. Monitor Usage: Check CDR for answer rates

---

10. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
No ringing	No members	Add members
Fast busy	Group disabled	Enable group
Wrong order	Order not set	Reorder members
Caller hears silence	Ringback not set	Configure ringback
Calls not answered	Timeout too short	Increase timeout

Diagnostic SQL

List ring groups:

SELECT id, extension, name, strategy, ring_timeout, enabled
FROM public.ring_groups
WHERE domain_id = [domain_id];

Check members:

SELECT m.extension, m.order_index, m.delay, m.timeout, m.enabled
FROM public.ring_group_members m
WHERE m.ring_group_id = [ring_group_id]
ORDER BY m.order_index;

---

11. Glossary

Term	Definition
Ring Group	Collection of extensions sharing calls
Strategy	Algorithm for distributing calls
Delay	Wait time before member starts ringing
Timeout	Max ring time per member
Fallback	Destination for unanswered calls
Skip Busy	Ignore members on other calls
Call Screen	Require member confirmation
Cascade	Gradually add ringing members

---

Documentation last updated: January 2026
