To access the Dynamic Routing module:

Log in to the Ring2All Web Portal.
In the left navigation sidebar, expand PBX Engine.
Under Call Routing, click Dynamic Routing (/pbx/calls-routing/dynamic).

Screenshots & Visual Interface

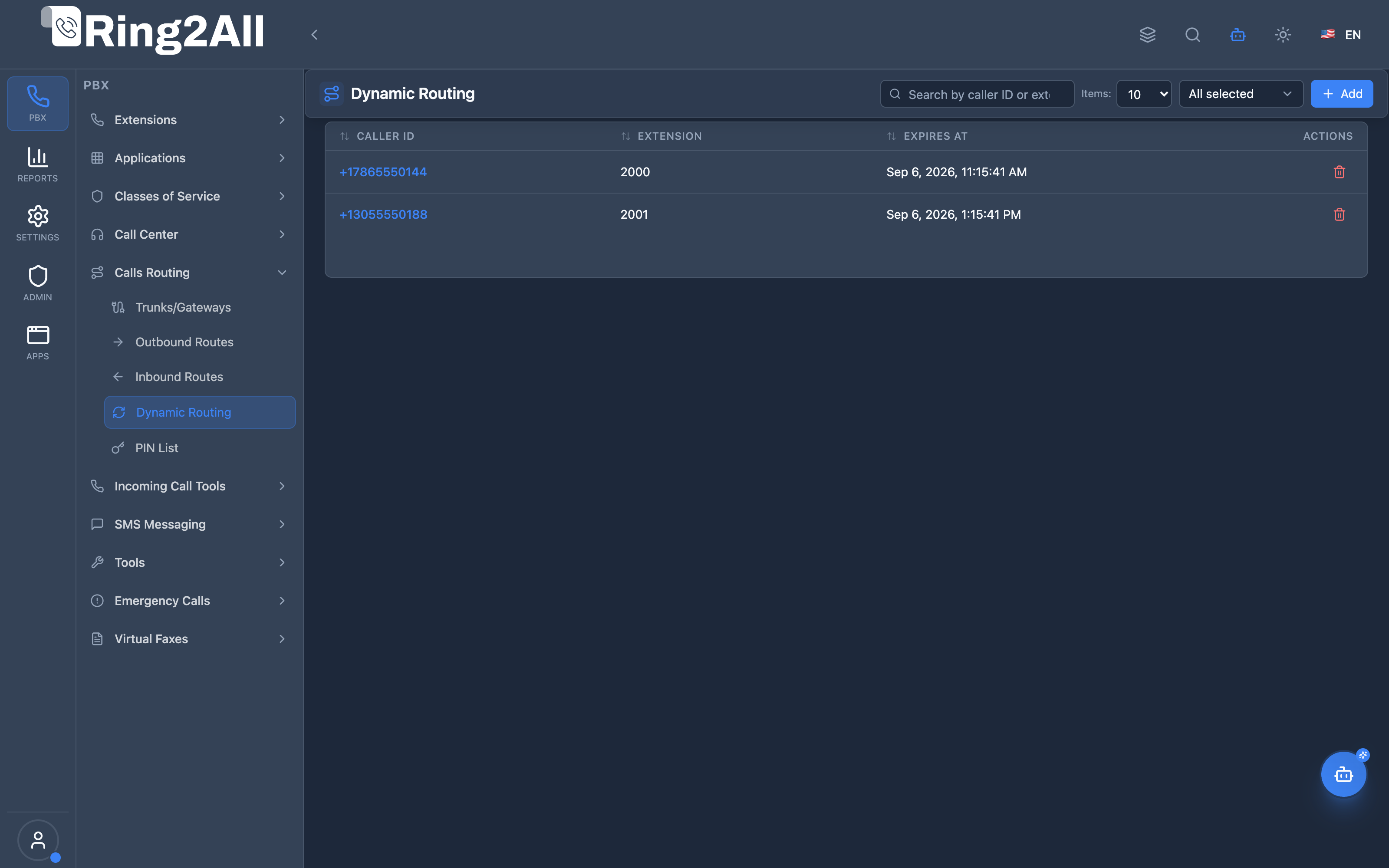

Dynamic Routing Pending Entries View

Displays active dynamic route entries awaiting callback, including caller token/number, mapped internal extension, and expiration timestamps. Dynamic Routing List View

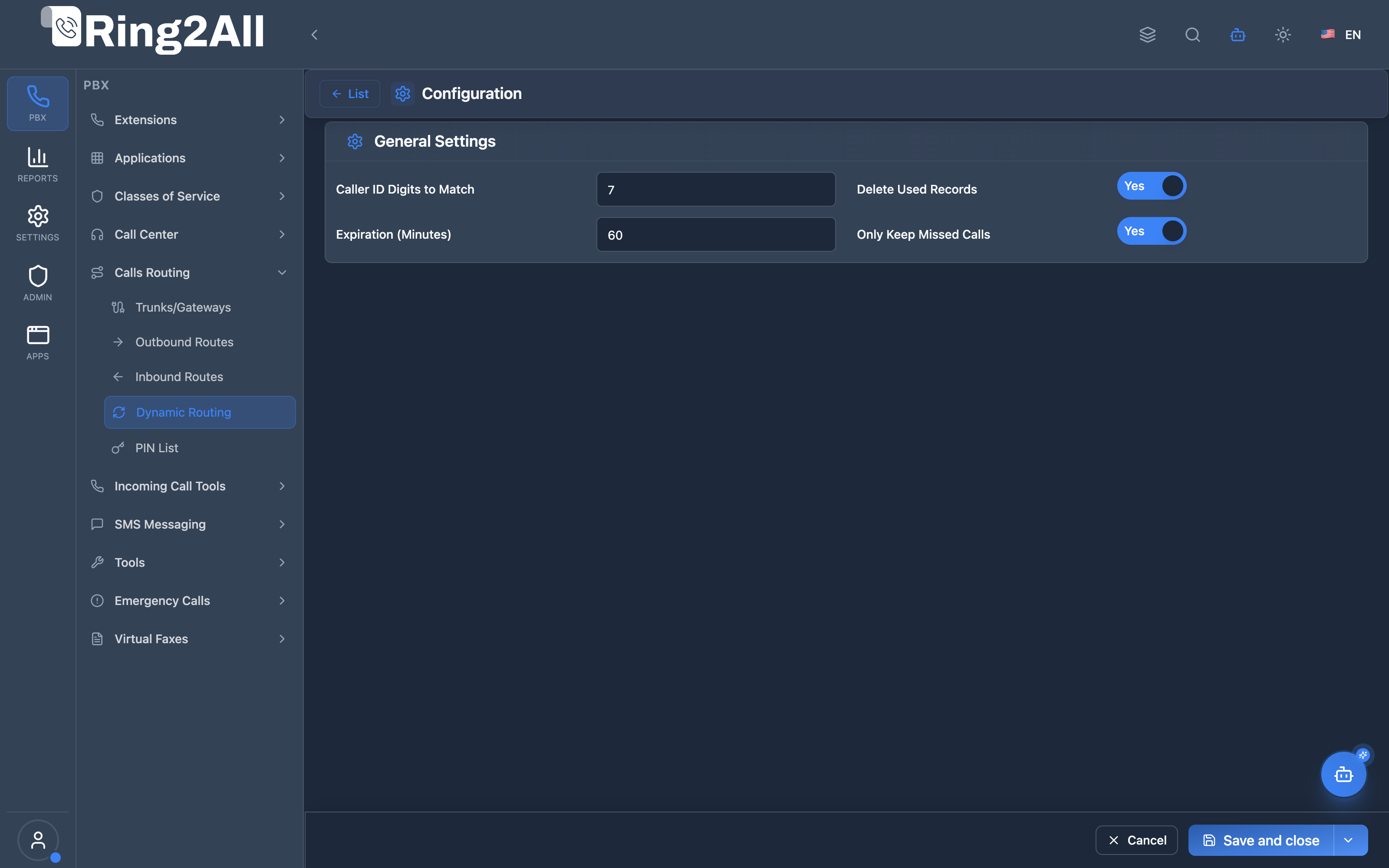

Dynamic Routing Configuration Form

Provides global domain settings for digits matching, automatic record purging upon callback answer, expiration window, and missed-call-only filtering. Dynamic Routing Configuration Form

1. Module Overview (Technical)

What Is Dynamic Routing?

Dynamic Routing (also called “Callback on No Answer”) is a feature that automatically routes inbound calls to the extension that previously called the caller. When an extension makes an outbound call that goes unanswered, the system registers the caller ID. If that person calls back, they’re automatically routed to the original extension.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                  Dynamic Routing System                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  PHASE 1: OUTBOUND CALL (Registration)                          │
│  ───────────────────────────────────────                        │
│  Extension 1001 calls +15055551234                              │
│       │                                                         │
│       ▼                                                         │
│  [Outbound call goes to gateway]                                │
│       │                                                         │
│       ▼                                                         │
│  Call NOT answered (NO_ANSWER, USER_BUSY, etc.)                 │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │         dynamic_routing_register.lua                     │   │
│  │                                                          │   │
│  │  1. Check extension has dynamic_routing_enabled          │   │
│  │  2. Check only_keep_missed_calls config                  │   │
│  │  3. Normalize destination: +15055551234 → 5055551234     │   │
│  │  4. Apply digits_match: 5055551234 → 5551234 (7 digits)  │   │
│  │  5. Insert into public.dynamic_route_entries            │   │
│  │     -> token: 5551234, extension: 1001                   │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
│  ═══════════════════════════════════════════════════════════    │
│                                                                 │
│  PHASE 2: INBOUND CALLBACK (Matching)                           │
│  ────────────────────────────────────                           │
│  +15055551234 calls in                                          │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │           route_with_fallback.lua                        │   │
│  │                                                          │   │
│  │  1. Normalize caller ID: +15055551234 → 5551234          │   │
│  │  2. Query public.dynamic_route_entries WHERE             │   │
│  │     token LIKE '%5551234' AND expires_at > NOW()         │   │
│  │  3. Match found! extension = 1001                        │   │
│  │  4. Route caller directly to extension 1001             │   │
│  │  5. Delete entry if delete_used_records = true           │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

2. Module Overview (Commercial/Business)

Business Value

Dynamic Routing provides automatic callback recognition:

Without Dynamic Routing	With Dynamic Routing
Callback goes to main IVR	Callback goes to original caller
Caller navigates menus	Direct connection
Receptionist routing	Automatic routing
Poor callback experience	Seamless callback

Use Cases

Sales Teams
- Sales rep calls prospect
- Prospect calls back → routed to same rep
- Better customer relationships
Support Teams
- Tech calls back customer
- Customer returns call → same tech
- Continuity of service
Personal Extensions
- User makes outbound call
- Callback routed to their extension
- Personal call management

Feature Highlights

Feature	Benefit
Automatic Registration	No manual setup
Missed Calls Only	Register unanswered calls
Configurable Expiration	Time-limited matching
Digits Match	Flexible caller ID matching
Per-Extension Enable	Selective activation
Auto-Delete	Clean up after callback

3. Module Overview (End User/Administrator)

What Can You Do?

Domain Configuration:

Set digits to match (caller ID suffix)
Configure expiration time
Enable/disable delete after use
Enable/disable missed calls only

Extension Settings:

Enable dynamic routing per extension

Pending Routes:

View active callback entries
Delete entries manually
Search by caller ID or extension

Administrator Workflow

┌─────────────────────────────────────────────────────────────────┐
│              Dynamic Routing Configuration                      │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Tab: Configuration                                             │
│  ┌────────────────────────────────────────────────────────────┐ │
│  │                                                            │ │
│  │  Caller ID Digits to Match: [7      ]                     │ │
│  │  (Extracts last N digits from caller ID for matching)     │ │
│  │                                                            │ │
│  │  Expiration (Minutes): [60     ]                          │ │
│  │  (How long entries remain valid)                          │ │
│  │                                                            │ │
│  │  ☑ Delete Used Records                                    │ │
│  │  (Remove entry after successful callback routing)         │ │
│  │                                                            │ │
│  │  ☑ Only Keep Missed Calls                                 │ │
│  │  (Only register calls not answered by called party)       │ │
│  │                                                            │ │
│  └────────────────────────────────────────────────────────────┘ │
│                                                                 │
│  Tab: Pending Routes                                            │
│  ┌────────────────────────────────────────────────────────────┐ │
│  │ Caller ID     │ Extension │ Expires At        │ Actions   │ │
│  │ 5551234       │ 1001      │ 2026-01-16 17:00  │ [Delete]  │ │
│  │ 5559999       │ 1002      │ 2026-01-16 17:30  │ [Delete]  │ │
│  └────────────────────────────────────────────────────────────┘ │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Extension Enable

In Extension settings:

Extension 1001 → Dynamic Routing Enabled: ✓

Quick Tips

[!TIP] Digits Match = 7: Works well for 10-digit numbers where prefix varies.

[!TIP] Expiration = 60: One hour is typical for callback windows.

[!CAUTION] Too Few Digits: Low digits_match may cause false matches.

4. Configuration Fields Reference

Domain Configuration

Field	Description	Default
Digits to Match	Last N digits of caller ID to use	7
Expiration (Minutes)	How long entries remain valid	60
Delete Used Records	Remove entry after callback routed	On
Only Keep Missed Calls	Only register unanswered calls	On

Digits Match Examples

Caller ID	Digits Match	Token Stored
+15055551234	7	5551234
+15055551234	10	5055551234
+15055551234	0 (blank)	15055551234

Missed Call Detection

These hangup causes register an entry:

NO_ANSWER
USER_BUSY
CALL_REJECTED
ORIGINATOR_CANCEL
NO_USER_RESPONSE
SUBSCRIBER_ABSENT
DESTINATION_OUT_OF_ORDER

Extension Settings

Field	Description
Dynamic Routing Enabled	Enable callback registration for this extension

5. How It Works

Registration Flow (Outbound)

1. Extension 1001 dials 918005551234
2. Route strips 9, dials 18005551234 via gateway
3. Call is NOT answered (NO_ANSWER)
4. route_with_fallback.lua completes bridge
5. dynamic_routing_register.lua runs:
   - Check: extension has dynamic_routing_enabled? ✓
   - Check: only_keep_missed_calls & is this a missed call? ✓
   - Normalize: 18005551234 → digits → 5551234 (7 digits)
   - Insert: token=5551234, extension=1001, expires=NOW()+60min

Matching Flow (Inbound)

1. Caller +18005551234 calls in
2. route_with_fallback.lua starts
3. Check dynamic_route_entries:
   - Normalize caller ID → 5551234
   - Query: WHERE token LIKE '%5551234' AND expires_at > NOW()
   - Match found! extension = 1001
4. Route caller to extension 1001
5. If delete_used_records: DELETE entry

Token Matching Logic

Digits Match = 7

Outbound:  +15055551234 → Store: 5551234
Inbound:   +18005551234 → Match: %5551234

Token: 5551234
Query: WHERE token LIKE '%5551234'
Match: ✓

6. Common Scenarios & Examples

Scenario 1: Sales Rep Callback

Configuration:

Setting	Value
Digits Match	7
Expiration	120 min
Delete Used	✓
Only Missed	✓

Flow:

Sales rep 1001 calls prospect
Prospect doesn’t answer
Entry created: 5551234 → 1001
Prospect calls back 30 min later
Routed directly to extension 1001

Scenario 2: Support Technician

Configuration:

Setting	Value
Digits Match	10
Expiration	480 min (8 hours)
Delete Used	✓
Only Missed	Off

Flow:

Tech 1002 calls customer, call answered
Entry created (even though answered)
Customer calls back later
Routed to same tech

Scenario 3: High Volume Call Center

Configuration:

Setting	Value
Digits Match	7
Expiration	30 min
Delete Used	✓
Only Missed	✓

Flow:

Short expiration to reduce false matches
Only missed calls to reduce entries
Auto-delete to keep table clean

7. Model Context Protocol (MCP) AI Integration

Ring2All exposes native Model Context Protocol (MCP) tools for Dynamic Routing (Smart Callback), enabling AI assistants, CRM automation bots, and contact center supervisors to inspect dynamic callback rules, query pending callback tokens across customer numbers, adjust matching parameters in real time, and prune stale callback records programmatically with domain-level isolation.

Available MCP Tools

Tool Name	Description	Key Parameters
`get_dynamic_routing_config`	Retrieves the domain’s current Dynamic Routing configuration, including digits match length, record expiration window, and purge flags.	None
`update_dynamic_routing_config`	Updates dynamic callback behavior: number of digits to match from caller ID (1-20), expiration in minutes, and flags for purging answered records or logging missed calls only.	`digitsMatch` (string), `expirationMinutes` (number), `deleteUsedRecords` (boolean), `onlyKeepMissedCalls` (boolean)
`list_dynamic_route_entries`	Lists active remembered callback entries awaiting incoming customer callbacks, showing phone token, mapped agent extension, and expiration timestamps.	`search` (optional string - phone number or extension)
`delete_dynamic_route_entry`	Manually removes/expires a specific remembered dynamic route entry before its TTL expires.	`id` (required number)

Operational Logic & Guardrails

Domain-Isolated Memory: Dynamic route entries and configurations are strictly bound to domain_id. Customer numbers called from one tenant will never trigger callback routing into a different tenant’s extensions.
Atomic Upsert Config: Configuration updates execute atomic PostgreSQL ON CONFLICT (domain_id) DO UPDATE queries, eliminating race conditions when multiple automation triggers update matching windows.
Fast In-Memory Dialplan Evaluation: Inbound matching queries execute direct index-backed queries in route_with_fallback.lua, ensuring sub-millisecond route decisions during high-volume call traffic.

AI Agent Operational Examples

Auditing Active Dynamic Callback Entries for a Customer Number

{
  "tool": "list_dynamic_route_entries",
  "arguments": {
    "search": "5551234"
  }
}

Adjusting Dynamic Callback Window for High-Urgency Campaigns

{
  "tool": "update_dynamic_routing_config",
  "arguments": {
    "digitsMatch": "10",
    "expirationMinutes": 180,
    "deleteUsedRecords": true,
    "onlyKeepMissedCalls": true
  }
}

Recommended Natural Language Prompts

“Check the current Dynamic Routing configuration for this domain.”
“Show me all pending callback entries currently registered for extension 1001.”
“Increase the dynamic callback expiration window to 2 hours.”
“Remove the dynamic route entry with ID 42.”

8. Limitations & Important Notes

Technical Notes

[!NOTE] Suffix Matching: Uses SQL LIKE '%token' for flexible matching.

[!WARNING] False Matches: Too few digits_match may route wrong caller.

[!WARNING] International Prefixes: Ensure consistent normalization for global use.

Best Practices

Use 7-10 Digits: Balances flexibility and accuracy
Set Reasonable Expiration: 1-2 hours typical
Enable Delete Used: Prevents stale entries
Enable Only Missed: Reduces unnecessary entries
Test Before Production: Verify matching works correctly

9. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
No entry created	Extension not enabled	Enable dynamic_routing_enabled
Entry not created	Call was answered	Check only_keep_missed_calls
No match found	Digits don’t match	Adjust digits_match
Entry expired	Expiration too short	Increase expiration_minutes
Wrong extension	Digits too few	Increase digits_match

Diagnostic SQL

Check domain configuration:

SELECT * FROM public.dynamic_routing_configs
WHERE domain_id = [domain_id];

List pending entries:

SELECT id, token, extension, expires_at, created_at
FROM public.dynamic_route_entries
WHERE domain_id = [domain_id]
  AND expires_at > NOW()
ORDER BY created_at DESC;

Check extension setting:

SELECT extension, dynamic_routing_enabled
FROM public.sip_extensions
WHERE domain_id = [domain_id]
  AND extension = '1001';

Telephony Server Logs

# Check registration
grep "DYNAMIC_ROUTING_REGISTER" /var/log/freeswitch/freeswitch.log

# Check matching
grep "DYNAMIC_ROUTING" /var/log/freeswitch/freeswitch.log

10. Glossary

Term	Definition
Dynamic Routing	Automatic callback-to-extension routing
Token	Normalized caller ID digits stored for matching
Digits Match	Number of digits to extract from caller ID
Expiration	How long an entry remains valid
Delete Used	Remove entry after successful callback
Only Missed	Only register unanswered outbound calls

Documentation last updated: January 2026

Dynamic Routing Module Documentation

Table of Contents

Navigation & Access

Screenshots & Visual Interface

Dynamic Routing Pending Entries View

Dynamic Routing Configuration Form

1. Module Overview (Technical)

What Is Dynamic Routing?

Architecture

2. Module Overview (Commercial/Business)

Business Value

Use Cases

Feature Highlights

3. Module Overview (End User/Administrator)

What Can You Do?

Administrator Workflow

Extension Enable

Quick Tips

4. Configuration Fields Reference

Domain Configuration

Digits Match Examples

Missed Call Detection

Extension Settings

5. How It Works

Registration Flow (Outbound)

Matching Flow (Inbound)

Token Matching Logic

6. Common Scenarios & Examples

Scenario 1: Sales Rep Callback

Scenario 2: Support Technician

Scenario 3: High Volume Call Center

7. Model Context Protocol (MCP) AI Integration

Available MCP Tools

Operational Logic & Guardrails

AI Agent Operational Examples

Auditing Active Dynamic Callback Entries for a Customer Number

Adjusting Dynamic Callback Window for High-Urgency Campaigns

Recommended Natural Language Prompts

8. Limitations & Important Notes

Technical Notes

Best Practices

9. Troubleshooting Tips

Common Issues

Diagnostic SQL

Telephony Server Logs

10. Glossary
