To access the Log File Viewer:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
In the left navigation sidebar, expand PBX Engine.
Under PBX Tools, click Log File Viewer (/pbx/tools/log-viewer).
Select the desired log source (Telephony Server or Fail2ban) and filter by severity or keyword.

Screenshots & Visual Interface

Log File Viewer Interface

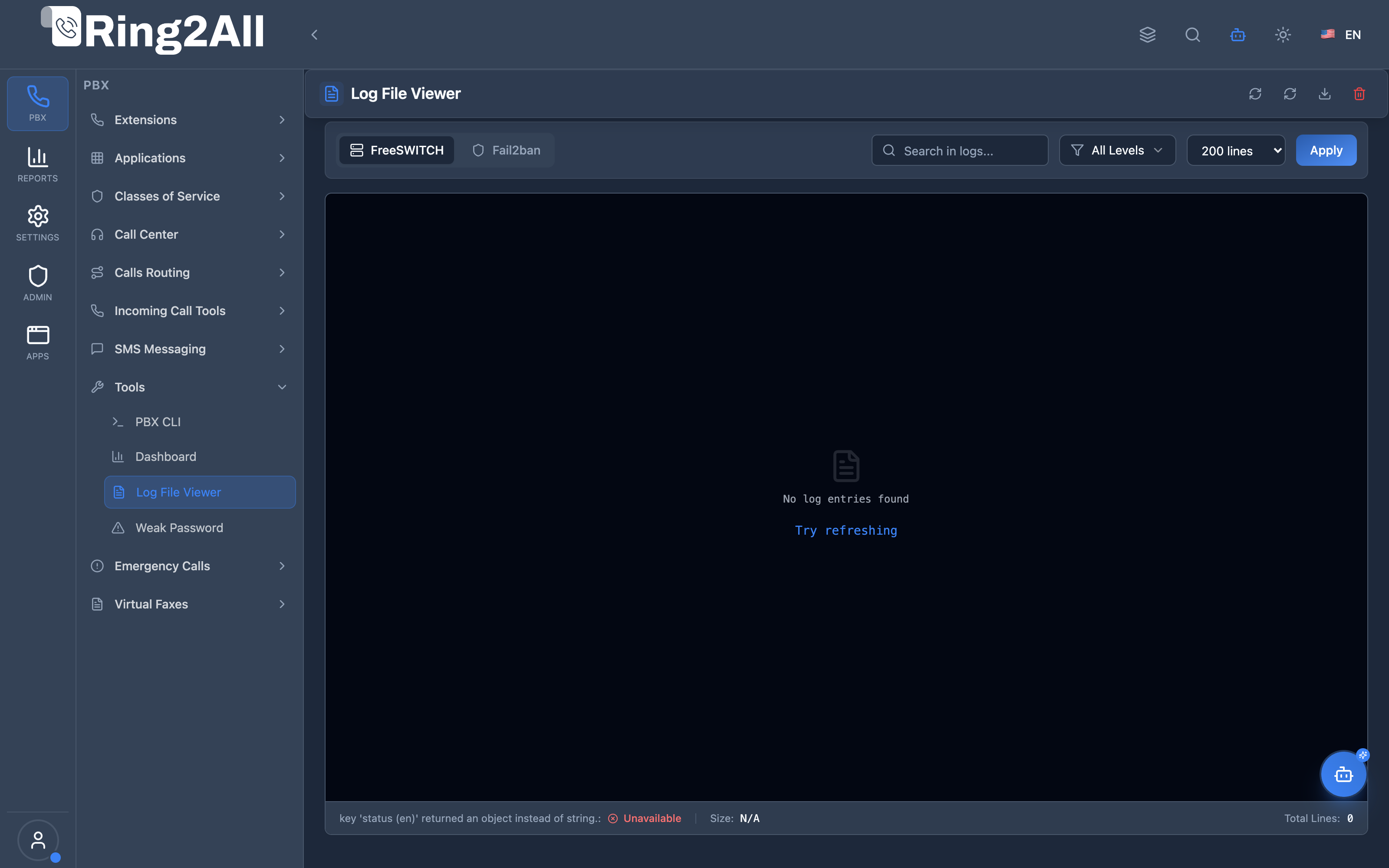

Web-based log stream reader featuring multi-log source selection (Telephony Server / Fail2ban), severity level filter badges, keyword search, line count limit selector, log download button, and clear log tool. Log File Viewer View

1. Module Overview (Technical)

What is the Log File Viewer?

The Log File Viewer is a real-time, browser-native diagnostic tool that allows authorized system administrators to inspect, search, and download low-level daemon log files directly from the host operating system without opening an SSH terminal session.

Technical Architecture

Log Streaming Backend: The Fastify API endpoint (GET /api/telephony/log-viewer/entries) accesses local system log files using buffered reverse-seeking file streams (reading the most recent lines from EOF backwards).
Log Parsing Engine: Each raw log line is parsed through regular expressions to extract timestamps, log levels (DEBUG, INFO, NOTICE, WARNING, ERR, CRIT), thread IDs, source filenames, and message payloads.
Log Source Isolation: File access is strictly locked to an approved whitelist of server log paths (/var/log/freeswitch/freeswitch.log and /var/log/fail2ban.log), completely eliminating Path Traversal vulnerabilities (CWE-22).
Client Rendering: Renders formatted log entries with syntax-colored level badges, monospace font for technical readability, and instant client-side text filtering.

┌─────────────────────────────────────────────────────────────────┐
│                   Log File Viewer Architecture                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Browser UI (LogViewerPage.tsx)                                 │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │ Filter Bar: [Telephony Server / Fail2ban] [Level: ERR] [Search]│   │
│  │ Table: [Timestamp] [Level] [Source / Message Text]       │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                ▲                                │
│                                │ REST API / JSON                │
│                                ▼                                │
│  Fastify Log Service (/api/telephony/log-viewer)                │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │ Buffered Reverse Reader (Tail N lines)                   │   │
│  │ Whitelist Path Validation & RegEx Parser                 │   │
│  └─────────────────────────────┬────────────────────────────┘   │
│                                │ Local OS Filesystem            │
│                                ▼                                │
│  Host Log Files:                                                │
│  ├─ /var/log/freeswitch/freeswitch.log                          │
│  └─ /var/log/fail2ban.log                                       │
└─────────────────────────────────────────────────────────────────┘

2. Module Overview (Commercial / Business)

Business Value & Accelerated Support

Rapid Time-to-Resolution (MTTR): Support engineers can diagnose SIP registration failures, codec negotiation mismatches, and call routing errors within seconds rather than opening support tickets for server shell access.
Auditing & Compliance: Eliminates the security risk of sharing root SSH credentials among Tier-1 and Tier-2 support technicians.
Security Awareness: Instant visibility into Fail2ban jail blocks reveals brute-force SIP attacks, helping teams proactively safeguard customer infrastructure.

3. Module Overview (End User / Administrator)

Administrator Experience

Select between Telephony Core and Fail2ban Security logs.
Choose how many lines to fetch (100, 250, 500, or 1000 lines).
Filter out verbose DEBUG noise to focus exclusively on WARNING and ERR events.
Download complete unparsed log files with a single click for vendor escalation.

4. Supported Log Types & File Locations

Log Source	Default Server Path	Description	Typical Use Case
Telephony Core	`/var/log/freeswitch/freeswitch.log`	Core telephony engine, Sofia SIP signaling, media bridging, dialplan execution.	Investigating call drops, media errors, IVR issues, SIP gateway timeouts.
Fail2ban Security	`/var/log/fail2ban.log`	Intrusion prevention daemon, IP ban and unban events across SIP and SSH jails.	Identifying malicious brute-force IP addresses and unbanning legitimate clients.

5. Log Levels & Severity Filtering

Entries are categorized and color-coded based on Telephony Server log levels:

Level	Badge Style	Severity	Explanation
DEBUG	Gray	Low	High-frequency trace messages, variable evaluations, and internal state changes.
INFO	Blue	Normal	Routine events such as call setup, hangup, registration, and profile rescans.
NOTICE	Cyan	Normal	Important non-error milestones (e.g., XML reload completion).
WARNING	Yellow	Medium	Minor protocol anomalies, non-critical timeouts, or fallback route triggers.
ERR / ERROR	Red	High	Call failure, media stream failure, database query errors, or SIP 4xx/5xx responses.
CRIT	Dark Red	Critical	Subsystem crash or unrecoverable driver failure requiring immediate attention.

6. Viewer Controls, Search & Actions

Log Selector Tabs: Toggle effortlessly between Telephony Server and Fail2ban without losing page context.
Level Filter: Dropdown menu allowing filtering by a specific severity (e.g., show only ERR and WARNING).
Keyword Search: Type any string (e.g. extension number 2000, phone number +17863643150, or SIP call ID) to filter matching entries in real time.
Download Log: Downloads the active log file directly to your desktop for offline analysis.
Clear Log: Truncates the active log file on disk after confirmation, helpful when clearing old noise prior to reproducing an issue.
Auto-Refresh: Automatically re-fetches recent log entries at configurable intervals (5s, 10s, 30s).

7. Common Scenarios & Troubleshooting Workflows

Scenario 1: Troubleshooting Failed Outbound Calls

Open PBX Tools → Log File Viewer.
Select Telephony Server log.
In the search box, enter the destination number (e.g., 18005550190).
Set the Level filter to WARNING or ERR.
Inspect the SIP response code returned by the gateway (e.g., SIP/2.0 503 Service Unavailable or 486 Busy Here).

Scenario 2: Verifying a Blocked Remote Worker IP

Select Fail2ban log.
Search for the remote worker’s public IP address.
Check for lines reading [freeswitch-ip] Ban <IP-Address>.
Proceed to the Firewall module to whitelist or unban the IP address.

8. Limitations & Best Practices

Log File Rotation: Server log files are automatically rotated by logrotate daily. Historical logs from previous days reside in compressed files (.log.1, .log.2.gz) on the server.
Buffer Limit: The viewer displays up to the last 1,000 lines to preserve browser DOM rendering performance and memory efficiency.
Truncate Caution: The Clear Log button permanently truncates the log file on disk. Ensure critical troubleshooting data has been downloaded first.

9. Model Context Protocol (MCP) AI Integration

The Ring2All Platform Copilot connects to system log streams via the Model Context Protocol (MCP), enabling rapid conversational log analysis, automated failure root-cause detection, and security audit log inspection.

Exposed MCP Tools

Tool Name	Operation	Primary Parameters	Description
`view_telephony_logs`	Real-Time Telephony Log Stream	`lines` (number), `level` (string), `search` (string)	Retrieves recent lines from the Telephony Server telephony log, with optional severity level (`DEBUG`, `INFO`, `NOTICE`, `WARNING`, `ERR`, `CRIT`) and text filtering.
`query_audit_logs`	Administrative Audit Logs	`action` (string), `resource` (string), `search` (string), `limit` (number)	Searches administrative actions (logins, extension updates, dialplan changes, trunk additions) with timestamps and originating IP.
`execute_fs_cli_command`	Live Trace Execution	`command` (string)	Runs diagnostic commands like `sofia loglevel all 9` or `show channels` to generate targeted log output.

AI Safety Safeguards & Privacy Rules

PII & Credential Masking: Password hashes, SIP authentication nonces, and SIP digest passwords are redacted before log lines are sent to the AI Copilot.
Buffer Bound: Returns a maximum of 200 lines per call to maintain sub-second response times.
Read-Only Scope: The MCP log tools cannot truncate or alter log files on disk (the destructive “Clear Log” operation is restricted to authenticated Web UI users).

Example MCP Payloads

1. Inspecting Recent Telephony Engine Errors (`view_telephony_logs`)

{
  "lines": 25,
  "level": "ERR",
  "search": "gateway"
}

Response:

{
  "success": true,
  "data": {
    "totalReturned": 1,
    "filter": {
      "level": "ERR",
      "search": "gateway"
    },
    "logs": [
      "[ERR] mod_sofia.c:5984 Gateway 'gw_telnyx' authentication failed (SIP/2.0 403 Forbidden)"
    ]
  }
}

2. Querying Administrative Change Logs (`query_audit_logs`)

{
  "resource": "sip_extensions",
  "action": "UPDATE",
  "limit": 5
}

Copilot Natural Language Prompts

“Check the telephony logs for any error messages during the last 10 minutes.”
“Search the logs for SIP gateway errors related to gw_telnyx.”
“Why did call to 18005550199 fail? Search the Telephony Server log for that number.”
“Show me who modified extension 1004 in the audit logs.”

10. Troubleshooting Tips

Symptom	Probable Cause	Corrective Action
Viewer displays “Log file not found”	File path does not exist on server	Verify Telephony Server logging path in `switch.conf.xml`.
Permission Denied error	Web API user cannot read log file	Ensure `/var/log/freeswitch/` has read permissions (`644`) for user `softswitch`.
No new entries appear	Logging verbosity set too low	Increase Sofia SIP or Telephony Server loglevel in PBX CLI via `fsctl loglevel 6`.

11. Glossary

Fail2ban: Automated daemon that scans log files and blocks IP addresses exhibiting suspicious behavior.
Logrotate: System utility designed to rotate, compress, and archive system log files.
EOF: End of File.
Sofia SIP Trace: Verbose logging of raw SIP packet headers transmitted and received over the wire.
