To access the Server Settings configuration module:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
In the left navigation sidebar, expand Settings.
Under Provisioning, click Server Settings (/settings/provisioning/provisioning-server-settings).
To add a new provisioning server profile, click the + Add button. To view or edit an existing server configuration, click the Edit action button (/settings/provisioning/provisioning-server-settings/:id).

Screenshots & Visual Interface

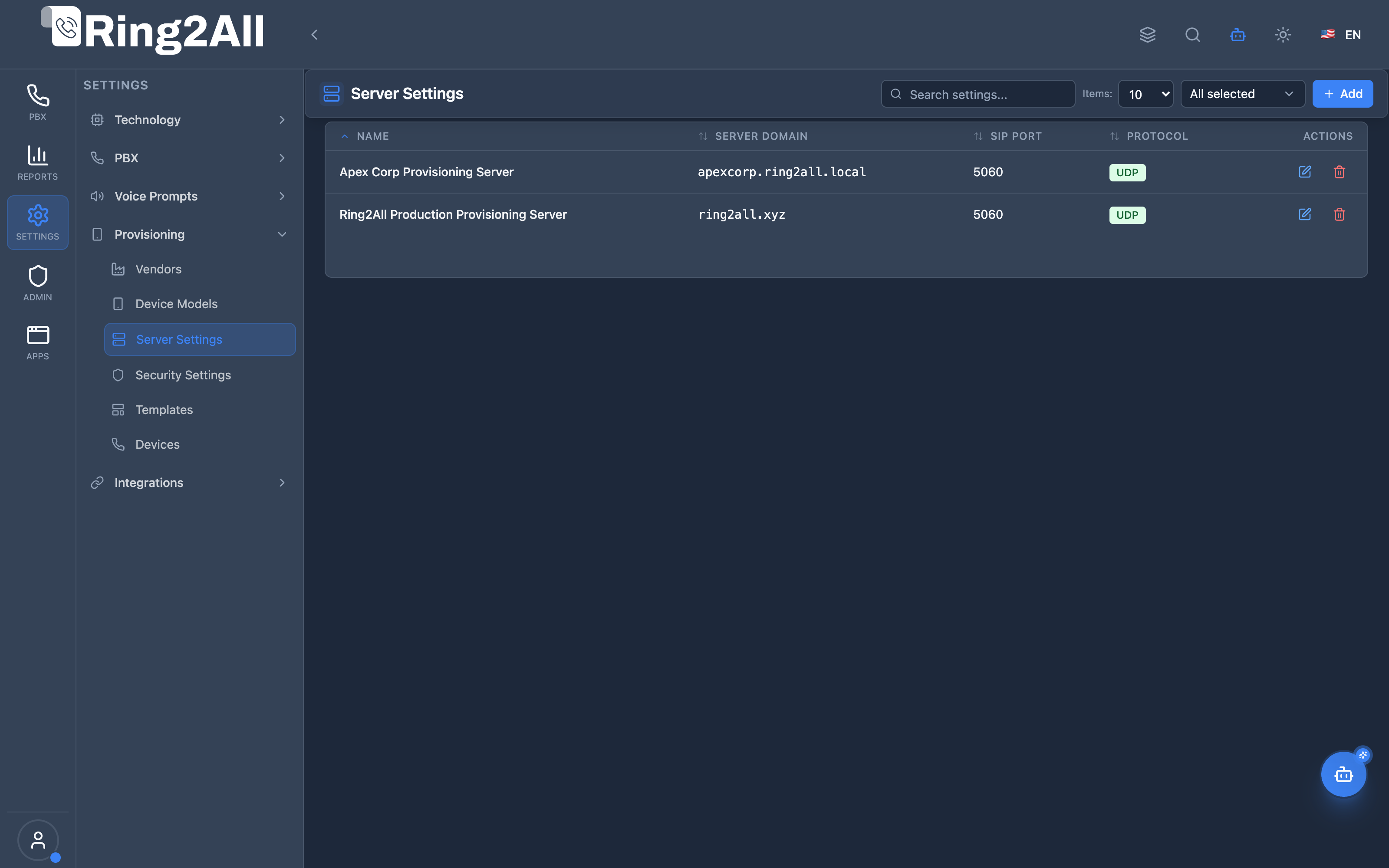

Provisioning Server Profiles Overview

Global directory of provisioning endpoint servers, showing server profile names, domain FQDNs, primary SIP signaling ports, transport protocols (UDP/TCP/TLS), and management actions. Server Settings List

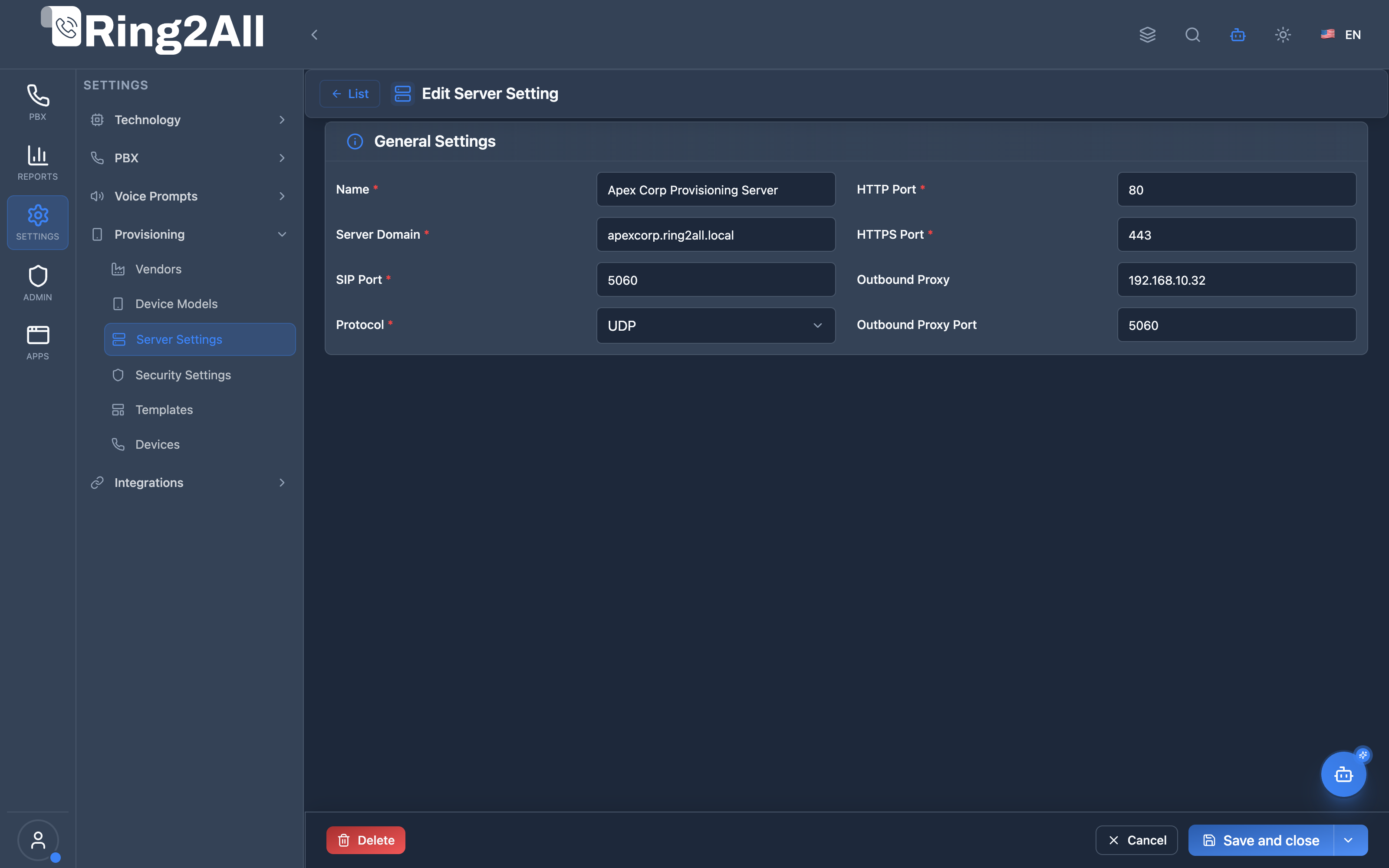

Provisioning Server Configuration & Proxy Mapping

Granular configuration interface specifying the primary server domain name, SIP port, transport protocol, HTTP/HTTPS download ports, and upstream Session Border Controller (SBC) outbound proxy addresses. Server Settings Form

1. Module Overview (Technical)

What Are Server Settings?

Server Settings defines the core network endpoints, protocol parameters, and proxy routes delivered to IP phones during automatic provisioning. When an IP phone downloads its configuration file (e.g., via HTTP, HTTPS, TFTP, or PNP/Option 66), the template engine injects these server parameters to inform the device where to send SIP registrations and where to route outbound media and signaling.

Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│                      Provisioning Server Architecture                    │
├─────────────────────────────────────────────────────────────────────────┤
│                                                                         │
│   IP Phone / Endpoint                                                  │
│         │                                                               │
│         │ 1. Boot / DHCP Option 66 Request                              │
│         ▼                                                               │
│   ┌─────────────────────────────────────────────────────────────────┐   │
│   │ HTTP / HTTPS Provisioning Service (Nginx / Fastify)             │   │
│   │ Endpoint: https://{serverDomain}:{httpsPort}/provision/         │   │
│   └─────────────────────────────────────────────────────────────────┘   │
│         │                                                               │
│         │ 2. Compiles Template + Server Settings Injection              │
│         ▼                                                               │
│   ┌─────────────────────────────────────────────────────────────────┐   │
│   │ Injected Parameters:                                            │   │
│   │  - SIP Registrar / Proxy: {serverDomain}:{sipPort}              │   │
│   │  - Transport Protocol: UDP / TCP / TLS                          │   │
│   │  - Outbound Proxy: {outboundProxy}:{outboundProxyPort}          │   │
│   │  - Provisioning Server URL: https://{serverDomain}:{httpsPort}   │   │
│   └─────────────────────────────────────────────────────────────────┘   │
│         │                                                               │
│         │ 3. SIP REGISTER                                               │
│         ▼                                                               │
│   ┌─────────────────────────────────────────────────────────────────┐   │
│   │ Session Border Controller (SBC / Kamailio) → Ring2All Telephony Server     │   │
│   └─────────────────────────────────────────────────────────────────┘   │
│                                                                         │
└─────────────────────────────────────────────────────────────────────────┘

Database Schema

Server settings are persisted in PostgreSQL table public.provision_server_settings:

Column	Type	Description
`id`	`INTEGER`	Primary key serial identifier
`uuid`	`UUID`	Universally unique immutable identifier
`domain_id`	`INTEGER`	Foreign key referencing `public.domains(id)`
`name`	`TEXT`	Friendly display label for the provisioning profile
`server_domain`	`TEXT`	FQDN or IP of the SIP registrar / PBX domain
`sip_port`	`INTEGER`	Primary SIP signaling port (default: 5060, TLS: 5061)
`protocol`	`TEXT`	Default transport protocol (`UDP`, `TCP`, `TLS`)
`http_port`	`INTEGER`	HTTP provisioning port (default: 80)
`https_port`	`INTEGER`	HTTPS secure provisioning port (default: 443)
`outbound_proxy`	`TEXT`	Perimeter SBC or proxy IP address
`outbound_proxy_port`	`INTEGER`	Perimeter SBC proxy port (default: 5060)
`created_at`	`TIMESTAMPTZ`	Creation timestamp
`updated_at`	`TIMESTAMPTZ`	Last modification timestamp

2. Module Overview (Commercial/Business)

Carrier & Multi-Tenant Segregation: Service providers can establish dedicated provisioning server profiles per tenant or brand, directing different client organizations to distinct FQDNs and dedicated SBC clusters.
Seamless Perimeter Security: By separating the public registrar domain from internal PBX nodes using the Outbound Proxy configuration, enterprise communication is shielded behind Ring2All SBC security defenses.
Automated Zero-Touch Provisioning (ZTP): Customers receive plug-and-play phones that self-configure on power-on without requiring manual technician visits or on-site IT deployment.

3. Module Overview (End User/Administrator)

System Administrators use this module to manage global and tenant-specific provisioning endpoints. When creating a phone template or assigning a physical IP terminal, selecting a Server Setting profile automatically binds all telephony endpoints to the appropriate network addresses, SIP ports, and encryption profiles.

🎯 User Roles & Key Capabilities

Role	Key Capabilities & Permissions	Operational Scope
PBX Super Administrator	• Global provisioning endpoint governance and default SIP/TLS port baseline assignment • Perimeter Session Border Controller (Ring2All SBC) outbound proxy mapping • SSL/TLS certificate binding for secure HTTPS configuration distribution (port 443) • Multi-tenant server settings profile creation and domain delegation	Platform-Wide
Tenant Administrator	• Domain-level provisioning server profile configuration and FQDN customization • Transport protocol selection (UDP, TCP, TLS) aligned with corporate security policies • Outbound proxy port and legacy HTTP port (80) auditing	Domain Scope
VoIP Network Engineer	• Firewall port mapping validation (80, 443, 5060, 5061) across enterprise subnets • Media proxy route and NAT traversal testing through perimeter SBC addresses • SIP NOTIFY `check-sync` verification upon server endpoint migration	Infrastructure / Domain
AI Copilot / MCP Agent	• Autonomous retrieval of active domain server settings (`get_provisioning_server_settings`) • Telephony network parameter verification prior to mass endpoint provisioning	Autonomous Assistant

4. Server Settings Fields Reference

Field	Label	Required	Description
`name`	Name	Yes	Descriptive title for the server configuration (e.g. Apex Corp Provisioning Server).
`server_domain`	Server Domain	Yes	Fully Qualified Domain Name (FQDN) or IP address of the SIP server (e.g. apexcorp.ring2all.local).
`sip_port`	SIP Port	Yes	SIP signaling port used for call registrations (typically `5060` for UDP/TCP, `5061` for TLS).
`protocol`	Protocol	Yes	Signaling transport protocol: `UDP`, `TCP`, or `TLS` (for SRTP encrypted communications).
`http_port`	HTTP Port	Yes	Plaintext HTTP port used by legacy devices for configuration retrieval (default: `80`).
`https_port`	HTTPS Port	Yes	Secure TLS-encrypted port used for configuration download (default: `443`).
`outbound_proxy`	Outbound Proxy	No	IP address or FQDN of the perimeter Session Border Controller (e.g. `192.168.10.32`).
`outbound_proxy_port`	Outbound Proxy Port	No	Port used to reach the Outbound Proxy (default: `5060`).

5. Common Scenarios & Examples

Scenario A: Standard Cloud PBX Deployment

Name: Cloud PBX Standard Server
Server Domain: pbx.ring2all.com
SIP Port: 5060
Protocol: UDP
HTTP Port: 80
HTTPS Port: 443
Outbound Proxy: (None)

Scenario B: High-Security Enterprise with Perimeter SBC

Name: Enterprise SBC Cluster
Server Domain: tenant1.voice.ring2all.com
SIP Port: 5061
Protocol: TLS
HTTP Port: 80
HTTPS Port: 443
Outbound Proxy: sbc-primary.ring2all.com
Outbound Proxy Port: 5061

6. Limitations & Important Notes

[!IMPORTANT] When modifying the Server Domain or SIP Port, existing registered devices will not automatically migrate until they re-synchronize or reboot. Trigger a SIP NOTIFY check-sync from the Devices list to force an immediate refresh.

[!NOTE] HTTPS provisioning requires that terminal devices have valid manufacturer root CA trust stores installed. For self-signed certificates, ensure device firmware allows certificate validation bypass or upload your private CA to the phone firmware.

Model Context Protocol (MCP) AI Integration

The Server Settings module provides Model Context Protocol (MCP) integration allowing AI Copilots, automated onboarding assistants, and network diagnostics bots to inspect provisioning server endpoints, SIP registrar FQDNs, transport protocols, and SBC outbound proxies.

Available MCP Telephony Tools

Tool Name	Action Type	Access Level	Description
`get_provisioning_server_settings`	`READ`	`Read-Only`	Retrieves the active auto-provisioning server settings (SIP registrar, outbound proxy, HTTP/HTTPS ports, transport protocol) for the tenant domain.

Tool Schemas & Input Parameters

`get_provisioning_server_settings`

Inspects the active server provisioning profile applied to the current domain.

{
  "name": "get_provisioning_server_settings",
  "description": "Retrieves the active auto-provisioning server settings (SIP registrar, outbound proxy, HTTP/HTTPS ports, transport protocol) for the PBX domain.",
  "parameters": {
    "type": "object",
    "properties": {
      "domain_id": {
        "type": "number",
        "description": "Optional domain ID (defaults to active tenant domain)"
      }
    },
    "additionalProperties": false
  }
}

Natural Language Prompt Examples

English Prompts

💬 “What are the current provisioning server settings for this domain?” 💬 “Show me the SIP registrar domain, port, and outbound proxy configured for auto-provisioning.” 💬 “Check whether HTTPS or HTTP provisioning is enabled and verify the transport protocol.”

Spanish Prompts (Español)

💬 “¿Cuáles son los parámetros actuales del servidor de aprovisionamiento para este dominio?” 💬 “Muestra el dominio registrar SIP, puerto y proxy de salida configurados para el auto-aprovisionamiento.” 💬 “Verifica si el aprovisionamiento está configurado con HTTPS o HTTP y el protocolo de transporte SIP.”

Enterprise Safeguards & Compliance

Domain Isolation: Server settings queries are strictly scoped to the authenticated tenant domain (domain_id), preventing multi-tenant data leakage.
Role-Based Access Control: Calling get_provisioning_server_settings requires auxiliary_devices MCP permission scope.
Zero Configuration Disruption: MCP inspection tools are read-only and cannot alter critical registrar FQDNs or signaling ports without explicit human admin action.

7. Troubleshooting Tips

Device Fails to Download Configuration: Verify firewall policies allowing inbound traffic on HTTP Port (80) or HTTPS Port (443) from device IP subnets.
Device Registers but No Audio: Confirm that Outbound Proxy is correctly pointed to your Ring2All SBC or RTPEngine media relay node, resolving NAT traversal issues.
Registration Timeout (SIP 408): Check that the Protocol matches what is allowed in the Telephony Server SIP Profile (UDP vs TCP vs TLS) and that SIP port 5060/5061 is open on the network gateway.

8. Glossary

DHCP Option 66: Network DHCP parameter informing VoIP hardware of the boot/provisioning server TFTP or HTTP URL.
Outbound Proxy: An intermediary SIP server (usually an SBC) through which all client SIP requests are forced before hitting the core registrar.
FQDN: Fully Qualified Domain Name (e.g., pbx.company.com), providing DNS flexibility over static IP addresses.
TLS (Transport Layer Security): Cryptographic protocol providing communication security and encryption for SIP signaling.
