Navigation & Access

To access the Access Control module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login) with administrative credentials.
2. In the left navigation sidebar, locate and expand Admin.
3. Under the Firewall section, click Access Control (/admin/firewall/access-control).
4. To add a new IP whitelist or blacklist entry, click the + Add button at the top right of the toolbar.
5. To synchronize active bans directly from Fail2Ban, click the Sync Fail2Ban button.
6. To push active whitelist and blacklist database entries into the system firewall runtime, click Apply Rules.
7. To purge expired dynamic ban records, click Clear Expired.

---

Screenshots & Visual Interface

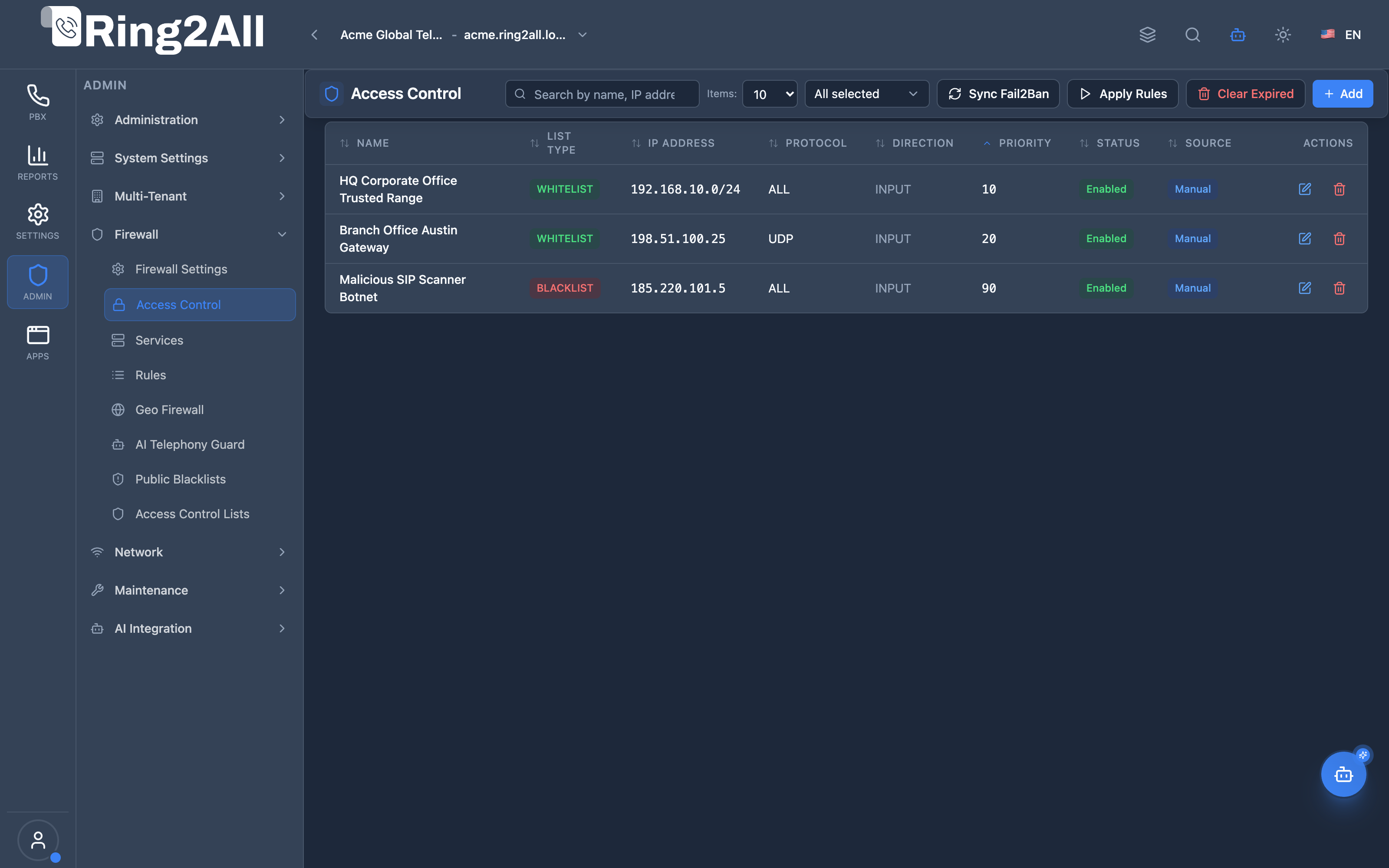

Access Control List View

The Access Control list displays all explicit IP whitelist and blacklist rules with their rule type badges, IP addresses and CIDR subnets, protocol filters, traffic directions, numerical priorities, active statuses, and creation sources (Manual or Fail2Ban).

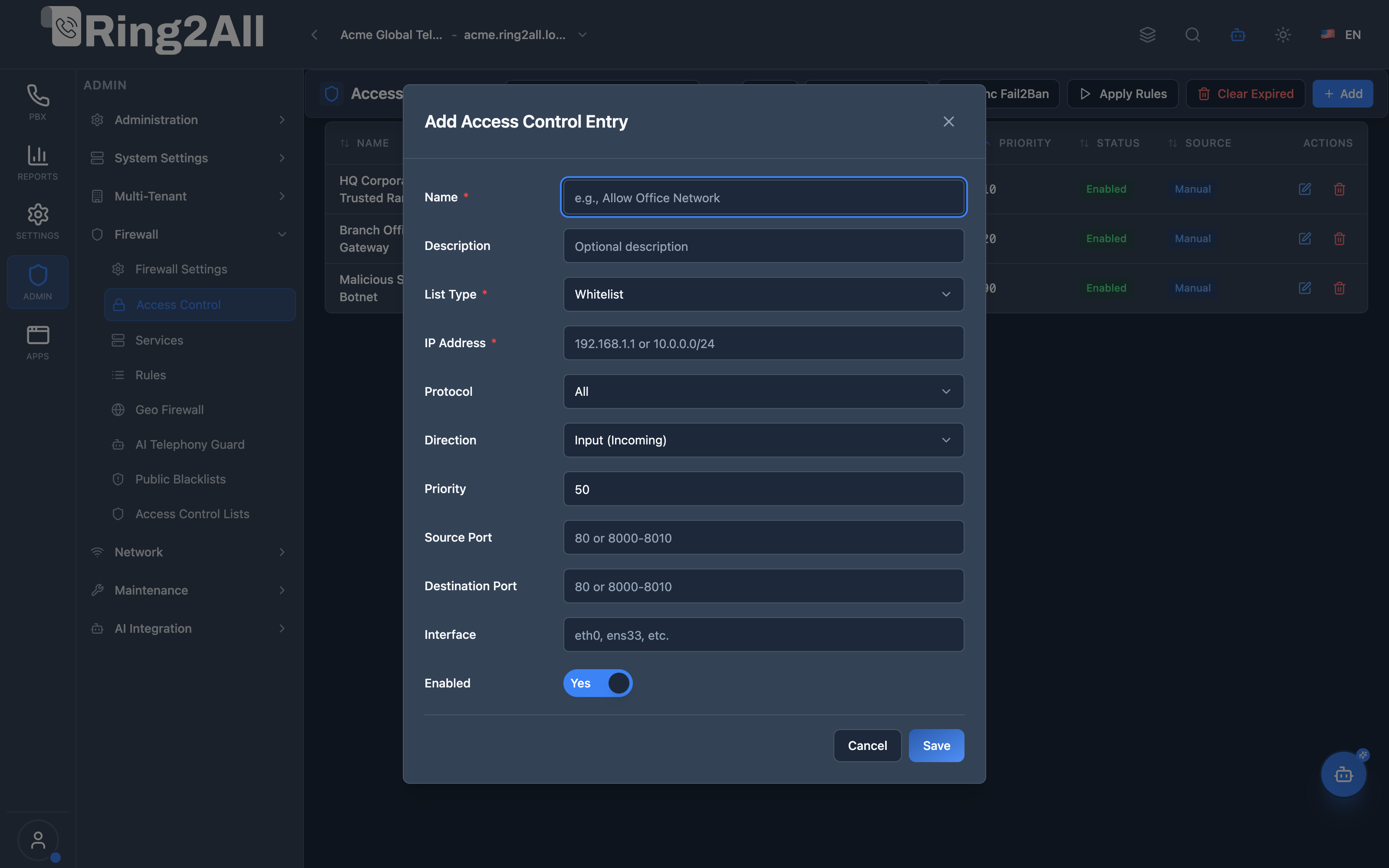

Add / Edit Access Control Entry Modal

The entry modal enables administrators to configure rule names, descriptions, list types (Whitelist or Blacklist), IP addresses or CIDRs, protocols, traffic directions (Input or Forward), priority levels, optional source/destination port ranges, network interfaces, and activation toggles.

---

1. Module Overview (Technical)

What Is Access Control?

Access Control is an IP filtering module that manages whitelist and blacklist entries for network access. It integrates with nftables firewall and Fail2Ban for automatic ban synchronization and rule application.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Access Control Architecture                       │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Access Control Lists                                           │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │                                                          │   │
│  │  Whitelist                    Blacklist                  │   │
│  │  ┌────────────────┐           ┌────────────────┐         │   │
│  │  │ Office Network │           │ SIP Scanner    │         │   │
│  │  │ 192.168.1.0/24 │           │ 45.134.x.x     │         │   │
│  │  │ Priority: 10   │           │ Priority: 100  │         │   │
│  │  │ Source: Manual │           │ Source: Fail2Ban│        │   │
│  │  ├────────────────┤           ├────────────────┤         │   │
│  │  │ Admin VPN      │           │ Brute Force    │         │   │
│  │  │ 10.0.0.0/8     │           │ 185.x.x.x      │         │   │
│  │  │ Priority: 20   │           │ Source: Manual │         │   │
│  │  └────────────────┘           └────────────────┘         │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Sync & Apply                                           │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │                                                          │   │
│  │  [Sync Fail2Ban]     [Apply Rules]     [Unban IP]       │   │
│  │       │                   │                │             │   │
│  │       ▼                   ▼                ▼             │   │
│  │  Import auto-bans    Apply to nftables  Remove ban      │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied to system                                      │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Linux Firewall                                    │   │
│  │                                                          │   │
│  │  nftables:                                              │   │
│  │  ├─ Whitelist → Accept rules                            │   │
│  │  └─ Blacklist → Drop rules                              │   │
│  │                                                          │   │
│  │  Fail2Ban:                                              │   │
│  │  └─ Active jails with banned IPs                        │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Access Control provides granular IP filtering:

Without Access Control	With Access Control
No IP filtering	Whitelist/blacklist
Manual firewall edits	Web interface
No Fail2Ban visibility	Sync banned IPs
Complex nftables	Simple management

Use Cases

1. Office Access

   • Whitelist office IPs
   • Allow VPN ranges

2. Block Attackers

   • Manual blacklist
   • Import Fail2Ban bans

3. SIP Protection

   • Block SIP scanners
   • Allow trunk IPs

4. Regional Blocking

   • Block country ranges
   • Allow specific networks

Feature Highlights

Feature	Benefit
Whitelist	Guaranteed access
Blacklist	Block bad actors
Fail2Ban Sync	Import auto-bans
Priority	Ordered evaluation
Protocol Filter	Specific protocols
Unban	Quick unblock

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Add whitelist entries
• Add blacklist entries
• Sync Fail2Ban banned IPs
• Unban specific IPs
• Apply rules to firewall
• Set priority order
• Filter by protocol/port

Access Control Interface

┌─────────────────────────────────────────────────────────────────┐
│              Access Control                                     │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Manage IP address whitelist and blacklist                     │
│                                                                 │
│  [+ Add Entry]  [Apply Rules]  [Sync Fail2Ban]                 │
│                                                                 │
│  [Whitelist] [Blacklist]                                        │
│                                                                 │
│  [🔍 Search by name, IP address, or description...]            │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name          │ List    │ IP Address   │ Protocol│ Source│  │
│  ├───────────────┼─────────┼──────────────┼─────────┼───────┤  │
│  │ Office LAN    │Whitelist│192.168.1.0/24│ All     │Manual │  │
│  │ Admin VPN     │Whitelist│10.0.0.0/8    │ All     │Manual │  │
│  │ SIP Scanner 1 │Blacklist│45.134.88.12  │ UDP     │Fail2Ban│ │
│  │ Brute Force   │Blacklist│185.220.101.5 │ All     │Manual │  │
│  │ SIP Scanner 2 │Blacklist│193.32.162.8  │ UDP     │Fail2Ban│ │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Source: Manual = Added by admin, Fail2Ban = Auto-detected     │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Add/Edit Entry

┌─────────────────────────────────────────────────────────────────┐
│              Add Access Control Entry                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Name: [Office Network                   ]                     │
│    A descriptive name for this access control entry            │
│                                                                 │
│  Description: [Main office IP range      ]                     │
│    Optional description for this entry                          │
│                                                                 │
│  List Type: [Whitelist ▼]                                      │
│    Whitelist allows traffic, Blacklist blocks traffic          │
│                                                                 │
│  IP Address: [192.168.1.0/24             ]                     │
│    IP address or CIDR network                                   │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Protocol: [All ▼]                                             │
│    All | TCP | UDP | ICMP                                       │
│                                                                 │
│  Direction: [Input (Incoming) ▼]                               │
│    Input | Output | Forward                                     │
│                                                                 │
│  Priority: [10            ]                                    │
│    Lower numbers = higher priority, executed first              │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Source Port: [                          ]                     │
│    Optional source port or range                                │
│                                                                 │
│  Destination Port: [                     ]                     │
│    Optional destination port or range                           │
│                                                                 │
│  Interface: [eth0                        ]                     │
│    Optional network interface name                              │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Enabled: ✓                                                    │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Whitelist First: Add trusted IPs before blocking ranges.

[!TIP] Sync Fail2Ban: Import auto-detected attackers.

[!WARNING] Apply Rules: Changes don’t take effect until applied!

---

🎯 User Roles & Key Capabilities

The Access Control module allocates granular responsibilities for IP-level network filtering and intrusion synchronization:

User Role	Key Permissions & Responsibilities	Common Tasks & Workflows
System Super Administrator / Security Lead	Comprehensive authority over global IP whitelists and blacklists, runtime firewall compilation, and Fail2Ban synchronization.	Define permanent corporate CIDR whitelists, push runtime nftables rulesets, clear expired temporary bans, authorize branch office subnets.
Tenant Administrator	Scoped inspection of whitelist and blacklist status applicable to the organization’s SIP endpoints and trunks.	Verify whether remote office public IPs are permitted, inspect temporary ban records, submit whitelisting requests to the NOC team.
NOC & Tier-2 Support Engineer	Operational troubleshooting of SIP registration lockouts and rapid mitigation of active threat actors.	Execute Fail2Ban sync (Sync Fail2Ban), diagnose remote user authentication failures, whitelist verified employee IPs, apply immediate blacklist blocks against abusive hosts.
Cybersecurity Auditor	Verification of perimeter access policies, review of static whitelist hygiene, and audit log analysis.	Audit whitelisted IP address ranges against least-privilege policies, verify that sensitive management interfaces (SSH/Web) reject unauthenticated public IPs.

---

4. Configuration Sections

Entry Fields

Field	Description
Name	Entry identifier
Description	Optional notes
List Type	Whitelist or Blacklist
IP Address	IP or CIDR range
Protocol	All, TCP, UDP, ICMP
Direction	Input, Output, Forward
Priority	Order (lower = first)
Source Port	Optional port/range
Destination Port	Optional port/range
Interface	Optional interface
Enabled	Active/Inactive

Entry Sources

Source	Description
Manual	Added by administrator
Fail2Ban	Synced from Fail2Ban
NFTables	Synced from nftables

---

5. Settings Reference

List Types

Type	Action	Use Case
Whitelist	Allow traffic	Trusted IPs
Blacklist	Block traffic	Bad actors

Common Protocols

Protocol	Description
All	All protocols
TCP	Web, SSH, SIP-TCP
UDP	SIP, RTP, DNS
ICMP	Ping

Priority Guidelines

Priority	Use
1-50	Critical whitelist (admin access)
51-100	Standard whitelist (office, VPN)
101-200	Standard blacklist
201-500	Broad blocks (countries, ranges)

Common CIDR Ranges

CIDR	IPs	Example Use
/32	1 IP	Single attacker
/24	256 IPs	Office network
/16	65,536 IPs	Large network
/8	16M IPs	VPN range

---

6. Common Scenarios & Examples

Scenario 1: Whitelist Office Network

1. Click Add Entry
2. Name = “Office Network”
3. List Type = Whitelist
4. IP = 192.168.1.0/24
5. Protocol = All
6. Direction = Input
7. Priority = 10
8. Enable = ✓
9. Save
10. Apply Rules

Scenario 2: Block Attacker IP

1. Add Entry
2. Name = “SIP Scanner”
3. List Type = Blacklist
4. IP = 45.134.88.12
5. Protocol = UDP
6. Destination Port = 5060
7. Priority = 100
8. Save
9. Apply Rules

Scenario 3: Sync Fail2Ban Bans

1. Click “Sync Fail2Ban”
2. Wait for sync
3. Review new blacklist entries
4. Source will show “Fail2Ban”
5. Apply Rules if needed

Scenario 4: Unban False Positive

1. Find banned IP in list
2. Click Unban button
3. Confirm unban
4. IP is removed from blacklist
5. Apply Rules

---

7. Limitations & Important Notes

Technical Notes

[!NOTE] Apply Required: Changes need “Apply Rules” to take effect.

[!NOTE] Priority: Lower numbers are processed first.

[!WARNING] Don’t Block Yourself: Always whitelist admin IPs first!

Best Practices

1. Whitelist Admin: Always whitelist your IP first
2. Specific First: Specific IPs before broad ranges
3. Use CIDR: Block ranges, not individual IPs
4. Sync Regularly: Keep Fail2Ban entries updated
5. Review Bans: Check for false positives

Whitelist vs. Firewall Rules

Access Control	Firewall Rules
IP-based only	Service-based
Simple allow/block	Complex rules
Quick entry	Full configuration
Fail2Ban sync	Manual only

---

Model Context Protocol (MCP) AI Integration

The Access Control module connects directly with the Ring2All Platform Copilot MCP Server, enabling automated inspection of IP whitelist and blacklist policies:

🛠️ Available MCP Tools

Tool Name	Operation	Access Level	Description	Key Parameters
list_access_control_entries	Read	SuperAdmin / Auditor	Lists IP Access Control whitelist and blacklist entries (IPv4/CIDR, list type, direction, numerical priority).	search (string), listType (whitelist, blacklist), direction (inbound, outbound, both), enabled (boolean)
list_firewall_rules	Read	SuperAdmin / Auditor	Queries high-level network packet filtering policies matching specific IP subnets or destination ports.	search (string, optional)
check_ip_threat_status	Read	SuperAdmin / Auditor	Cross-references an IP address against APIBAN/VoIPBL active community threat feeds.	ipAddress (string, required)

📋 JSON Tool Schemas & Sample Executions

list_access_control_entries

{
  "name": "list_access_control_entries",
  "arguments": {
    "listType": "whitelist"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "total": 2,
    "entries": [
      {
        "id": 12,
        "name": "Headquarters Primary WAN",
        "ipAddress": "198.51.100.25/32",
        "listType": "whitelist",
        "direction": "input",
        "priority": 10,
        "enabled": true,
        "description": "Executive office static IP"
      },
      {
        "id": 15,
        "name": "Branch Office VPN Subnet",
        "ipAddress": "192.0.2.0/24",
        "listType": "whitelist",
        "direction": "input",
        "priority": 20,
        "enabled": true,
        "description": "Branch site inter-office trunk"
      }
    ]
  }
}

💬 Natural Language Prompt Examples

English Prompts

• “List all IP addresses currently whitelisted in the PBX access control table.”
• “Show all active blacklist entries and check if IP ‘203.0.113.88’ is blocked.”
• “Find all access control rules configured for inbound traffic with high priority (priority < 50).”
• “Verify if branch office subnet ‘192.0.2.0/24’ is present in the whitelist.”

Ejemplos en Español (Spanish Prompts)

• “Lista todas las direcciones IP que están actualmente en la lista blanca (whitelist) de control de acceso.”
• “Muestra todas las entradas de lista negra activas y verifica si la IP ‘203.0.113.88’ está bloqueada.”
• “Encuentra todas las reglas de control de acceso para tráfico entrante con prioridad alta (prioridad < 50).”
• “Comprueba si la subred de la sucursal ‘192.0.2.0/24’ está registrada en la lista blanca.”

🛡️ Enterprise Safeguards & Best Practices

1. CIDR Mask Enforcement: The API validates that all inputs follow RFC 4632 IPv4 CIDR notation (e.g. /32 for single hosts or /24 for subnets), preventing malformed packet filter rules.
2. Priority Resolution: In nftables, whitelist rules with lower numerical priority values are evaluated first, ensuring legitimate corporate traffic is accepted before broad blacklist or geo-blocking evaluations.
3. Fail2Ban Synchronization: Automated sync jobs safely ingest dynamic bans without overriding permanent static whitelists.

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
IP still blocked	Apply not clicked	Apply Rules
Can’t access	Blacklisted	Check entries
False positive	Fail2Ban strict	Unban IP
Not blocking	Entry disabled	Enable entry

Check Entries

SELECT
  name,
  list_type,
  ip_address,
  protocol,
  priority,
  source,
  is_enabled
FROM public.access_control
ORDER BY list_type, priority;

Fail2Ban Commands

# Check banned IPs
fail2ban-client status sshd

# Unban specific IP
fail2ban-client set sshd unbanip 192.168.1.100

# View all jails
fail2ban-client status

nftables Commands

# List current rules
nft list ruleset

# Check specific chain
nft list chain inet filter input

---

9. Glossary

Term	Definition
Whitelist	Allowed IP list
Blacklist	Blocked IP list
CIDR	IP range notation
Fail2Ban	Intrusion detection
nftables	Linux firewall
Priority	Rule order

---

Documentation last updated: January 2026
