Direct Dial Module Documentation

Table of Contents

1. Module Overview (Technical)
2. Module Overview (Commercial/Business)
3. Module Overview (End User/Administrator)
4. User Roles & Key Capabilities
5. Configuration Fields Reference
6. Call Flow / Logic Explanation
7. Common Scenarios & Examples
8. Model Context Protocol (MCP) AI Integration
9. Limitations & Important Notes
10. Troubleshooting Tips
11. Glossary

---

1. Module Overview (Technical)

What Is Direct Dial?

Direct Dial is a routing shortcut mechanism that maps feature codes (like *8050 or 8050) to specific destinations in the PBX. It provides quick-access shortcuts to any module in the system without requiring users to remember complex extension numbers.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                    Direct Dial System                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  User dials: *8050                                              │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Direct Dial Dialplan Lookup                 │   │
│  │  SELECT * FROM direct_dials WHERE code = '*8050'         │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              Route Based on Module                       │   │
│  │                                                          │   │
│  │  ├─ extension  → Dial extension (e.g., 1001)             │   │
│  │  ├─ ivr        → Send to IVR menu (e.g., main_menu)      │   │
│  │  ├─ queue      → Send to call queue (e.g., support)      │   │
│  │  ├─ conference → Join conference room (e.g., 8000)       │   │
│  │  ├─ announcement → Play announcement                     │   │
│  │  └─ transfer   → Blind transfer to destination           │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  Call routed to destination                                     │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Destination Modules

Module	Description	Example Value
extension	Direct to an extension	1001
ivr	Send to IVR menu	main_menu
queue	Send to call queue	sales_queue
conference	Join conference room	8000
announcement	Play announcement	holiday_notice
transfer	Blind transfer	+15551234567

---

2. Module Overview (Commercial/Business)

Business Value

Direct Dial simplifies user experience with memorable shortcuts:

Without Direct Dial	With Direct Dial
“Dial 9001235555 for support”	“Dial *5555 for support”
Users forget long numbers	Short memorable codes
Complex dialplan changes	Simple UI configuration

Use Cases

1. Feature Codes

   • *22 → Check voicemail
   • *67 → Anonymous call
   • *72 → Forward calls

2. Department Shortcuts

   • *100 → Reception desk
   • *200 → IT Helpdesk
   • *300 → HR Department

3. Emergency/Priority

   • *911 → Emergency services
   • *99 → Security office
   • *77 → Urgent support queue

4. External Services

   • *800 → Company hotline
   • *411 → Directory services
   • *555 → Conference bridge

Feature Highlights

• Simple Mapping: Code → Destination in one setting
• Multiple Targets: Route to any module type
• Enable/Disable: Quickly toggle without deleting
• Context Aware: Different codes per domain/context

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create feature codes that route to specific destinations
• Map codes to extensions, IVRs, queues, conferences, or announcements
• Enable/disable codes without deletion
• Organize shortcuts by descriptive names

Navigation

1. Navigate to PBX → Applications → Direct Dial in the main sidebar.

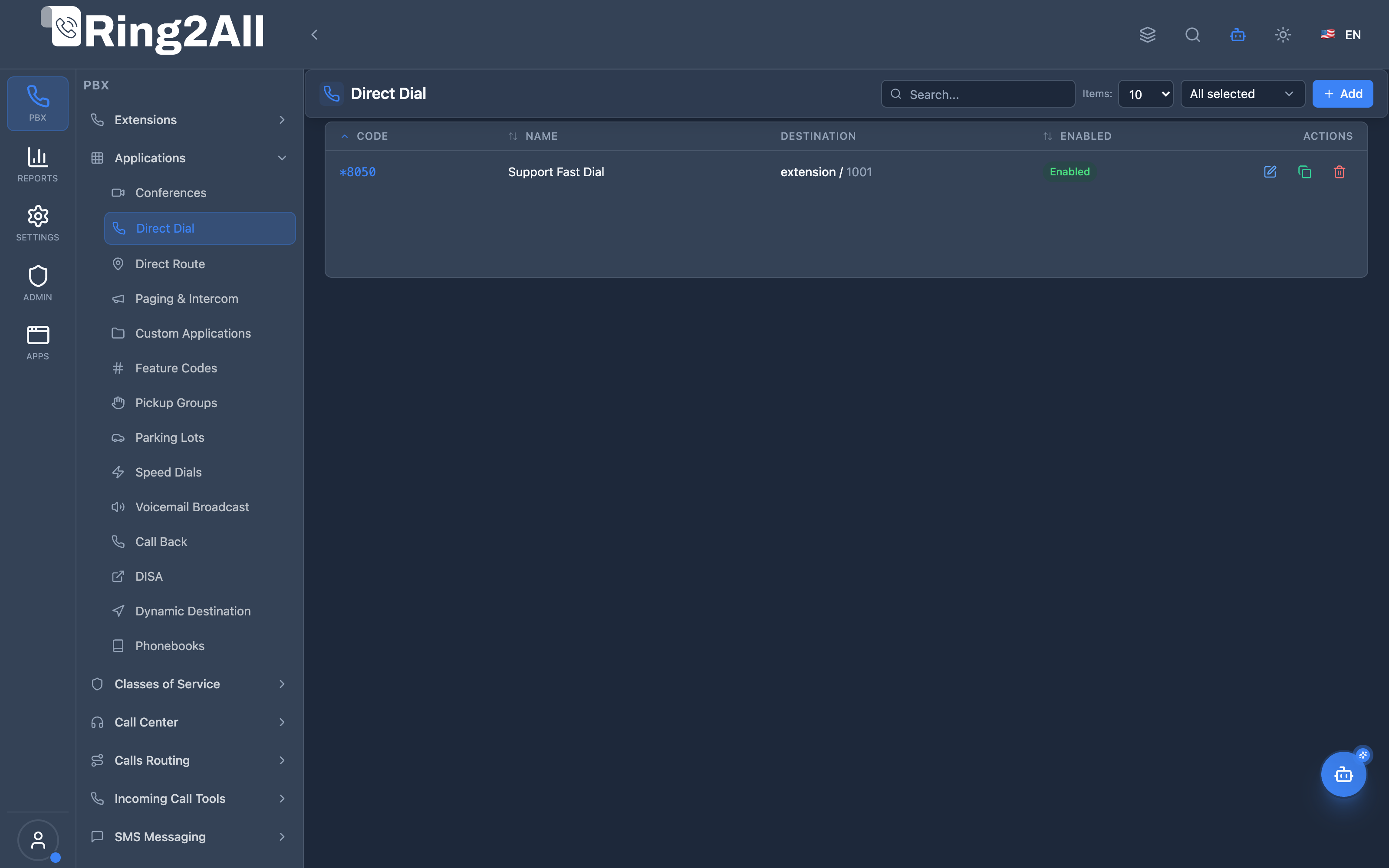

2. The list view displays all configured direct dial entries with their dial Code, Name, Destination target, and Enabled state.
3. Click the + Add button in the upper toolbar to define a new direct dial shortcut.
4. Click any row or the edit icon to adjust the destination target or toggle the feature.

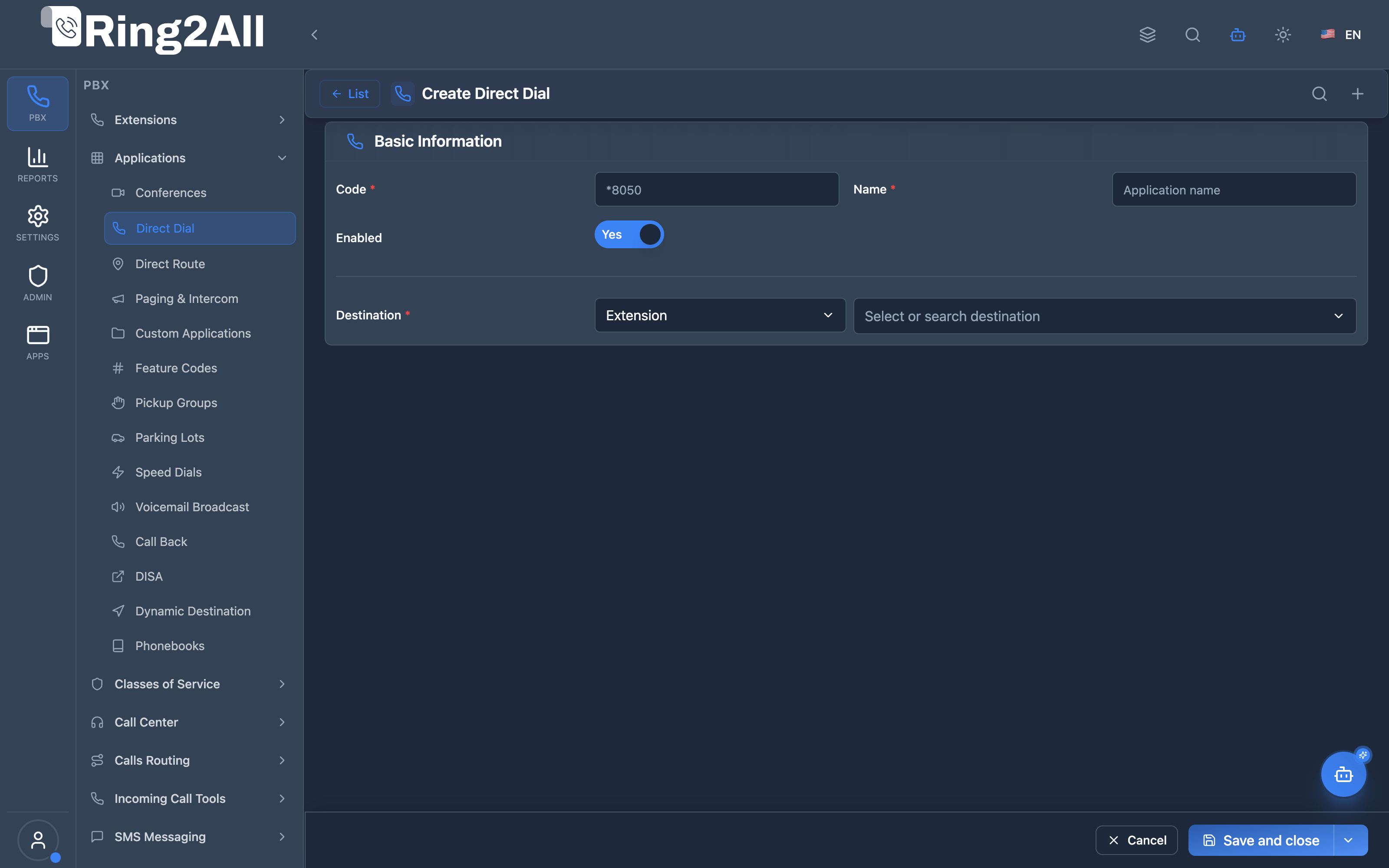

User Workflow

┌─────────────────────────────────────────────────────────────────┐
│                 Creating a Direct Dial                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  1. Basic Information                                           │
│     ├─ Code: *8050                                             │
│     ├─ Name: "Support Fast Dial"                               │
│     └─ Enabled: Yes                                            │
│                                                                 │
│  2. Destination Selection                                       │
│     ├─ Target Module: Extension                                │
│     └─ Destination: 1001                                       │
│                                                                 │
│  3. Save → Users can now dial *8050 from any device             │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Use Asterisk Prefix: Codes starting with * (e.g. *8050) are easy to remember and reduce conflicts with standard internal extensions.

[!TIP] Descriptive Names: Use clear names like “Customer Support Line” instead of generic names for easier auditing and management.

[!CAUTION] Code Conflicts: Ensure your direct dial codes do not overlap with existing physical extensions or system feature codes.

---

🎯 User Roles & Key Capabilities

Role	Permissions & Responsibilities	Key Capabilities
Tenant Administrator	Full write access to Direct Dial codes	Create, edit, and delete direct dial shortcuts; assign codes to any PBX destination (extensions, queues, IVRs, conferences, announcements); enable/disable rules
Call Center Supervisor / Operator	Read-only access	View configured direct dial shortcodes to guide agents and callers on shortcut dial strings
Platform / System Engineer	Telephony and FreeSWITCH engine access	Monitor FreeSWITCH Lua execution logs (direct_dial.lua), diagnose dialplan registry routing, and verify audio prompt/transfer executions

---

4. Configuration Fields Reference

Basic Information

Field	Description	User-Friendly Tooltip	Example	Required
Code *	Dialable access code or star-code shortcut	The exact number or star-code callers dial to activate this shortcut	*8050, 8001	Yes
Name *	Human-readable shortcut name	Application identifier; the system automatically derives dialplan context and description from this name	Support Fast Dial, Billing Hotdesk	Yes
Enabled	Master activation toggle	Instantly enable or disable this shortcut without removing the configuration	Yes / No (toggle)	Default: Yes
Destination *	Target telephony application and destination entity	Select target module and specific destination from dropdown	Extension → 1001	Yes

Supported Destination Modules

Module	Description	Example Selection
Extension	Directly rings a specific user or hardware extension	Extension 1001
Conference	Bridges caller immediately into a conference room	Conference 3000
IVR Menu	Connects to an automated interactive voice response attendant	IVR Main Auto Attendant
Call Queue	Routes call into an ACD contact center queue	Queue Support Tier 1
Ring Group	Rings multiple extensions simultaneously or sequentially	Ring Group Sales Team
Paging & Intercom	Broadcasts one-way or two-way audio to a paging group	Paging Warehouse Paging
Time Condition	Evaluates current schedule before deciding final routing	Time Condition Office Business Hours
External Transfer	Forwards call out to an external PSTN / DID number	Number +15551234567

---

5. Call Flow / Logic Explanation

Direct Dial Routing Flow

┌─────────────────────────────────────────────────────────────────┐
│                  Direct Dial Flow                               │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  1. User dials *5555 from their phone                           │
│     │                                                           │
│     ▼                                                           │
│  2. Telephony dialplan matches direct_dial application         │
│     │                                                           │
│     ▼                                                           │
│  3. Lua handler queries database:                               │
│     SELECT destination_module, destination_value                │
│     FROM direct_dials                                           │
│     WHERE code = '*5555' AND enabled = true                     │
│     │                                                           │
│     ├─ Found → Continue                                        │
│     └─ Not Found → "Number not found" + hangup                 │
│     │                                                           │
│     ▼                                                           │
│  4. Based on destination_module:                                │
│     ├─ extension → session:execute("transfer", "1001 XML")     │
│     ├─ ivr → session:execute("ivr", "main_menu")               │
│     ├─ queue → session:execute("callcenter", "queue@...")      │
│     ├─ conference → session:execute("conference", "8000@...")  │
│     ├─ announcement → play announcement, then hangup           │
│     └─ transfer → session:execute("bridge", "sofia/.../dest")  │
│     │                                                           │
│     ▼                                                           │
│  5. Call proceeds to destination                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

6. Common Scenarios & Examples

Scenario 1: Department Hotlines

Create shortcuts for department access:

Code	Name	Module	Value
*100	Reception	extension	1000
*200	IT Support	queue	it_support
*300	HR Department	extension	3000
*400	Sales	queue	sales_queue

Scenario 2: IVR Access

Create shortcuts to IVR menus:

Code	Name	Module	Value
*0	Main Menu	ivr	main_menu
*1	Sales Menu	ivr	sales_ivr
*2	Support Menu	ivr	support_ivr

Scenario 3: Conference Quick Access

One-touch conference joining:

Code	Name	Module	Value
*8000	Daily Standup	conference	daily_standup
*8001	Team Meeting	conference	team_room
*8002	All Hands	conference	all_hands

Scenario 4: External Transfer

Quick access to external numbers:

Code	Name	Module	Value
*911	Emergency	transfer	911
*411	Directory	transfer	411
*800	Company Toll-Free	transfer	+18005551234

---

7. Model Context Protocol (MCP) AI Integration

The Direct Dial subsystem is fully managed through the Model Context Protocol (MCP), enabling AI assistants and automation tools to inspect active dialing shortcuts, configure quick access codes, and ensure non-conflicting routing across tenant domains.

Available MCP Tools

Tool Name	Operation	Description	Access Level
list_direct_dials	Query	List all direct dial shortcut codes, destination modules, and target values within the domain.	Read-Only
get_direct_dial_status	Query	Retrieve routing configuration and target destination for a specific shortcut code (e.g. *8050).	Read-Only
create_direct_dial	Provisioning	Create a new shortcut code mapping directly to an extension, IVR, queue, conference, or external number.	Admin / Superadmin
update_direct_dial	Management	Update name, description, target module, or destination value for an existing direct dial code.	Admin / Superadmin
delete_direct_dial	Deprovisioning	Remove a direct dial shortcut code from the PBX.	Superadmin

Tool Definitions & Parameter Reference

create_direct_dial

Registers a rapid dialing code within the domain.

{
  "name": "create_direct_dial",
  "description": "Create a new Direct Dial quick shortcut code (e.g. '*8050' or '8050') mapped to any PBX destination.",
  "inputSchema": {
    "type": "object",
    "properties": {
      "code": { "type": "string", "description": "The dial shortcut code (e.g. '*8050' or '5555')." },
      "name": { "type": "string", "description": "Friendly name for this shortcut." },
      "destinationModule": {
        "type": "string",
        "description": "Target module (e.g. 'extension', 'queue', 'ivr', 'conference', 'ring_group', 'transfer')."
      },
      "destinationValue": { "type": "string", "description": "Target extension, queue ID, IVR ID, or phone number." },
      "description": { "type": "string", "description": "Optional notes or purpose." }
    },
    "required": ["code", "name", "destinationModule", "destinationValue"]
  }
}

Safety Safeguards & Number Uniqueness

1. Domain Number Collision Prevention: Before committing any direct dial code, the platform invokes validateNumberUniqueness(code, domainId, 'direct_dial'). If the code collides with an existing Extension, Conference Room, Parking Lot, Speed Dial, or Feature Code in the active domain, the operation fails with a detailed conflict error (e.g., Number *8050 is already in use by Feature Code "*8050").
2. Auto Dialplan Reload: Creating, updating, or deleting direct dials automatically triggers a non-blocking reloadxml in Telephony Server so that changes take effect immediately across all SIP endpoints.

Example AI Assistant Prompts & Workflow

Example 1: Creating a Speed Shortcut to Helpdesk Queue

Admin Prompt:
*“Create a direct dial shortcut code 4357 pointing to the Technical Support queue (ID 5).”

AI Tool Execution:

{
  "tool": "create_direct_dial",
  "arguments": {
    "code": "*4357",
    "name": "Quick Helpdesk",
    "destinationModule": "queue",
    "destinationValue": "5",
    "description": "Quick shortcut for internal staff to reach Support Queue"
  }
}

MCP Response:

{
  "success": true,
  "data": {
    "id": 12,
    "code": "*4357",
    "name": "Quick Helpdesk",
    "destinationModule": "queue",
    "destinationValue": "5",
    "message": "Direct Dial shortcut *4357 created successfully."
  }
}

---

8. Limitations & Important Notes

Technical Limitations

[!WARNING] Code Uniqueness: Codes must be unique within a domain. Duplicate codes will cause routing failures.

[!WARNING] Asterisk Conflicts: Some * codes are reserved by Telephony Server or telephony standards. Check for conflicts.

[!IMPORTANT] Dialplan Priority: Direct dial entries are processed in dialplan order. Ensure they don’t conflict with higher-priority routes.

Best Practices

1. Use Consistent Prefixes: All department codes with *1xx, all queues with *2xx, etc.
2. Document Purpose: Use description field to explain why the code exists
3. Test Before Deploy: Verify routing works before publishing codes to users
4. Avoid Numeric-Only: Pure numbers may conflict with extensions

Reserved Codes (Commonly)

Code	Standard Use
*67	Block Caller ID
*69	Call Return
*72	Call Forwarding
*73	Cancel Forwarding
*82	Unblock Caller ID
*98	Voicemail Access

---

9. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
“Number not found”	Code not in database	Verify code exists and is enabled
Wrong destination	Module/value mismatch	Check destination module and value
Code not recognized	Dialplan not matching	Check context matches dialplan
Conflict with extension	Code overlaps	Use asterisk prefix or different range

Diagnostic SQL

List all direct dials:

SELECT code, name, destination_module, destination_value, enabled
FROM public.direct_dials
WHERE domain_id = [domain_id]
ORDER BY code;

Check for code conflicts:

-- Check against extensions
SELECT 'CONFLICT' AS status, dd.code, e.extension
FROM public.direct_dials dd
JOIN public.sip_extensions e ON dd.code = e.extension
WHERE dd.domain_id = [domain_id];

Find disabled codes:

SELECT code, name, destination_module
FROM public.direct_dials
WHERE enabled = false AND domain_id = [domain_id];

---

10. Glossary

Term	Definition
Direct Dial	A shortcut code that routes to a specific destination
Feature Code	A dialable code (usually starting with *) that triggers a feature
Destination Module	The type of target (extension, IVR, queue, etc.)
Destination Value	The specific target identifier
Context	Dialplan context for routing logic
Dialplan	Telephony Server routing configuration
IVR	Interactive Voice Response menu
Queue	Call queue for agent distribution
Announcement	Pre-recorded audio message
Transfer	Redirect call to external number

---

Documentation last updated: January 2026
