Firewall Rules Module Documentation

Navigation & Access
Screenshots & Visual Interface
Module Overview (Technical)
Module Overview (Commercial/Business)
Module Overview (End User/Administrator)
User Roles & Key Capabilities
Configuration Sections
Settings Reference
Common Scenarios & Examples
Model Context Protocol (MCP) AI Integration
Limitations & Important Notes
Troubleshooting Tips
Glossary

To access the Firewall Rules module:

Log in to the Ring2All Web Portal (https://<domain-or-ip>/login) with administrative credentials.
In the left navigation sidebar, locate and expand Admin.
Under the Firewall section, click Rules (/admin/firewall/rules).
To add a new packet filtering rule, click the + Add button at the top right of the toolbar.
To apply all active database rules directly into the host operating system’s nftables firewall tables, click Apply Rules.
To modify or delete an existing rule, use the edit or trash icons in the corresponding table row.

Screenshots & Visual Interface

Firewall Rules List View

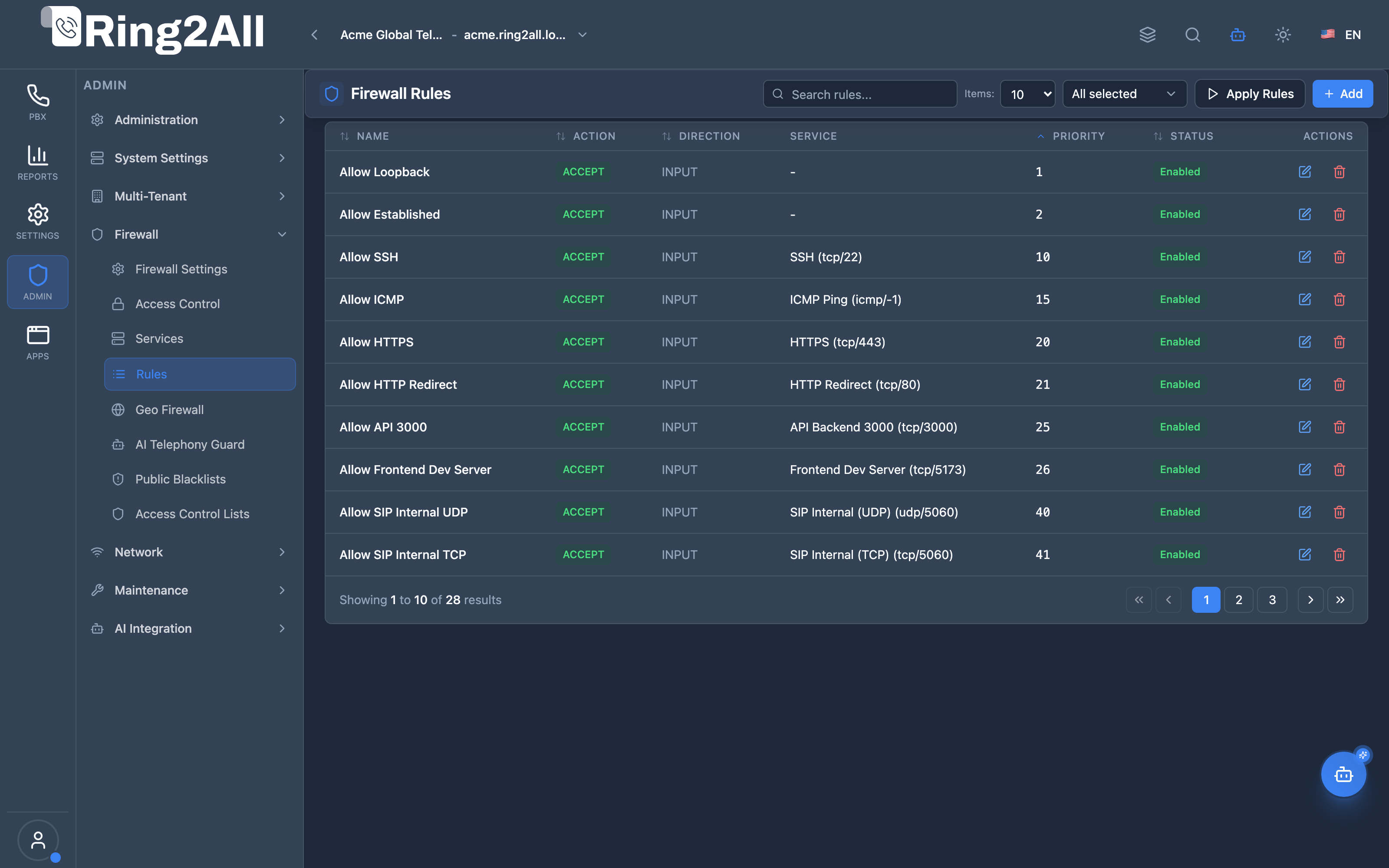

The Firewall Rules interface displays all active packet filtering policies with their rule names, dispositions (ACCEPT, DROP, REJECT), traffic directions, associated services, rule priorities, operational states, and action triggers. Firewall Rules List

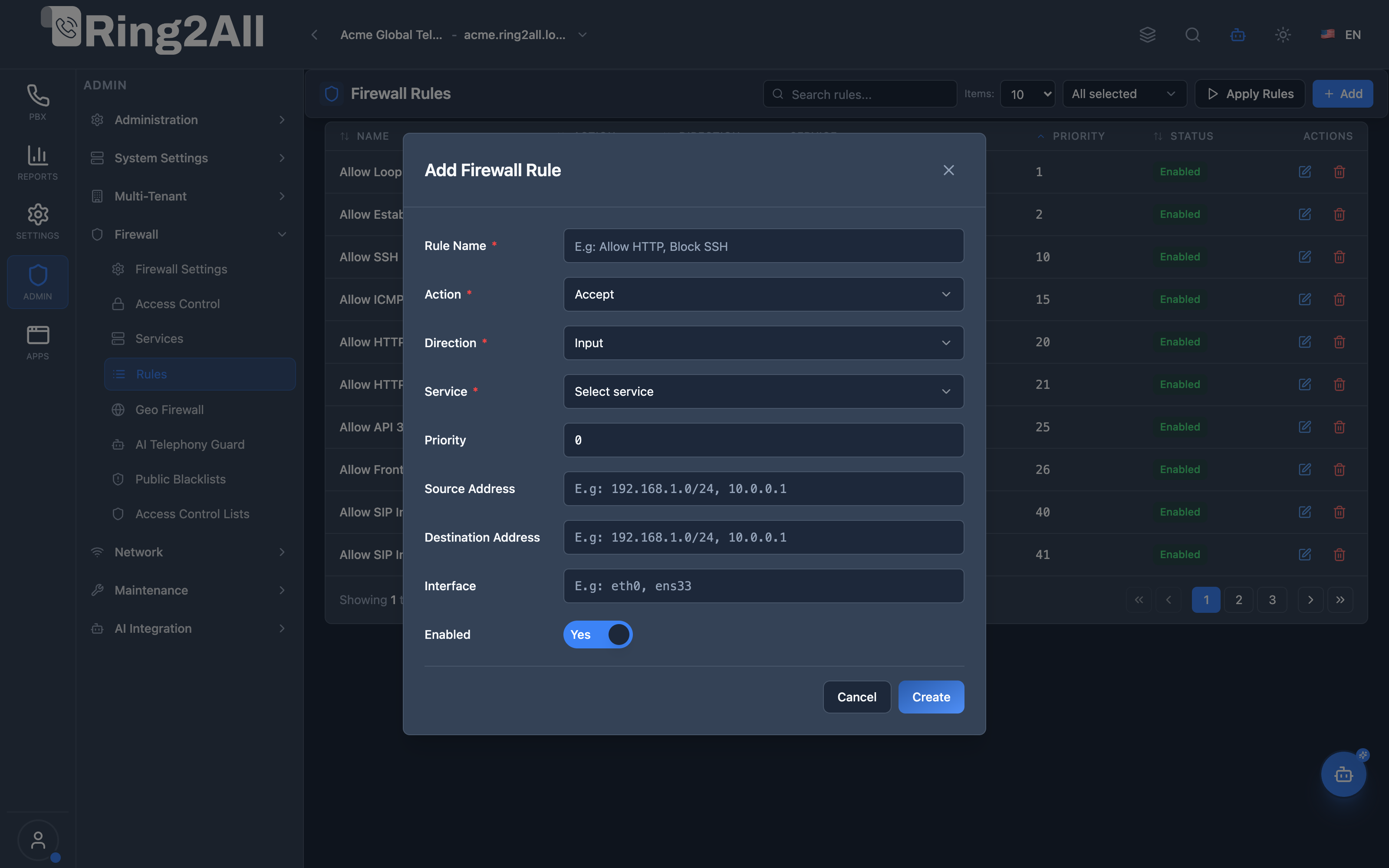

The rule configuration dialog enables administrators to define rule labels, select disposition actions (Accept, Drop, Reject), traffic direction (Input, Forward, Output), target service definitions, rule priorities, source/destination CIDRs, network interface constraints, and enabled states. Add Firewall Rule Modal

1. Module Overview (Technical)

What Are Firewall Rules?

Firewall Rules is a traffic control module that creates nftables rules for accepting, dropping, or rejecting network traffic. Rules reference Firewall Services and are evaluated in priority order.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Firewall Rules Architecture                       │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Rule Definitions                                               │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │                                                          │   │
│  │  Priority: 10                    Priority: 20            │   │
│  │  ┌────────────────────┐         ┌────────────────────┐   │   │
│  │  │ Allow Admin SSH    │         │ Allow HTTP         │   │   │
│  │  │ Action: Accept     │         │ Action: Accept     │   │   │
│  │  │ Direction: Input   │         │ Direction: Input   │   │   │
│  │  │ Service: SSH       │         │ Service: HTTP      │   │   │
│  │  │ Source: 10.0.0.5   │         │ Source: any        │   │   │
│  │  └────────────────────┘         └────────────────────┘   │   │
│  │                                                          │   │
│  │  Priority: 100                   Priority: 200           │   │
│  │  ┌────────────────────┐         ┌────────────────────┐   │   │
│  │  │ Allow SIP LAN      │         │ Block SSH External │   │   │
│  │  │ Action: Accept     │         │ Action: Drop       │   │   │
│  │  │ Direction: Input   │         │ Direction: Input   │   │   │
│  │  │ Service: SIP       │         │ Service: SSH       │   │   │
│  │  │ Source: 192.168.x  │         │ Source: any        │   │   │
│  │  └────────────────────┘         └────────────────────┘   │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ [Apply Rules]                                          │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        nftables Configuration                            │   │
│  │                                                          │   │
│  │  table inet filter {                                    │   │
│  │    chain input {                                        │   │
│  │      # Priority 10: Allow Admin SSH                     │   │
│  │      ip saddr 10.0.0.5 tcp dport 22 accept              │   │
│  │      # Priority 20: Allow HTTP                          │   │
│  │      tcp dport 80 accept                                │   │
│  │      # Priority 100: Allow SIP LAN                      │   │
│  │      ip saddr 192.168.0.0/16 udp dport 5060 accept      │   │
│  │      # Priority 200: Block SSH External                 │   │
│  │      tcp dport 22 drop                                  │   │
│  │    }                                                     │   │
│  │  }                                                       │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

2. Module Overview (Commercial/Business)

Business Value

Firewall Rules provides network traffic control:

Without Rules	With Rules
Open access	Controlled traffic
No priority	Ordered evaluation
Manual nftables	Web interface
Complex syntax	Simple forms

Use Cases

Allow Services
- Web traffic (HTTP/HTTPS)
- SIP/RTP for telephony
Block Attacks
- Drop external SSH
- Reject scanners
LAN Access Only
- SIP from internal only
- Admin from VPN only
Priority Control
- Allow before block
- Specific before general

Feature Highlights

Feature	Benefit
Accept/Drop/Reject	Flexible actions
Priority Order	Controlled evaluation
Service Reference	Reusable definitions
Source/Dest Filter	IP-based access
Interface Binding	Per-interface rules
Apply Button	Controlled deployment

3. Module Overview (End User/Administrator)

What Can You Do?

Create traffic rules
Allow or block traffic
Set priority order
Filter by IP address
Bind to interfaces
Apply rules to nftables
Enable/disable rules

Firewall Rules Interface

┌─────────────────────────────────────────────────────────────────┐
│              Firewall Rules                                     │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Manage firewall rules for nftables (Debian 13)                │
│                                                                 │
│  [+ Add Rule]  [Apply Rules]                                    │
│                                                                 │
│  [🔍 Search rules...]                                           │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name          │ Action│ Direction│ Service│ Priority│ St │  │
│  ├───────────────┼───────┼──────────┼────────┼─────────┼────┤  │
│  │ Allow Admin   │ Accept│ Input    │ SSH    │ 10      │ ●  │  │
│  │ Allow HTTP    │ Accept│ Input    │ HTTP   │ 20      │ ●  │  │
│  │ Allow HTTPS   │ Accept│ Input    │ HTTPS  │ 30      │ ●  │  │
│  │ Allow SIP LAN │ Accept│ Input    │ SIP    │ 100     │ ●  │  │
│  │ Allow RTP     │ Accept│ Input    │ RTP    │ 110     │ ●  │  │
│  │ Block SSH Ext │ Drop  │ Input    │ SSH    │ 200     │ ●  │  │
│  │ Block All     │ Drop  │ Input    │ -      │ 9999    │ ○  │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  ⚠️ Click "Apply Rules" after changes                          │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Add/Edit Rule

┌─────────────────────────────────────────────────────────────────┐
│              Add Firewall Rule                                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Rule Name: [Allow SIP from LAN              ]                 │
│    Descriptive name for the rule (must be unique)              │
│                                                                 │
│  Action: [Accept ▼]                                            │
│    Accept (allow) | Drop (silent block) | Reject (block+respond)│
│                                                                 │
│  Direction: [Input ▼]                                          │
│    Input (to server) | Output (from server) | Forward (routed) │
│                                                                 │
│  Service: [SIP ▼]                                              │
│    Associated firewall service (required)                       │
│    The rule will use the selected service's protocol and port  │
│                                                                 │
│  Priority: [100           ]                                    │
│    Rule priority (0-9999). Lower numbers are evaluated first   │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Source Address: [192.168.1.0/24             ]                 │
│    Optional: Source IP address or CIDR network                 │
│                                                                 │
│  Destination Address: [                      ]                 │
│    Optional: Destination IP address or CIDR network            │
│                                                                 │
│  Interface: [eth0                            ]                 │
│    Optional: Network interface (e.g., eth0, ens33)             │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  Enabled: ✓                                                    │
│    Disabled rules will not be applied to nftables              │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Priority: Lower numbers execute first. Allow admin access at low priority!

[!TIP] Apply Rules: Always click after making changes.

[!CAUTION] Don’t Block Yourself: Create allow rule for your IP before blocking!

🎯 User Roles & Key Capabilities

The Firewall Rules module manages kernel packet filtering policies, delineating capabilities across administrative tiers:

User Role	Key Permissions & Responsibilities	Common Tasks & Workflows
System Super Administrator	Total control over host `nftables` tables, rule chains, and packet admission/rejection actions.	Create and delete packet filtering rules, reorder rule evaluation priorities, apply database rules to host kernel tables, safeguard administrative SSH/HTTPS access.
VoIP / Network Engineer	Constructing fine-grained packet filters for telephony carriers, inter-PBX trunks, and remote office SBCs.	Allow SIP 5060 traffic from carrier subnets, open RTP port ranges (`16384-32768`) to media gateways, drop unauthenticated SIP probes on public interfaces.
NOC / Support Engineer	Troubleshooting blocked audio/signaling and monitoring dropped packet metrics.	Inspect rule hit counters, verify rule execution order (allow rules before default drop), test IP subnet reachability, temporarily disable rules during troubleshooting.
Information Security Auditor	Validating that network boundary defenses adhere to the principle of least privilege.	Audit firewall rules against CIS benchmarks, verify that public interfaces enforce a default `DROP` policy, check that administrative ports are restricted to management subnets.

4. Configuration Sections

Rule Fields

Field	Description
Rule Name	Unique identifier
Action	Accept, Drop, Reject
Direction	Input, Output, Forward
Service	Service reference (required)
Priority	Order (0-9999)
Source Address	Source IP/CIDR (optional)
Destination Address	Dest IP/CIDR (optional)
Interface	Network interface (optional)
Enabled	Active/Inactive

5. Settings Reference

Actions

Action	Behavior	Response	Use Case
Accept	Allow traffic	-	Permitted traffic
Drop	Block silently	None	Stealth blocking
Reject	Block with response	ICMP error	Inform sender

Directions

Direction	Description	Example
Input	Traffic TO server	Web requests
Output	Traffic FROM server	API calls
Forward	Routed traffic	NAT/routing

Priority Guidelines

Priority Range	Use
1-50	Critical allows (admin access)
51-100	Standard allows (web, API)
101-200	Service allows (SIP, RTP)
201-500	Specific blocks
501-9999	Broad blocks, catch-all

Priority Examples

Priority 10:  Allow Admin SSH (source: admin IP)
Priority 20:  Allow HTTP (any source)
Priority 100: Allow SIP LAN (source: 192.168.x)
Priority 200: Block SSH External (any source)
Priority 9999: Block All (catch-all)

6. Common Scenarios & Examples

Scenario 1: Allow HTTP/HTTPS

Add Rule
Name = “Allow HTTP”
Action = Accept
Direction = Input
Service = HTTP
Priority = 20
Save
Repeat for HTTPS (Priority 30)
Apply Rules

Scenario 2: Allow SIP from LAN Only

Add Rule
Name = “Allow SIP LAN”
Action = Accept
Direction = Input
Service = SIP
Priority = 100
Source = 192.168.1.0/24
Save
Apply Rules

Scenario 3: Block External SSH

First: Create “Allow Admin SSH” (Priority 10, Source: your IP)
Add Rule
Name = “Block SSH External”
Action = Drop
Direction = Input
Service = SSH
Priority = 200
(No source = all sources)
Save
Apply Rules

Scenario 4: Complete PBX Ruleset

Priority 10:  Allow Admin SSH     (Source: admin IP)
Priority 20:  Allow HTTP          (Any - redirect to HTTPS)
Priority 30:  Allow HTTPS         (Any - includes WebRTC WSS proxy)
Priority 100: Allow SIP UDP       (Source: LAN + Trunks)
Priority 110: Allow SIP TLS       (Source: LAN + Trunks)
Priority 120: Allow RTP           (Any)
Priority 130: Allow STUN          (Any - NAT traversal)
Priority 131: Allow TURN TLS      (Any - NAT traversal)
Priority 200: Block SSH External  (Any)
Priority 300: Block SIP External  (Any)

7. Limitations & Important Notes

Technical Notes

[!NOTE] Apply Required: Rules don’t take effect until applied.

[!NOTE] Priority Order: Lower numbers are processed first.

[!CAUTION] Lock-Out Risk: Always allow admin access before blocking!

Best Practices

Admin First: Always create allow rule for admin access first
Specific Before General: Narrow rules before broad blocks
Meaningful Names: Clear, descriptive rule names
Document Purpose: Use consistent naming convention
Test Changes: Verify access after applying
Backup Access: Have console/IPMI access available

Rule Evaluation Order

1. Enabled rules only
2. Sorted by priority (ascending)
3. First matching rule wins
4. If no match, default policy applies

Common Mistakes

Mistake	Result	Prevention
Block before allow	Locked out	Lower priority for blocks
No admin allow	Can’t access	Priority 1-10 admin rules
Forgot Apply	Rules inactive	Always click Apply
Wrong direction	Not matching	Verify Input vs Output

Model Context Protocol (MCP) AI Integration

The Firewall Rules module connects directly to the Ring2All Platform Copilot MCP Server, enabling natural language network packet filtering operations:

🛠️ Available MCP Tools

Tool Name	Operation	Access Level	Description	Key Parameters
`list_firewall_rules`	Read	SuperAdmin / Auditor	Lists all network Firewall Rules (port, protocol: TCP/UDP, action: ACCEPT/DROP, source IP/CIDR subnet).	`search` (string, optional)
`create_firewall_rule`	Write	SuperAdmin Only	Creates a new network firewall rule to allow or block access to specific PBX ports (SIP 5060, Web 443, RTP ranges).	`name` (string), `action` (`accept`, `drop`, `reject`), `protocol` (`tcp`, `udp`, `all`), `port` (string), `sourceIp` (string)
`delete_firewall_rule`	Delete (Guarded)	SuperAdmin Only	Deletes a firewall rule from the PBX database and unbinds it from the running nftables kernel filter.	`ruleId` (string/number, required)
`get_firewall_settings`	Read	SuperAdmin / Auditor	Returns overarching host firewall state and intrusion detection parameters.	None
`diagnose_ip_security`	Diagnostic / Query	Security Operator	Performs comprehensive perimeter security diagnosis on an IP address: inspects Fail2ban jails (telephony, sip, web, sshd), kernel nftables drop rules, DB firewall rules, ACL deny lists, and threat reputation feeds.	`ipAddress` (string, required)

📋 JSON Tool Schemas & Sample Executions

`list_firewall_rules`

{
  "name": "list_firewall_rules",
  "arguments": {
    "search": "Carrier"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "total": 1,
    "rules": [
      {
        "id": 4,
        "name": "Allow SIP Carrier Trunks",
        "action": "accept",
        "protocol": "udp",
        "port": "5060",
        "sourceIp": "198.51.100.0/24",
        "enabled": true
      }
    ]
  }
}

`create_firewall_rule`

{
  "name": "create_firewall_rule",
  "arguments": {
    "name": "Allow Branch PBX SIP",
    "action": "accept",
    "protocol": "udp",
    "port": "5060",
    "sourceIp": "192.0.2.50/32"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "message": "Firewall rule \"Allow Branch PBX SIP\" (ACCEPT from 192.0.2.50/32) created successfully!",
    "name": "Allow Branch PBX SIP",
    "id": 8
  }
}

💬 Natural Language Prompt Examples

English Prompts

“List all firewall rules configured for SIP port 5060.”
“Show all active rules that drop or reject inbound traffic.”
“Create an ACCEPT rule for branch office IP ‘192.0.2.50/32’ on port 5060 UDP.”
“Delete firewall rule with ID 8.”
“Verify if any firewall rule permits SSH traffic from 0.0.0.0/0.”

Ejemplos en Español (Spanish Prompts)

“Lista todas las reglas del firewall configuradas para el puerto SIP 5060.”
“Muestra todas las reglas activas que descartan (DROP) o rechazan (REJECT) tráfico entrante.”
“Crea una regla de ACEPTAR para la IP de la sucursal ‘192.0.2.50/32’ en el puerto 5060 UDP.”
“Elimina la regla de firewall con ID 8.”
“Comprueba si alguna regla de firewall permite tráfico SSH desde cualquier origen (0.0.0.0/0).”

`diagnose_ip_security`

{
  "name": "diagnose_ip_security",
  "arguments": {
    "ipAddress": "198.51.100.50"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "ipAddress": "198.51.100.50",
    "isBanned": true,
    "jails": ["sip-auth-failure"],
    "nftablesStatus": "Blocked by filter input",
    "threatReputation": "Listed on VoIPBL (high malicious score)",
    "recommendation": "Review IP authentication logs before unbanning via unban_ip_address"
  }
}

🛡️ Enterprise Safeguards & Best Practices

Protected System Rules: Core protection rules marked as is_system = true (such as anti-lockout SSH rules or localhost loopback rules) cannot be deleted via MCP.
Rule Priority Hierarchy: Rules are assigned numerical priorities (1-1000). Lower numbers are evaluated first in nftables, ensuring explicit ACCEPT overrides take precedence before DROP rules.
CIDR Subnet Validation: Any source IP provided must be a valid IPv4 host (1.2.3.4) or CIDR subnet (1.2.3.0/24); invalid notations are rejected before touching kernel tables.

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Rule not working	Not applied	Click Apply Rules
Blocked traffic	Priority wrong	Check priority order
Can’t connect	Locked out	Console access
Service not in list	Disabled service	Enable in Services

Check Rules

SELECT
  name,
  action,
  direction,
  priority,
  source_address,
  is_enabled
FROM public.firewall_rules
ORDER BY priority;

nftables Commands

# View current rules
nft list ruleset

# View input chain
nft list chain inet filter input

# Flush rules (emergency)
nft flush ruleset

Emergency Recovery

# If locked out via SSH:
# 1. Access server console (IPMI, KVM, physical)
# 2. Disable firewall temporarily
systemctl stop nftables

# 3. Fix rules via admin panel
# 4. Re-enable firewall
systemctl start nftables

9. Glossary

Term	Definition
Rule	Traffic control statement
Action	What to do (accept/drop/reject)
Direction	Traffic flow direction
Priority	Rule evaluation order
nftables	Linux firewall framework
Chain	Rule processing group

Documentation last updated: January 2026

Firewall Rules Module Documentation

Table of Contents

Navigation & Access

Screenshots & Visual Interface

Firewall Rules List View

Add / Edit Firewall Rule Modal

1. Module Overview (Technical)

What Are Firewall Rules?

Architecture

2. Module Overview (Commercial/Business)

Business Value

Use Cases

Feature Highlights

3. Module Overview (End User/Administrator)

What Can You Do?

Firewall Rules Interface

Add/Edit Rule

Quick Tips

🎯 User Roles & Key Capabilities

4. Configuration Sections

Rule Fields

5. Settings Reference

Actions

Directions

Priority Guidelines

Priority Examples

6. Common Scenarios & Examples

Scenario 1: Allow HTTP/HTTPS

Scenario 2: Allow SIP from LAN Only

Scenario 3: Block External SSH

Scenario 4: Complete PBX Ruleset

7. Limitations & Important Notes

Technical Notes

Best Practices

Rule Evaluation Order

Common Mistakes

Model Context Protocol (MCP) AI Integration

🛠️ Available MCP Tools

📋 JSON Tool Schemas & Sample Executions

list_firewall_rules

create_firewall_rule

💬 Natural Language Prompt Examples

English Prompts

Ejemplos en Español (Spanish Prompts)

diagnose_ip_security

🛡️ Enterprise Safeguards & Best Practices

8. Troubleshooting Tips

Common Issues

Check Rules

nftables Commands

Emergency Recovery

9. Glossary

`list_firewall_rules`

`create_firewall_rule`

`diagnose_ip_security`
