Role Profiles Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. 🎯 User Roles & Key Capabilities
4. Module Overview (Technical)
5. Module Overview (Commercial/Business)
6. Module Overview (End User/Administrator)
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Role Profiles module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Admin.
3. Under Administration, click Role Profiles (/role-profiles).
4. To create a new role profile, click the + Add Role Profile button (/role-profiles/new).
5. To view, edit, or clone an existing role profile, click on the profile name or the action icons in the table row (/role-profiles/:id).

---

Screenshots & Visual Interface

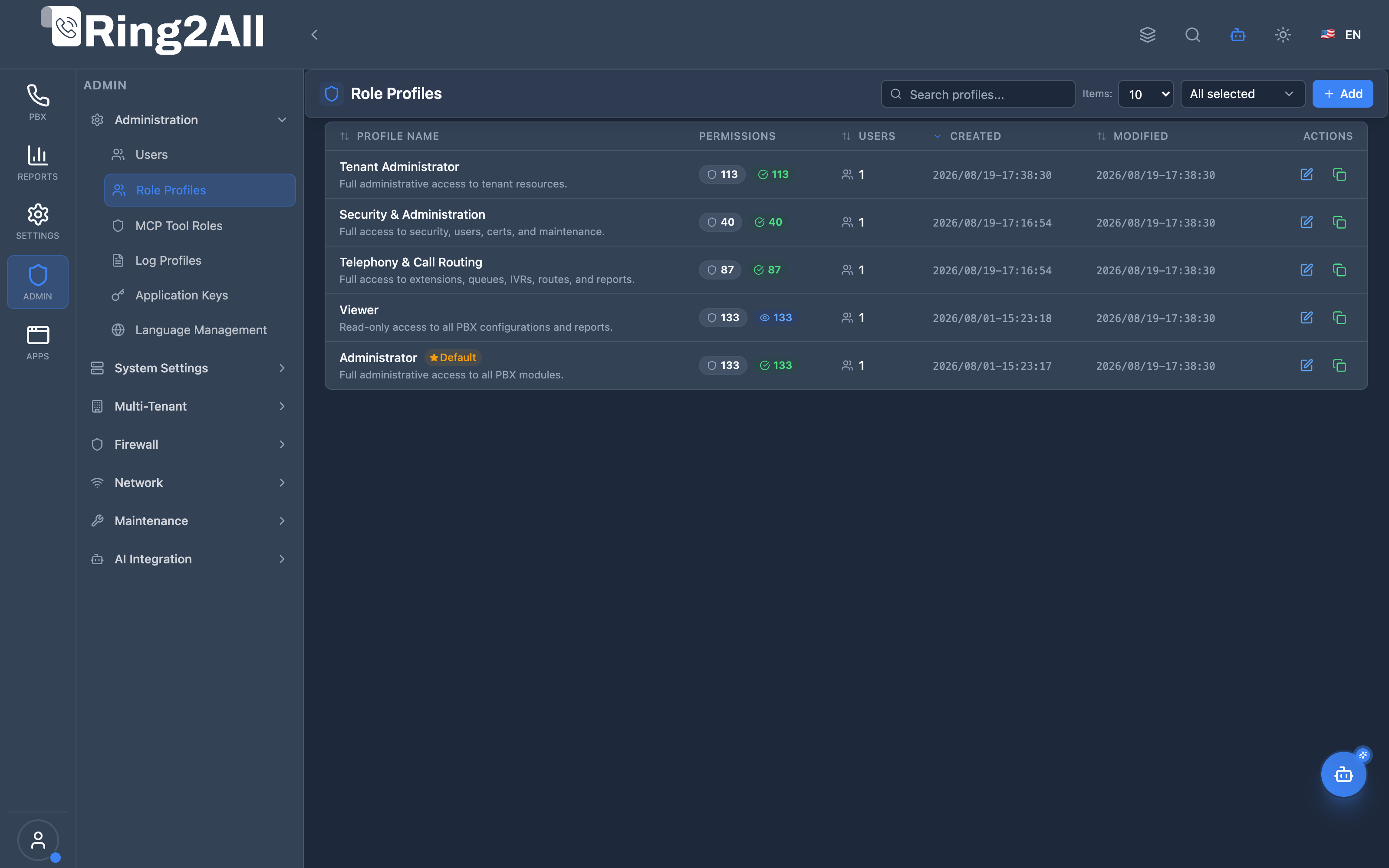

Role Profiles List View

The Role Profiles list view displays all predefined system role templates (Administrator, Tenant Administrator, Security & Administration, Telephony & Call Routing, Viewer) and custom role profiles with their permissions counters, default flags, and clone/edit actions.

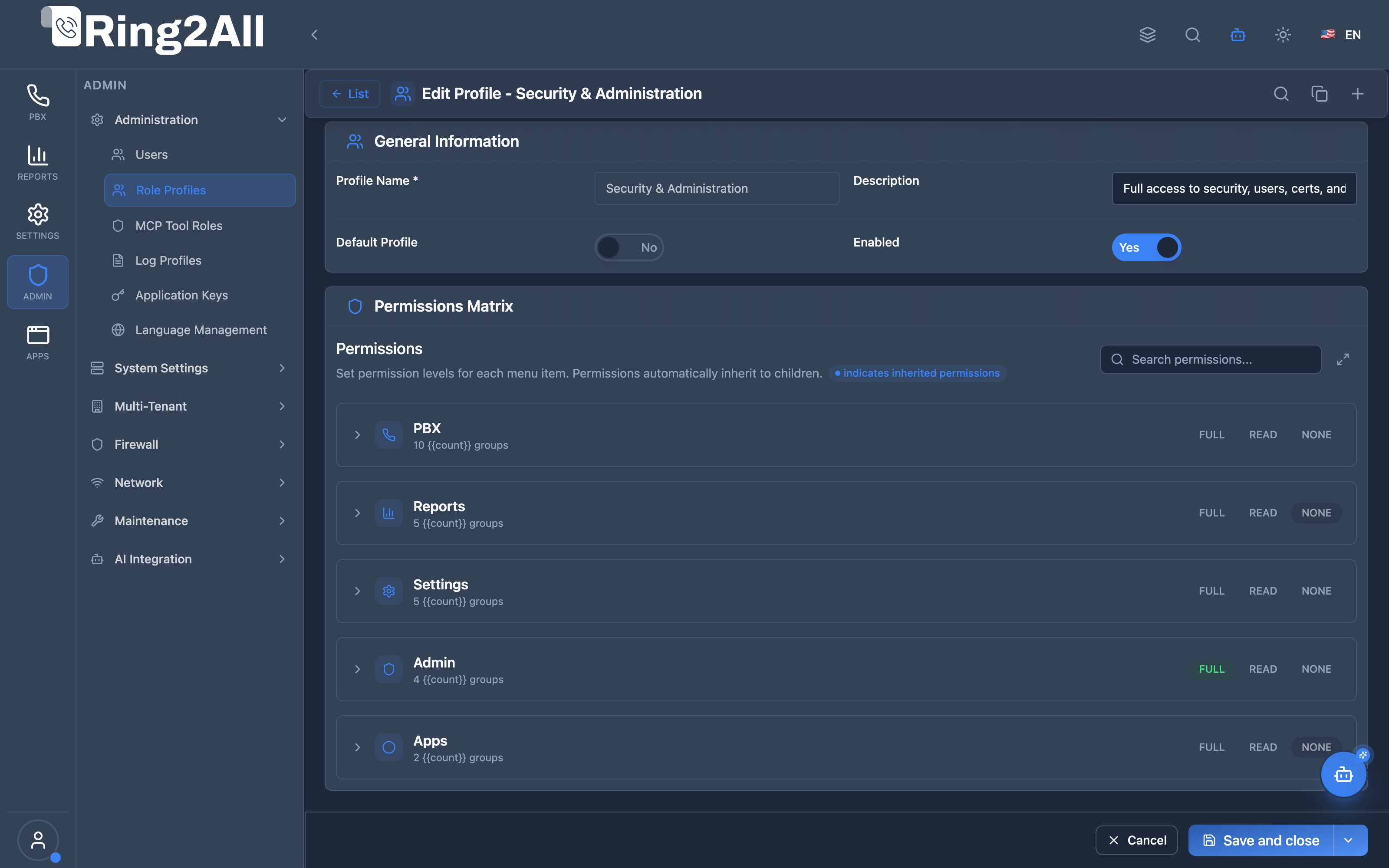

Role Profile Configuration Form & Permissions Matrix

The role profile editor features a granular module-by-module permission matrix allowing administrators to define explicit Read, Create, Edit, and Delete authorizations across all system capabilities.

---

🎯 User Roles & Key Capabilities

Role Profiles define the operational boundaries and authorization matrices for all operators across the platform:

Role	Key Capabilities & Operational Scope
Super Administrator	Configures global and custom role profiles, customizes module-level CRUD permissions, establishes baseline template roles, and manages system-wide authorization policies.
Security & Compliance Officer	Audits permissions matrices across custom roles, validates least-privilege compliance, verifies user assignment counts, and prevents unauthorized privilege escalation.
Tenant Administrator	Tailors department-specific role profiles (e.g. Sales Manager, Support Lead, Billing Clerk) within their tenant partition to delegate administrative duties safely.
VoIP / PBX Administrator	Configures technical roles restricting access strictly to telephony dialplans, extensions, SIP gateways, and IVRs without granting access to core billing or user administration.
Telephony Auditor (Read-Only)	Reviews the configured permissions matrices, active user assignment counts, and system role profiles without modification capabilities.

---

1. Module Overview (Technical)

What Are Role Profiles?

Role Profiles is a permission management module that defines access levels for admin panel users. Each role profile contains a permissions matrix specifying access (Full Control, Read Only, No Access) for every module in the system.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Role Profiles Architecture                        │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Role Profiles Definition                                       │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Role Profile: Operator                            │   │
│  │                                                          │   │
│  │  Permissions Matrix:                                     │   │
│  │  ├─ Dashboard → Full Control                            │   │
│  │  ├─ Extensions → Full Control                           │   │
│  │  ├─ Ring Groups → Read Only                             │   │
│  │  ├─ Queues → Read Only                                  │   │
│  │  ├─ System Settings → No Access                         │   │
│  │  ├─ Users → No Access                                   │   │
│  │  └─ ...                                                 │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Assigned to users                                      │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Users                                             │   │
│  │                                                          │   │
│  │  User: jsmith → Role: Operator                          │   │
│  │  User: admin → Role: Administrator                      │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied at runtime                                     │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Access Control                                    │   │
│  │                                                          │   │
│  │  Menu visibility based on permissions                    │   │
│  │  API access based on permissions                         │   │
│  │  UI actions based on permissions                         │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Role Profiles provides granular access control:

Without Role Profiles	With Role Profiles
All or nothing	Granular control
Single admin type	Multiple roles
No customization	Custom permissions
Security risk	Least privilege

Use Cases

1. Operator Role

   • Day-to-day operations
   • Limited system access

2. Support Role

   • Read-only diagnostics
   • No configuration changes

3. Department Admin

   • Full access to subset
   • Restricted system settings

4. Auditor Role

   • Read-only everything
   • Compliance review

Feature Highlights

Feature	Benefit
Permissions Matrix	Per-module control
Three Levels	Full, Read, None
Custom Roles	Create any role
User Assignment	Link profiles to users
Inheritance	Visual inherited markers
Duplicate	Clone and modify

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create custom role profiles
• Set permissions per module
• Choose Full Control, Read Only, or No Access
• Assign profiles to users
• Duplicate existing profiles
• Search and filter permissions

Role Profiles Interface

┌─────────────────────────────────────────────────────────────────┐
│              Role Profiles                                      │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [+ Create Profile]                                             │
│                                                                 │
│  [🔍 Search role profiles...]                                   │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Profile Name   │ Description          │ Users │ Permissions│ │
│  ├────────────────┼──────────────────────┼───────┼────────────┤ │
│  │ Administrator  │ Full system access   │ 2     │ 45 items   │ │
│  │ Operator       │ Day-to-day ops       │ 5     │ 30 items   │ │
│  │ Support        │ Read-only access     │ 3     │ 20 items   │ │
│  │ Billing        │ CDR and reports      │ 2     │ 8 items    │ │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Create/Edit Role Profile

┌─────────────────────────────────────────────────────────────────┐
│              Edit Role Profile                                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ▼ Basic Information                                            │
│                                                                 │
│  Profile Name: [Operator                    ]                  │
│    Name displayed in role selectors                             │
│                                                                 │
│  Description: [Day-to-day operations        ]                  │
│    Optional description to clarify this role profile           │
│                                                                 │
│  ──────────────────────────────────────────────────────────────│
│                                                                 │
│  ▼ Permissions Matrix                                           │
│                                                                 │
│  Select the permission level for each module.                   │
│  🔵 Blue dots indicate inherited permissions.                   │
│                                                                 │
│  [🔍 Search modules...]                                         │
│                                                                 │
│  ┌─────────────────────────────────────────────────────────────┐│
│  │ Module / Feature        │ Full │ Read │ None │             ││
│  ├─────────────────────────┼──────┼──────┼──────┼─────────────┤│
│  │ ▼ Dashboard             │  ●   │  ○   │  ○   │             ││
│  │ ▼ Telephony             │      │      │      │ 5 groups    ││
│  │   ├─ Extensions         │  ●   │  ○   │  ○   │             ││
│  │   ├─ Ring Groups        │  ○   │  ●   │  ○   │             ││
│  │   ├─ Queues             │  ○   │  ●   │  ○   │             ││
│  │   └─ Conferences        │  ●   │  ○   │  ○   │             ││
│  │ ▼ Routing               │      │      │      │ 3 groups    ││
│  │   ├─ Inbound Routes     │  ●   │  ○   │  ○   │             ││
│  │   ├─ Outbound Routes    │  ○   │  ○   │  ●   │             ││
│  │   └─ IVR                │  ●   │  ○   │  ○   │             ││
│  │ ▼ System                │      │      │      │ 4 groups    ││
│  │   ├─ System Settings    │  ○   │  ○   │  ●   │             ││
│  │   ├─ Users              │  ○   │  ○   │  ●   │             ││
│  │   └─ Role Profiles      │  ○   │  ○   │  ●   │             ││
│  └─────────────────────────────────────────────────────────────┘│
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Duplicate: Clone existing profile as starting point.

[!TIP] Search Modules: Find specific modules quickly.

[!WARNING] Users Assigned: Cannot delete profile with assigned users.

---

4. Configuration Sections

Basic Information

Field	Description
Profile Name	Display name
Description	Purpose explanation

Permissions Matrix

Column	Description
Module	System module/feature
Full Control	Create, read, update, delete
Read Only	View only, no changes
No Access	Hidden from user

---

5. Settings Reference

Permission Levels

Level	Icon	Capabilities
Full Control	●	Create, Read, Update, Delete
Read Only	●	Read only
No Access	●	Hidden

Module Groups

Group	Modules
Dashboard	Main dashboard, widgets
Telephony	Extensions, Ring Groups, Queues
Routing	Inbound, Outbound, IVR
Gateways	Trunks, Carriers
Reports	CDR, Statistics
System	Settings, Users, Profiles

Default Profiles

Profile	Description
Administrator	Full access to everything
Operator	Day-to-day operations
User	Basic read access

---

6. Common Scenarios & Examples

Scenario 1: Create Operator Role

1. Click “Create Profile”
2. Name = “Operator”
3. Description = “Day-to-day operations”
4. Set Extensions = Full Control
5. Set Ring Groups = Full Control
6. Set System Settings = No Access
7. Set Users = No Access
8. Save

Scenario 2: Read-Only Auditor

1. Click “Create Profile”
2. Name = “Auditor”
3. Set all modules = Read Only
4. Save

Scenario 3: Duplicate and Modify

1. Find existing profile
2. Click Duplicate
3. Rename to new name
4. Adjust permissions
5. Save

Scenario 4: Department-Specific Role

1. Create new profile
2. Name = “Sales Manager”
3. Full Control: Extensions, Queues, CDR
4. Read Only: Ring Groups
5. No Access: System, Gateways
6. Save

---

Model Context Protocol (MCP) AI Integration

The Ring2All PBX platform provides specialized Model Context Protocol (MCP) tools for inspecting RBAC Role Profiles and permission matrices via AI assistants.

MCP Tools Reference

Tool Name	Operation	Description	Risk Level
list_role_profiles	Read	Lists all RBAC Role Profiles with user count, system flags, and descriptions.	Low
get_role_profile_status	Read	Retrieves detailed module-by-module permission rules and assignment metrics for a specific role.	Low

JSON Schema Definitions

list_role_profiles

{
  "name": "list_role_profiles",
  "description": "Lists all RBAC Role Profiles configured for the tenant, including system status and user counts.",
  "parameters": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter by role profile name or description"
      }
    }
  }
}

get_role_profile_status

{
  "name": "get_role_profile_status",
  "description": "Retrieves detailed configuration and permissions matrix of an RBAC Role Profile.",
  "parameters": {
    "type": "object",
    "properties": {
      "role_id": {
        "type": "number",
        "description": "Internal numeric role profile identifier"
      },
      "name": {
        "type": "string",
        "description": "Role profile name (e.g. 'Administrator', 'Standard User')"
      }
    }
  }
}

Natural Language Prompt Examples

English

• “List all role profiles and show how many users are assigned to each.”
• “Check the permissions matrix of the ‘VoIP Technician’ role profile.”
• “Which role profiles have Full Control access to the Gateways and Outbound Routes modules?”

Spanish

• “Muestra todos los perfiles de roles y cuántos usuarios tienen asignados.”
• “Consulta la matriz de permisos para el perfil ‘Operador de Call Center’.”
• “¿Qué perfiles de rol tienen permisos de eliminación en el módulo de Extensiones?”

Enterprise Safeguards & Guardrails

1. System Profile Immutability: Built-in system profiles (such as Super Administrator) cannot be modified or deleted through programmatic tools.
2. Referential Integrity Enforcement: A role profile cannot be deleted if active users remain assigned to it.
3. Tenant Boundary Enforcement: Queries are automatically filtered by tenant_id, preventing cross-tenant inspection of custom role structures.

---

7. Limitations & Important Notes

System Protections & Referential Integrity

[!IMPORTANT] Strict System Role Immutability: Core system profiles (such as Super Administrator and Default Admin) are protected system entities. They cannot be deleted or renamed.

[!WARNING] Referential Integrity on Deletion: The API strictly enforces referential integrity. A Role Profile cannot be deleted if it is currently assigned to one or more active users in the system. The platform will block the deletion request and inform the administrator of how many active user accounts are currently bound to that profile. To delete a profile, you must first reassign its users to an alternative profile.

Dual-Layer Security: Role Profiles vs. AI Tool Profiles

Role Profiles operate hand-in-hand with AI Tool Profiles (Admin → AI → Tool Profiles):

• Role Profiles: Govern what the human user can view, edit, or delete through the Web UI and Fastify REST API endpoints.
• AI Tool Profiles: Govern what the AI Platform Copilot is authorized to execute autonomously on behalf of that user via Model Context Protocol (MCP) tools.

Best Practices

1. Least Privilege Principle: Grant minimum required access per operational responsibility.
2. Document Roles: Provide concise, clear descriptions for all custom profiles.
3. Regular Audit: Review assigned user counts and permissions quarterly.
4. Use Duplicate: Duplicate existing baseline profiles rather than creating complex matrices from scratch.

Permission Matrix Precedence

Selected Level	Menu Visibility	REST API Access	In-Form Actions
Full Control	Visible	GET, POST, PUT, DELETE	Create, Edit, Delete, Duplicate
Read Only	Visible	GET only	View details, copy, search (inputs disabled)
No Access	Completely Hidden	403 Forbidden	Blocked

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Can’t delete profile	Users assigned	Reassign users first
Menu not visible	No Access set	Grant Read or Full
Can’t edit	Read Only access	Need Full Control
Search not working	Wrong module name	Check spelling

Check Profile Assignments

SELECT
  u.username,
  r.name AS role_profile
FROM public.users u
JOIN public.role_profiles r ON r.id = u.role_profile_id
ORDER BY r.name;

Verify Permissions

1. Assign role to test user
2. Login as test user
3. Verify menu visibility
4. Test create/edit operations

---

9. Glossary

Term	Definition
Role Profile	Permission set
Permissions Matrix	Module access grid
Full Control	Complete access
Read Only	View only access
No Access	Hidden/blocked
Inheritance	Permission from parent

---

Documentation last updated: January 2026
