GeoFirewall Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. User Roles & Key Capabilities
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Geo Firewall module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login) with administrative credentials.
2. In the left navigation sidebar, locate and expand Admin.
3. Under the Firewall section, click Geo Firewall (/admin/firewall/geo).
4. Interact directly with the SVG world map by clicking countries to toggle between Allowed (green) and Blocked (red), or use the country search selector at the top right.
5. Use the map zoom (+ / -) and reset controls at the bottom left to navigate regions.
6. Click Save in the bottom action bar to apply geographic IP filtering rules into the system firewall.

---

Screenshots & Visual Interface

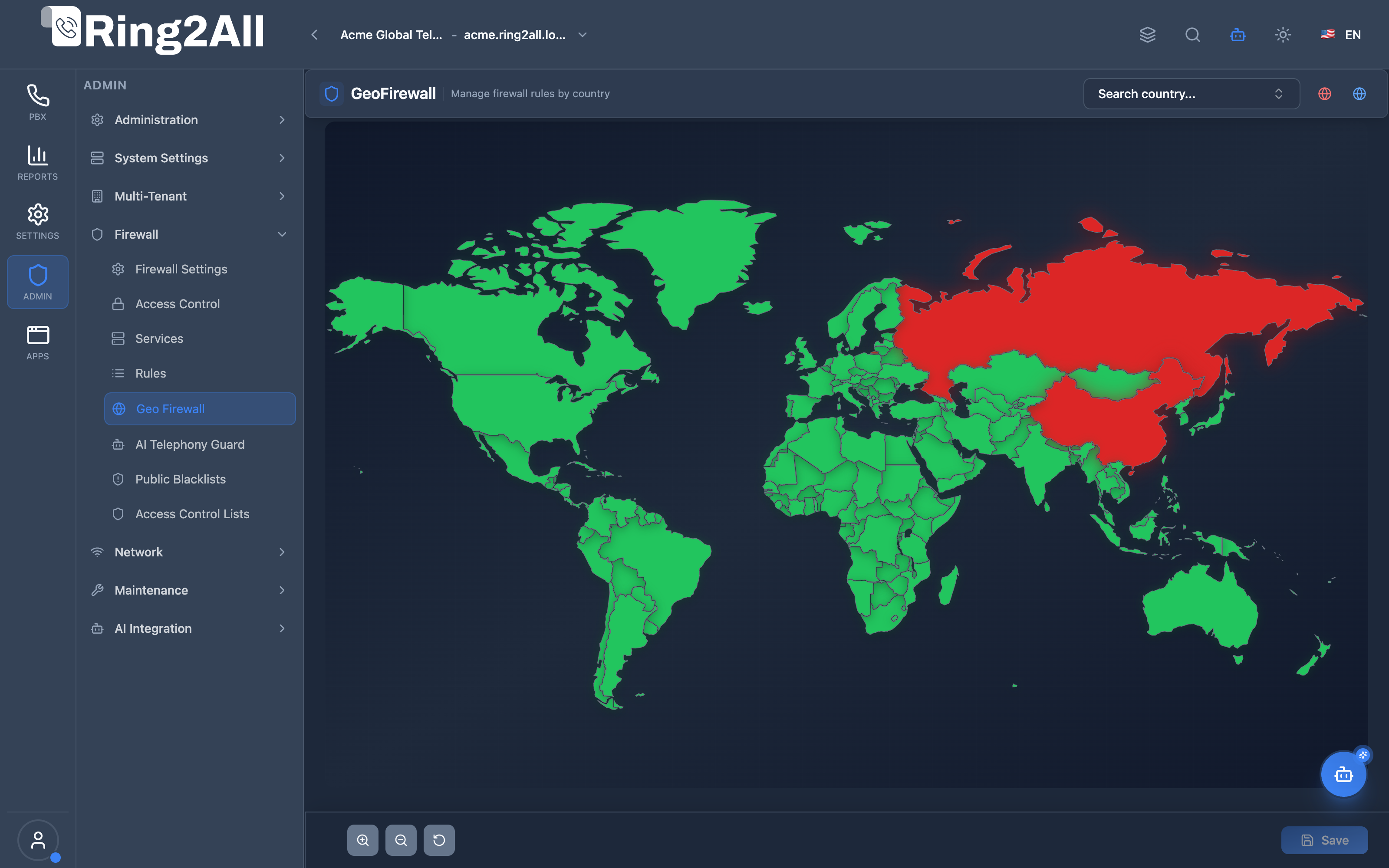

Geo Firewall Interactive World Map

The Geo Firewall module renders a high-performance interactive vector world map where countries are color-coded in real time according to their traffic admission status. Blocked high-risk jurisdictions are highlighted in red, allowed traffic origins in green, and changes can be inspected and committed dynamically.

---

1. Module Overview (Technical)

What Is GeoFirewall?

GeoFirewall is a country-based firewall module that creates rules based on geographic IP ranges. It provides an interactive world map for country selection and supports both blocking and allowing traffic by country.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              GeoFirewall Architecture                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Interactive World Map                                          │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │                                                          │   │
│  │    ┌─────┐ ┌─────┐ ┌─────┐ ┌─────┐ ┌─────┐             │   │
│  │    │ 🟢  │ │ 🔴  │ │ 🔴  │ │ ⚪  │ │ 🟢  │             │   │
│  │    │ USA │ │ CN  │ │ RU  │ │ BR  │ │ UK  │             │   │
│  │    └─────┘ └─────┘ └─────┘ └─────┘ └─────┘             │   │
│  │                                                          │   │
│  │  🟢 Allowed   🔴 Blocked   ⚪ Unselected                 │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Generates rules                                        │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        GeoFirewall Rules                                 │   │
│  │                                                          │   │
│  │  ┌────────────────┐  ┌────────────────┐                 │   │
│  │  │ Block China    │  │ Block Russia   │                 │   │
│  │  │ Country: CN    │  │ Country: RU    │                 │   │
│  │  │ Action: Block  │  │ Action: Block  │                 │   │
│  │  │ Priority: 100  │  │ Priority: 110  │                 │   │
│  │  └────────────────┘  └────────────────┘                 │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied to nftables with GeoIP                        │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Linux Firewall (nftables + GeoIP)                 │   │
│  │                                                          │   │
│  │  table inet geo_filter {                                │   │
│  │    chain input {                                        │   │
│  │      # Block China                                       │   │
│  │      ip saddr @geoip_cn drop                            │   │
│  │      # Block Russia                                      │   │
│  │      ip saddr @geoip_ru drop                            │   │
│  │    }                                                     │   │
│  │  }                                                       │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

GeoFirewall provides geographic access control:

Without GeoFirewall	With GeoFirewall
No geo blocking	Block by country
IP range research	Visual map selection
Manual ranges	Auto GeoIP updates
Complex setup	Click to block

Use Cases

1. Block Attack Origins

   • Block high-risk countries
   • Reduce SIP scanning

2. Regional Service

   • Allow only service region
   • Restrict global access

3. Compliance

   • Geographic restrictions
   • Data sovereignty

4. Cost Control

   • Block toll fraud countries
   • Limit international access

Feature Highlights

Feature	Benefit
Interactive Map	Visual selection
Block/Allow	Flexible actions
Bulk Operations	Select/deselect all
Enable/Disable	Quick toggle
Priority Order	Controlled evaluation
GeoIP Database	Accurate IP mapping

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Block countries by clicking on map
• Allow only specific countries
• Search for countries
• Select/deselect all countries
• Enable/disable all rules
• Set rule priority
• Apply rules to firewall

GeoFirewall Interface - Map View

┌─────────────────────────────────────────────────────────────────┐
│              GeoFirewall                                        │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Manage firewall rules by country                              │
│                                                                 │
│  [🔍 Search country...]  [GeoFirewall: ● Enabled]              │
│                                                                 │
│  [Map] [Form]                                                   │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │                                                           │  │
│  │                    WORLD MAP                              │  │
│  │                                                           │  │
│  │   ┌─────────────────────────────────────────────────────┐ │  │
│  │   │                                                     │ │  │
│  │   │    🟢 USA        🔴 CN         ⚪ IN               │ │  │
│  │   │                                                     │ │  │
│  │   │    🟢 UK         🔴 RU         ⚪ BR               │ │  │
│  │   │                                                     │ │  │
│  │   │    🟢 CA         🔴 KP         ⚪ AU               │ │  │
│  │   │                                                     │ │  │
│  │   └─────────────────────────────────────────────────────┘ │  │
│  │                                                           │  │
│  │  [+ Zoom] [- Zoom] [Reset] [Select All] [Unselect All]   │  │
│  │                                                           │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
│  Legend: 🟢 Allowed  🔴 Blocked  ⚪ Unselected                  │
│                                                                 │
│  Selected: 6 countries (3 blocked, 3 allowed)                   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

GeoFirewall Interface - Form/List View

┌─────────────────────────────────────────────────────────────────┐
│              GeoFirewall                                        │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [Map] [Form]                                                   │
│                                                                 │
│  [+ Add Rule]  [Enable All] [Disable All] [Apply Rules]        │
│                                                                 │
│  [🔍 Search rules...]                                           │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Name         │ Country    │ Action│ Direction│ Pri │ St │  │
│  ├──────────────┼────────────┼───────┼──────────┼─────┼────┤  │
│  │ Block China  │ 🇨🇳 China   │ Block │ Input    │ 100 │ ●  │  │
│  │ Block Russia │ 🇷🇺 Russia  │ Block │ Input    │ 110 │ ●  │  │
│  │ Block N.Korea│ 🇰🇵 N. Korea│ Block │ Input    │ 120 │ ●  │  │
│  │ Allow USA    │ 🇺🇸 USA     │ Allow │ Input    │ 200 │ ●  │  │
│  │ Allow UK     │ 🇬🇧 UK      │ Allow │ Input    │ 210 │ ●  │  │
│  │ Allow Canada │ 🇨🇦 Canada  │ Allow │ Input    │ 220 │ ●  │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Add/Edit Rule

┌─────────────────────────────────────────────────────────────────┐
│              Add GeoFirewall Rule                               │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Rule Name: [Block China                     ]                 │
│    Descriptive name (e.g., Block China, Allow USA)             │
│                                                                 │
│  Country: [🇨🇳 China (CN) ▼]                                    │
│    Selected from map or dropdown                                │
│    Rule applies to all traffic from/to this country            │
│                                                                 │
│  Action: [Block ▼]                                             │
│    Block (discard traffic) | Allow (permit traffic)            │
│                                                                 │
│  Direction: [Input ▼]                                          │
│    Input (to server) | Output (from server) | Forward          │
│                                                                 │
│  Priority: [100           ]                                    │
│    Rule priority (0-9999). Lower numbers evaluated first       │
│                                                                 │
│  Enabled: ✓                                                    │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Map Click: Click any country on the map to block/allow.

[!TIP] Search: Use search to quickly find countries.

[!WARNING] Don’t Block Your Country: Ensure your access isn’t blocked!

---

🎯 User Roles & Key Capabilities

The GeoFirewall module allocates country-level filtering controls across platform operational roles:

User Role	Key Permissions & Responsibilities	Common Tasks & Workflows
System Super Administrator / Security Officer	Full authority to manage global country block/allow lists, interactive map toggles, and kernel ipset bindings.	Block entire high-risk geographical zones (e.g. regions with zero legitimate business), commit rules to nftables, safeguard host country access.
Tenant Administrator	Scoped review of allowed countries to ensure international branches and teleworkers are reachable.	Verify country access status for employees traveling abroad, request targeted country exemptions from the security operations team.
Fraud Prevention Analyst / NOC	Rapid response to international toll fraud campaigns and distributed brute-force attacks.	Identify spike origins in real time, toggle targeted nations to BLOCK during live volumetric SIP sweeps, analyze geographic traffic telemetry.
Regulatory & Compliance Auditor	Auditing geographic network boundaries to satisfy cross-border telecommunication mandates.	Verify that sanctioned jurisdictions are systematically blocked at layer 3/4, inspect changes to geographic access permissions.

---

4. Configuration Sections

Rule Fields

Field	Description
Rule Name	Unique identifier
Country	Selected country
Action	Block or Allow
Direction	Input, Output, Forward
Priority	Order (0-9999)
Enabled	Active/Inactive

Map Controls

Control	Description
Zoom In	Enlarge map
Zoom Out	Shrink map
Reset	Default view
Select All	Block/allow all
Unselect All	Remove all rules

---

5. Settings Reference

Actions

Action	Behavior	Use Case
Block	Drop all traffic	High-risk countries
Allow	Permit traffic	Service regions

Common Blocked Countries (High SIP Attacks)

Country	Code	Risk Level
China	CN	High
Russia	RU	High
North Korea	KP	High
Iran	IR	Medium
Vietnam	VN	Medium
Indonesia	ID	Medium

Regional Allow Lists

Region	Countries
North America	US, CA, MX
Western Europe	UK, DE, FR, ES, IT
APAC Business	JP, AU, SG, KR

---

6. Common Scenarios & Examples

Scenario 1: Block High-Risk Countries

1. Open GeoFirewall
2. Click on China → Block
3. Click on Russia → Block
4. Click on North Korea → Block
5. Apply Rules

Scenario 2: Allow Only USA

1. Click “Select All” → Block All
2. Click on USA → Allow
3. Set priority (Allow lower than Block)
4. Apply Rules

Scenario 3: Block Toll Fraud Origins

1. Identify high-risk countries for toll fraud
2. Block: Cuba, Somalia, Guinea-Bissau
3. Block: Mauritania, Sierra Leone
4. Apply Rules
5. Monitor CDR for anomalies

Scenario 4: Regional Service

Allow Rules (Priority 10-100):
├─ USA (10)
├─ Canada (20)
├─ UK (30)
├─ Germany (40)
└─ France (50)

Block Rule (Priority 9999):
└─ All others (catch-all)

---

7. Limitations & Important Notes

Technical Notes

[!NOTE] GeoIP Database: Accuracy depends on database updates.

[!NOTE] VPN/Proxy: Users can bypass with VPNs.

[!WARNING] Self-Block: Don’t block your own country!

Best Practices

1. Know Your Users: Don’t block legitimate users
2. Allow First: Create allow rules with lower priority
3. Test Access: Verify after applying rules
4. Update Database: Keep GeoIP current
5. Monitor Logs: Watch for blocked traffic

GeoIP Limitations

Limitation	Impact
VPN bypass	Users appear from VPN country
CDN/Cloud	IP may show as different country
Accuracy	~95-99% for countries
Updates	Need periodic database refresh

---

Model Context Protocol (MCP) AI Integration

The GeoFirewall module connects directly to the Ring2All Platform Copilot MCP Server, enabling natural language geographic IP policy inspection and management:

🛠️ Available MCP Tools

Tool Name	Operation	Access Level	Description	Key Parameters
list_geofirewall_rules	Read	SuperAdmin / Auditor	Lists country-level GeoFirewall rules, displaying country code, country name, action (block or allow), direction, and enabled state.	search (string), action (accept, drop, allow, block), direction (input, output), countryCode (string), enabled (boolean)
list_firewall_rules	Read	SuperAdmin / Auditor	Inspects general packet filtering rules that interact with geographic sets.	search (string, optional)
get_voipbl_status	Read	SuperAdmin / Auditor	Returns status of threat intelligence blocklists working alongside GeoIP filtering.	None

📋 JSON Tool Schemas & Sample Executions

list_geofirewall_rules

{
  "name": "list_geofirewall_rules",
  "arguments": {
    "action": "block"
  }
}

Sample Successful Response:

{
  "success": true,
  "data": {
    "total": 2,
    "rules": [
      {
        "id": 1,
        "name": "Block High-Risk Eastern Europe",
        "countryCode": "RU",
        "countryName": "Russian Federation",
        "action": "block",
        "direction": "input",
        "priority": 50,
        "enabled": true
      },
      {
        "id": 2,
        "name": "Block High-Risk Asia Scanners",
        "countryCode": "CN",
        "countryName": "China",
        "action": "block",
        "direction": "input",
        "priority": 50,
        "enabled": true
      }
    ]
  }
}

💬 Natural Language Prompt Examples

English Prompts

• “List all countries currently blocked by the PBX GeoFirewall.”
• “Check if traffic from Mexico (country code MX) is allowed or blocked.”
• “Show all active GeoFirewall rules with high priority (priority <= 50).”
• “Verify whether any inbound GeoFirewall rule blocks the United States (US).”

Ejemplos en Español (Spanish Prompts)

• “Lista todos los países actualmente bloqueados por el GeoFirewall de la centralita.”
• “Verifica si el tráfico procedente de México (código MX) está permitido o bloqueado.”
• “Muestra todas las reglas de GeoFirewall activas con prioridad alta (prioridad <= 50).”
• “Comprueba si alguna regla entrante de GeoFirewall bloquea a Estados Unidos (US).”

🛡️ Enterprise Safeguards & Best Practices

1. Home Country Lockout Safeguard: System initialization verifies that the host server’s local country and primary operating jurisdiction are not set to block, preventing accidental administrative lockout.
2. Kernel ipset Efficiency: Country IP blocks are aggregated into high-performance kernel sets (nftables set), allowing millions of IPv4/IPv6 subnets to be evaluated in O(1) CPU lookup time.
3. Database Freshness: GeoIP subnet mappings are continuously updated against verified MaxMind GeoLite2 databases to prevent stale ISP classification errors.

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Blocked unexpectedly	Wrong country blocked	Check rules
Can’t connect	Own country blocked	Console access
Still getting attacks	VPN/proxy	Add IP blacklist
Map not loading	Library missing	Check npm install

Check Rules

SELECT
  name,
  country_code,
  action,
  direction,
  priority,
  is_enabled
FROM public.geo_firewall_rules
ORDER BY priority;

GeoIP Lookup

# Check IP country
geoiplookup 8.8.8.8

# View GeoIP database info
geoiplookup -v

Emergency Recovery

# If blocked yourself:
# 1. Access server console
# 2. Disable GeoFirewall
systemctl stop nftables

# 3. Fix rules via admin panel
# 4. Re-enable
systemctl start nftables

---

9. Glossary

Term	Definition
GeoIP	IP to country mapping
GeoFirewall	Country-based firewall
Block	Deny traffic
Allow	Permit traffic
Country Code	ISO 3166-1 alpha-2

---

Documentation last updated: January 2026
