Gateway SIP Profiles Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. User Roles & Key Capabilities
7. Configuration Sections
8. Settings Reference
9. Common Scenarios & Examples
10. Limitations & Important Notes
11. Troubleshooting Tips
12. Glossary
13. Model Context Protocol (MCP) AI Integration

---

Navigation & Access

To access the Gateway Profiles configuration module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand Settings.
3. Under Technology, click Gateway Profiles (/settings/technology/gateway-profile).
4. To create a new carrier trunking profile template, click + Add Profile (/settings/technology/gateway-profile/new). To edit an existing profile, click on the profile row or the Edit action button (/settings/technology/gateway-profile/:id).

---

Screenshots & Visual Interface

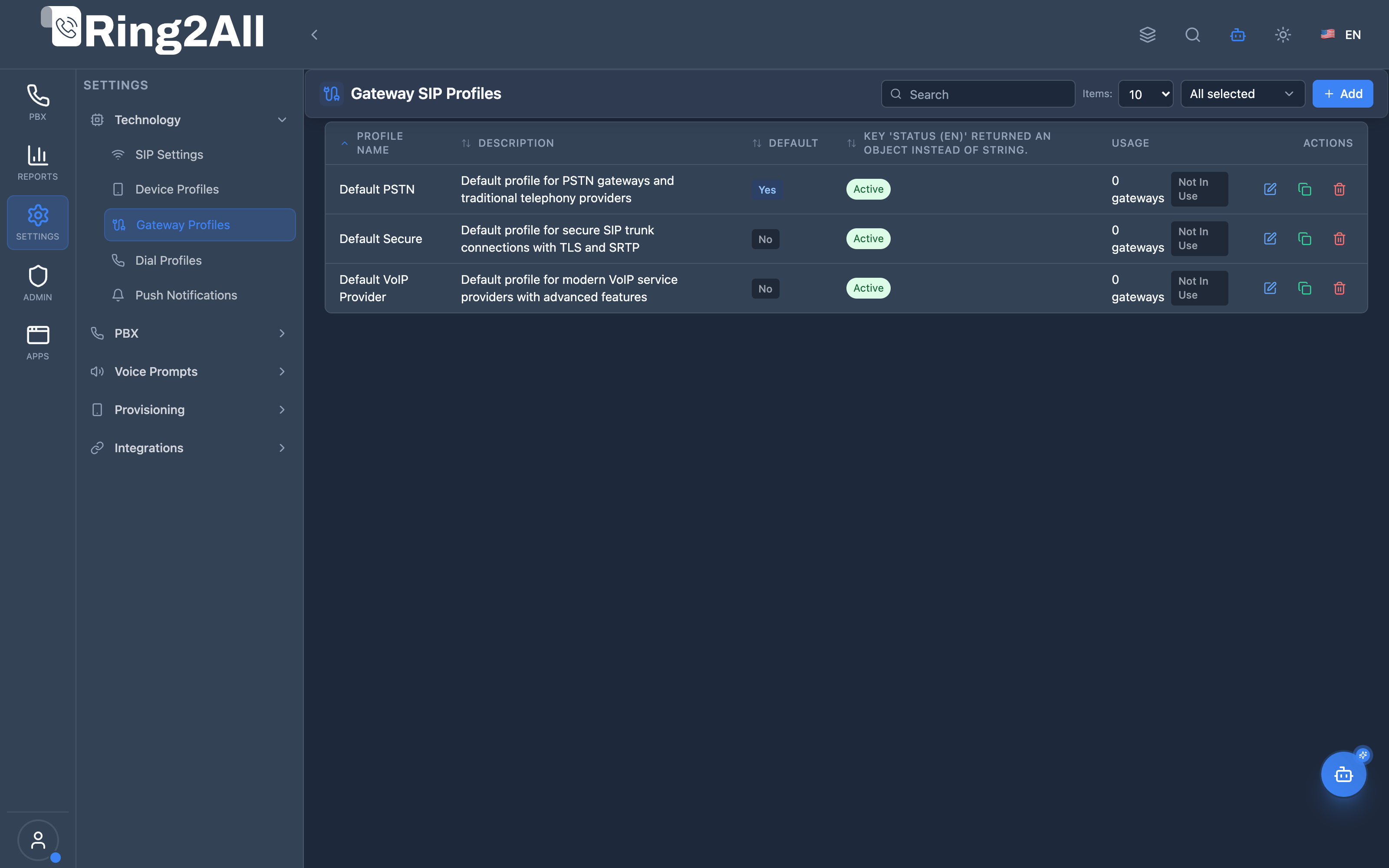

Gateway Profiles Directory

Overview of trunking gateway profiles configured across the platform, displaying profile names, descriptions, associated carrier categories, and last modified timestamps.

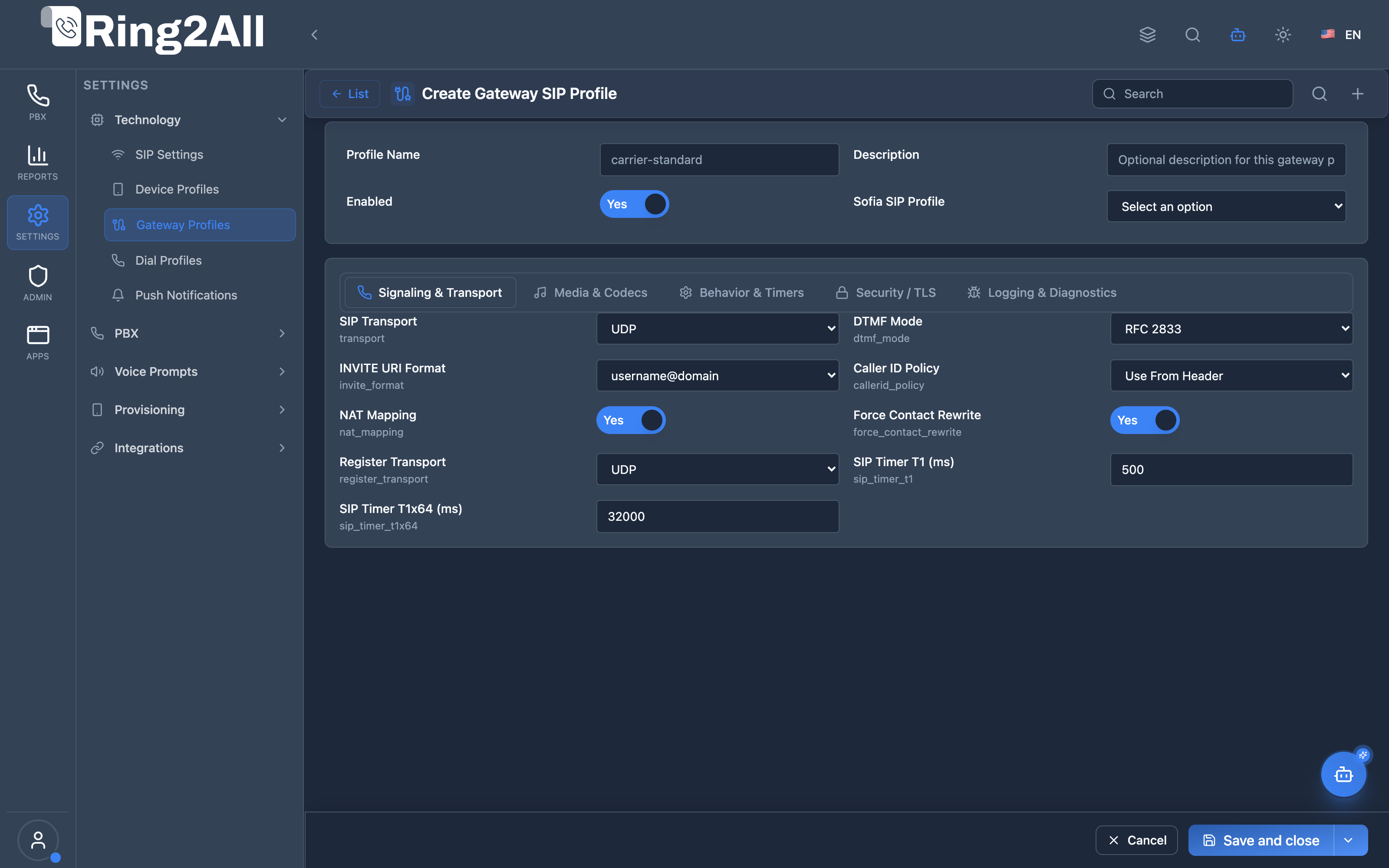

Gateway Profile Configuration Form

Detailed template management form allowing administrators to establish default carrier parameters such as registration intervals, SIP auth realm settings, caller ID formatting, outbound proxy configurations, and codec lists.

---

1. Module Overview (Technical)

What Are Gateway SIP Profiles?

Gateway SIP Profiles are configuration templates for SIP trunks and carriers. They define transport, codec, NAT, security, and behavior settings that are applied to gateways. This allows standardized configuration across multiple carriers with similar requirements.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│              Gateway SIP Profiles Architecture                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Admin Panel                                                    │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Gateway SIP Profiles                              │   │
│  │                                                          │   │
│  │  Templates:                                              │   │
│  │  ├─ Standard Carrier (UDP, no NAT)                      │   │
│  │  ├─ NAT-Safe Carrier (TCP, NAT rewrite)                 │   │
│  │  └─ Secure Carrier (TLS, SRTP)                          │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Assigned to gateways                                   │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Gateways Module                                   │   │
│  │                                                          │   │
│  │  Twilio Gateway → NAT-Safe Carrier profile              │   │
│  │  AT&T SIP Trunk → Standard Carrier profile              │   │
│  │  Internal PBX → Secure Carrier profile                  │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Applied to gateway XML                                 │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Telephony Server                                        │   │
│  │                                                          │   │
│  │  <gateway name="twilio">                                │   │
│  │    <!-- Profile settings applied -->                    │   │
│  │    <param name="proxy" value="..."/>                    │   │
│  │    <param name="register-transport" value="tcp"/>       │   │
│  │    <param name="NDLB-force-rport" value="true"/>        │   │
│  │  </gateway>                                              │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Gateway SIP Profiles provides standardized trunk configuration:

Without Gateway Profiles	With Gateway Profiles
Configure each gateway	Template once, apply many
Inconsistent settings	Standardized config
Repetitive work	Reusable templates
Hard to maintain	Easy updates

Use Cases

1. Multi-Carrier Deployment

   • Standard templates for each carrier type
   • Quick gateway setup

2. NAT Handling

   • Pre-configured NAT templates
   • Reliable remote carriers

3. Security Standards

   • TLS/SRTP templates
   • Enforce security policies

4. Video Calling

   • Video codec profiles
   • Carrier-specific video

Feature Highlights

Feature	Benefit
Templates	Reusable configurations
Transport Options	UDP, TCP, TLS
Codec Control	Audio + Video
NAT Settings	Contact rewrite
T.38 Fax	Carrier fax support
Security	TLS, SRTP options
Debugging	SIP trace, logging

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create gateway profile templates
• Configure transport protocols
• Set codec preferences (audio + video)
• Configure NAT handling
• Enable security (TLS, SRTP)
• Set timers and session limits
• Enable debugging/tracing

Gateway SIP Profiles Interface

┌─────────────────────────────────────────────────────────────────┐
│              Gateway SIP Profiles                               │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  [+ Create Gateway Profile]                                     │
│                                                                 │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Profile Name       │ Description         │ Usage │ Status│  │
│  ├────────────────────┼─────────────────────┼───────┼───────┤  │
│  │ Standard Carrier   │ Basic UDP trunks    │ 5 gw  │ ✓ On  │  │
│  │ NAT-Safe Carrier   │ Cloud/NAT carriers  │ 3 gw  │ ✓ On  │  │
│  │ Secure Carrier     │ TLS + SRTP trunks   │ 2 gw  │ ✓ On  │  │
│  │ Video Enabled      │ Video SIP trunks    │ 1 gw  │ ✓ On  │  │
│  │ Fax Optimized      │ T.38 fax carriers   │ 1 gw  │ ✓ On  │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Profile Edit View

┌─────────────────────────────────────────────────────────────────┐
│              Edit Gateway Profile: NAT-Safe Carrier             │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Profile Name: [NAT-Safe Carrier                ]               │
│  Description: [For cloud and NAT carriers       ]               │
│  Sofia Profile: [external ▼]                                    │
│  Enabled: ✓                                                     │
│                                                                 │
│  ▼ Signaling & Transport                                        │
│  ├─ SIP Transport: [TCP ▼]                                     │
│  ├─ DTMF Mode: [RFC 2833 ▼]                                    │
│  ├─ INVITE URI Format: [username@domain ▼]                     │
│  ├─ Caller ID Policy: [Use From Header ▼]                      │
│  ├─ NAT Mapping: ✓                                             │
│  ├─ Force Contact Rewrite: ✓                                   │
│  └─ Register Transport: [TCP ▼]                                │
│                                                                 │
│  ▼ Media & Codecs                                               │
│  ├─ Audio Codecs: [PCMU, PCMA, G729, G722 📝]                  │
│  ├─ Video Codecs: [None                     ]                  │
│  ├─ Allow Video: ☐                                             │
│  ├─ RTP Proxy: ✓                                               │
│  ├─ T.38 Fax Support: ✓                                        │
│  └─ Packetization Time: [20 ▼]                                 │
│                                                                 │
│  ▼ Behavior & Timers                                            │
│  ├─ Session Timer: [1800                    ]                  │
│  ├─ Session Refresher: [Auto ▼]                                │
│  ├─ Codec Negotiation: [Generous ▼]                            │
│  ├─ Media Timeout: [300                     ]                  │
│  └─ Max Concurrent Sessions: [100           ]                  │
│                                                                 │
│  ▶ Security / TLS                                               │
│  ▶ Logging & Diagnostics                                        │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Codec Order: Drag codecs to set priority order.

[!TIP] NAT Issues: Enable NAT Mapping and Contact Rewrite for cloud carriers.

[!NOTE] Usage Count: Shows how many gateways use this profile.

---

🎯 User Roles & Key Capabilities

Role	Permissions	Key Capabilities
Super Administrator	Full Access (read, write, delete)	Configure carrier SIP trunk profiles, manage TLS/SRTP cipher suites, and define global PSTN interconnect defaults.
VoIP / Trunking Engineer	Trunk Management (read, write)	Set registration retry intervals, configure T.38 fax relay parameters, adjust session timers, and bind SIP gateways to profiles.
Support Specialist	Read & Diagnostic (read)	Verify carrier gateway associations, inspect NAT traversal policies, and check codec negotiation order.
Tenant Administrator	Restricted Read	View tenant-assigned gateway profile templates in partitioned environments.

---

4. Configuration Sections

Signaling & Transport

Setting	Description
SIP Transport	UDP, TCP, or TLS
DTMF Mode	RFC2833, INFO, In-band, Auto
INVITE URI Format	username@domain, E.164, user-only
Caller ID Policy	From, PAI, RPID
NAT Mapping	Enable NAT contact rewrite
Force Contact Rewrite	Always rewrite Contact
Register Transport	Registration protocol
SIP Timer T1	Base retransmit timer
SIP Timer T1x64	Max retransmit timeout

Media & Codecs

Setting	Description
Audio Codecs	PCMU, PCMA, G729, G722, OPUS, etc.
Video Codecs	VP8, H264, H263, AV1
Allow Video	Enable video negotiation
RTP Proxy	Force media through FS
Force RTP Proxy	Always proxy RTP
RTP IP	RTP bind address
External RTP IP	Public IP for NAT
RTCP Interval	RTCP report interval
Packetization Time	Audio packet size (ms)
T.38 Support	Enable T.38 fax
Media Timeout	RTP timeout (seconds)

Behavior & Timers

Setting	Description
Session Timer	Max session duration
Session Refresher	UAC, UAS, or Auto
Codec Negotiation	Greedy or Generous
Media Timeout Mode	Drop or Ignore
Max Sessions	Concurrent call limit
Hold Music	MOH source

Security / TLS

Setting	Description
Enable TLS	TLS signaling
TLS Verify Policy	None, Peer, Self-signed, Optional
TLS Version	1.0, 1.1, 1.2, 1.3
Certificate Directory	Path to certs
TLS Passphrase	Key passphrase
Secure RTP Mode	Always, Optional, Never
Require Secure Media	Enforce SRTP

Logging & Diagnostics

Setting	Description
Debug Level	0-9 verbosity
Log Auth Failures	Track auth errors
SIP Trace	Packet tracing

---

5. Settings Reference

Common Profile Types

Profile Type	Key Settings
Standard Carrier	UDP, no NAT, basic codecs
NAT-Safe Carrier	TCP, NAT mapping, contact rewrite
Secure Carrier	TLS, SRTP required
Video Enabled	Video codecs, allow video
Fax Optimized	T.38 enabled, PCMU/PCMA only

Transport Selection

Transport	Use Case
UDP	Standard carriers, low latency
TCP	Large packets, NAT traversal
TLS	Security required

Codec Negotiation

Mode	Behavior
Greedy	Use your preferred order
Generous	Accept peer’s preference

---

6. Common Scenarios & Examples

Scenario 1: Cloud Carrier (Twilio/Vonage)

1. Create new profile
2. Set Transport = TCP
3. Enable NAT Mapping
4. Enable Force Contact Rewrite
5. Set codecs = PCMU, PCMA, G722
6. Save and assign to gateway

Scenario 2: Secure Enterprise Trunk

1. Create new profile
2. Set Transport = TLS
3. Enable TLS, set version = 1.2+
4. Enable SRTP = Always
5. Require Secure Media = Yes
6. Save and assign

Scenario 3: Video SIP Trunk

1. Create new profile
2. Set audio codecs
3. Add video codecs = VP8, H264
4. Enable Allow Video
5. RTP Proxy = True (if NAT)
6. Save and assign

Scenario 4: Fax-Optimized Carrier

1. Create new profile
2. Set codecs = PCMU, PCMA only
3. Enable T.38 Support = True
4. Disable video
5. Session timer = 300 (short for fax)
6. Save and assign

---

7. Limitations & Important Notes

Technical Notes

[!NOTE] Profile Assignment: Profiles are assigned in Gateways module.

[!NOTE] Sofia Profile: Must select base profile (internal/external).

[!WARNING] Cannot Delete In-Use: Profiles with assigned gateways cannot be deleted.

Best Practices

1. Create Per Carrier Type: Different profiles for different carriers
2. Test Thoroughly: Verify settings before production
3. Use NAT Settings: Enable for cloud/SBC carriers
4. Optimize Codecs: Match carrier requirements
5. Enable Debugging: Use SIP trace for troubleshooting
6. Document Profiles: Note what each profile is for

---

8. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Registration fails	Wrong transport	Check carrier requirements
One-way audio	NAT/RTP issues	Enable RTP Proxy, NAT Mapping
Audio quality	Wrong codec	Match carrier codecs
Fax fails	No T.38	Enable T.38 Support
TLS fails	Cert issues	Check TLS settings
DTMF not working	Wrong mode	Try RFC2833 vs INFO

Carrier Compatibility Checklist

Setting	Check
Transport	Match carrier (UDP/TCP/TLS)
Codecs	Support carrier’s codecs
DTMF	Match carrier’s method
NAT	Enable if behind firewall
T.38	Enable if carrier supports

Debug Workflow

1. Enable SIP Trace for profile
2. Reproduce issue
3. Check Telephony Server logs
4. Look for SIP errors
5. Adjust settings
6. Disable trace when done

---

9. Glossary

Term	Definition
Gateway Profile	SIP settings template for trunks
SIP Trunk	Connection to carrier/PSTN
T.38	Fax over IP protocol
SRTP	Secure Real-time Transport Protocol
NAT Mapping	Rewrite addresses for NAT
Codec Negotiation	How codecs are chosen
Session Timer	Call duration refresh
RTP Proxy	Media through Telephony Server

---

Model Context Protocol (MCP) AI Integration

The Ring2All PBX platform integrates deep AI assistance via the Model Context Protocol (MCP). The Gateway SIP Profiles module allows the PBX AI Copilot to safely inspect trunking templates, analyze carrier interoperability parameters, and diagnose codec negotiation or NAT traversal configuration issues across SIP trunks.

Available MCP Tools

Tool Name	Operation Type	RBAC Risk Level	Description
list_gateway_sip_profiles	Read / Query	low	Lists Gateway SIP Profiles (SIP trunk configuration templates for inbound/outbound carriers) with tenant/domain isolation.

Tool Input Schemas & Parameters

1. list_gateway_sip_profiles

{
  "name": "list_gateway_sip_profiles",
  "description": "List Gateway SIP Profiles (SIP trunk configuration templates for inbound/outbound carriers).",
  "inputSchema": {
    "type": "object",
    "properties": {
      "search": {
        "type": "string",
        "description": "Filter by gateway profile name or description (e.g. 'Twilio', 'Bandwidth', 'Telnyx')."
      }
    }
  }
}

Natural Language Prompts

User Request	Invoked MCP Tool	Expected AI Response
“Show me all configured gateway SIP profiles.”	list_gateway_sip_profiles	Lists profiles with associated gateways count, base Sofia profile, and enabled status.
“Which gateway profile is configured for our primary carrier?”	list_gateway_sip_profiles({ search: "Carrier" })	Retrieves matching carrier profile with codec, NAT, and session timer details.
“Are any gateways currently assigned to the default trunk profile?”	list_gateway_sip_profiles	Reports the _count.gateways metric for each profile to avoid deleting profiles in active use.

Multi-Tenant & Security Safeguards

• Strict Domain Isolation: Gateway profiles are partitioned by domain (domain_id) or global system level (domain_id IS NULL), preventing cross-tenant leakage.
• Reference Integrity Enforcement: Profiles in active use by SIP trunks cannot be deleted until all assigned gateways are reassigned.
• Credential Protection: Gateway profile templates define transport and media policies; carrier passwords and SIP auth secrets remain secured in the gateways table.
• Audit Logging: All gateway profile queries and updates are logged in the central security audit log.

---

Documentation last updated: January 2026
