1. Overview & Chain Architecture

In Ring2All SBC, the Firewall Rules module provides granular, priority-ordered packet filtering governance directly integrated with the Linux kernel’s nftables subsystem. Operating at OSI Layers 3 and 4, the rules engine enforces a strict Default-Deny security posture: all ingress traffic is evaluated sequentially against prioritized acceptance criteria, with non-matching packets dropped at the final catch-all rule.

                  ┌─────────────────────────────────────────────────┐
                  │           INCOMING NETWORK PACKET (NIC)         │
                  └────────────────────────┬────────────────────────┘
                                           │
       ┌───────────────────────────────────▼───────────────────────────────────┐
       │                   NFTABLES INPUT CHAIN EVALUATION                     │
       ├──────────┬──────────────────────────────────────────┬─────────────────┤
       │ Priority │ Rule Description                         │ Action          │
       ├──────────┼──────────────────────────────────────────┼─────────────────┤
       │    1     │ Allow Loopback (127.0.0.0/8)             │ ACCEPT (Exit)   │
       │    2     │ Allow Established & Related Connections  │ ACCEPT (Exit)   │
       │   10     │ Allow SSH (Port 22)                      │ ACCEPT (Exit)   │
       │   15     │ Allow ICMP Ping                          │ ACCEPT (Exit)   │
       │   16     │ Allow WireGuard VPN (Port 51820)         │ ACCEPT (Exit)   │
       │   20     │ Allow HTTPS Web UI (Port 443)            │ ACCEPT (Exit)   │
       │   25     │ Allow SBC Admin API (10.0.0.0/8)         │ ACCEPT (Exit)   │
       │   40     │ Allow SIP Signaling (Ports 5060/5080)    │ ACCEPT (Exit)   │
       │   50     │ Allow RTP Media (Ports 10000-20000)      │ ACCEPT (Exit)   │
       │   71     │ Allow PostgreSQL (10.0.0.0/8)            │ ACCEPT (Exit)   │
       │  100     │ Drop All Other Input Traffic             │ DROP (Term)     │
       └──────────┴──────────────────────────────────────────┴─────────────────┘

The graphical user interface abstracts complex nftables tables, sets, and verdict statements into an intuitive, prioritized DataGrid that validates CIDR boundaries, service objects, and rule ordering prior to atomic kernel application.

---

2. Business & Operational Significance

• Carrier-Grade Defense-in-Depth: Safeguards telecommunications infrastructure by ensuring internal administration services (PostgreSQL, SBC Admin API) are completely shielded from public Internet interfaces.
• Deterministic Priority Processing: Enforces sequential numeric evaluation (Priority 1 through 100), ensuring that stateful connection tracking and loopback exemptions take precedence before compute-heavy inspection rules.
• Atomic Zero-Downtime Reconfiguration: Compiles and injects rule changes into the Linux kernel atomically via nft -f, eliminating packet leakage or temporary network blackouts during rule updates.
• Strict Source Subnet Whitelisting: Allows administrators to restrict sensitive ports exclusively to authorized NOC subnets, preventing lateral exploit propagation across hybrid cloud topologies.

---

3. 🎯 User Roles & Key Capabilities

Role	Primary Use Case	Key Capabilities
SBC Security Administrator	Perimeter Rule Authoring	Define ingress/egress filtering rules, associate named services, specify source CIDR constraints, and order rule priorities.
Network Infrastructure Engineer	Trunk & Media Port Routing	Provision rules permitting RTP media stream ranges, allocate SIP external ports, and verify WireGuard tunnel access.
SecOps Compliance Officer	Access Control Audit	Audit firewall rule tables, verify the presence of the default-drop terminus, and validate private-subnet restrictions.
DevOps Engineer	Automated Deployment	Re-apply rule configurations across secondary cluster nodes following software provisioning.
AI Firewall Policy Engineer / NOC Copilot	Packet Filter Auditing & State Toggle	Inspect active firewall rules in priority order, verify default-deny terminus integrity, and safely toggle rule enablement states via MCP.

---

4. Visual Interface & Layout

The Firewall Rules console provides a comprehensive DataGrid view featuring numeric priority ordering, service badges, directional tags, source/destination constraints, and rule deployment triggers.

4.1 Firewall Rules List View

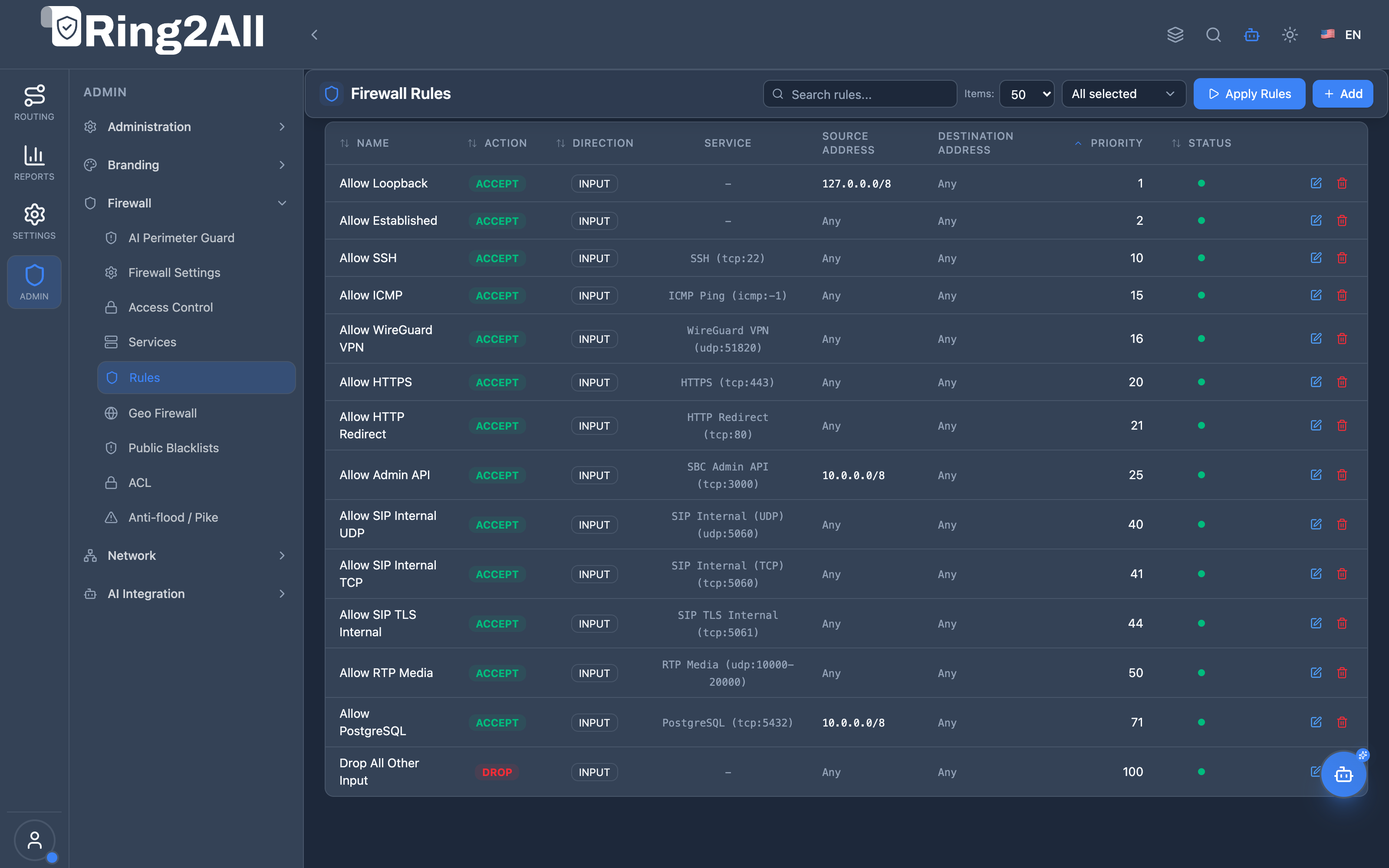

Displays all active firewall rules in strict priority execution order, along with immediate status toggles and deployment controls.

---

5. Field Reference & Rule Parameters

Field	Type	Options	Description
Name	String	Text	Descriptive identifier summarizing the rule’s operational intent (e.g., Allow SIP Internal UDP).
Action	Badge	ACCEPT, DROP, REJECT	The packet verdict: ACCEPT permits passage, DROP silently discards, and REJECT returns an ICMP unreachable packet.
Direction	Badge	INPUT, OUTPUT, FORWARD	The packet chain: INPUT for inbound traffic, OUTPUT for local outbound, and FORWARD for routed transit packets.
Service	Dropdown	Defined Services	Named service object referencing transport protocols and port ranges (e.g., SSH (tcp:22), RTP Media).
Source Address	String	CIDR or Any	Originating IP address or network range (e.g., 10.0.0.0/8, 192.168.10.0/24, Any).
Destination Address	String	CIDR or Any	Destination IP address or network interface range (typically Any for local host filtering).
Priority	Number	1 to 100	Evaluation precedence. Rules with lower numeric values execute first; evaluation terminates upon first matching verdict.
Status	Status Dot	Active / Inactive	Indicates whether the rule is compiled and enforced in the active kernel packet filter.

---

6. Pre-Configured Rule Baseline & Priority Hierarchy

Ring2All SBC includes an enterprise-hardened default rule baseline:

Priority	Name	Action	Service	Source Address	Operational Purpose
1	Allow Loopback	ACCEPT	—	127.0.0.0/8	Permissive inter-process communication on the local loopback interface.
2	Allow Established	ACCEPT	—	Any	Stateful tracking: permits packets belonging to already-negotiated sessions.
10	Allow SSH	ACCEPT	SSH (tcp:22)	Any	Remote host administration access (protected by Fail2Ban).
15	Allow ICMP	ACCEPT	ICMP Ping (icmp:-1)	Any	Diagnostic reachability checks and MTU path discovery.
16	Allow WireGuard VPN	ACCEPT	WireGuard (udp:51820)	Any	Secure encrypted tunnels with remote core PBX and carrier nodes.
20	Allow HTTPS	ACCEPT	HTTPS (tcp:443)	Any	Web administration dashboard and REST API TLS endpoint.
21	Allow HTTP Redirect	ACCEPT	HTTP (tcp:80)	Any	Automatic port 80 redirect to HTTPS.
25	Allow Admin API	ACCEPT	SBC Admin API (tcp:3000)	10.0.0.0/8	Fastify backend API (strictly restricted to private management networks).
40	Allow SIP Internal UDP	ACCEPT	SIP Internal (udp:5060)	Any	Core PBX and local extension SIP signaling over UDP.
41	Allow SIP Internal TCP	ACCEPT	SIP Internal (tcp:5060)	Any	Core PBX and local extension SIP signaling over TCP.
44	Allow SIP TLS Internal	ACCEPT	SIP TLS (tcp:5061)	Any	Encrypted internal PBX signaling via TLS.
50	Allow RTP Media	ACCEPT	RTP Media (udp:10000-20000)	Any	Audio and video media streams relayed by RTPEngine.
71	Allow PostgreSQL	ACCEPT	PostgreSQL (tcp:5432)	10.0.0.0/8	Database access (strictly restricted to internal network nodes).
100	Drop All Other Input	DROP	—	Any	Default-Deny Terminus: Drops all unmatched ingress traffic.

---

7. nftables Compilation & Atomic Deployment

When an administrator clicks Apply Rules in the toolbar, the backend orchestrator generates a declarative nftables ruleset and applies it atomically:

# Generated nftables input chain snippet
table inet filter {
    chain input {
        type filter hook input priority 0; policy drop;

        # Priority 1: Loopback
        iif "lo" accept

        # Priority 2: Established/Related
        ct state established,related accept

        # Priority 10: SSH
        tcp dport 22 accept

        # Priority 25: Admin API (Restricted)
        ip saddr 10.0.0.0/8 tcp dport 3000 accept

        # Priority 40: SIP Internal UDP
        udp dport 5060 accept

        # Priority 50: RTP Media
        udp dport 10000-20000 accept

        # Priority 100: Final catch-all drop
        drop
    }
}

The file is applied via nft -f /tmp/ruleset.nft. If syntax validation succeeds, the active kernel filter is replaced instantly without dropping existing voice calls.

---

8. Operational Hardening & Rule Ordering Principles

• Keep Established Tracking at Priority 2: Placing ct state established,related accept immediately after loopback ensures that high-volume RTP and active TCP streams bypass subsequent rule evaluations, dramatically lowering CPU utilization.
• Strict Whitelisting for Administrative Services: Always enforce private CIDR source constraints (e.g., 10.0.0.0/8 or specific jump host IPs) on PostgreSQL (5432) and SBC Admin API (3000).
• Never Delete the Catch-All Drop Rule: Priority 100 (Drop All Other Input) must always remain active to ensure the perimeter operates in a true Default-Deny posture.
• Audit Rule Priorities Before Applying: Ensure new acceptance rules are assigned priorities lower than 100 (e.g., 10–90). Any rule placed after Priority 100 will never be evaluated.

---

9. Verification & Diagnostics

9.1 Live Kernel Ruleset Dump

Verify the active compiled ruleset currently enforced in Linux kernel memory:

sudo nft list table inet filter

9.2 Packet Counter Verification

Inspect packet and byte counters across active rules to verify traffic matching:

sudo nft -a list chain inet filter input

9.3 Database Rules Inspection

Query all rules and their assigned priorities in PostgreSQL:

sudo -u postgres psql -d sbc_admin -c "
SELECT priority, name, action, direction, source_address, is_active
FROM firewall_rules
ORDER BY priority ASC;
"

---

10. Model Context Protocol (MCP) AI Integration

The Ring2All SBC MCP Server exposes dedicated packet filtering and rule orchestration tools under the firewall_rules tool category. Autonomous SecOps agents and the Ring2All SBC NOC Copilot can audit rule hierarchies, verify priority order, and safely toggle rule statuses without raw terminal access.

10.1 Available MCP Tools

Tool Name	Operation Type	Risk Level	Description
list_sbc_firewall_rules	Read-only	read_only	Lists all host-level packet filtering rules in priority sequence, detailing action, direction, protocol, and CIDR constraints.
toggle_sbc_firewall_rule	Mutating / Operational	operational	Enables or disables an individual firewall rule by numerical ID with automatic validation.

10.2 Tool Schemas & Parameter Definitions

list_sbc_firewall_rules

• Description: List all defined packet filtering firewall rules in Ring2All SBC ordered by execution priority.
• Input Schema:

{
  "type": "object",
  "properties": {}
}

toggle_sbc_firewall_rule

• Description: Enable or disable a specific firewall rule by numerical ID.
• Input Schema:

{
  "type": "object",
  "properties": {
    "id": {
      "type": "number",
      "description": "Numerical primary key ID of the firewall rule to toggle"
    },
    "enabled": {
      "type": "boolean",
      "description": "True to activate the rule; false to disable it"
    }
  },
  "required": ["id", "enabled"]
}

10.3 Sample Tool Execution Payloads

Example 1: Listing Active Firewall Rules

Request Payload:

{
  "tool": "list_sbc_firewall_rules",
  "parameters": {}
}

Response Payload:

{
  "success": true,
  "data": {
    "total": 13,
    "rules": [
      {
        "id": 1,
        "priority": 1,
        "name": "Allow Loopback",
        "action": "ACCEPT",
        "direction": "INPUT",
        "sourceAddress": "127.0.0.0/8",
        "destinationAddress": "Any",
        "enabled": true
      },
      {
        "id": 8,
        "priority": 25,
        "name": "Allow Admin API",
        "action": "ACCEPT",
        "direction": "INPUT",
        "sourceAddress": "10.0.0.0/8",
        "destinationAddress": "Any",
        "protocol": "TCP",
        "destinationPort": "3000",
        "enabled": true
      },
      {
        "id": 13,
        "priority": 100,
        "name": "Drop All Other Input",
        "action": "DROP",
        "direction": "INPUT",
        "sourceAddress": "Any",
        "destinationAddress": "Any",
        "enabled": true
      }
    ]
  }
}

Example 2: Toggling a Maintenance Firewall Rule

Request Payload:

{
  "tool": "toggle_sbc_firewall_rule",
  "parameters": {
    "id": 4,
    "enabled": false
  }
}

Response Payload:

{
  "success": true,
  "data": {
    "message": "Firewall rule 'Allow ICMP Ping' updated to disabled",
    "ruleId": 4,
    "enabled": false
  }
}

10.4 Bilingual Natural Language Copilot Prompts

English Prompts

• “List all active firewall rules in priority order and confirm the final drop rule is enabled.” → Agent calls list_sbc_firewall_rules().
• “Disable firewall rule ID 4 temporarily to block ICMP echo requests on the WAN interface.” → Agent calls toggle_sbc_firewall_rule({"id": 4, "enabled": false}).

Spanish Prompts (Español)

• “Lista todas las reglas del firewall en orden de prioridad y confirma que la regla final de descarte esté activa.” → Agente invoca list_sbc_firewall_rules().
• “Deshabilita temporalmente la regla de firewall con ID 4 para bloquear solicitudes ICMP.” → Agente invoca toggle_sbc_firewall_rule({"id": 4, "enabled": false}).

10.5 Enterprise Security & Execution Safeguards

1. Catch-All Rule Invariance: Disabling Priority 100 (Drop All Other Input) is strictly prohibited through automated tools to prevent accidentally converting the SBC into an open, insecure network gateway.
2. Priority Monotonicity: Rule execution strictly respects the priority numeric column. Toggling a rule immediately updates its state in PostgreSQL.
3. Audit Recording: Toggling rules records the operator identity, rule name, previous state, and timestamp in administrative activity logs.

---
