Outbound Routes Module Documentation

Table of Contents

1. Navigation & Access
2. Screenshots & Visual Interface
3. Module Overview (Technical)
4. Module Overview (Commercial/Business)
5. Module Overview (End User/Administrator)
6. Configuration Fields Reference
7. Dial Patterns
8. Routing Strategies
9. Common Scenarios & Examples
10. Model Context Protocol (MCP) AI Integration
11. Limitations & Important Notes
12. Troubleshooting Tips
13. Glossary

---

Navigation & Access

To access the Outbound Routes module:

1. Log in to the Ring2All Web Portal.
2. In the left navigation sidebar, expand PBX Engine.
3. Under Call Routing, click Outbound Routes (/pbx/calls-routing/outbound).

---

Screenshots & Visual Interface

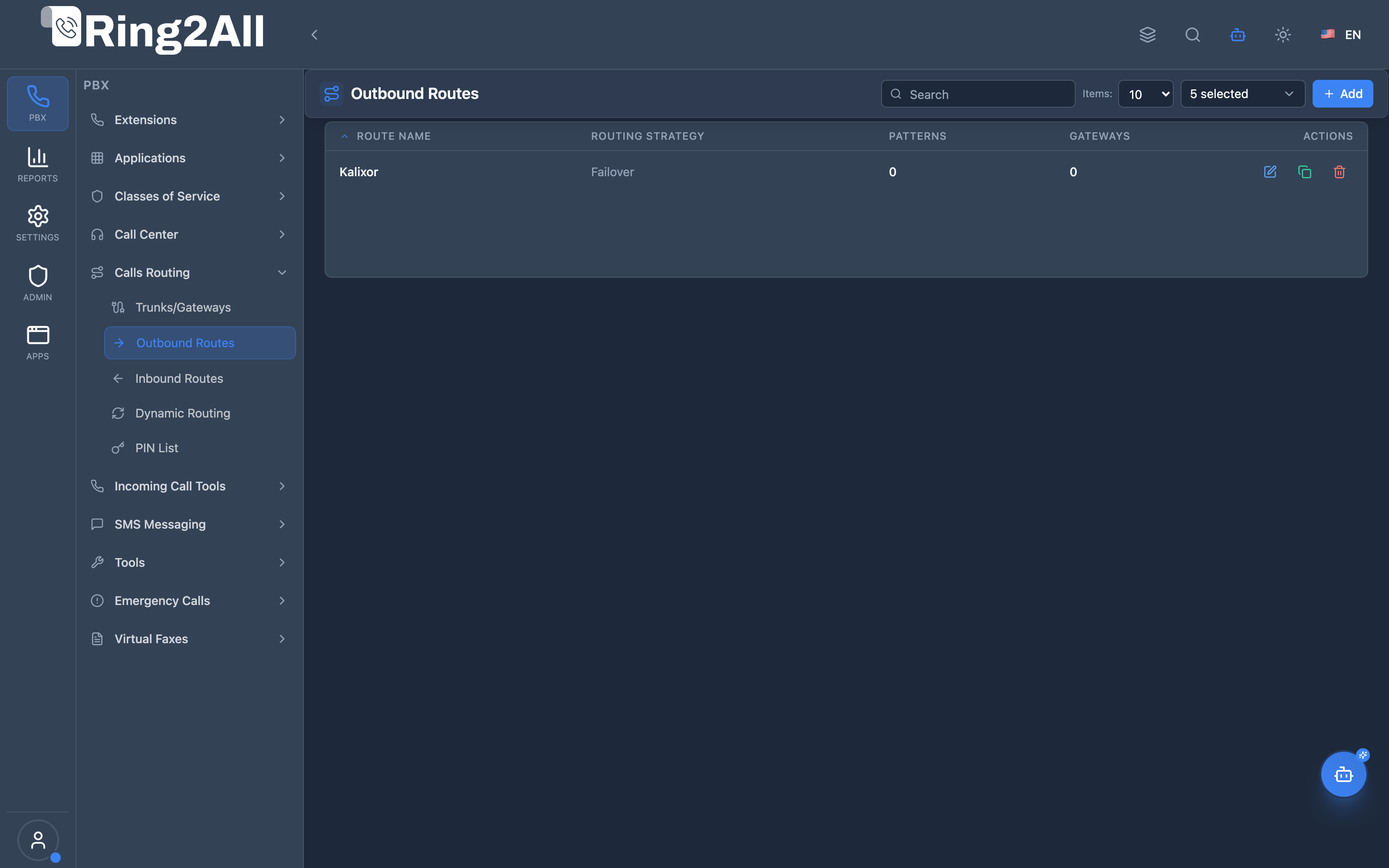

Outbound Routes List View

Displays all configured outbound routes with their priority, routing strategy, assigned gateways, pattern count, and status.

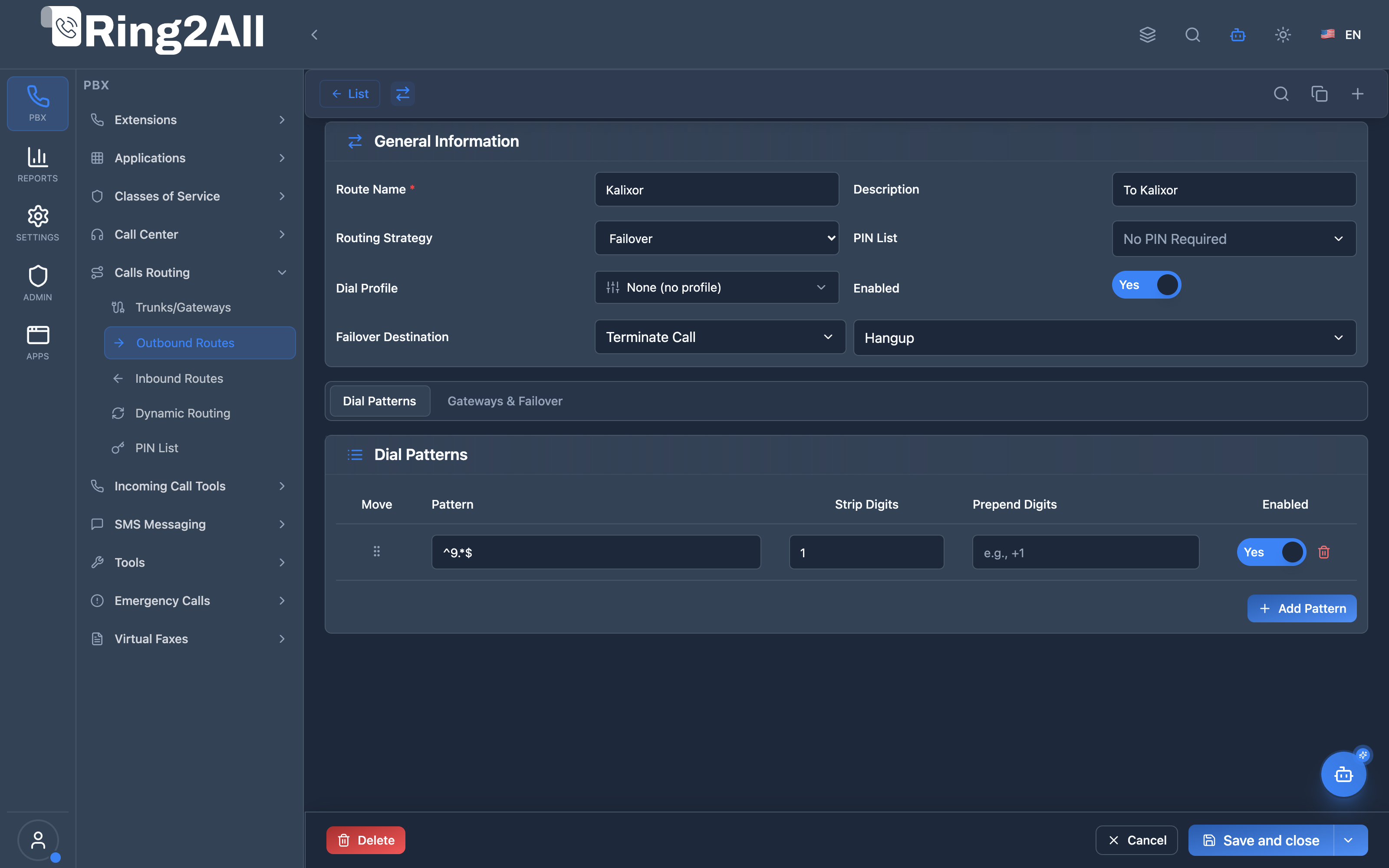

Outbound Route Configuration Form

Provides configuration for general settings, drag-and-drop dial patterns (with strip/prepend rules), and ordered gateway failover cascades.

---

1. Module Overview (Technical)

What Are Outbound Routes?

Outbound Routes define how external calls are routed from the PBX to SIP gateways. They match dialed numbers against patterns and select gateways based on priority, weight, and routing strategy.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                  Outbound Routes System                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  User dials: 918005551212                                       │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │              route_with_fallback.lua                     │   │
│  │                                                          │   │
│  │  1. Check dialplan_registry (extensions, features)       │   │
│  │  2. No match → Check outbound_route_patterns             │   │
│  │  3. Match pattern: ^9\d{10}$ → "National Calls"          │   │
│  │  4. Strip 1 digit (9) → 18005551212                     │   │
│  │  5. Prepend: +1 → +118005551212                         │   │
│  │  6. Select gateway based on strategy                     │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │        Gateway Selection (Failover Strategy)             │   │
│  │                                                          │   │
│  │  Priority 1: carrier_primary  ──→ Try first             │   │
│  │  Priority 2: carrier_backup   ──→ If primary fails      │   │
│  │  Priority 3: carrier_tertiary ──→ Last resort           │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼                                                         │
│  sofia/gateway/carrier_primary/+118005551212                    │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Outbound Routes enable intelligent external call routing:

Without Outbound Routes	With Outbound Routes
Single gateway	Multiple carrier support
No cost optimization	Least-cost routing
No redundancy	Automatic failover
No access control	PIN-protected routes

Use Cases

1. Least-Cost Routing

   • Route by destination prefix
   • Different carriers for local/long-distance/international

2. Carrier Failover

   • Primary carrier unreachable → automatic switch
   • No manual intervention

3. Access Control

   • PIN-protect expensive routes
   • Restrict international dialing

4. Number Manipulation

   • Strip access codes (9)
   • Prepend country codes (+1)

Feature Highlights

Feature	Benefit
Pattern Matching	Regex or simplified (9XXX)
Strip/Prepend	Number manipulation
3 Strategies	Failover, Round Robin, Load Balance
Priority-based	Route evaluation order
PIN Protection	Access control
Gateway Failover	Automatic redundancy

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create outbound routes with names
• Define dial patterns (prefix or regex)
• Configure number manipulation (strip/prepend)
• Assign multiple gateways with priorities
• Choose routing strategy
• Add PIN protection

Administrator Workflow

┌─────────────────────────────────────────────────────────────────┐
│              Creating an Outbound Route                         │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Tab 1: General Settings                                        │
│  ├─ Route Name: "National Calls"                               │
│  ├─ Description: "US domestic calls via primary carrier"       │
│  ├─ Priority: 100                                              │
│  ├─ Routing Strategy: Failover                                 │
│  └─ Enabled: ✓                                                 │
│                                                                 │
│  Tab 2: Dial Patterns                                           │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ Pattern: 9NXXNXXXXXX | Strip: 1 | Prepend: +1 | ✓         │  │
│  │ Pattern: 91NXXNXXXXXX | Strip: 1 | Prepend: + | ✓         │  │
│  └───────────────────────────────────────────────────────────┘  │
│  [+ Add Pattern]                                                │
│                                                                 │
│  Tab 3: Gateways & Failover                                     │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │ ≡ carrier_primary   | Priority: 1 | Weight: 100 | ✓       │  │
│  │ ≡ carrier_backup    | Priority: 2 | Weight: 100 | ✓       │  │
│  └───────────────────────────────────────────────────────────┘  │
│  [+ Add Gateway]                                                │
│                                                                 │
│  Tab 4: Advanced Options                                        │
│  ├─ PIN List: (optional)                                       │
│  ├─ Failover Module: Terminate                                 │
│  └─ Failover Destination: Hangup                               │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Use Simplified Patterns: 9XXX is easier than ^9\d{3}$.

[!TIP] Lower Priority = Higher Precedence: Route with priority 50 is checked before 100.

[!CAUTION] Strip Count: Make sure strip count doesn’t remove too many digits.

---

4. Configuration Fields Reference

Route Fields

Field	Description	Example
Route Name	Unique identifier	National Calls
Description	Optional description	US domestic calls
Priority	Evaluation order (lower = first)	100
Routing Strategy	Gateway selection method	Failover
Enabled	Route active status	On/Off
Dial Profile	Optional Dial Profile template to execute dialplan variables before bridging	(select list)
PIN List	Optional PIN protection	(select list)
Failover Module	Action when all fail	Terminate
Failover Destination	Specific action	Hangup

Pattern Fields

Field	Description	Example
Pattern	Dial pattern to match	9NXXNXXXXXX
Strip Digits	Digits to remove from start	1
Prepend	Digits to add after strip	+1
Description	Pattern description	Local calls
Priority	Order within route	1
Enabled	Pattern active	On/Off

Gateway Fields

Field	Description
Gateway	Selected gateway
Priority	Order for failover (1=first)
Weight	Load balance weighting
Description	Optional note
Enabled	Gateway in use

---

5. Dial Patterns

Pattern Syntax

Simplified Patterns:

Symbol	Meaning	Example
X	Any digit (0-9)	9XXX = 9000-9999
Z	Digit 1-9	9ZXXX = 91000-99999
N	Digit 2-9	9NXXX = 92000-99999

Regex Patterns:

Pattern	Matches
^9\d{10}$	9 + 10 digits
^011.*	International (011…)
^1[2-9]\d{9}$	1 + 10 digit US

Pattern Examples

Purpose	Pattern	Strip	Prepend	Result
Local (7-digit)	9NXXXXXX	1	+1305	Dial 95551234 → +13055551234
National (10-digit)	9NXXNXXXXXX	1	+1	Dial 93055551234 → +13055551234
Toll-Free	91800NXXXXXX	1	+	Dial 918005551234 → +18005551234
International	9011.	1	+	Dial 901152… → +52…

---

6. Routing Strategies

Strategy Comparison

Strategy	Description	Best For
Failover	Try gateways in priority order	Reliability
Round Robin	Rotate through gateways	Load distribution
Load Balance	Weighted distribution	Proportional traffic

Failover Strategy

Call comes in
    │
    ▼
Try Gateway 1 (Priority 1)
    │
    ├── Success → Call connected
    │
    └── Fail → Try Gateway 2 (Priority 2)
                    │
                    ├── Success → Call connected
                    │
                    └── Fail → Failover destination

Round Robin Strategy

Call 1 → Gateway A
Call 2 → Gateway B
Call 3 → Gateway C
Call 4 → Gateway A (restart)

Load Balance Strategy

Weights: Gateway A = 70, Gateway B = 30

~70% of calls → Gateway A
~30% of calls → Gateway B

---

7. Common Scenarios & Examples

Scenario 1: US National Calling

Route: “National Calls”

Setting	Value
Priority	100
Strategy	Failover

Patterns:

Pattern	Strip	Prepend	Description
9NXXNXXXXXX	1	+1	10-digit national
91NXXNXXXXXX	1	+	11-digit with 1

Gateways:

Gateway	Priority
primary_carrier	1
backup_carrier	2

Scenario 2: International with PIN

Route: “International”

Setting	Value
Priority	200
Strategy	Failover
PIN List	International PIN

Patterns:

Pattern	Strip	Prepend	Description
9011.	1	+	International

Scenario 3: Load-Balanced Multi-Carrier

Route: “Multi-Carrier”

Setting	Value
Priority	100
Strategy	Load Balance

Gateways:

Gateway	Weight
carrier_a	50
carrier_b	30
carrier_c	20

---

8. Model Context Protocol (MCP) AI Integration

Ring2All exposes native Model Context Protocol (MCP) tools for Outbound Routes, allowing AI agents and PBX automation engines to inspect egress dial patterns, examine multi-gateway failover cascades, adjust routing strategies (failover, round-robin, load-balance, lcr), and provision or remove outbound dialing rules programmatically with strict domain isolation and automatic Telephony dialplan synchronization (reloadxml).

Available MCP Tools

Tool Name	Description	Key Parameters
list_outbound_routes	Lists all outbound routes in the domain, including match patterns, assigned gateway trunks, routing strategy, priority, and enabled state.	search (optional string)
get_outbound_route_status	Retrieves full configuration of a specific outbound route, detailing ordered regex patterns, digit manipulation (strip/prepend), and prioritized gateway failover lists.	name (required string)
create_outbound_route	Provisions a new outbound route matching dial patterns to ordered carrier gateways with a specified strategy and priority. Strictly enforces route name uniqueness within the domain.	name, patterns (array of regex/prefix strings), gatewayNames (ordered array of gateways), routingStrategy (failover, round-robin, load-balance, lcr), priority, description
update_outbound_route	Updates outbound route parameters, including routing strategy, priority, enabled status, or name.	name, newName, routingStrategy, priority, enabled
diagnose_outbound_route	Performs deep operational diagnostic on an Outbound Route: tests dial patterns against an optional test dialed number, validates route priority and enabled status, checks live Sofia trunk gateway registration and ping reachability, evaluates trunk failover cascades, and scans Telephony engine logs for recent egress call errors (SIP 503, 486, 404).	name (required string), testNumber (optional string)
simulate_dialplan_route	Dry-run end-to-end call routing emulator reproducing the exact FreeSWITCH Lua dialplan engine. Tests extension DND, call forwardings, Ring Groups, Queues, IVR, Voicemail, Blacklists, Class of Service dial rule restrictions, Outbound Route priority/patterns, prepend/strip digit transformation, Gateway Sofia readiness, and effective CID resolution.	dialedNumber (required string), callerExt (optional string)
delete_outbound_route	Safely removes an outbound route and its associated pattern and gateway junction rows, automatically triggering dialplan XML reload.	name (required string)

Protection Guards & Integrity

• Name Uniqueness: Route names must be strictly unique within each tenant domain. Attempts to create or rename a route to an existing name trigger a validation rejection.
• Gateway Existence Validation: When creating an outbound route via MCP, every gateway named in gatewayNames is verified against active domain gateways before provisioning the junction table (outbound_route_gateways).
• Atomic Telephony Server Synchronization: Successful creation, modification, or deletion invokes Telephony Server XML cache invalidation (reloadxml) so outbound routing takes effect instantly without orphaned dialplans.

AI Agent Operational Examples

Auditing Outbound Routes & Gateways

{
  "tool": "list_outbound_routes",
  "arguments": {
    "search": "International"
  }
}

Provisioning an Emergency 911 Outbound Route

{
  "tool": "create_outbound_route",
  "arguments": {
    "name": "Emergency_E911",
    "patterns": ["^911$", "^933$"],
    "gatewayNames": ["Telnyx_Primary", "Twilio_Backup"],
    "routingStrategy": "failover",
    "priority": 0,
    "description": "Highest priority emergency egress route"
  }
}

Updating Strategy to Least Cost Routing (LCR)

{
  "tool": "update_outbound_route",
  "arguments": {
    "name": "Domestic_Standard",
    "routingStrategy": "lcr",
    "priority": 10
  }
}

Diagnosing Outbound Routing & Gateway Readiness

{
  "tool": "diagnose_outbound_route",
  "arguments": {
    "name": "Domestic_Standard",
    "testNumber": "13055551234"
  }
}

Simulating End-to-End Dialplan Routing (simulate_dialplan_route)

{
  "tool": "simulate_dialplan_route",
  "arguments": {
    "callerExt": "2002",
    "dialedNumber": "13055551234"
  }
}

Recommended Natural Language Prompts

• “List all outbound routes and the carrier gateways assigned to each.”
• “Simulate an outbound call from extension 2002 to 13055551234 to verify which route and gateway will be selected.”
• “Create an outbound route for North American 10-digit dialing through Telnyx with Twilio as failover.”
• “Check the dial pattern configuration for the International route.”
• “Disable the legacy carrier outbound route without deleting it.”

---

9. Limitations & Important Notes

Technical Notes

[!NOTE] Route Priority: Lower number = higher priority (checked first).

[!WARNING] Pattern Overlap: If patterns overlap, the first matching route wins.

[!WARNING] Strip Count: Stripping too many digits will break the dialed number.

Best Practices

1. Order Routes Carefully: Most specific patterns first
2. Test Patterns: Verify patterns match intended numbers
3. Set Failover: Always have a backup gateway
4. Use PIN for Expensive Routes: Protect international calling
5. Document Routes: Use descriptions for future reference

---

10. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Call not routing	Pattern doesn’t match	Test pattern regex
Wrong carrier used	Route priority wrong	Adjust route priority
Number format wrong	Strip/prepend incorrect	Review manipulation
No failover	All gateways disabled	Enable backup gateway
PIN always required	PINless not enabled	Check extension settings

Diagnostic SQL

List outbound routes:

SELECT id, name, priority, routing_strategy, enabled
FROM public.outbound_routes
WHERE domain_id = [domain_id]
ORDER BY priority;

Check route patterns:

SELECT r.name as route, p.pattern, p.strip_digits, p.prepend, p.enabled
FROM public.outbound_route_patterns p
JOIN public.outbound_routes r ON p.route_id = r.id
WHERE r.domain_id = [domain_id]
ORDER BY r.priority, p.priority;

Check route gateways:

SELECT r.name as route, g.name as gateway, org.priority, org.weight
FROM public.outbound_route_gateways org
JOIN public.outbound_routes r ON org.route_id = r.id
JOIN public.gateways g ON org.gateway_id = g.id
WHERE r.domain_id = [domain_id]
ORDER BY r.name, org.priority;

Telephony Server Logs

# Enable debug logging
fs_cli -x "sofia loglevel all 9"

# Check outbound call routing
grep "route_with_fallback" /var/log/freeswitch/freeswitch.log

---

11. Glossary

Term	Definition
Outbound Route	Rule for routing external calls
Dial Pattern	Regex or simplified pattern to match
Strip Digits	Remove N digits from start of number
Prepend	Add digits before the number
Failover	Try next gateway on failure
Round Robin	Rotate through gateways
Load Balance	Distribute calls by weight
PIN List	Access control via numeric codes

---

Documentation last updated: January 2026
