AI Providers & LLM Gateway Management

Table of Contents

1. Overview & Architecture
2. Business & Operational Significance
3. 🎯 User Roles & Key Capabilities
4. Visual Interface & Layout
5. Field Reference & Parameter Specification
6. Supported Provider Ecosystem & Dynamic Capabilities
7. Enterprise Security & Credential Isolation
8. Verification & Diagnostics
9. Model Context Protocol (MCP) AI Integration
10. Glossary

---

1. Overview & Architecture

In Ring2All SBC, the AI Providers module serves as the centralized artificial intelligence gateway, managing outbound API connections and authentication credentials across external commercial cloud providers and on-premises local model runners. It provides the foundation for the SBC’s cognitive capabilities—including real-time Model Context Protocol (MCP) diagnostics, SIP packet flow interpretation, automated perimeter threat scoring, and voice synthesis.

       ┌────────────────────────────────────────────────────────────┐
       │             RING2ALL SBC AI PROVIDER GATEWAY               │
       │           (Stored in sbc_admin.ai_providers)               │
       └─────────────────────────────┬──────────────────────────────┘
                                     │
           ┌─────────────────────────┼─────────────────────────┐
           ▼                         ▼                         ▼
   ┌────────────────┐       ┌────────────────┐       ┌────────────────┐
   │ COMMERCIAL LLM │       │ VOICE AI & TTS │       │ ON-PREM LOCAL  │
   ├────────────────┤       ├────────────────┤       ├────────────────┤
   │ • OpenAI       │       │ • ElevenLabs   │       │ • Ollama       │
   │ • Anthropic    │       │ • Azure Speech │       │ • LM Studio    │
   │ • Google Cloud │       │ • Custom TTS   │       │ • vLLM Server  │
   └────────────────┘       └────────────────┘       └────────────────┘
           │                         │                         │
           └─────────────────────────┼─────────────────────────┘
                                     ▼
           ┌──────────────────────────────────────────────────┐
           │      RING2ALL SBC AI CONSUMPTION SUBSYSTEMS      │
           ├─────────────────────────┬────────────────────────┤
           │  SBC NOC Copilot (MCP)  │  AI Perimeter Threat   │
           │  SIP Trace Diagnostics  │  Real-Time Voice IVR   │
           └─────────────────────────┴────────────────────────┘

The gateway manages secure credential storage, endpoint routing, and dynamic capability discovery (chat, embeddings, tts, stt), exposing normalized execution interfaces to downstream SBC services.

---

2. Business & Operational Significance

• Vendor Independence & Redundancy: Avoids vendor lock-in by supporting multiple upstream providers. Administrators can route high-reasoning tasks to Anthropic Claude or OpenAI while delegating bulk telemetry analysis to low-cost or on-premise models.
• Sovereign Telecommunications Compliance: For defense, healthcare, and enterprise environments with strict data sovereignty mandates, the gateway natively connects to private, air-gapped on-premise LLMs (Ollama/vLLM), ensuring zero customer call telemetry leaves the local perimeter.
• Unified Credential Governance: Consolidates API keys, organization IDs, and rate-limit quotas into a single audited interface rather than scattering tokens across disparate microservices.
• Automated Connectivity Validation: Built-in Test Connection verification performs real-time challenge handshakes against provider endpoints prior to committing changes, preventing operational disruptions caused by invalid keys or network firewalls.

---

3. 🎯 User Roles & Key Capabilities

Role	Administrative Permissions	Operational Responsibilities
AI Systems Administrator	Full Read & Write	Registers upstream providers, provisions API keys, configures base URLs, and manages quota boundaries.
Telecom Security Officer	Read & Audit	Audits credential usage, enforces privacy routing policies, and mandates on-premise LLM routing for sensitive domains.
NOC Support Engineer	Read-Only	Performs live connection health checks and monitors provider uptime indicators.
AI Model Gateway Copilot	Programmatic Discovery & Health Audits	Discovers available intelligence engines, verifies endpoint reachability, and inspects supported modalities (chat, embeddings, TTS) via MCP.

---

4. Visual Interface & Layout

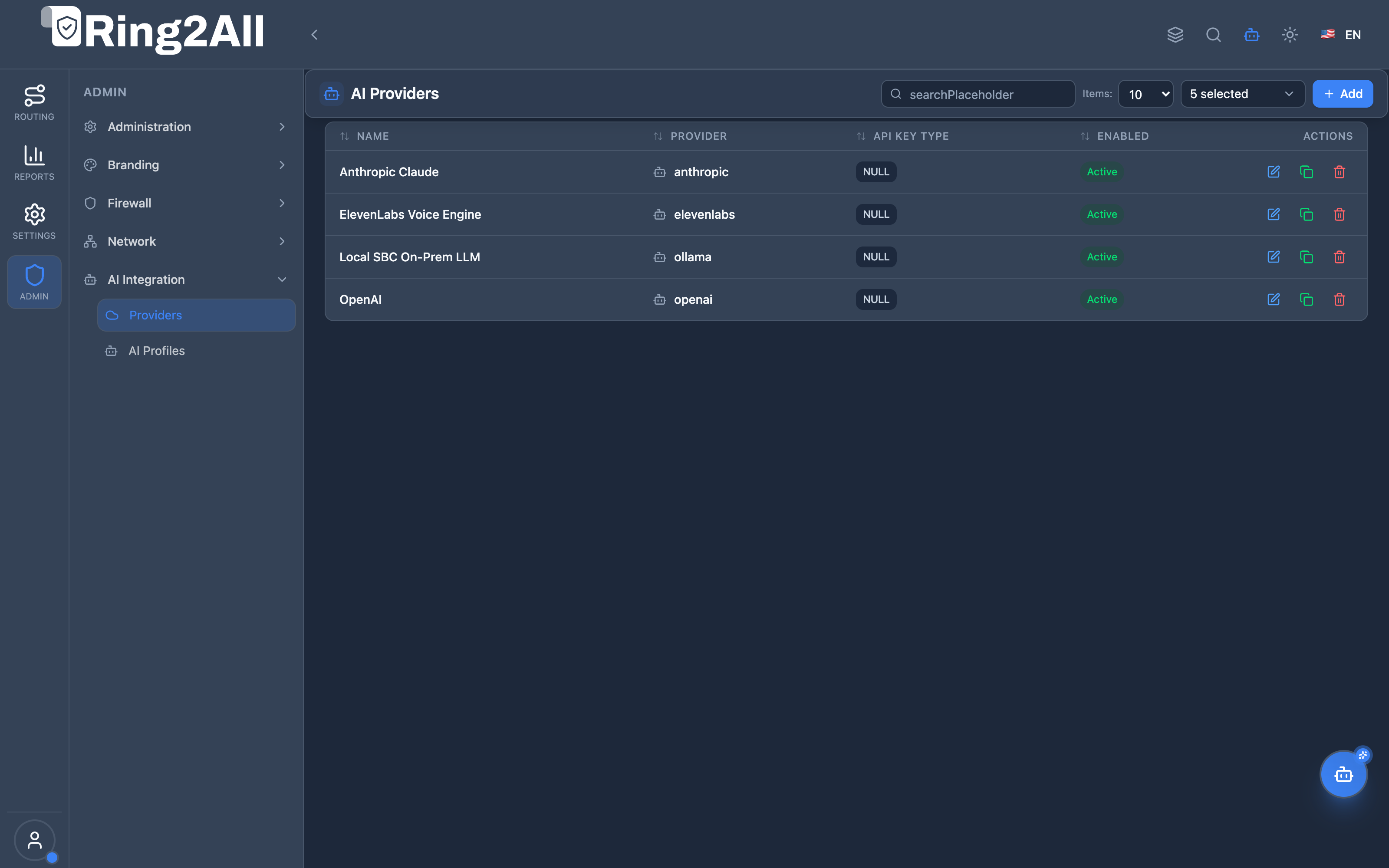

AI Providers Inventory Table

The main repository interface provides a clear overview of all configured AI integration endpoints:

• Name & Provider: Displays the friendly provider label along with the underlying provider type (anthropic, openai, elevenlabs, ollama).
• API Key Type: Indicates whether standard API keys or specialized enterprise bearer tokens are utilized.
• Status Badge: Real-time status indicator (Active / Disabled).
• Actions: Edit configuration, clone provider definition, or delete.

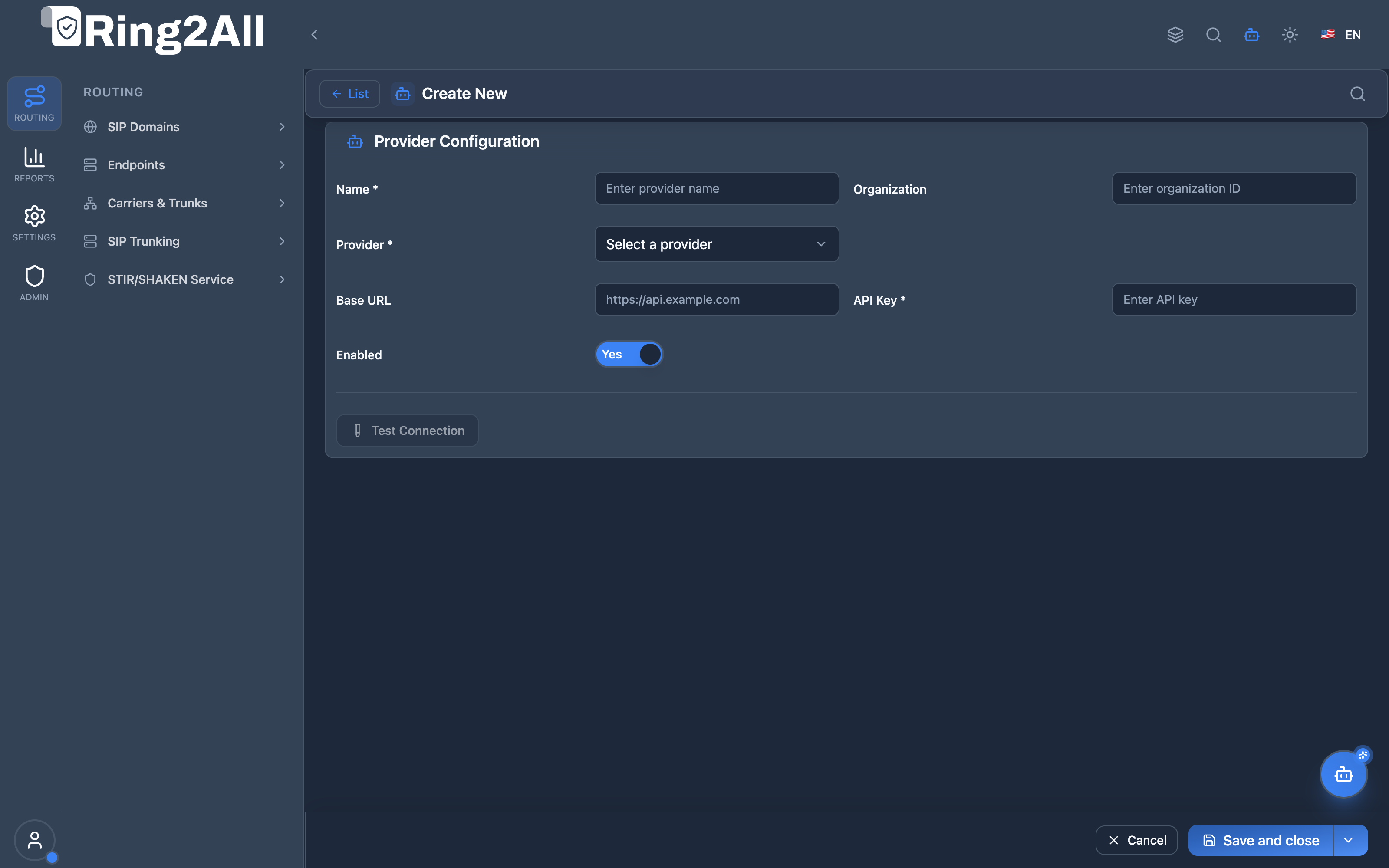

Provider Configuration Form

The registration dialog configures upstream API credentials and endpoints:

• Includes inline Test Connection utility to validate authorization headers against provider endpoints before saving.

---

5. Field Reference & Parameter Specification

Field Name	Type	Constraints	Description
Name	string	3–100 characters	Descriptive display name for the provider integration (e.g., Anthropic Claude).
Provider	select	Valid provider enum	Target AI engine: openai, anthropic, google, azure, elevenlabs, ollama, lmstudio, local, custom.
Organization	string	Optional string	Enterprise organization identifier required by providers like OpenAI to scope billing and projects.
Base URL	string	Valid URL format	Custom API root endpoint (mandatory for Ollama, LM Studio, or private Azure OpenAI deployments).
API Key	password	Min 1 character	Secret API authorization token. Displayed as masked characters in the UI; never exposed in plain text.
Enabled	boolean	true / false	Administrative toggle activating or deactivating provider availability across all SBC services.
Capabilities	jsonb	Auto/JSON structure	Dynamic capabilities negotiated with the provider (e.g., {"chat": true, "embeddings": true, "tts": false}).

---

6. Supported Provider Ecosystem & Dynamic Capabilities

Provider	Engine Type	Supported Capabilities	Typical Use Case in Ring2All SBC
OpenAI	Commercial Cloud	chat, embeddings, tts	General NOC Copilot assistance, SIP ladder diagram summaries, and function calling.
Anthropic	Commercial Cloud	chat	Complex heuristic reasoning for perimeter threat intelligence and multi-stage fraud analysis.
ElevenLabs	Voice AI Cloud	tts	Ultra-low latency, human-like voice prompt generation and real-time IVR speech synthesis.
Ollama / Local	On-Premises	chat, embeddings	Sovereign, air-gapped packet analysis, local CDR classification, and zero-data-leakage compliance.
Google Gemini	Commercial Cloud	chat, embeddings	Multi-modal log processing and high-context telecom troubleshooting.

---

7. Enterprise Security & Credential Isolation

• Cryptographic Storage & Masking: API keys are securely hashed or encrypted at rest in sbc_admin.ai_providers. The administrative frontend presents masked fields (••••••••••••), preventing shoulder-surfing and DOM token inspection.
• Strict Tenant Scoping: In multi-tenant environments, AI provider records are bounded by tenant_id, ensuring enterprise accounts cannot view or consume carrier-level AI tokens.
• Egress Firewall Rules: On-premise deployments can restrict outbound AI traffic strictly to specific provider IP ranges, blocking unauthorized model endpoints.

---

8. Verification & Diagnostics

Administrators can evaluate provider connectivity, test API handshakes, and query active capabilities from the command line:

# 1. Query active AI providers from PostgreSQL
sudo -u postgres psql -d sbc_admin -c "SELECT id, name, provider, status FROM ai_providers WHERE status = true;"

# 2. Test local Ollama endpoint connectivity from the host
curl -s http://127.0.0.1:11434/api/tags | jq .

# 3. Test external OpenAI API key validity
curl -s -o /dev/null -w "%{http_code}\n" https://api.openai.com/v1/models \
  -H "Authorization: Bearer sk-your-api-key-here"

# 4. Verify AI provider resolution within SBC API logs
journalctl -u softswitch-sbc-api -n 50 --no-pager | grep -i "ai_provider"

---

9. Model Context Protocol (MCP) AI Integration

The AI Providers module is accessible via the Ring2All SBC Model Context Protocol (MCP) server, enabling supervisory AI agents and NOC assistants to audit configured intelligence backends, discover available capabilities, and verify endpoint statuses without exposing raw authentication keys.

9.1 MCP Tool Summary

Tool Name	Action	Risk Level	Purpose
list_sbc_ai_providers	Read	read	List all configured AI model providers with status, endpoint URLs, and capability profiles.
get_sbc_ai_provider	Read	read	Retrieve full configuration details for a specific AI provider ID with masked API secrets.

9.2 Tool Schemas & Input Parameters

Schema: list_sbc_ai_providers

{
  "type": "object",
  "properties": {},
  "additionalProperties": false
}

Schema: get_sbc_ai_provider

{
  "type": "object",
  "properties": {
    "id": {
      "type": "number",
      "description": "Unique integer ID of the AI provider"
    }
  },
  "required": ["id"],
  "additionalProperties": false
}

9.3 Sample Tool Execution Payloads

Example 1: Listing All Configured Providers

Request Payload:

{
  "tool": "list_sbc_ai_providers",
  "parameters": {}
}

Response Payload:

{
  "success": true,
  "data": {
    "total": 3,
    "providers": [
      {
        "id": 1,
        "uuid": "7a3e1b4c-9f82-41a2-89cd-123456789abc",
        "name": "OpenAI Production",
        "provider": "openai",
        "baseUrl": "https://api.openai.com/v1",
        "organization": "org-ring2all-enterprise",
        "apiKeyConfigured": true,
        "capabilities": {
          "chat": true,
          "embeddings": true,
          "tts": true
        },
        "status": true,
        "createdAt": "2026-06-15T10:00:00Z"
      },
      {
        "id": 2,
        "uuid": "8b4f2c5d-0a93-52b3-90de-234567890bcd",
        "name": "Anthropic Reasoning Engine",
        "provider": "anthropic",
        "baseUrl": "https://api.anthropic.com/v1",
        "organization": null,
        "apiKeyConfigured": true,
        "capabilities": {
          "chat": true,
          "embeddings": false,
          "tts": false
        },
        "status": true,
        "createdAt": "2026-07-20T14:30:00Z"
      },
      {
        "id": 3,
        "uuid": "9c5a3d6e-1ba4-63c4-01ef-345678901cde",
        "name": "Local Sovereign Ollama",
        "provider": "ollama",
        "baseUrl": "http://127.0.0.1:11434",
        "organization": null,
        "apiKeyConfigured": false,
        "capabilities": {
          "chat": true,
          "embeddings": true,
          "tts": false
        },
        "status": true,
        "createdAt": "2026-08-01T09:15:00Z"
      }
    ]
  }
}

Example 2: Inspecting Specific AI Provider Details

Request Payload:

{
  "tool": "get_sbc_ai_provider",
  "parameters": {
    "id": 1
  }
}

Response Payload:

{
  "success": true,
  "data": {
    "id": 1,
    "uuid": "7a3e1b4c-9f82-41a2-89cd-123456789abc",
    "name": "OpenAI Production",
    "provider": "openai",
    "baseUrl": "https://api.openai.com/v1",
    "organization": "org-ring2all-enterprise",
    "apiKeyType": "standard",
    "apiKeyConfigured": true,
    "capabilities": {
      "chat": true,
      "embeddings": true,
      "tts": true
    },
    "status": true,
    "createdAt": "2026-06-15T10:00:00Z",
    "updatedAt": "2026-08-10T12:00:00Z"
  }
}

9.4 Bilingual Natural Language Copilot Prompts

English Prompts

• “List all configured AI providers and check which ones support chat completions.” → Agent invokes list_sbc_ai_providers().
• “Inspect AI provider ID 3 to verify the local Ollama base URL and operational status.” → Agent invokes get_sbc_ai_provider({"id": 3}).

Spanish Prompts (Español)

• “Lista todos los proveedores de IA configurados y verifica cuáles soportan completado de chat.” → Agente invoca list_sbc_ai_providers().
• “Inspecciona el proveedor de IA con ID 3 para verificar la URL base de Ollama local y su estado.” → Agente invoca get_sbc_ai_provider({"id": 3}).

9.5 Enterprise Security & Execution Safeguards

1. Cryptographic Key Masking: Raw API tokens (sk-proj-..., ant-api-...) are never exposed via MCP responses. The API returns apiKeyConfigured: true without disclosing cleartext tokens.
2. Read-Only Inspection Safeguard: All provider discovery tools are restricted to read actions to ensure autonomous agents cannot tamper with production billing accounts or redirect AI base URLs.
3. Audit Trail Compliance: Invocations of AI provider inspection tools are recorded in system audit logs with requesting user context.

---

10. Glossary

• LLM: Large Language Model; an advanced deep-learning model capable of processing, understanding, and generating natural language.
• MCP: Model Context Protocol; an open architectural protocol that enables AI models to safely execute administrative tools and query database state.
• On-Premises AI: Hosting and running open-source models (e.g., Llama 3, Mistral) locally on dedicated hardware without third-party internet dependencies.
• TTS / STT: Text-to-Speech (speech synthesis) and Speech-to-Text (automated speech recognition).
