Navigation & Access

To access the Dispatch Locations module:

1. Log in to the Ring2All Web Portal (https://<domain-or-ip>/login).
2. In the left navigation sidebar, expand PBX Engine.
3. Under Emergency Calls, click Dispatchable Locations (/pbx/emergency/locations).
4. To add a new dispatchable address record, click the + Add Location button (/pbx/emergency/locations/new).

---

Screenshots & Visual Interface

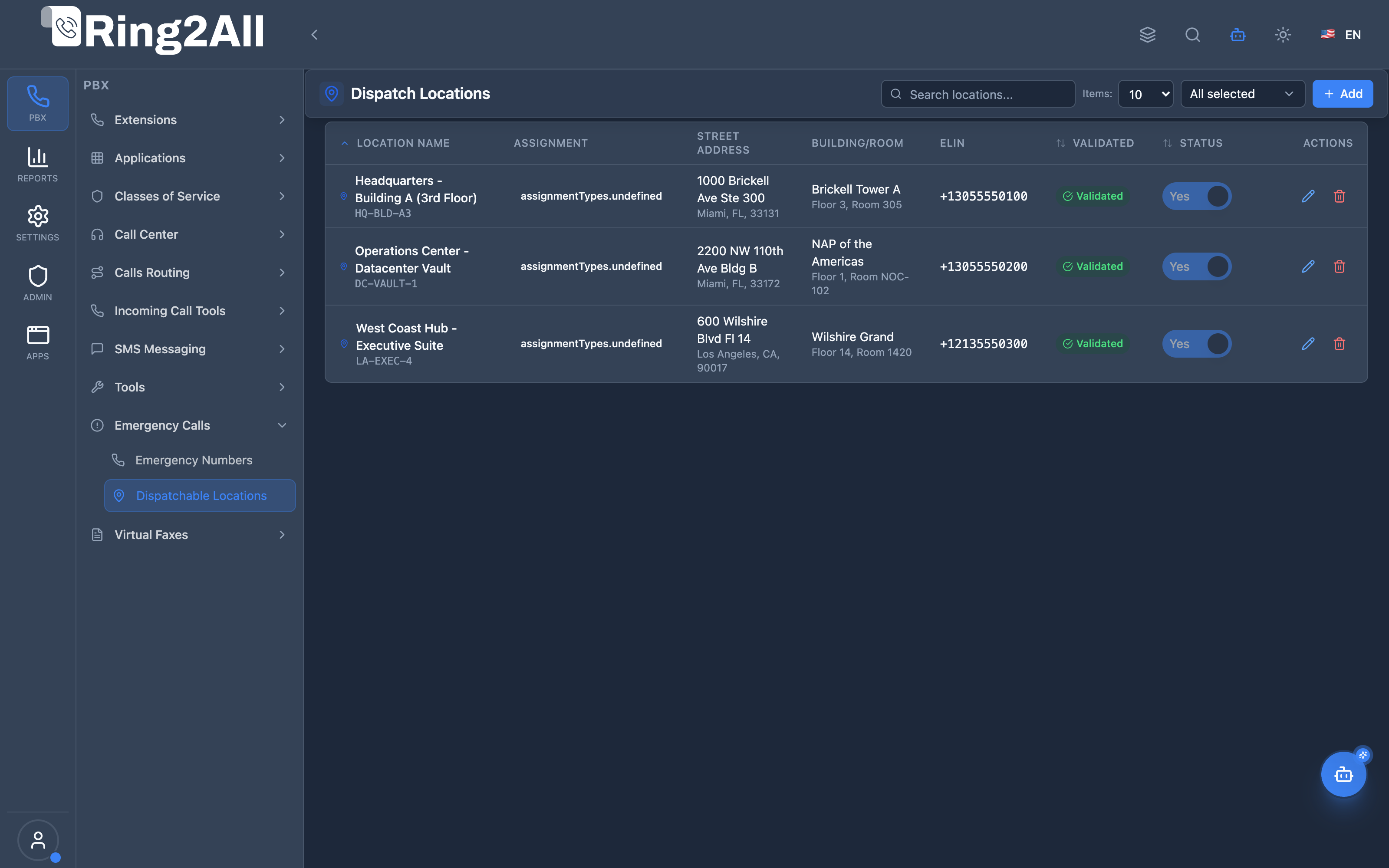

Dispatchable Locations Directory

Central repository of physical locations, showing registered premises, location code, formatted street addresses, city, state, postal code, and emergency validation status.

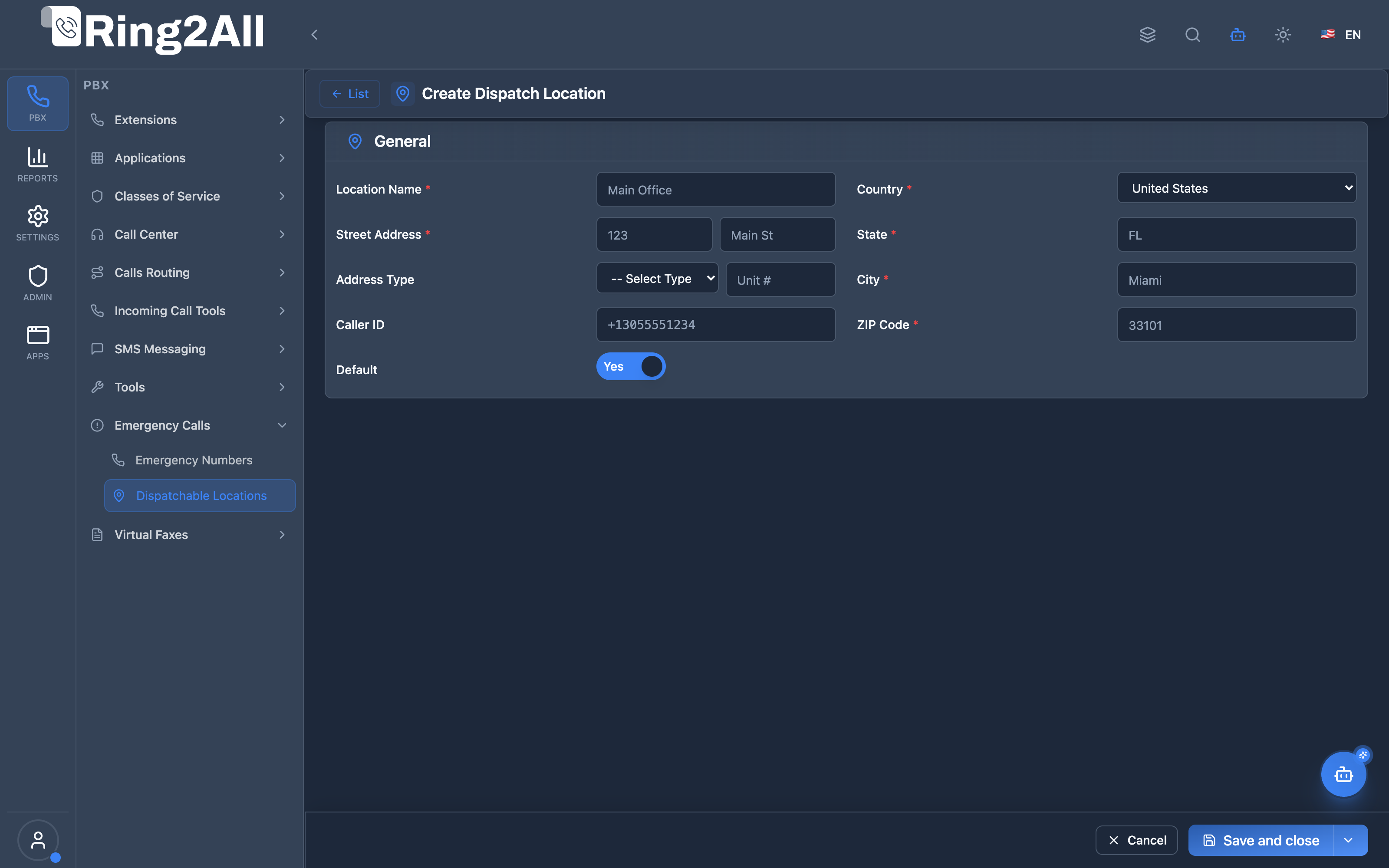

Dispatchable Location Definition & RAY BAUM’S Compliance Form

Granular physical location form allowing configuration of street, building, floor, suite/room, wing, Emergency Location Identification Number (ELIN), and on-site contact coordinates.

---

1. Module Overview (Technical)

What Are Dispatch Locations?

Dispatch Locations are dispatchable address records that provide precise physical location information for E911 compliance. They support RAY BAUM’s Act requirements by associating detailed location data (street, building, floor, room) with extensions, devices, or trunks.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                  Dispatch Locations System                      │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │               Dispatch Location Record                   │   │
│  │                                                          │   │
│  │  Location Name: Main Building - 3rd Floor East           │   │
│  │                                                          │   │
│  │  Assignment:                                             │   │
│  │  ├─ Type: Extension                                      │   │
│  │  └─ Extension: 1001                                      │   │
│  │                                                          │   │
│  │  Address:                                                │   │
│  │  ├─ Street: 123 Main Street, Suite 300                   │   │
│  │  ├─ City: Miami                                          │   │
│  │  ├─ State: FL                                            │   │
│  │  └─ ZIP: 33131                                           │   │
│  │                                                          │   │
│  │  Building Details:                                       │   │
│  │  ├─ Building: Main Building                              │   │
│  │  ├─ Floor: 3                                             │   │
│  │  ├─ Room: 310                                            │   │
│  │  └─ Wing: East                                           │   │
│  │                                                          │   │
│  │  Emergency:                                              │   │
│  │  ├─ ELIN: +13055551234                                   │   │
│  │  └─ Contact: John Smith (305) 555-9999                   │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│       │                                                         │
│       ▼ Used during 911 calls                                   │
│  ┌──────────────────────────────────────────────────────────┐   │
│  │  Emergency Call Routing                                  │   │
│  │                                                          │   │
│  │  Extension 1001 dials 911                                │   │
│  │  → Lookup dispatch location by extension                 │   │
│  │  → Override Caller ID with ELIN                          │   │
│  │  → Include dispatchable location in call                 │   │
│  │  → Route to PSAP                                         │   │
│  │                                                          │   │
│  └──────────────────────────────────────────────────────────┘   │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

---

2. Module Overview (Commercial/Business)

Business Value

Dispatch Locations provides E911 location compliance:

Without Dispatch Locations	With Dispatch Locations
Generic address	Building/floor/room
Delayed response	Pinpoint accuracy
Compliance risk	RAY BAUM’s compliant
Manual updates	Centralized management

Regulatory Compliance

Regulation	Requirement	Solution
RAY BAUM’s Act	Dispatchable location	Floor/room/wing data
NG911	Precise coordinates	Lat/long support
Kari’s Law	On-site notification	Emergency contact

Use Cases

1. Multi-Floor Buildings

   • Per-floor location records
   • Room-level precision

2. Campus Environments

   • Multiple buildings
   • Building-specific ELINs

3. Remote Workers

   • Home office addresses
   • Per-device locations

4. Multi-Tenant Systems

   • Tenant-specific locations
   • Shared building compliance

Feature Highlights

Feature	Benefit
Full Address	Complete street address
Building Details	Floor, room, wing
ELIN Support	Location-specific callback
GPS Coordinates	Precise positioning
Assignment Types	Extension, device, trunk
Special Instructions	First responder notes

---

3. Module Overview (End User/Administrator)

What Can You Do?

• Create location records with full addresses
• Add building/floor/room details
• Assign locations to extensions or devices
• Configure ELIN numbers
• Add emergency contact info
• Include special instructions

🎯 User Roles & Key Capabilities

Role	Key Capabilities
Super Admin	Configures global emergency location taxonomies, verifies platform-wide RAY BAUM’s Act compliance, and manages system address validation standards.
Tenant Admin	Creates and manages physical premises, campuses, buildings, floors, suites, and rooms; assigns ELIN numbers and sets domain-level default locations.
Facility / Safety Manager	Maintains building-level emergency details, entry instructions, hazardous material notes, and on-site security dispatch contact information.
End User / Extension	Inherits precise dispatchable address metadata and assigned ELIN upon dialing 911, ensuring first responders are directed to the exact room or floor.

Dispatch Location Form

┌─────────────────────────────────────────────────────────────────┐
│              Create Dispatch Location                           │
├─────────────────────────────────────────────────────────────────┤
│                                                                 │
│  Section: Basic Information                                     │
│  ├─ Location Name: Main Building - 3rd Floor East              │
│  ├─ Location Code: MB-3E                                       │
│  └─ Enabled: ✓                                                 │
│                                                                 │
│  Section: Assignment                                            │
│  ├─ Assignment Type: [User/Extension ▼]                        │
│  └─ Extension: [1001 - John Smith ▼]                           │
│                                                                 │
│  Section: Street Address                                        │
│  ├─ Street Number: 123                                         │
│  ├─ Street Name: Main                                          │
│  ├─ Street Suffix: Street                                      │
│  ├─ Unit Type: [Suite ▼]                                       │
│  ├─ Unit Number: 300                                           │
│  ├─ City: Miami                                                │
│  ├─ State: FL                                                  │
│  ├─ ZIP Code: 33131                                            │
│  └─ Country: US                                                │
│                                                                 │
│  Section: Building/Room Details                                 │
│  ├─ Building Name: Main Building                               │
│  ├─ Floor: 3                                                   │
│  ├─ Room: 310                                                  │
│  └─ Wing: East                                                 │
│                                                                 │
│  Section: Emergency Information                                 │
│  ├─ ELIN: +13055551234                                         │
│  ├─ Contact Name: John Smith                                   │
│  ├─ Contact Phone: (305) 555-9999                              │
│  └─ Special Instructions: Enter through main lobby...         │
│                                                                 │
│  [Save] [Cancel]                                                │
│                                                                 │
└─────────────────────────────────────────────────────────────────┘

Quick Tips

[!TIP] Be Specific: Include floor, room, and wing for large buildings.

[!TIP] Update Regularly: Verify locations when employees move.

[!CAUTION] Critical Data: Inaccurate locations delay emergency response.

---

4. Configuration Fields Reference

Basic Information

Field	Description	Example
Location Name	Descriptive name	Main Bldg - 3rd Fl East
Location Code	Short identifier	MB-3E
Enabled	Active status	On/Off

Assignment

Field	Description
Assignment Type	User/Extension, Device, or Trunk
Extension ID	Associated extension
Device MAC	Device MAC address
Site ID	Site identifier

Street Address

Field	Description	Example
Street Number	Building number	123
Street Name	Street name	Main
Street Suffix	Type	Street, Avenue
Unit Type	Unit category	Suite, Floor
Unit Number	Unit value	300
City	City name	Miami
State	State code	FL
ZIP Code	Postal code	33131
Country	Country code	US

Building/Room Details

Field	Description	Example
Building Name	Building identifier	Main Building
Floor	Floor number	3
Room	Room number	310
Wing	Building wing	East
Latitude	GPS latitude	25.7617
Longitude	GPS longitude	-80.1918

Emergency Information

Field	Description
ELIN	Emergency Location ID Number
Contact Name	On-site emergency contact
Contact Phone	Contact phone number
Special Instructions	First responder notes
Validated	Address verified

---

5. Address Components

Unit Types

Type	Usage
None	No sub-unit
Apartment	Residential apt
Suite	Office suite
Floor	Entire floor
Office	Specific office
Building	Entire building
Department	Dept area
Penthouse	Top floor unit
Basement	Below ground

Assignment Types

Type	Description
User/Extension	Assigned to extension
Device	Assigned to MAC address
Trunk	Assigned to SIP trunk

---

6. Common Scenarios & Examples

Scenario 1: Single Floor Office

Location:

Field	Value
Name	Miami Office
Street	123 Main Street
Suite	300
City/State/ZIP	Miami, FL 33131
ELIN	+13055551001
Assigned To	All extensions

Scenario 2: Multi-Floor Building

Per-Floor Locations:

Location	Floor	ELIN
Main Bldg - 1st Floor	1	+13055551001
Main Bldg - 2nd Floor	2	+13055551002
Main Bldg - 3rd Floor	3	+13055551003

Scenario 3: Campus with Multiple Buildings

Per-Building Locations:

Building	Address	ELIN
Main Building	100 Campus Dr	+13055551100
Warehouse	200 Campus Dr	+13055551200
Annex	300 Campus Dr	+13055551300

Scenario 4: Remote Worker

Home Office Location:

Field	Value
Name	John Smith - Home Office
Street	456 Oak Lane
City/State/ZIP	Fort Lauderdale, FL 33301
ELIN	+19545552001
Assigned To	Extension 1050

---

7. Limitations & Important Notes

Technical Notes

[!IMPORTANT] RAY BAUM’s Act: Dispatchable locations required as of January 2022.

[!WARNING] Accuracy Critical: Wrong location = delayed emergency response.

[!NOTE] ELIN Required: Each location needs unique callback number.

Validation Requirements

Field	Requirement
Street Number	Required
Street Name	Required
City	Required
State	Required
ZIP Code	Required
Country	Required

Best Practices

1. Verify Addresses: Validate with USPS/carrier
2. Update Regularly: When employees move
3. Unique ELINs: One per location
4. Contact Info: Current emergency contact
5. Special Instructions: Access codes, hazards

---

8. Model Context Protocol (MCP) AI Integration

The Ring2All Platform Copilot connects directly with the Dispatchable Locations directory via the Model Context Protocol (MCP) to manage physical corporate addresses, verify postal dispatch data, and register emergency locations compliant with RAY BAUM’s Act.

Exposed MCP Tools

Tool Name	Operation	Primary Parameters	Description
list_dispatch_locations	Directory Query	search (string, optional)	Lists all physical dispatch addresses registered in the active domain, including city, state, postal code, and validation status.
create_dispatch_location	Location Registration	locationName (string), streetNumber (string), streetName (string), city (string), state (string), postalCode (string)	Registers a verified physical address for E911 emergency response.
delete_dispatch_location	Location Removal	identifier (string or ID)	Deletes a dispatch location record by name or ID.

Location Name Uniqueness & RAY BAUM’s Act Safeguards

• Domain-Scoped Uniqueness: The location_name must be unique across the tenant domain (SELECT id FROM dispatch_locations WHERE domain_id = :domain_id AND location_name = :location_name). Duplicate friendly names (e.g., creating multiple “Building A Floor 2” entries) are rejected.
• Mandatory Civic Address Elements: In compliance with RAY BAUM’s Act, the system requires Street Number, Street Name, City, State/Province, and Postal/ZIP code before any dispatch location can be marked valid or assigned to an extension’s Emergency Location Identification Number (ELIN).

Example MCP Payloads

1. Registering a New Office Dispatch Location (create_dispatch_location)

{
  "locationName": "Headquarters - 4th Floor Suite 400",
  "streetNumber": "100",
  "streetName": "Biscayne Blvd",
  "city": "Miami",
  "state": "FL",
  "postalCode": "33132",
  "country": "US"
}

Response:

{
  "success": true,
  "data": {
    "message": "Dispatch Location \"Headquarters - 4th Floor Suite 400\" registered successfully!",
    "locationName": "Headquarters - 4th Floor Suite 400",
    "id": 23,
    "address": "100 Biscayne Blvd, Miami, FL 33132"
  }
}

2. Querying Registered Locations (list_dispatch_locations)

{
  "search": "Miami"
}

Copilot Natural Language Prompts

• “List all physical dispatch locations registered for our PBX.”
• “Add a new dispatchable location for our Austin Branch: 500 Congress Ave, Suite 300, Austin, TX 78701.”
• “Verify if our headquarters location has been marked as validated by the E911 carrier.”
• “Delete the old warehouse dispatch location that was vacated last month.”

---

9. Troubleshooting Tips

Common Issues

Symptom	Possible Cause	Solution
Location not used	Not assigned	Assign to extension
Wrong location	Outdated record	Update location
No ELIN	Missing field	Add ELIN number
Address rejected	Invalid format	Use standard format
Not validated	Not verified	Validate with carrier

Diagnostic SQL

List dispatch locations:

SELECT id, location_name, street_number, street_name, city, state,
       building_name, floor, room, elin, enabled
FROM public.dispatch_locations
WHERE domain_id = [domain_id];

Find location by extension:

SELECT dl.*
FROM public.dispatch_locations dl
JOIN public.sip_extensions se ON dl.extension_id = se.id
WHERE se.extension = '1001';

---

10. Glossary

Term	Definition
Dispatchable Location	Precise physical address with floor/room
ELIN	Emergency Location Identification Number
RAY BAUM’s Act	US law requiring dispatchable locations
NG911	Next Generation 911
PSAP	Public Safety Answering Point
GPS Coordinates	Latitude/longitude location

---

Documentation last updated: January 2026
